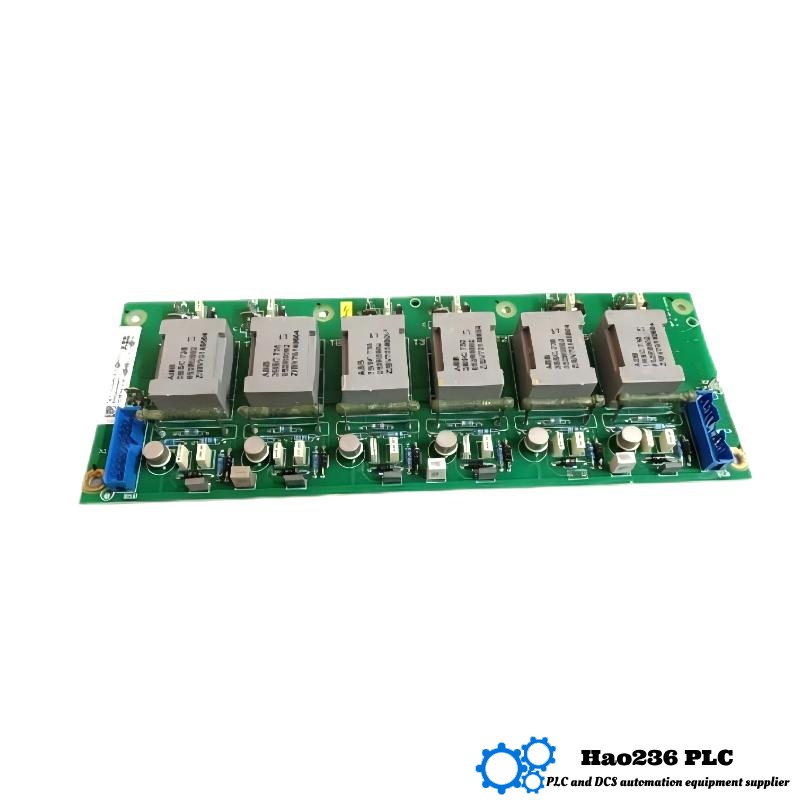

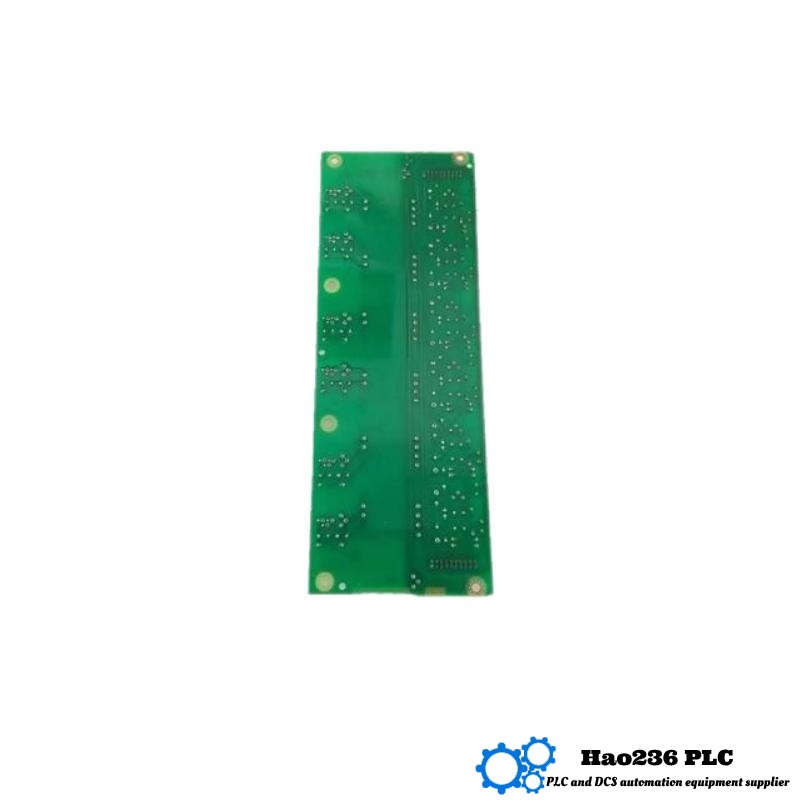

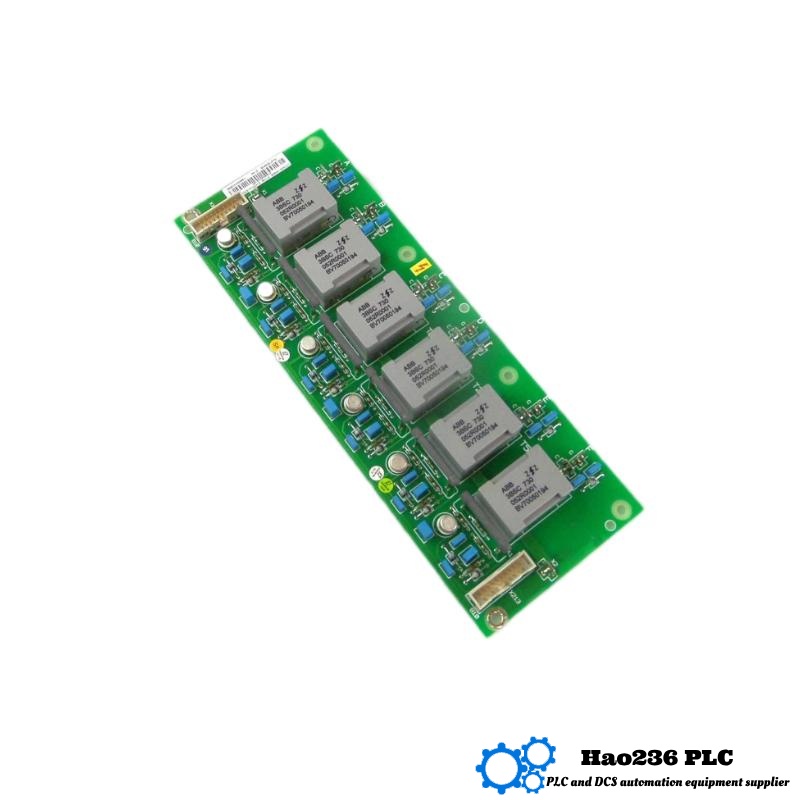

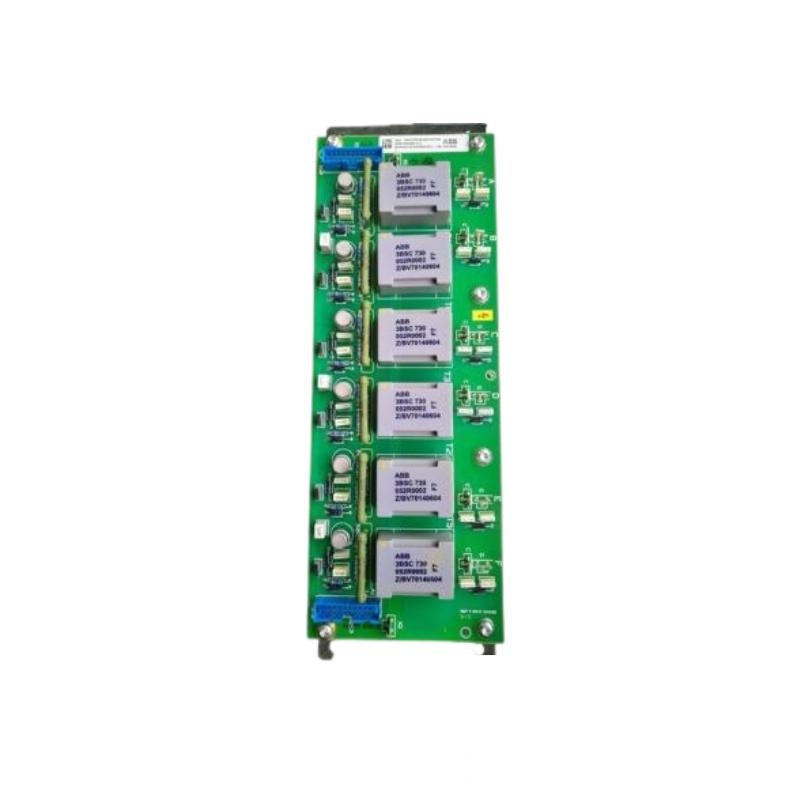

ABB SDCS-PIN48-SD 3BSE004939R1512 Pulse Transformer Board
Product Overview
The ABB SDCS-PIN48-SD 3BSE004939R1512 is a specialized pulse transformer board designed for high-performance applications in industrial automation systems. It plays a crucial role in ensuring reliable pulse transmission and accurate signal processing in automated control systems. This component is part of ABB’s SDCS (System Design Control Solutions) series, which is known for its robust performance and integration in a wide range of industrial environments.
Key Specifications
| Parameter | Value |
|---|---|
| Dimensions | 265 x 110 x 40 mm |
| Weight | 0.328 kg |
| Input Voltage | 24 VDC (Nominal) |
| Output Voltage | 24 VDC (Nominal) |
| Signal Type | Pulse/Signal Transmission |
| Temperature Range | -25°C to +70°C |
| Compatibility | ABB SDCS Series Controllers |
| Mounting | DIN Rail Mountable |
| Connector Type | Screw Terminal Block |
| Protection | Overvoltage Protection |
Product Applications
The SDCS-PIN48-SD 3BSE004939R1512 pulse transformer board is primarily used in:
-
Industrial Automation: For signal transmission between control systems and actuators, ensuring precise data flow.
-
Process Control Systems: Helps maintain signal integrity in environments with high electrical noise.
-
Robotics: Used in robotic systems to relay pulse signals that control movement and synchronization.
-
Energy Systems: In systems requiring precise signal handling and synchronization for power generation and distribution.
Product Advantages
-
Reliability: Built with ABB’s industry-standard components, ensuring long-term reliability in harsh industrial conditions.
-
High Precision: Ensures accurate pulse transmission, crucial for systems requiring high synchronization accuracy.
-
Compatibility: Designed to work seamlessly with other ABB SDCS series products, making integration into existing setups simple.
-
Compact Size: Its small form factor makes it easy to integrate into confined spaces within control panels.
-
Wide Temperature Range: Can operate in extreme temperatures, making it suitable for a variety of industrial environments.
Brand: ABB
ABB is a global leader in power and automation technologies, offering innovative solutions across a wide range of industries, including energy, robotics, and manufacturing automation. Their products are known for their durability, high performance, and integration with advanced control systems.
Related Models from the Same Series
| Model Number | Description | Dimensions (mm) | Weight (kg) | Input Voltage | Output Voltage | Signal Type |
|---|---|---|---|---|---|---|
| SDCS-PIN48-SD 3BSE004939R1509 | Pulse Transformer Board | 265 x 110 x 40 | 0.328 | 24 VDC | 24 VDC | Pulse |
| SDCS-PIN48-SD 3BSE004939R1510 | Pulse Transformer Board | 265 x 110 x 40 | 0.328 | 24 VDC | 24 VDC | Pulse |
| SDCS-PIN48-SD 3BSE004939R1513 | Pulse Transformer Board | 265 x 110 x 40 | 0.328 | 24 VDC | 24 VDC | Pulse |
| SDCS-PIN48-SD 3BSE004939R1514 | Pulse Transformer Board | 265 x 110 x 40 | 0.328 | 24 VDC | 24 VDC | Pulse |
| SDCS-PIN48-SD 3BSE004939R1515 | Pulse Transformer Board | 265 x 110 x 40 | 0.328 | 24 VDC | 24 VDC | Pulse |
Popular Models from ABB
| Model Number | Description | Dimensions (mm) | Weight (kg) | Input Voltage | Output Voltage | Signal Type |
|---|---|---|---|---|---|---|
| SDCS-CON-1 3BSE003265R1 | Controller for Automation Systems | 400 x 300 x 150 | 3.2 | 24 VDC | 24 VDC | Digital Control |
| ABB 07KT97 3HAC024217-001 | Power Supply for Industrial Equipment | 200 x 100 x 50 | 0.5 | 230 VAC | 24 VDC | Power Supply |
| ABB 07KT96 3HAC024213-001 | I/O Module for Control Systems | 150 x 120 x 80 | 1.2 | 24 VDC | 24 VDC | Digital I/O |
| ABB 07KR91 3HAC029167-001 | Servo Motor Controller | 250 x 200 x 60 | 1.8 | 400 V AC | 24 VDC | Motion Control |
| ABB SDCS-MAP 3BSE003278R1 | Automation Interface Module | 180 x 160 x 70 | 1.1 | 24 VDC | 24 VDC | Interface |
FAQ (Frequently Asked Questions)
Q1: What is the main purpose of the SDCS-PIN48-SD 3BSE004939R1512?
A1: The SDCS-PIN48-SD 3BSE004939R1512 is a pulse transformer board used to transmit signals in industrial automation systems, ensuring precise and reliable pulse signal handling.
Q2: What type of input voltage does the SDCS-PIN48-SD support?
A2: It operates with a nominal input voltage of 24 VDC.
Q3: Can the SDCS-PIN48-SD be used in extreme temperatures?
A3: Yes, it can function in temperatures ranging from -25°C to +70°C, making it suitable for various industrial environments.
Q4: What is the weight of the SDCS-PIN48-SD?
A4: The weight of the SDCS-PIN48-SD is 0.328 kg.
Q5: Is the SDCS-PIN48-SD compatible with other ABB SDCS products?
A5: Yes, it is designed to be fully compatible with other ABB SDCS series controllers and modules.
Q6: How is the SDCS-PIN48-SD mounted?
A6: It is designed for DIN rail mounting, allowing for easy installation in control panels.
Q7: Does the SDCS-PIN48-SD come with overvoltage protection?
A7: Yes, it includes overvoltage protection to safeguard the system.
Q8: What is the output voltage of the SDCS-PIN48-SD?
A8: The output voltage is 24 VDC (nominal).
Q9: Can the SDCS-PIN48-SD handle high electrical noise environments?
A9: Yes, it is designed to operate effectively in environments with significant electrical interference, making it ideal for industrial automation.
Q10: What is the size of the SDCS-PIN48-SD?
A10: The dimensions are 265 x 110 x 40 mm.
