Product Overview

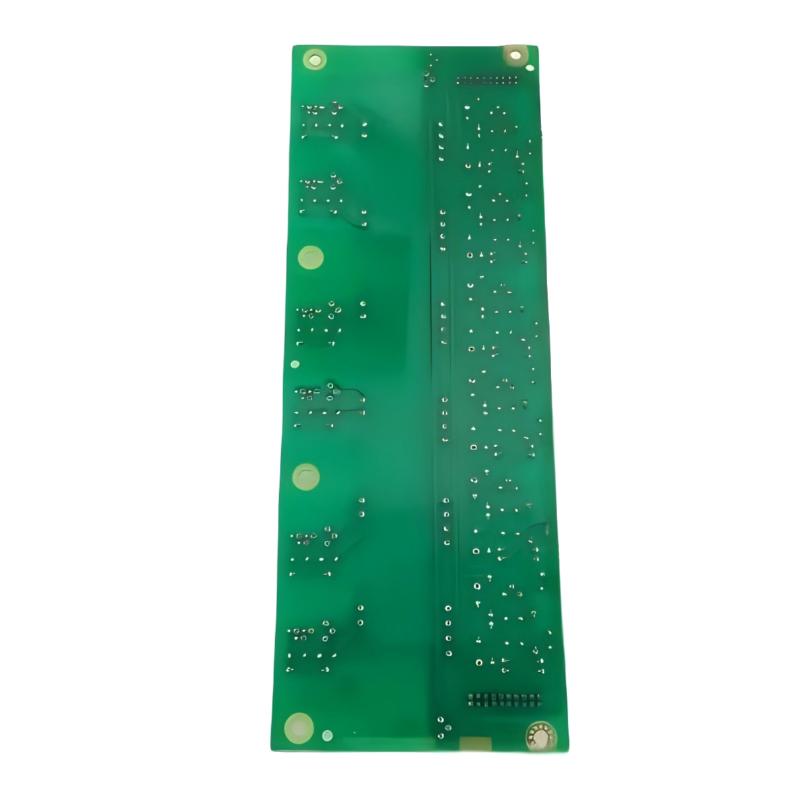

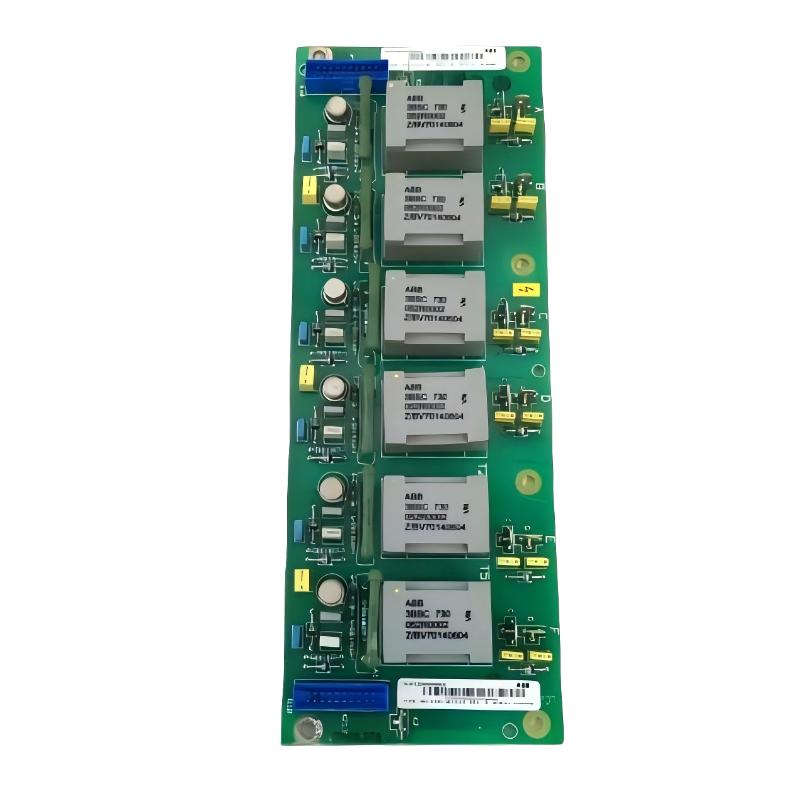

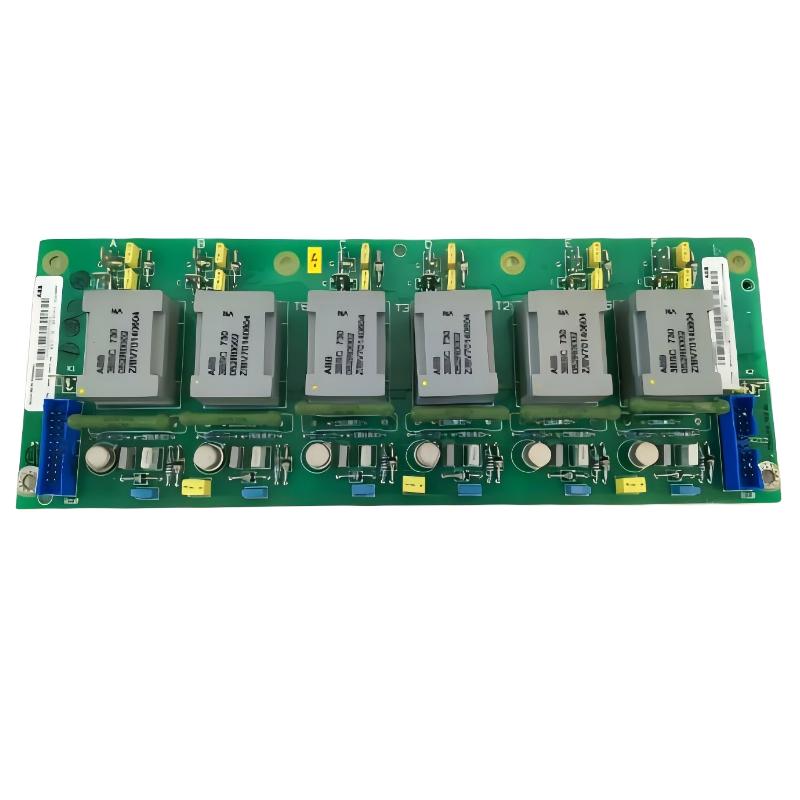

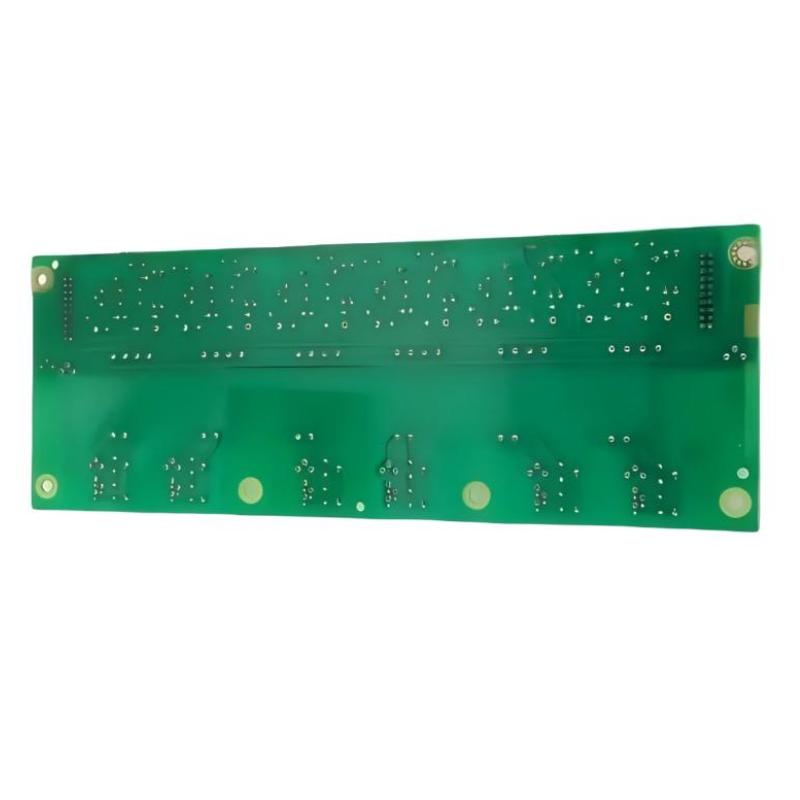

The ABB SDCS-PIN-H41 3ADT320600R1501 Trigger Pulse Transformer Board is a specialized power interface component designed for ABB industrial DC drive and converter systems. It provides reliable firing pulse transmission between the control system and power semiconductor devices, ensuring accurate triggering control and stable converter operation.
The SDCS-PIN-H41 Trigger Pulse Transformer Board plays an important role in ABB high-power converter applications. It is designed to transfer isolated trigger signals to power components while maintaining electrical separation between the control section and power section.
The board supports reliable communication between the drive control electronics and power unit, helping improve switching accuracy, system stability, and operational reliability. It is widely used in ABB DC drive systems requiring precise firing pulse control and dependable power conversion performance.
The ABB SDCS-PIN-H41 features a compact industrial design suitable for installation inside ABB converter modules. It is engineered for demanding applications where stable pulse transmission and electrical isolation are essential.
The ABB SDCS-PIN-H41 configuration includes:
- Product Type: Trigger Pulse Transformer Board
- Model: SDCS-PIN-H41
- Order Number: 3ADT320600R1501
- Product Series: ABB SDCS Drive System
- Function: Firing Pulse Signal Transmission
- Application: Industrial DC Drive and Converter Systems
- Dimension: 130 x 100 x 20 mm
- Weight: 0.24 kg
The ABB SDCS-PIN-H41 provides a reliable firing pulse interface solution for ABB converter systems requiring accurate power device triggering and stable operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-H41 |
| Order Number | 3ADT320600R1501 |
| Product Type | Trigger Pulse Transformer Board |
| Product Category | Drive Interface Board |
| Product Series | ABB SDCS Drive System |
| Function | Firing Pulse Signal Isolation and Transmission |
| Application Area | Industrial Automation |
| Installation Type | Converter Module Installation |
| Cooling Method | Natural Cooling |
| Dimension | 130 x 100 x 20 mm |
| Weight | 0.24 kg |
| Main Function | Power Semiconductor Trigger Control |
Function and Working Principle
The ABB SDCS-PIN-H41 Trigger Pulse Transformer Board works as an interface between the drive control unit and power converter section.
The board receives firing commands from the control electronics and transfers isolated pulse signals to power semiconductor components. Through pulse transformer technology, it ensures accurate switching control while protecting the control circuits from high-voltage interference.
The working process includes:
- Receiving firing pulse signals from the control system.
- Providing electrical isolation through transformer circuits.
- Amplifying and transmitting trigger pulses.
- Delivering accurate signals to power semiconductor devices.
- Supporting stable converter switching operation.
The SDCS-PIN-H41 provides:
- Accurate firing pulse transmission
- Electrical isolation protection
- Stable power device triggering
- Improved converter reliability
- Reduced signal interference
Product Functions
| Function | Description |
|---|---|
| Trigger Pulse Transmission | Sends firing signals to power devices |
| Electrical Isolation | Separates control and power circuits |
| Signal Amplification | Improves pulse signal reliability |
| Converter Control Support | Maintains stable switching operation |
| Power Module Interface | Connects control and power sections |
| Drive System Protection | Enhances operational stability |
Industrial Applications
The ABB SDCS-PIN-H41 is widely used in high-power industrial drive and converter applications.
| Industry | Application |
|---|---|
| Manufacturing | Industrial DC motor control systems |
| Metal Processing | High-power converter equipment |
| Paper Industry | Continuous production drive systems |
| Mining Industry | Heavy-duty motor applications |
| Material Handling | Large motor drive systems |
| Power Industry | Power conversion equipment |
| OEM Machinery | Customized industrial drives |
| Process Industry | Automation and motor control systems |
Typical applications include:
- ABB DC drive systems
- ABB converter modules
- Thyristor power control systems
- High-power motor control equipment
- Industrial power electronics
- Drive replacement and maintenance projects
Installation Guide
Installation Preparation
Before installing the ABB SDCS-PIN-H41:
- Confirm the correct model and order number.
- Verify compatibility with the ABB converter system.
- Disconnect all electrical power.
- Prepare a clean installation environment.
- Inspect the board for physical damage.
- Check connectors and mounting points.
Hardware Installation
Installation steps:
- Shut down the ABB drive system completely.
- Disconnect all incoming power supplies.
- Remove the existing trigger pulse transformer board if required.
- Install the SDCS-PIN-H41 in the correct converter position.
- Connect all pulse signal interfaces.
- Confirm connector alignment.
- Restore power and perform system testing.
Installation Recommendations
During installation:
- Always disconnect power before maintenance.
- Handle the PCB carefully.
- Avoid damaging transformer components.
- Keep connectors clean and secure.
- Verify wiring before startup.
- Maintain proper cabinet ventilation.
Correct installation ensures reliable pulse transmission and stable converter performance.
Commissioning Guide
After installation:
- Confirm correct board mounting.
- Check all pulse signal connections.
- Verify communication between control and power sections.
- Monitor converter startup.
- Check system alarms.
- Confirm normal operation.
Proper commissioning ensures reliable performance of the ABB SDCS-PIN-H41 within the drive system.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Converter Cannot Start | Missing firing pulse signal | Check pulse connections |
| Power Device Not Triggering | Transformer circuit fault | Inspect board condition |
| Uneven Converter Operation | Incorrect pulse transmission | Verify signal wiring |
| Drive Alarm Appears | Interface board problem | Check board status |
| Switching Failure | Pulse output interruption | Test trigger signals |
| Board Damage | Electrical stress | Replace Trigger Pulse Transformer Board |
Maintenance Recommendations
To maintain reliable operation of the ABB SDCS-PIN-H41:
- Inspect pulse transformer components regularly.
- Check connectors for oxidation or looseness.
- Keep the converter cabinet clean.
- Monitor drive fault records.
- Verify firing pulse signals.
- Replace damaged boards promptly.
Regular maintenance helps improve converter reliability and reduce unexpected downtime.
System Integration
The ABB SDCS-PIN-H41 can be integrated into ABB industrial converter systems.
| System | Application |
|---|---|
| ABB DC Drive System | Trigger pulse interface |
| Converter Module | Power device control |
| Motor Control System | Drive operation support |
| Industrial Cabinet System | Board installation |
| Automation System | Control signal integration |
The Trigger Pulse Transformer Board provides reliable communication between the ABB control unit and power converter section.
Key Advantages
- Designed for ABB SDCS drive systems
- Reliable firing pulse transmission
- Provides electrical isolation
- Supports high-power converter operation
- Stable switching control performance
- Compact industrial design
- Improves drive system reliability
- Suitable for demanding industrial environments
Technical FAQs
What is the ABB SDCS-PIN-H41 used for?
The ABB SDCS-PIN-H41 is a Trigger Pulse Transformer Board used for transmitting isolated firing signals to power semiconductor devices in ABB converter systems.
What is the order number of the SDCS-PIN-H41?
The order number is 3ADT320600R1501.
What is the main function of the SDCS-PIN-H41?
The main function is to provide accurate firing pulse transmission and electrical isolation between the control system and power converter section.
What is the dimension of the ABB SDCS-PIN-H41?
The dimension is 130 x 100 x 20 mm.
What is the weight of the SDCS-PIN-H41?
The weight is 0.24 kg.
What applications are suitable for the SDCS-PIN-H41?
The SDCS-PIN-H41 is suitable for ABB DC drives, converter systems, industrial motor control equipment, and high-power automation applications.
Conclusion
The ABB SDCS-PIN-H41 3ADT320600R1501 Trigger Pulse Transformer Board is a reliable industrial control component designed for ABB DC drive and converter systems.
With accurate firing pulse transmission, electrical isolation capability, stable switching performance, and dependable industrial operation, the SDCS-PIN-H41 provides an effective solution for maintaining high-performance power conversion and automation systems.
