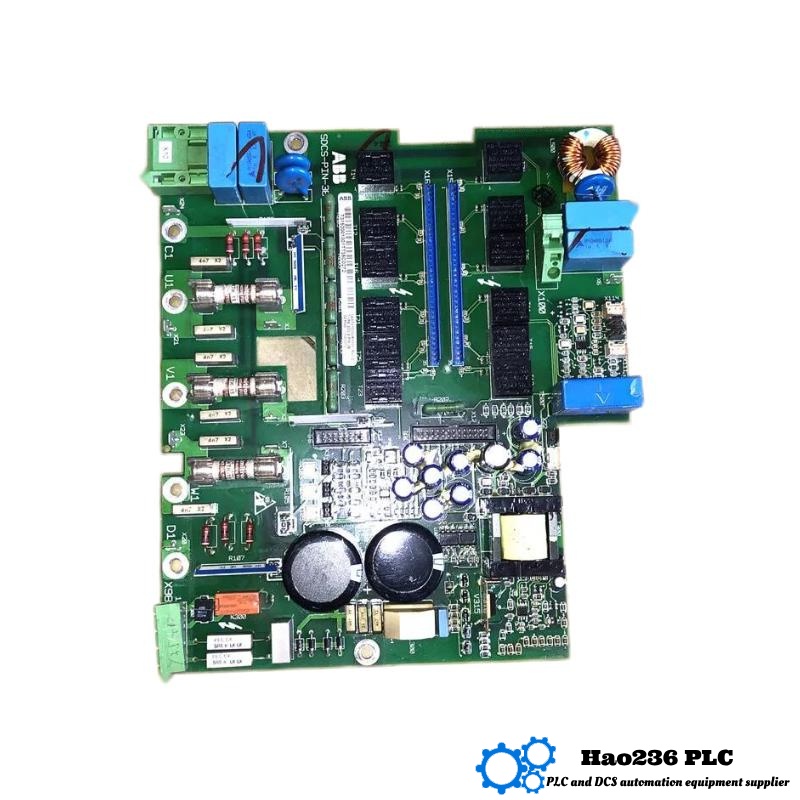

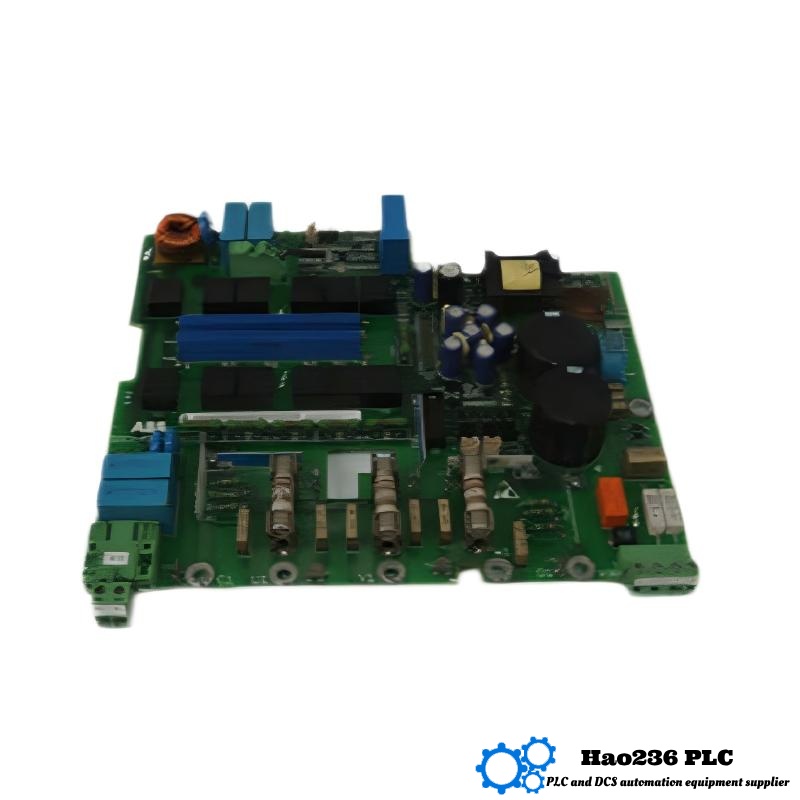

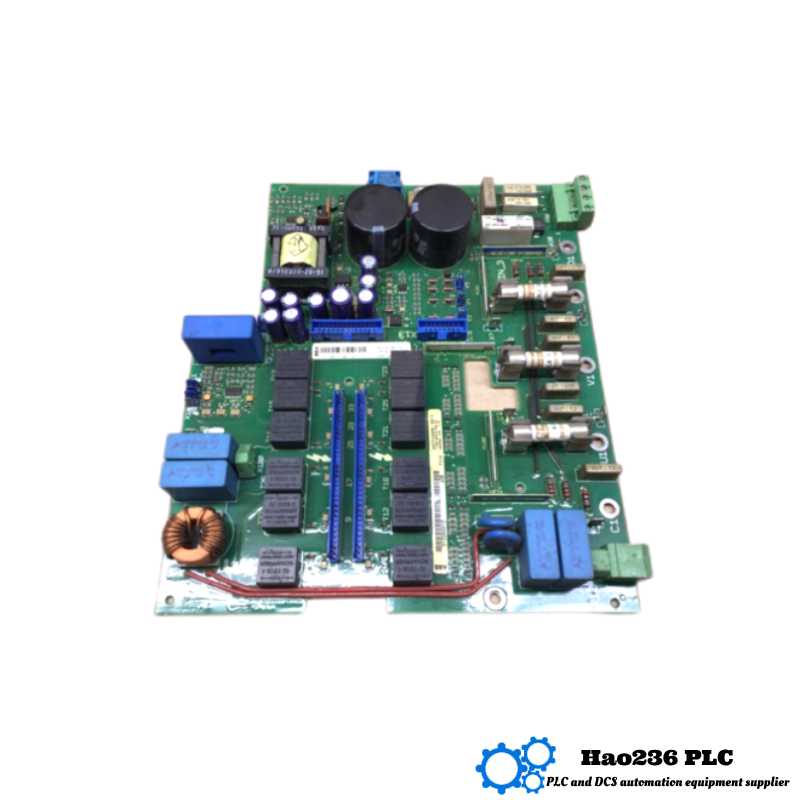

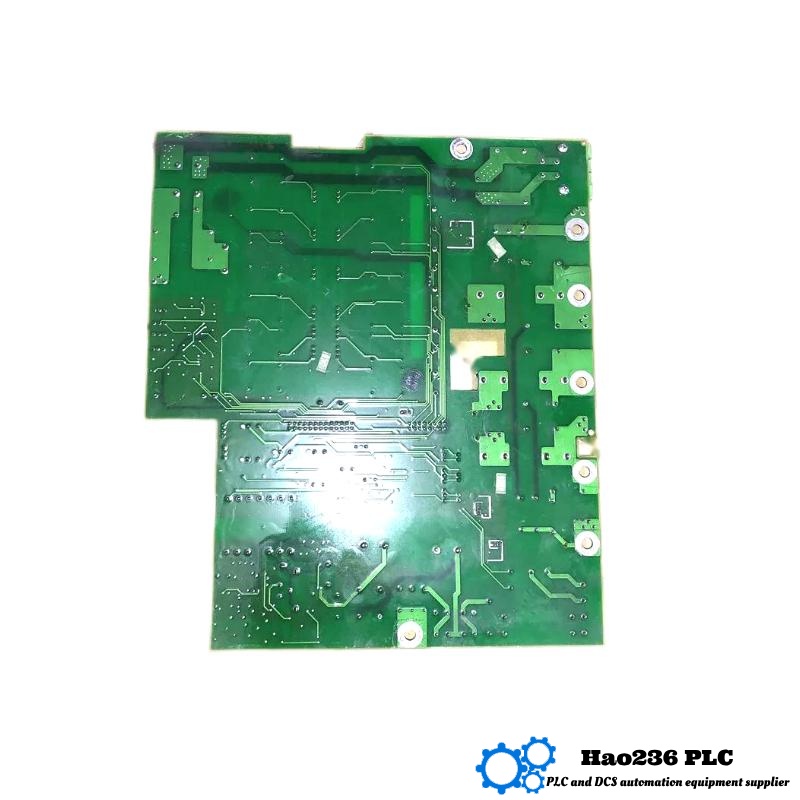

ABB SDCS-PIN-3 3ADT220120R0002 Power Interface Board
Product Introduction
The ABB SDCS-PIN-3 (part number 3ADT220120R0002) is a power interface board designed to provide critical connectivity and functionality in ABB’s automation and control systems. This interface board is specifically engineered for seamless integration with ABB’s SDCS series control systems, offering reliable power distribution and management for various industrial applications. The SDCS-PIN-3 acts as a pivotal component in ensuring that all connected systems receive consistent and optimal power, helping to maintain overall system stability and performance.
The board is built to handle demanding environments and is an essential part of ABB’s range of industrial automation solutions. As part of ABB’s well-known SDCS product family, the SDCS-PIN-3 ensures superior reliability, efficiency, and robustness in handling power requirements across a wide range of automation processes.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB SDCS-PIN-3 Power Interface Board |
| Part Number | 3ADT220120R0002 |
| Type | Power Interface Board |
| Dimensions (mm) | 156 x 154 x 20 |
| Weight (kg) | 0.6 |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Operating Temperature | –10°C to 60°C |
| Mounting | DIN Rail Mountable |
| Material | High-quality industrial-grade components |
| Communication Protocol | SDCS Communication Interface |
Product Applications
The ABB SDCS-PIN-3 power interface board is designed for a variety of industrial applications requiring reliable power distribution and control. Some of the most common applications include:
-
Industrial Automation: It acts as the backbone for power management in automated manufacturing systems, ensuring uninterrupted operation of motors and machinery.
-
Power Systems: Used in power generation facilities, the SDCS-PIN-3 ensures that power systems remain stable, with efficient power distribution to various control systems.
-
HVAC Systems: For HVAC systems, the SDCS-PIN-3 distributes power to key components, ensuring energy-efficient and stable operations.
-
Energy Control Systems: In large-scale energy management systems, the SDCS-PIN-3 ensures that the various components are powered adequately, supporting both operational efficiency and energy savings.
-
Robotic Systems: The power interface board plays a crucial role in powering robotic arms and automated assembly lines within industrial settings.
Product Advantages
-
Reliable Power Distribution: The SDCS-PIN-3 ensures efficient and stable power distribution to connected components, minimizing downtime and ensuring seamless operation.
-
Robust Design: With a high-quality build and industrial-grade materials, the board is engineered to withstand harsh environmental conditions, making it perfect for demanding industrial settings.
-
Compact and Space-Saving: Its small size (156 x 154 x 20 mm) makes it easy to integrate into space-constrained setups without compromising on functionality.
-
Efficient Operation: Designed for maximum efficiency, it provides optimal power supply with minimal energy loss, helping to improve the overall efficiency of the system it is integrated into.
-
Easy Integration: The SDCS-PIN-3 is designed to work seamlessly with other ABB automation products, ensuring quick and easy integration into existing control systems.
Brand: ABB
ABB is a global leader in industrial automation, providing a wide range of products and solutions designed to enhance the efficiency, productivity, and safety of industrial operations. The SDCS series, including the SDCS-PIN-3, is part of ABB’s commitment to delivering high-quality, reliable, and innovative solutions for automation and control in industries such as manufacturing, energy, and utilities.
Recommended Models
Here are five additional models from the SDCS series or related ABB products that are suitable for similar applications:
| Model | Type | Key Features |
|---|---|---|
| SDCS-PIN-2 | Power Interface Board | Compact and reliable power interface for SDCS systems. |
| SDCS-PIN-4 | Power Interface Board | Advanced version with additional power handling capacity. |
| SDCS-IOE-2 | I/O Expansion Module | Expands the input/output capabilities of SDCS systems. |
| SDCS-IOC-01 | I/O Communication Module | Adds communication interfaces for enhanced system control. |
| SDCS-PIN-5 | Power Interface Board | Newer version with additional safety features for power systems. |
Here are five other popular ABB products from the SDCS series:
| Model | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| SDCS-PIN-22 | VFD Control Interface | 156 x 154 x 20 | 0.6 |
| SDCS-PIN-11 | VFD Control Interface | 156 x 154 x 20 | 0.55 |
| SDCS-IOB-23 | I/O Block Module | 200 x 150 x 30 | 0.7 |
| SDCS-IOE-2 | I/O Expansion Module | 220 x 160 x 35 | 0.75 |
| SDCS-FIS-3A | Fiber Interface Module | 180 x 140 x 25 | 0.65 |
FAQ (Frequently Asked Questions)
-
Q: What is the SDCS-PIN-3 used for?
A: The SDCS-PIN-3 is a power interface board used to manage and distribute power efficiently in ABB SDCS automation systems. -
Q: Can the SDCS-PIN-3 be integrated into an existing ABB system?
A: Yes, it is designed for seamless integration with ABB’s SDCS automation products. -
Q: What is the input voltage for the SDCS-PIN-3?
A: The SDCS-PIN-3 operates with a 24 VDC input voltage. -
Q: What is the operating temperature range of the SDCS-PIN-3?
A: The SDCS-PIN-3 operates within a temperature range of –10°C to 60°C. -
Q: How is the SDCS-PIN-3 mounted?
A: The SDCS-PIN-3 can be mounted on a DIN rail for easy installation in industrial control panels. -
Q: What is the weight of the SDCS-PIN-3?
A: The SDCS-PIN-3 weighs 0.6 kg. -
Q: What are the dimensions of the SDCS-PIN-3?
A: The dimensions are 156 x 154 x 20 mm. -
Q: Is the SDCS-PIN-3 suitable for use in harsh environments?
A: Yes, it is built with industrial-grade materials and is designed to function reliably in demanding industrial environments. -
Q: Does the SDCS-PIN-3 support multiple control systems?
A: Yes, it is compatible with various ABB SDCS automation systems, making it versatile for different control setups. -
Q: Can the SDCS-PIN-3 improve the efficiency of my existing system?
A: Yes, it ensures reliable power distribution, enhancing the overall efficiency of your ABB-controlled system.
