Product Overview

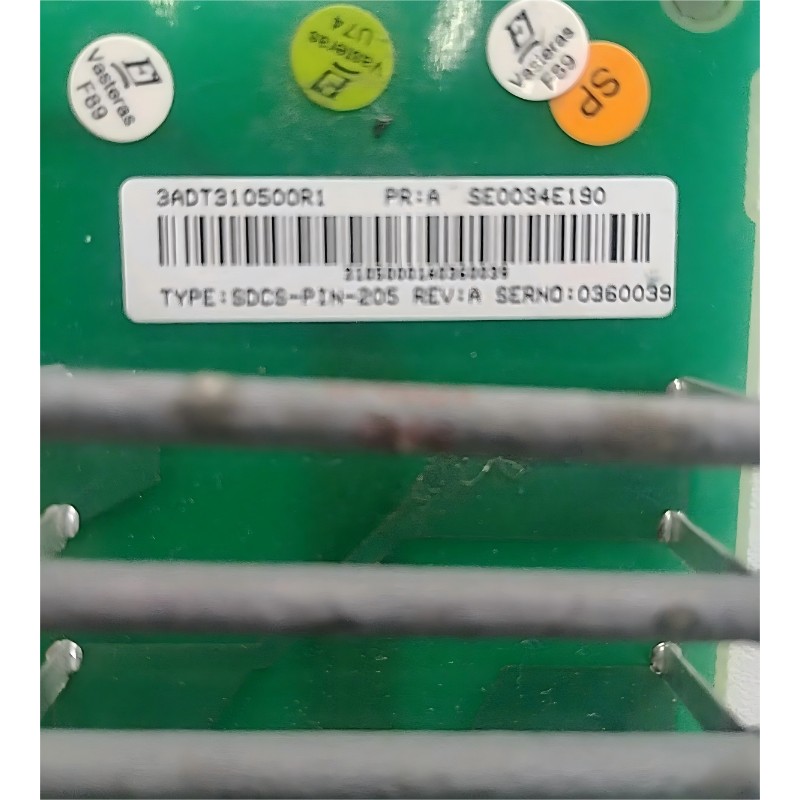

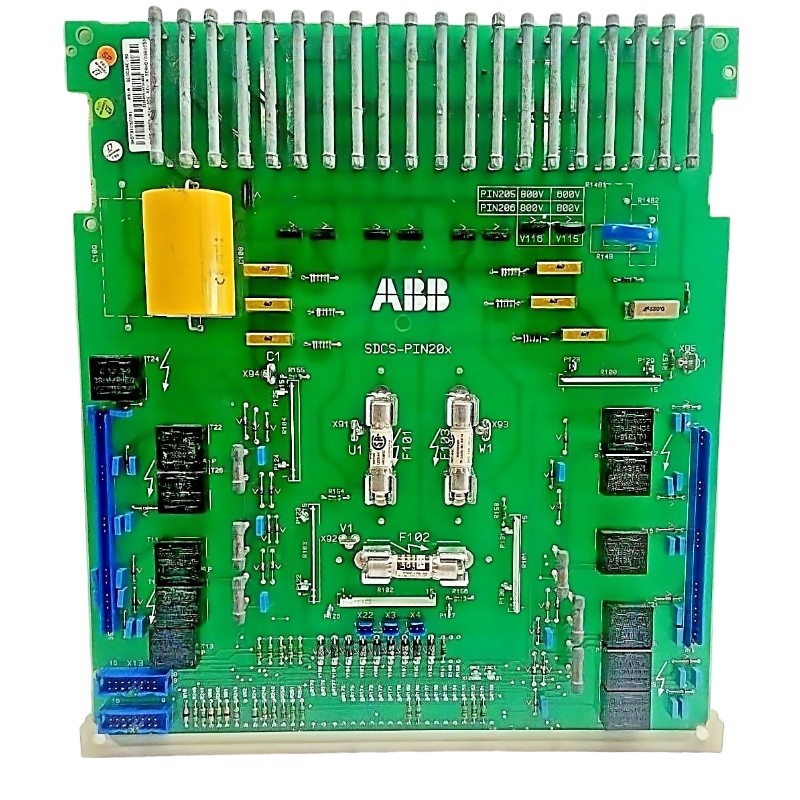

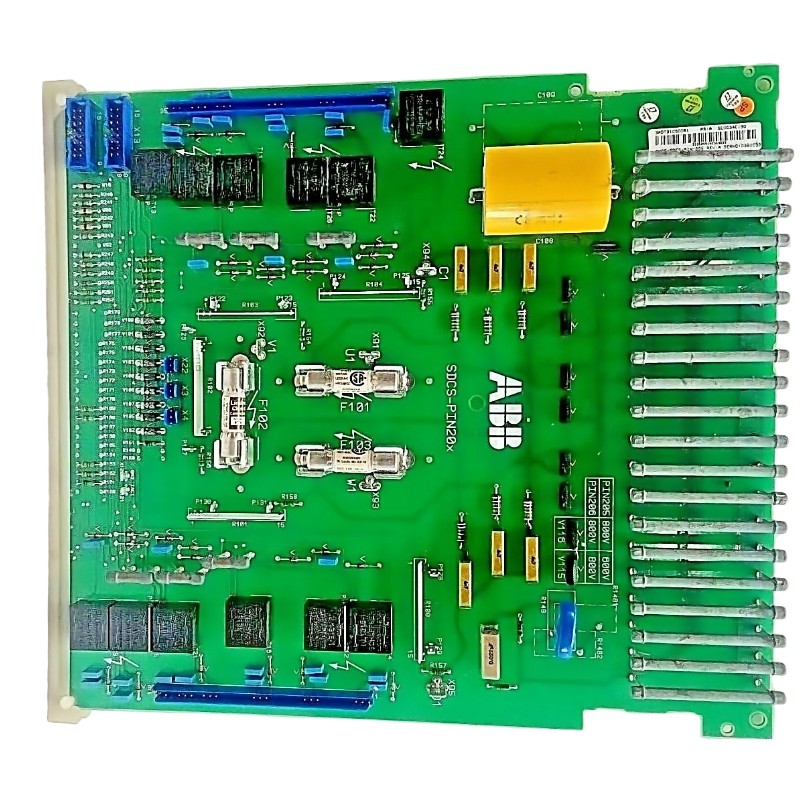

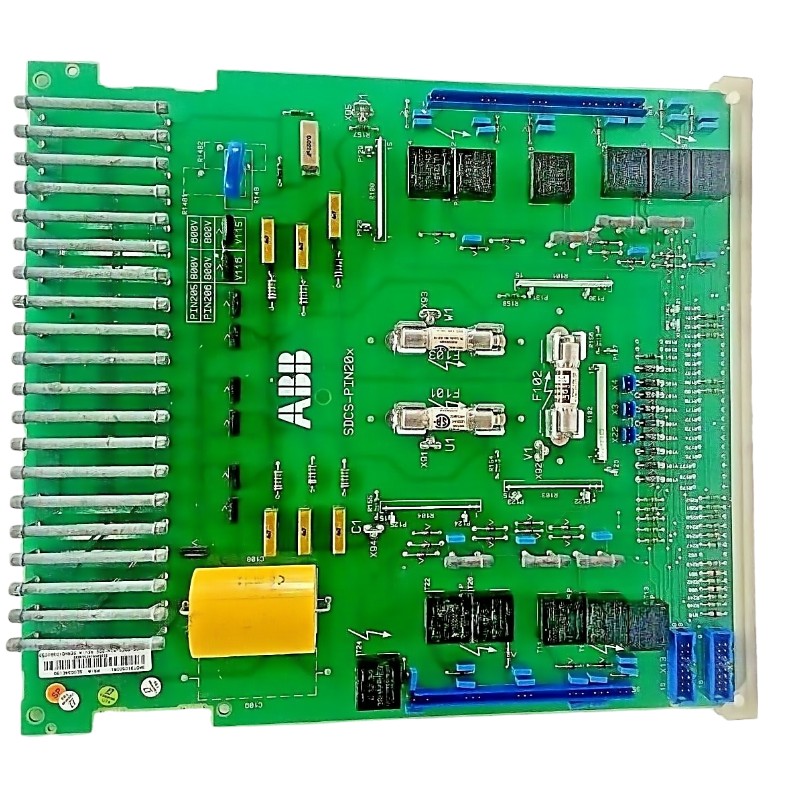

The ABB SDCS-PIN-205 3ADT310500R1 Power Interface Board is an industrial power interface component designed for ABB SDCS drive systems. It provides the interface connection between power components and control circuits, supporting reliable power signal transmission, monitoring, and protection functions in ABB DC drive applications.
The SDCS-PIN-205 Power Interface Board is an important component used in ABB converter systems. It manages the connection between the power section and the control electronics, allowing accurate transmission of power-related signals and supporting stable operation of the drive system.
The board is designed to handle critical interface functions within high-power industrial drive environments. It supports signal routing, voltage measurement, protection circuit connection, and communication between power modules and control units.
The ABB SDCS-PIN-205 features a robust industrial design suitable for demanding applications such as motor control systems, industrial converters, and automation equipment. Its reliable structure ensures stable operation in continuous-duty environments.
The ABB SDCS-PIN-205 configuration includes:
- Product Type: Power Interface Board
- Model: SDCS-PIN-205
- Order Number: 3ADT310500R1
- Product Series: ABB SDCS Drive System
- Function: Power Signal Interface and Control Connection
- Application: Industrial DC Drive and Converter Systems
- Dimension: 265 x 282 x 40 mm
- Weight: 0.5 kg
The ABB SDCS-PIN-205 provides a reliable interface solution for connecting power circuits and control systems in ABB industrial drive applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-205 |
| Order Number | 3ADT310500R1 |
| Product Type | Power Interface Board |
| Product Category | Drive Power Interface Component |
| Product Series | ABB SDCS Drive System |
| Function | Power Signal Interface |
| Application Area | Industrial Automation |
| Installation Type | Drive Cabinet Installation |
| Cooling Method | Natural Cooling |
| Dimension | 265 x 282 x 40 mm |
| Weight | 0.5 kg |
| Main Function | Power and Control Signal Interface |
Function and Working Principle
The ABB SDCS-PIN-205 Power Interface Board operates as an interface unit between the power section and control electronics of ABB drive systems.
The board receives and distributes power-related signals, providing a connection path between power semiconductor components, measurement circuits, and control boards. It supports accurate signal transmission required for safe and stable converter operation.
The working process includes:
- Receiving power section feedback signals.
- Transmitting measurement information to control circuits.
- Supporting protection circuit connections.
- Providing signal interface between power modules and controllers.
- Assisting stable drive operation.
The SDCS-PIN-205 provides:
- Reliable power signal transmission
- Stable interface communication
- Improved drive protection
- Accurate feedback connection
- Enhanced converter reliability
Product Functions
| Function | Description |
|---|---|
| Power Interface | Connects power and control sections |
| Signal Transmission | Transfers drive operating signals |
| Voltage Monitoring Support | Supports power measurement circuits |
| Protection Interface | Connects protection components |
| Converter Control Support | Improves drive system stability |
| System Integration | Enables ABB drive component connection |
Industrial Applications
The ABB SDCS-PIN-205 is widely used in industrial drive and converter applications.
| Industry | Application |
|---|---|
| Manufacturing | Industrial motor control systems |
| Metal Processing | High-power DC drives |
| Paper Industry | Continuous production drives |
| Mining Industry | Heavy-duty converter systems |
| Material Handling | Large motor applications |
| Power Industry | Converter equipment |
| OEM Machinery | Customized drive systems |
| Process Industry | Industrial automation applications |
Typical applications include:
- ABB DC drive systems
- Power converter cabinets
- Industrial motor control equipment
- Drive maintenance projects
- Converter system upgrades
- Automation control systems
Installation Guide
Installation Preparation
Before installing the ABB SDCS-PIN-205:
- Confirm the correct model and order number.
- Verify compatibility with the ABB drive system.
- Disconnect all electrical power.
- Prepare suitable cabinet installation space.
- Check connectors and terminals.
- Inspect the board condition before installation.
Hardware Installation
Installation steps:
- Switch off and isolate the ABB drive system.
- Remove the existing interface board if required.
- Install the SDCS-PIN-205 in the correct mounting position.
- Connect all power and signal interfaces.
- Verify connector alignment.
- Check grounding connections.
- Restore power and perform system testing.
Installation Recommendations
During installation:
- Always disconnect power before maintenance.
- Handle the board carefully.
- Avoid damaging connectors.
- Check all wiring before startup.
- Maintain proper cabinet ventilation.
- Ensure clean installation conditions.
Correct installation helps ensure stable signal transmission and reliable drive operation.
Commissioning Guide
After installation:
- Confirm board installation position.
- Check all electrical connections.
- Verify control system communication.
- Monitor drive startup process.
- Check system feedback signals.
- Confirm normal operation.
Proper commissioning ensures that the SDCS-PIN-205 operates correctly within the ABB drive system.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Drive Cannot Start | Board connection problem | Check connectors and wiring |
| Power Signal Error | Interface connection fault | Inspect signal paths |
| Converter Alarm | Protection circuit issue | Check interface board condition |
| Incorrect Feedback Signal | Wiring problem | Verify measurement connections |
| Communication Failure | Loose connection | Reinstall connectors |
| Board Damage | Electrical stress | Replace interface board |
Maintenance Recommendations
To maintain reliable operation of the ABB SDCS-PIN-205:
- Inspect connectors regularly.
- Check for overheating marks.
- Keep the cabinet clean.
- Verify signal connections.
- Monitor drive fault records.
- Replace damaged components promptly.
Regular maintenance improves system reliability and reduces unexpected equipment downtime.
System Integration
The ABB SDCS-PIN-205 can be integrated into ABB industrial converter systems.
| System | Application |
|---|---|
| ABB SDCS Drive System | Power interface connection |
| Converter System | Power signal management |
| Motor Control System | Drive operation support |
| Industrial Cabinet System | Component integration |
| Automation System | Drive control applications |
The Power Interface Board provides reliable communication between power electronics and control systems.
Key Advantages
- Designed for ABB SDCS drive systems
- Reliable power signal interface
- Supports converter operation
- Improves system stability
- Compact industrial structure
- Suitable for high-power drive applications
- Easy integration into ABB systems
- Enhances maintenance efficiency
Technical FAQs
What is the ABB SDCS-PIN-205 used for?
The ABB SDCS-PIN-205 is a Power Interface Board used to connect power circuits and control electronics in ABB drive systems.
What is the order number of the SDCS-PIN-205?
The order number is 3ADT310500R1.
What is the main function of the SDCS-PIN-205?
The main function is to provide power signal interface and connection between the drive power section and control system.
What is the dimension of the ABB SDCS-PIN-205?
The dimension is 265 x 282 x 40 mm.
What is the weight of the SDCS-PIN-205?
The weight is 0.5 kg.
What applications are suitable for the SDCS-PIN-205?
The SDCS-PIN-205 is suitable for ABB DC drive systems, industrial converters, motor control equipment, and automation applications requiring reliable power interface functions.
Conclusion
The ABB SDCS-PIN-205 3ADT310500R1 Power Interface Board is a reliable industrial interface component designed for ABB SDCS drive and converter systems.
With stable power signal transmission, reliable control interface capability, compact industrial design, and strong system compatibility, the SDCS-PIN-205 provides an effective solution for maintaining high-performance industrial drive applications.
