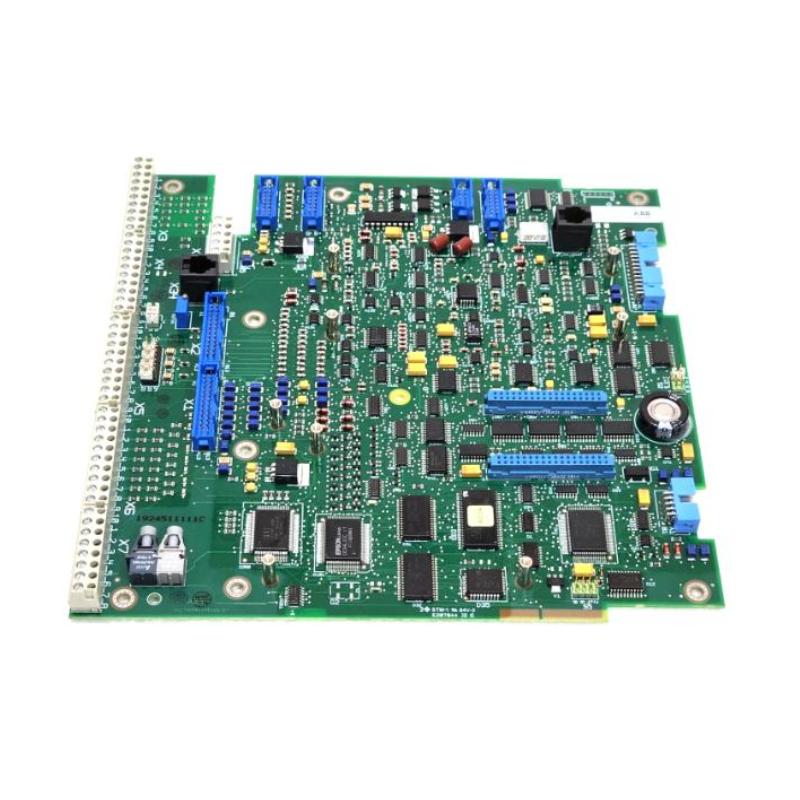

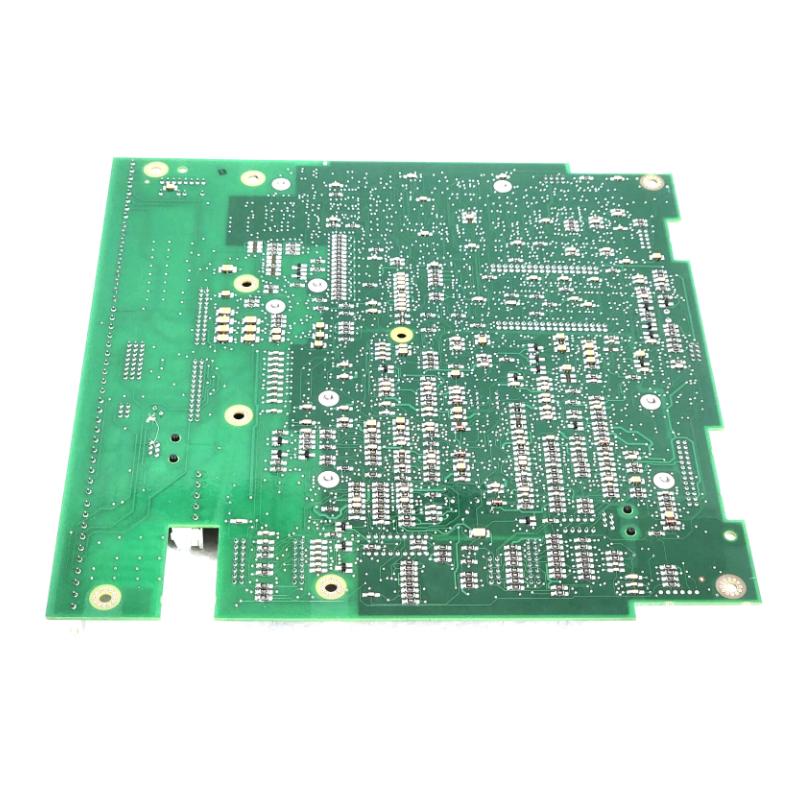

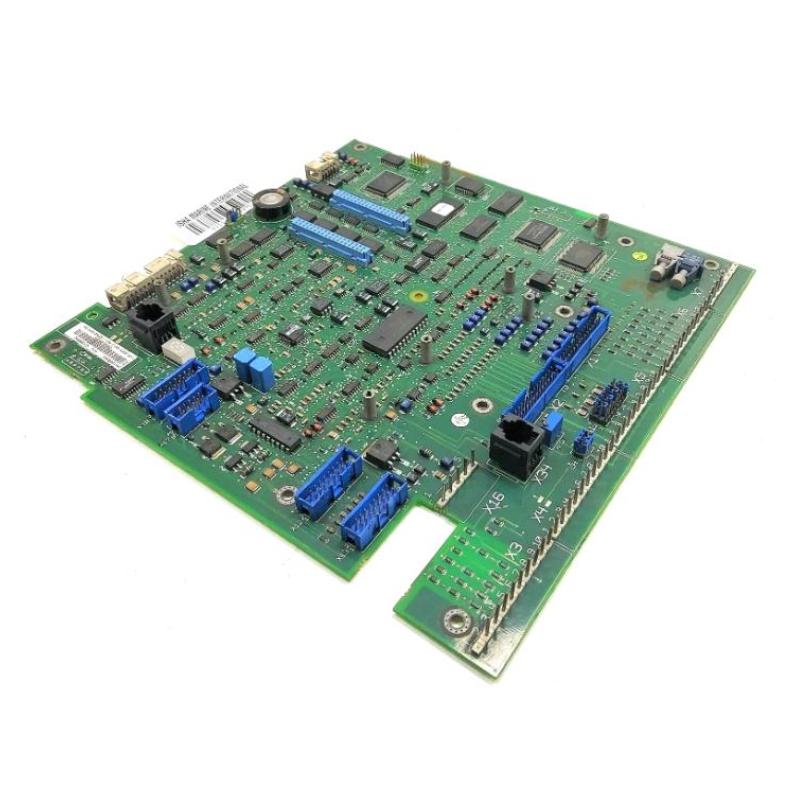

ABB SDCS‑CON‑2A (3ADT309600R0002) Detailed Product Profile
Product Introduction
The ABB SDCS‑CON‑2A (part number 3ADT309600R0002) is a high‑performance digital control board designed as part of ABB’s DCS 600/800 DC‑drive control architecture. This control board acts as a central processing and coordination unit, handling system logic, I/O interfaces, drive parameter management, and diagnostic monitoring for industrial DC drives.
Its design enables precise speed and torque regulation, real‑time monitoring of motor and converter status, and flexible interface options for communication with higher‑level automation systems. Built to meet rigorous industrial standards, the SDCS‑CON‑2A delivers reliable performance in demanding environments such as heavy industry, manufacturing, power plants, and process control installations.
Technical Parameters
| Parameter | Description |
|---|---|
| Model | SDCS‑CON‑2A (3ADT309600R0002) |
| Brand | ABB |
| Series | DCS 600 / DCS 800 Drive Control Modules |
| Function | Digital control and interface board – central logic, I/O and diagnostics |
| Input Voltage | 24 V DC nominal |
| Signal Types | Multiple analog and digital I/O channels; real‑time control signals |
| Processor | Embedded high‑speed microcontroller (real‑time drive control) |
| Communication Interfaces | Fieldbus, serial, I/O bus (various depending on system architecture) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | ‑25 °C to +70 °C |
| Humidity Range | 5%–95% non‑condensing |
| Mounting Type | Plug‑in module for rack‑mount installation |
| Protection Class | IP20 |
| Dimensions (L×W×H) | 215 mm × 150 mm × 35 mm (approximate typical module size) |
| Weight | 0.41 kg (net weight) |
| Cooling Method | Natural air convection (no forced fan) |
| Compliance | CE, RoHS, IEC standards |
| Typical Use | Digital control, parameter management and diagnostics for DC drive systems |
Note: Some suppliers list alternate dimensions or slight weight variations; the above values reflect typical nominal values for this module.
Product Application
The SDCS‑CON‑2A module is widely used in industrial applications requiring robust, flexible and real‑time drive control. Its primary application is within the ABB DCS 600 / DCS 800 DC drive systems, where it serves as the brain of the drive – managing logic, I/O, diagnostics and interfaces. Specific application domains include:
-
Heavy industrial DC motor drives, such as in steel mills, mining conveyors and large‑scale material handling systems.
-
Process plants (such as pulp & paper, chemical, petrochemical) with DC drives requiring precise motor regulation and integrated diagnostics.
-
Marine and offshore propulsion or auxiliary DC drive systems, where reliability, monitoring and control are critical under demanding conditions.
-
Power generation and utility applications where DC drives are used for exciter, generator or turbine control.
-
Retrofit and upgrade projects of legacy DC drive systems, where compatibility and modular control make SDCS‑CON‑2A a key component.
In each case, the board ensures centralised logic, safe handling of analog/digital signals, rapid response to changing load conditions, and integration with supervisory control systems.
Product Advantages
-
Precise Control & Real‑Time Processing – Enables tight regulation of motor speed and torque via a dedicated microcontroller engine and multiple I/O channels.
-
Industrial‑Grade Robustness – Designed for operation in harsh conditions, with comprehensive temperature, humidity and electrical tolerance for industrial drive environments.
-
Modular & Scalable Architecture – Plug‑in design for seamless installation and replacement; part of the ABB modular DCS control ecosystem.
-
Flexible Communication & Integration – Supports fieldbus and serial interfaces, enabling communication with automation systems, supervisory control and diagnostic networks.
-
Compact & Lightweight Construction – Fits within control racks without consuming excessive space; simplifies cabinet layout and maintenance.
-
Diagnostics & Maintenance Friendly – Built‑in diagnostic features reduce downtime, accelerate fault finding and enhance overall system availability.
-
Low Maintenance & Long Life‑Cycle – Robust design and reliable components help extend service intervals and reduce total cost of ownership.
-
Future‑Ready Interface – Compatibility with modern automation networks and modular system upgrades ensures longevity and adaptability.
Brand Overview
Brand: ABB
ABB is a globally respected provider of industrial automation, drive systems and control technologies. With decades of experience in motion control, power conversion and system integration, ABB’s solutions are widely used in heavy industry, utilities, marine, manufacturing and process sectors. The SDCS‑CON‑2A module embodies ABB’s expertise in drive control hardware, offering reliability, precision and long‑term support within its control ecosystem.
Product Series
Series Name: ABB DCS 600 / DCS 800 Drive Control Series
This series comprises a modular control architecture for DC drive systems, including control boards (such as SDCS‑CON‑2A), analog/digital I/O modules, communication modules, power converter modules and interface adapters. Each module in the series contributes to a full, scalable system capable of meeting complex industrial drive requirements. The SDCS‑CON‑2A serves as the central control board in this series, interfacing between core logic, analog/digital I/O, power converters and supervisory systems.
