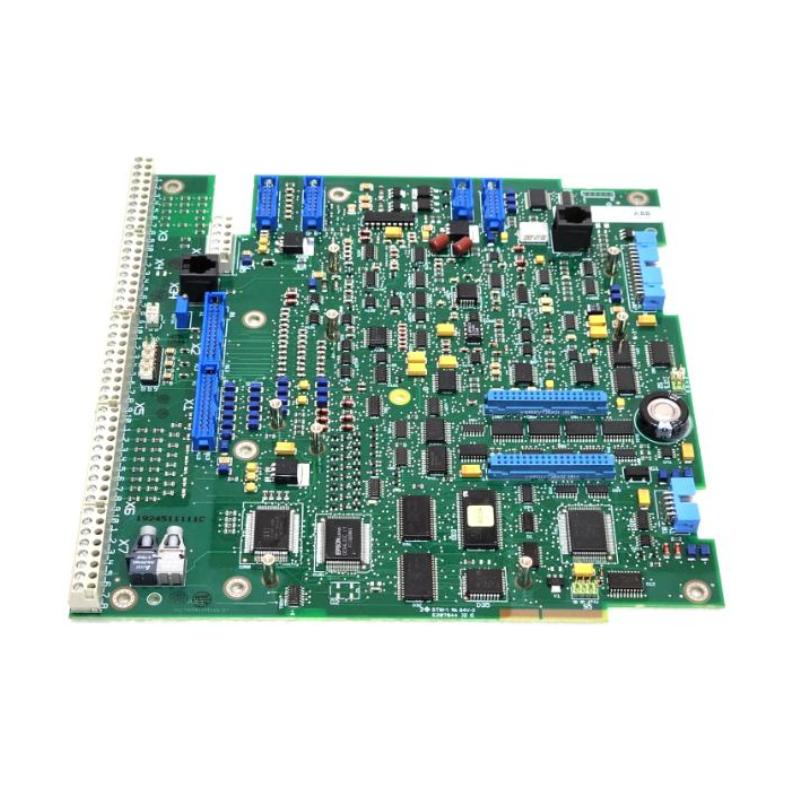

ABB SDCS-CON-2 (3ADT309600R1) Detailed Product Profile
Product Introduction
The ABB SDCS-CON-2 (3ADT309600R1) is an advanced control and interface module designed as part of the ABB DCS 600 and DCS 800 DC drive control systems. It functions as a key communication and control board responsible for coordinating data exchange between the drive control unit, power modules, and other internal system components.
Developed for high-performance industrial automation applications, the SDCS-CON-2 provides a stable and accurate communication bridge that ensures reliable signal processing, precise motor regulation, and real-time data synchronization.
The module is engineered with industrial-grade electronic components and advanced embedded control technology to deliver maximum reliability, high processing speed, and long-term operational stability. Compact and robust, it is ideal for demanding environments where continuous drive performance and control accuracy are critical.
Technical Parameters
| Parameter | Description |
|---|---|
| Model | SDCS-CON-2 (3ADT309600R1) |
| Brand | ABB |
| Series | DCS 600 / DCS 800 Drive Control System |
| Function | Control and communication interface board |
| Input Voltage | 24 V DC nominal |
| Signal Type | Analog and digital control signals |
| Communication Interface | Fiber optic / serial / RS-485 / CAN |
| Processor Type | Embedded 16-bit microcontroller |
| Data Processing Rate | Real-time synchronization up to 2 Mbps |
| Input/Output Channels | Multiple digital and analog I/O ports |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% non-condensing |
| Mounting Method | Plug-in (rack-mounted module) |
| Cooling Type | Natural convection |
| Protection Class | IP20 |
| Dimensions (L×W×H) | 215 mm × 150 mm × 35 mm |
| Weight | 0.47 kg |
| Compliance | CE, RoHS, IEC 61131-2 |
| Typical Use | Control synchronization within ABB DCS drive systems |
Product Application
The SDCS-CON-2 module is used to manage control coordination and communication within ABB’s DC drive control systems. Its main function is to synchronize power control circuits with signal processing boards, ensuring consistent drive performance and stability.
Common Application Fields:
-
DCS 600 / DCS 800 Drive Systems: Provides the central control interface for managing internal drive communication.
-
Industrial Automation Systems: Supports advanced control in production lines, assembly systems, and process control units.
-
Pulp & Paper Production Lines: Ensures accurate torque and speed control in complex machinery.
-
Metallurgical Industry: Provides synchronization for large DC motors used in rolling mills and furnaces.
-
Marine & Offshore Systems: Offers reliable communication in harsh environmental conditions.
-
Power Generation and Mining Equipment: Enables stable coordination between multiple drive systems and controllers.
With its modular design, the SDCS-CON-2 allows flexible system expansion and reliable operation in both new and existing installations.
Product Advantages
-
High-Speed Communication: Ensures efficient data transmission between drive components with minimal delay.
-
Superior Stability: Industrial-grade design guarantees long-term reliability under heavy-duty conditions.
-
Advanced Signal Processing: Provides precise control of analog and digital signals for optimized system performance.
-
Compact and Lightweight: Easy to install, saving space in control cabinets.
-
Seamless Integration: Fully compatible with ABB DCS 600 and DCS 800 system architecture.
-
Low Maintenance: Designed for long service life with minimal upkeep.
-
Diagnostic Capabilities: Supports error detection and system monitoring to simplify troubleshooting.
-
Energy-Efficient Operation: Optimized circuitry reduces power consumption and system heating.
Brand Overview
Brand: ABB
ABB is a global leader in automation, motion, and power control technologies. With a focus on innovation, efficiency, and reliability, ABB offers solutions that enhance industrial productivity and operational safety.
The SDCS-CON-2 represents ABB’s engineering excellence in drive control technology, delivering precision control and dependable communication in complex industrial drive environments.
Product Series
Series Name: ABB DCS 600 / DCS 800 Drive Control Series
The DCS drive series is a modular system architecture designed to control, regulate, and communicate within industrial DC drive applications. The SDCS-CON-2 forms part of this sophisticated modular control platform, integrating seamlessly with other functional boards such as communication, analog/digital interface, and bus adapter modules.
Related or Same-Series Models (5 Recommended)
| Model | Description | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| SDCS-AC-CON-2 | AC converter and control interface board | 24 V DC | 210×150×35 | 0.45 |
| SDCS-AMC-DC-2 | Analog and digital control module | 24 V DC | 215×150×35 | 0.47 |
| SDCS-BAB-F01 | Bus adapter and field interface module | 24 V DC | 215×155×35 | 0.46 |
| SDCS-COM-81 | Advanced communication module for DCS systems | 24 V DC | 215×150×35 | 0.46 |
| SDCS-COM-82 | High-speed data communication interface module | 24 V DC | 215×150×35 | 0.46 |
Popular ABB Models (5 Recommended)
| Model | Product Type | Application Area | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS880-01-07A6-3 | AC Drive | Industrial automation and process control | 390×260×160 | 5.2 |
| DCS800-S01-0045-05 | DC Drive Controller | Heavy-duty process drives | 480×300×200 | 7.6 |
| ACS580-01-025A-4 | Variable Frequency Drive | HVAC, pumps, and conveyors | 380×250×180 | 5.8 |
| ACS355-03E-04A7-2 | Compact AC Drive | Light automation and packaging machinery | 200×90×180 | 2.5 |
| ACS150-03E-07A5-4 | Micro AC Drive | OEM applications, fans, and small motors | 180×75×160 | 2.1 |
FAQ (Frequently Asked Questions)
Q1: What is the main function of the SDCS-CON-2 module?
A1: It serves as a control interface board that synchronizes communication and processing between drive components within ABB’s DCS systems.
Q2: Is the SDCS-CON-2 compatible with DCS 600 and DCS 800 systems?
A2: Yes, it is designed for full compatibility with both series.
Q3: What voltage does the module operate on?
A3: The module operates on a nominal 24 V DC supply.
Q4: How is the module cooled during operation?
A4: It uses natural air convection and does not require active cooling.
Q5: What type of signals does it handle?
A5: It manages both analog and digital control signals.
Q6: Can it be installed easily in existing systems?
A6: Yes, it features a plug-in design for quick and convenient installation.
Q7: What is its protection rating?
A7: The SDCS-CON-2 is rated at IP20, suitable for cabinet installation.
Q8: What is the typical operating temperature range?
A8: The operating temperature is between 0°C and +55°C.
Q9: What industries commonly use the SDCS-CON-2?
A9: It is widely used in metallurgy, paper, marine, mining, and energy automation systems.
Q10: How long is its expected service life?
A10: The module typically provides more than 10 years of reliable service under standard industrial conditions.
