Product Overview

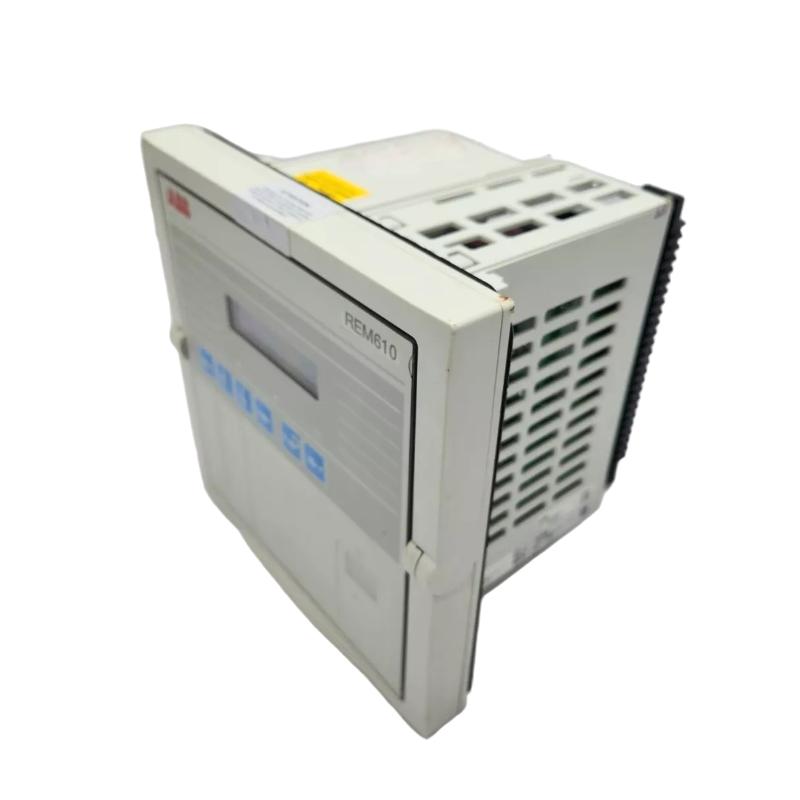

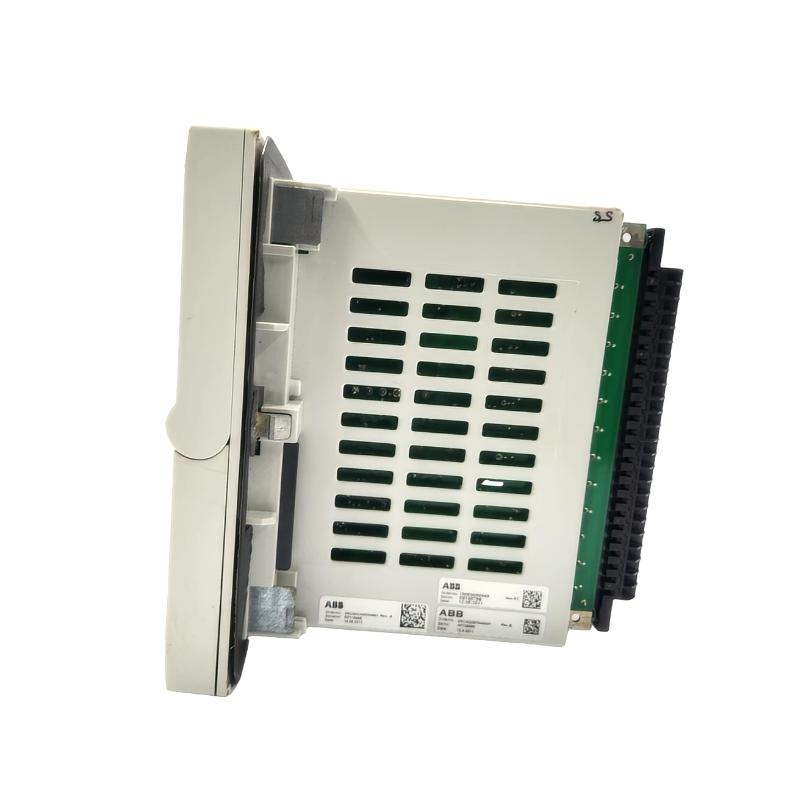

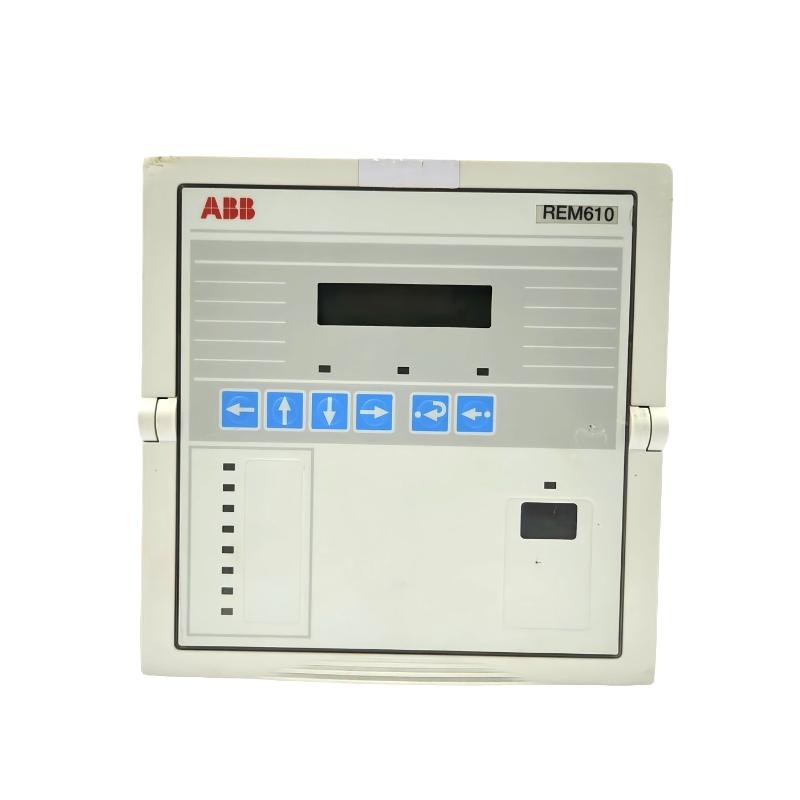

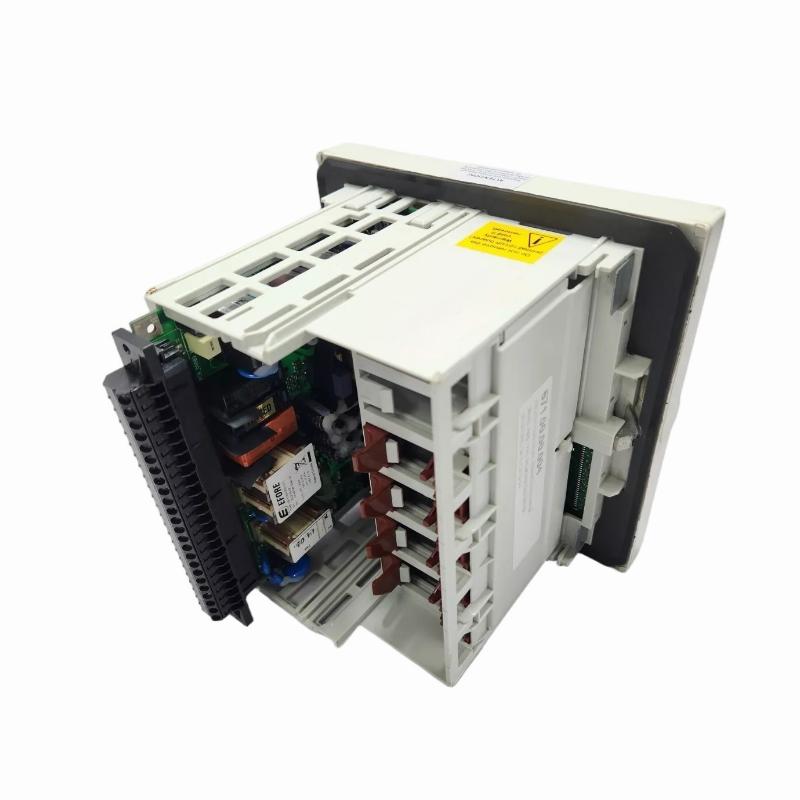

In industrial power systems, electric motors are critical components that directly affect production efficiency and operational reliability. Effective motor protection is essential to prevent equipment damage caused by overload, electrical faults, abnormal operating conditions, and unexpected failures. The ABB REM610 Motor Protection Relay is an intelligent protection device designed to provide reliable protection, monitoring, and supervision for medium-sized and large motors used in industrial applications.
The ABB REM610 is developed to monitor motor operating conditions continuously and provide fast protection responses when abnormal conditions occur. It integrates multiple motor protection functions, including thermal overload protection, short-circuit protection, earth fault protection, phase failure protection, and motor operating supervision.
Designed for industrial automation and electrical protection systems, the ABB REM610 helps improve motor availability, reduce maintenance requirements, and extend equipment service life. The relay is suitable for motor control centers, industrial switchgear, process plants, power generation facilities, and other applications requiring dependable motor protection.
With dimensions of 177 × 177 × 149.3 mm and a weight of 3.5 kg, the ABB REM610 Motor Protection Relay provides a compact and reliable protection solution for industrial motor applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | REM610 |
| Product Type | Motor Protection Relay |
| Application | Motor Protection and Monitoring |
| Main Function | Motor Protection, Control, and Supervision |
| Device Type | Intelligent Protection Relay |
| Protection Functions | Thermal Overload, Earth Fault, Phase Protection |
| System Application | Industrial Motor Systems |
| Installation Method | Panel Mounting |
| Dimension | 177 × 177 × 149.3 mm |
| Weight | 3.5 kg |
Function and Working Principle
The ABB REM610 operates as an intelligent motor protection relay that continuously monitors the electrical and operating conditions of connected motors.
During normal operation, the relay receives measurement signals from current transformers and connected motor circuits. The internal processing system analyzes electrical parameters and compares real-time operating conditions with predefined protection settings.
When abnormal conditions are detected, the relay quickly activates protection functions to prevent damage to the motor and connected equipment.
The working process includes:
- Receiving motor current measurement signals
- Monitoring motor operating conditions
- Processing electrical parameters
- Comparing measured values with protection settings
- Detecting abnormal operating conditions
- Activating protection and alarm outputs
Main functions include:
- Motor overload protection
- Thermal protection
- Earth fault protection
- Phase failure protection
- Current imbalance monitoring
- Motor startup supervision
- Fault recording
- Diagnostic monitoring
Role in Industrial Motor Protection Systems
The ABB REM610 plays an important role in protecting motors used in industrial production and process applications.
It is commonly integrated with:
| System Component | Function |
|---|---|
| Motor Starter | Controls motor operation |
| Contactor | Performs motor switching |
| Circuit Breaker | Provides electrical protection |
| Current Transformer | Supplies measurement signals |
| Motor Control Center | Provides installation platform |
| Automation System | Enables monitoring and control |
By continuously monitoring motor conditions, the ABB REM610 helps prevent failures caused by excessive current, overheating, electrical imbalance, and abnormal operating conditions.
Industrial Applications
The ABB REM610 Motor Protection Relay is suitable for a wide range of industrial applications.
| Industry | Application |
|---|---|
| Manufacturing Plants | Production motor protection |
| Oil and Gas | Pump and compressor motor protection |
| Petrochemical | Process equipment protection |
| Power Generation | Auxiliary motor protection |
| Water Treatment | Pump motor protection |
| Mining Industry | Heavy-duty motor protection |
| Chemical Industry | Process motor monitoring |
| Infrastructure Projects | Industrial drive protection |
The relay is ideal for applications requiring continuous motor operation and reliable electrical protection.
Installation and System Integration
Proper installation and configuration are important for ensuring accurate motor protection performance.
Recommended installation procedures:
- Install the relay inside a suitable protection cabinet
- Connect motor current input circuits
- Configure motor protection parameters
- Connect trip and alarm outputs
- Verify control wiring
- Perform commissioning tests
During commissioning, engineers should verify:
- Current measurement accuracy
- Motor protection settings
- Alarm operation
- Trip output performance
- Relay status indication
- Fault recording functions
Correct installation ensures stable operation and improves the reliability of motor protection systems.
Protection Functions
The ABB REM610 provides comprehensive protection functions for industrial motors.
| Protection Function | Description |
|---|---|
| Thermal Overload Protection | Prevents motor overheating caused by excessive load |
| Short Circuit Protection | Provides rapid fault response |
| Earth Fault Protection | Detects insulation and grounding problems |
| Phase Failure Protection | Protects motors from phase loss conditions |
| Current Unbalance Protection | Detects uneven phase current conditions |
| Startup Supervision | Monitors motor starting performance |
These functions help protect motors from electrical stress and improve overall system reliability.
Monitoring and Diagnostic Functions
The ABB REM610 provides advanced monitoring features to support operation and maintenance.
| Function | Description |
|---|---|
| Motor Current Monitoring | Tracks motor electrical conditions |
| Fault Recording | Stores protection events |
| Alarm Monitoring | Indicates abnormal situations |
| Self Diagnostics | Checks relay operating status |
| Condition Monitoring | Supports preventive maintenance |
These diagnostic functions help engineers identify problems quickly and reduce equipment downtime.
Communication and Connectivity
The ABB REM610 can be integrated into industrial automation and electrical monitoring environments.
| Function | Description |
|---|---|
| Protection Data | Provides motor fault information |
| Monitoring Data | Transfers operating information |
| Diagnostic Information | Supports maintenance analysis |
| Control Interface | Enables system integration |
The relay supports efficient communication between motor protection equipment and industrial control systems.
Compatible Automation Systems
| System | Application |
|---|---|
| Motor Control Centers | Motor protection and monitoring |
| Industrial Automation Systems | Equipment supervision |
| Electrical Switchgear | Protection installation |
| Process Control Systems | Motor operation management |
| Power Distribution Systems | Electrical protection |
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| ABB REM610 | Motor Protection Relay | Industrial motor protection |
| ABB REM615 | Motor Protection and Control Relay | Advanced motor applications |
| ABB REF610 | Feeder Protection Relay | Distribution protection |
| ABB REF615 | Feeder Protection and Control Relay | Medium-voltage systems |
Key Advantages
- Reliable motor protection performance
- Comprehensive protection functions
- Fast response to electrical faults
- Supports industrial automation applications
- Compact panel installation design
- Improves motor operating reliability
- Reduces unexpected equipment downtime
- Supports preventive maintenance strategies
- Suitable for demanding industrial environments
Technical FAQs
What is the ABB REM610 used for?
The ABB REM610 is a motor protection relay designed to protect industrial motors from electrical faults and abnormal operating conditions.
What protection functions does the ABB REM610 provide?
The ABB REM610 provides thermal overload protection, earth fault protection, phase failure protection, current imbalance protection, motor startup supervision, and fault monitoring functions.
What are the dimensions of the ABB REM610?
The dimensions are 177 × 177 × 149.3 mm.
What is the weight of the ABB REM610?
The total weight is 3.5 kg.
Where is the ABB REM610 commonly installed?
The ABB REM610 is commonly installed in motor control centers, industrial switchgear, process plants, power systems, and automation cabinets.
Conclusion
The ABB REM610 Motor Protection Relay is a reliable solution designed for protecting and monitoring industrial motor systems.
With comprehensive protection functions, accurate monitoring capability, and compact installation design, the ABB REM610 helps improve motor reliability, reduce maintenance costs, and ensure stable operation of industrial electrical systems.
For electrical engineers, automation professionals, and maintenance teams, the ABB REM610 provides an effective solution for motor protection, fault detection, and industrial power management.
