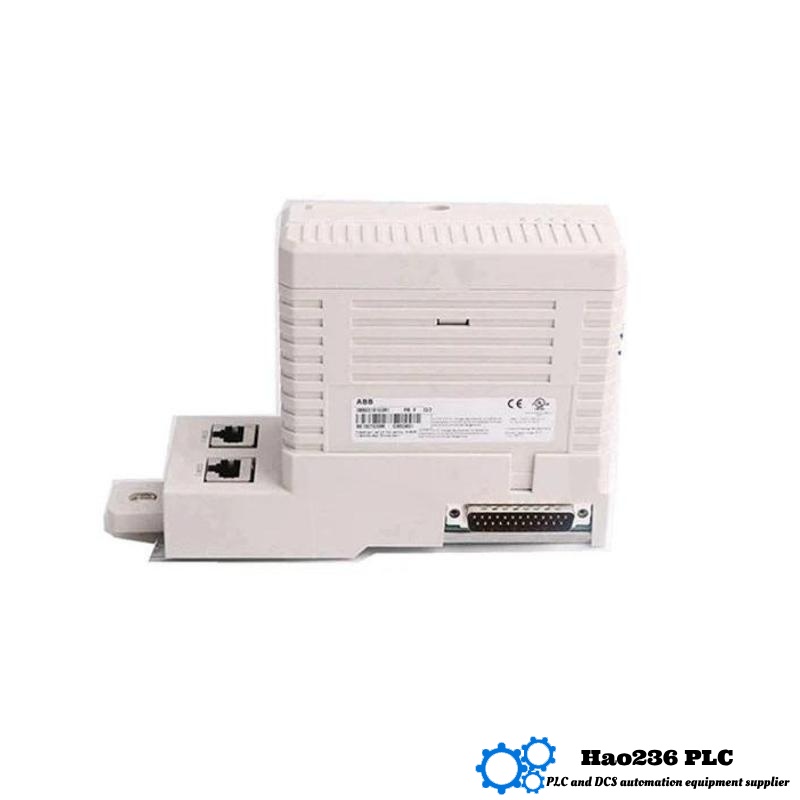

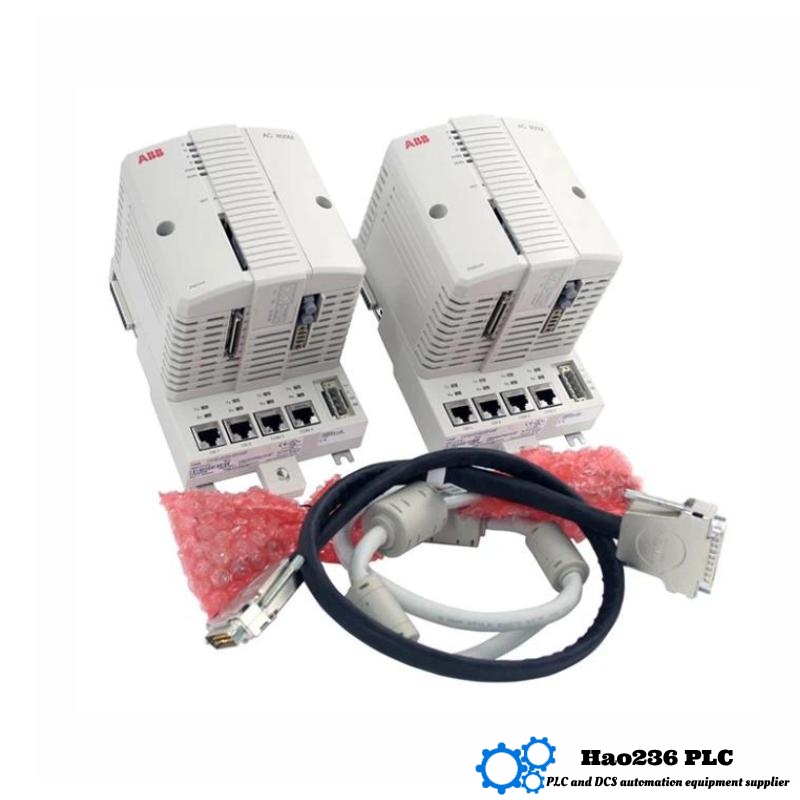

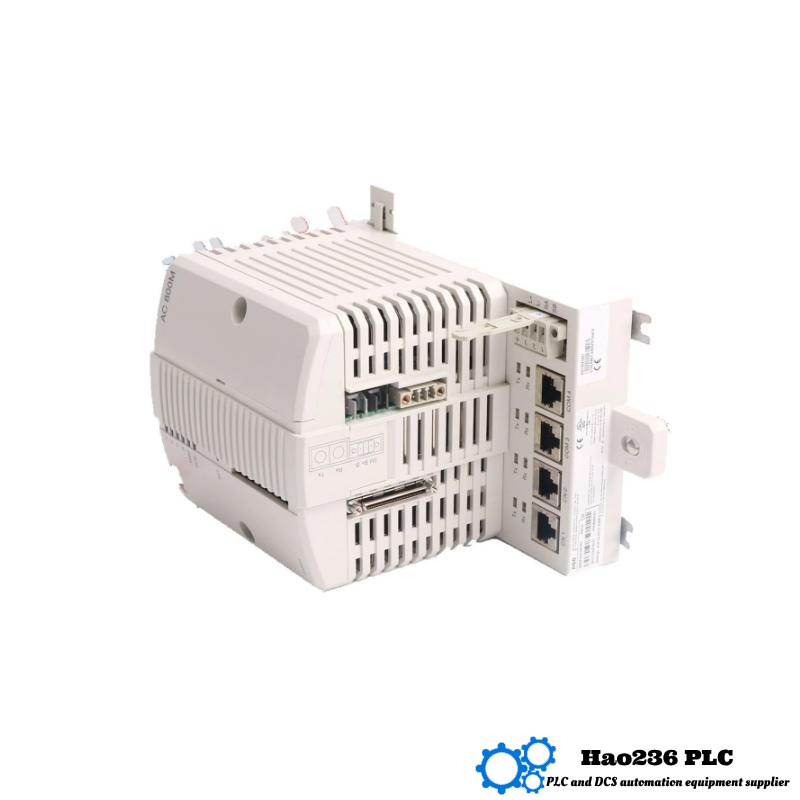

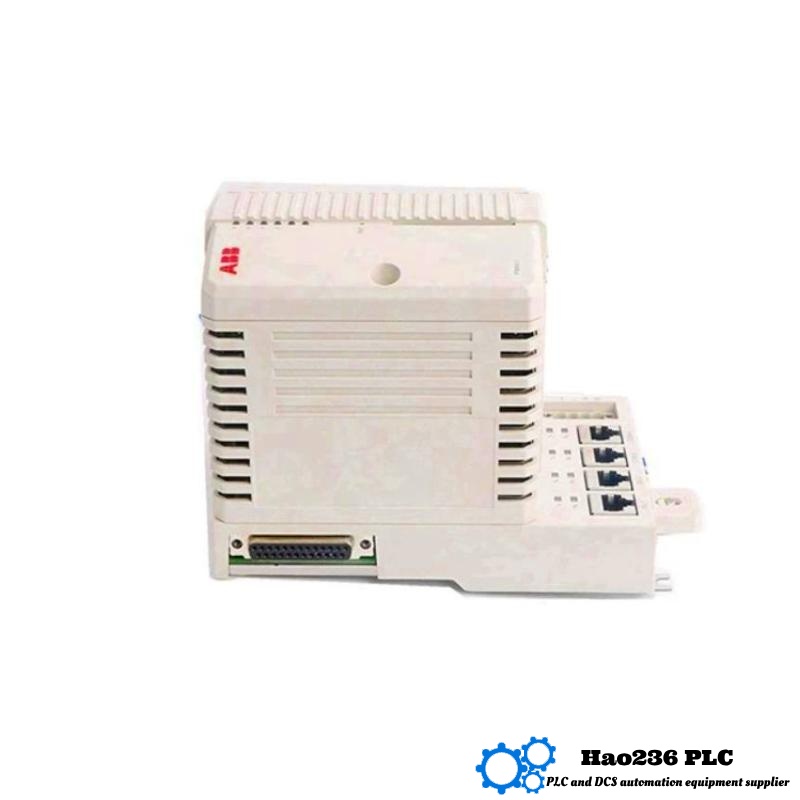

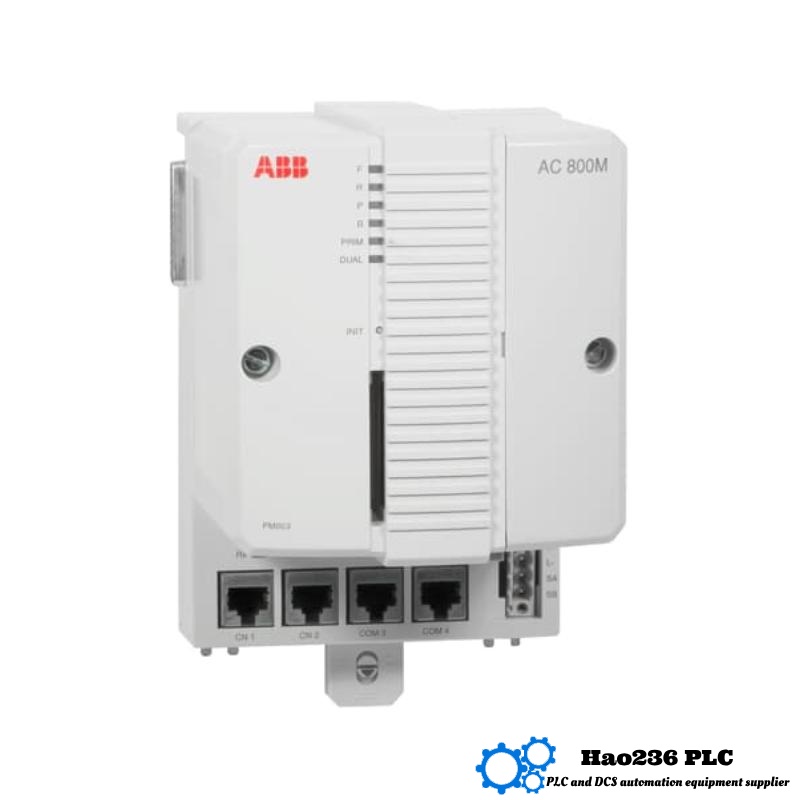

🔧 Product Overview: ABB PM863K01 (3BSE088381R1)
The PM863K01 is a high-performance CPU module from the ABB AC 800M control system family. Designed for demanding industrial applications, this module supports full redundancy, fast processing, and extensive connectivity with fieldbus protocols and I/O interfaces. With improved RAM capacity and support for large-scale automation systems, the PM863K01 is suitable for critical process control in continuous operations.
📦 Product Specifications (Parameters)
| Parameter | Details |
|---|---|
| Product Model | PM863K01 (3BSE088381R1) |
| Controller Series | AC 800M |
| Brand | ABB |
| Processor Type | 32-bit RISC Processor |
| RAM Memory | 32 MB |
| Flash Memory | 16 MB |
| Execution Time | Typically <1 ms |
| Redundancy Capability | Yes (dual CPU support) |
| Communication Interfaces | 2 x Ethernet (RJ45), 1 x RS-232, 1 x CI port |
| Supported Protocols | Ethernet/IP, Modbus, PROFIBUS, ControlNet |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Power Supply Requirement | 24V DC (redundant input supported) |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | 186 mm × 59 mm × 123 mm |
| Weight | 0.66 kg |
| Certifications | CE, UL, CSA, RoHS, ATEX |
🧾 Product Introduction
The ABB PM863K01 CPU Module is an advanced controller used in the AC 800M DCS platform, providing fast execution and robust communication in a compact design. It delivers increased memory capacity and enhanced CPU processing speed compared to earlier modules like the PM862K01, making it ideal for highly scalable automation systems.
Built for reliability and performance, it enables seamless control across industries with support for redundancy and integration into various industrial protocols. The PM863K01 is particularly valuable in systems where availability, performance, and flexibility are paramount.
🛠 Product Applications
The PM863K01 is engineered for use in:
-
Chemical and Petrochemical Plants
-
Power Generation Facilities
-
Mining and Metals Processing Units
-
Oil & Gas Refineries and Pipelines
-
Pharmaceutical Manufacturing Lines
-
Food and Beverage Automation Systems
-
Pulp & Paper Production Facilities
-
Water Treatment and Waste Management Plants
✅ Product Advantages
-
Improved RAM and Flash: Ideal for memory-intensive control systems and larger I/O configurations.
-
Redundancy Enabled: Supports dual CPU configurations for uninterrupted operation in critical systems.
-
Communication Versatility: Equipped with multiple Ethernet and serial ports; supports Modbus, PROFIBUS, and more.
-
Compact Yet Powerful: Space-saving design with top-tier CPU performance.
-
Modular Flexibility: Seamless integration with CI modules, communication interfaces, and S800 I/O.
-
Robust Build: Operates in harsh environments with certified industrial safety and durability.
🏷 Brand and Series
-
Brand: ABB
-
Series: AC 800M Distributed Control System
🔁 Related Models (Same Series or Compatible)
| Model | Description | RAM Memory | Redundancy | Communication Interfaces | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| PM862K02 | High-performance CPU with upgraded RAM | 32 MB | Yes | Ethernet, RS232 | 186 × 59 × 123 | 0.66 |
| PM864AK01 | Mid-range CPU with enhanced processing | 32 MB | Yes | Ethernet, CI, RS232 | 186 × 59 × 123 | 0.67 |
| PM865K01 | High-end CPU for complex systems | 64 MB | Yes | Ethernet, PROFIBUS, RS232 | 186 × 59 × 123 | 0.69 |
| PM866AK02 | CPU with extended memory and redundancy | 128 MB | Yes | CI, Ethernet, Modbus | 186 × 59 × 123 | 0.71 |
| PM891K01 | Flagship CPU module with max performance | 256 MB | Yes | ControlNet, Ethernet | 186 × 59 × 123 | 0.73 |
🌟 Popular ABB Models (Different Series)
| Model | Description | System | RAM Memory | Communication Ports | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AC500-PM592 | High-end PLC CPU for the AC500 family | AC500 | 8 MB | Ethernet, RS485, CAN | 142 × 100 × 75 | 0.80 |
| AC500-PM581 | Entry-level CPU for simple automation | AC500 | 1 MB | RS232, Ethernet | 142 × 100 × 75 | 0.75 |
| CI853K01 | Communication module for fieldbus networks | AC 800M | — | PROFIBUS, Ethernet | 125 × 45 × 98 | 0.55 |
| CI862K01 | Communication interface supporting Modbus | AC 800M | — | Modbus, Ethernet | 125 × 45 × 98 | 0.58 |
| CP600-Pro | Industrial HMI for complex visual operations | HMI | — | Ethernet, USB, Serial | 258 × 198 × 44 | 0.85 |
❓ FAQ – PM863K01
Q1: What makes the PM863K01 different from earlier models like PM862K01?
A1: The PM863K01 features higher RAM (32 MB) and better processing capability, allowing for more complex automation tasks and larger system integrations.
Q2: Can I use this CPU in a redundant configuration?
A2: Yes, it fully supports redundancy with dual CPUs for high-availability control systems.
Q3: What kind of network protocols does it support?
A3: The module supports Ethernet/IP, Modbus, PROFIBUS, and ControlNet, among others.
Q4: Is the PM863K01 compatible with CI modules like CI854?
A4: Yes, it integrates seamlessly with CI854, CI853, and other communication interfaces in the AC 800M line.
Q5: What is the operating temperature range?
A5: The module operates reliably in temperatures from 0°C to +55°C.
Q6: How much does the PM863K01 weigh?
A6: The unit weighs approximately 0.66 kg.
Q7: Is this module suitable for harsh industrial environments?
A7: Yes, with certifications like ATEX and IP20 protection, it is built for rugged environments.
Q8: What is the power supply requirement?
A8: It operates on 24V DC and supports redundant power input for continuous performance.
Q9: Does the module come with Ethernet ports built in?
A9: Yes, it includes two RJ45 Ethernet ports and one RS-232 for flexible connectivity.
Q10: Can I upgrade from PM862K01 to PM863K01 without replacing the whole system?
A10: Yes, the PM863K01 is fully backward compatible within the AC 800M framework, allowing seamless upgrades.
