Product Overview

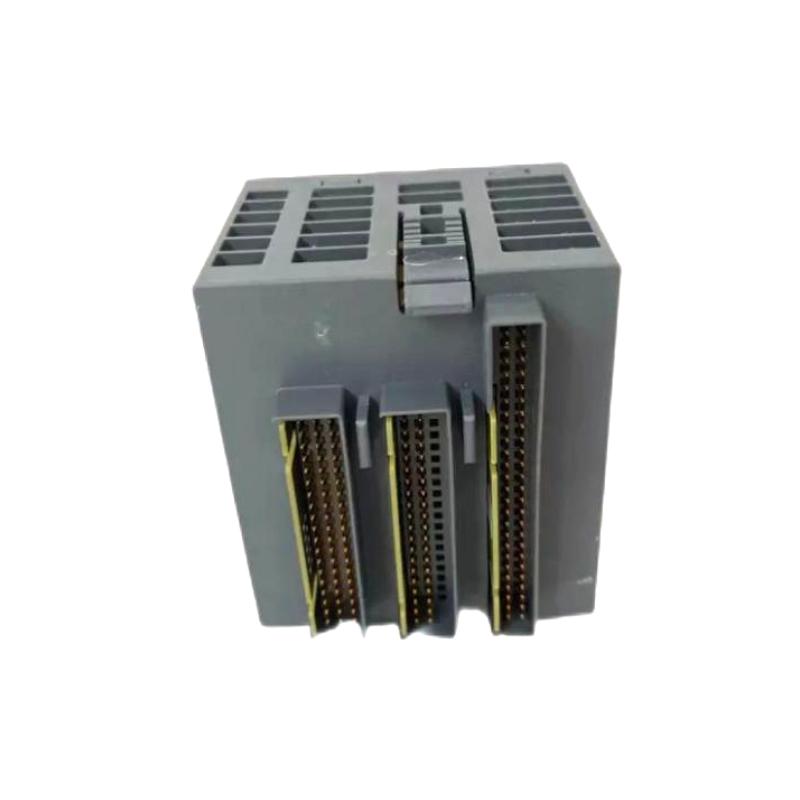

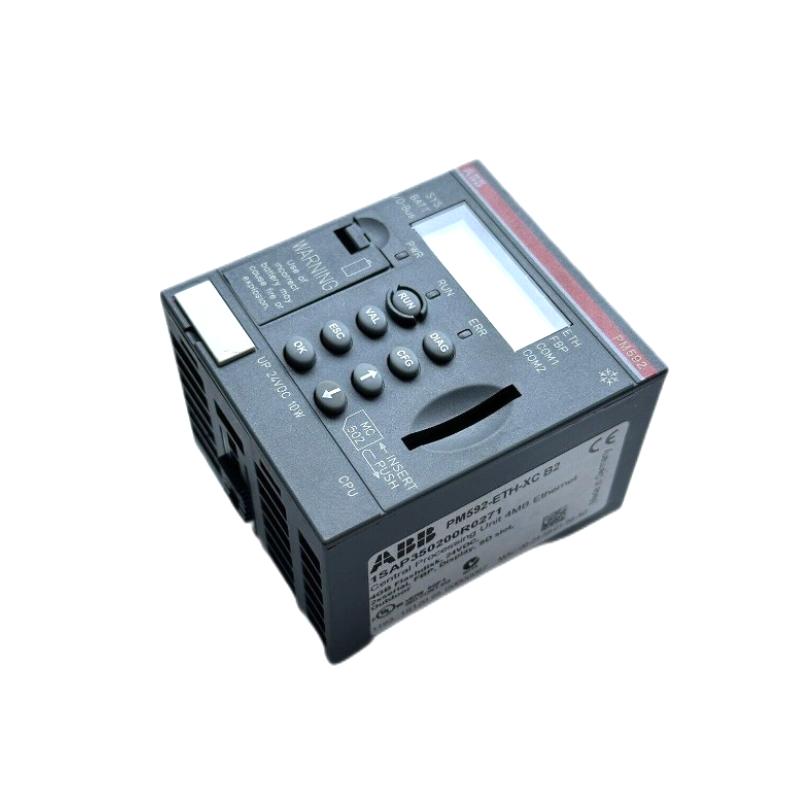

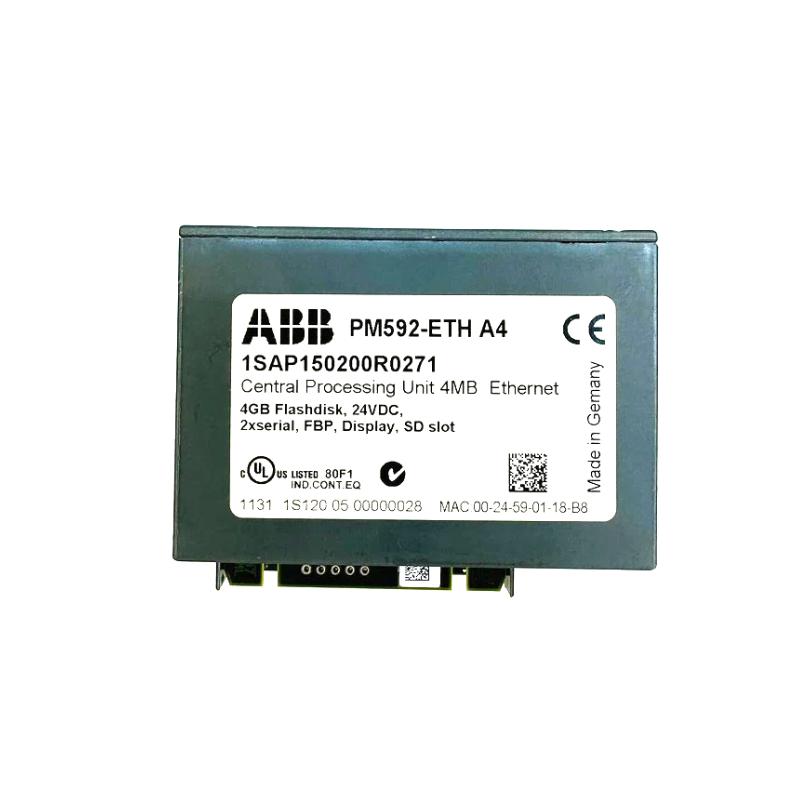

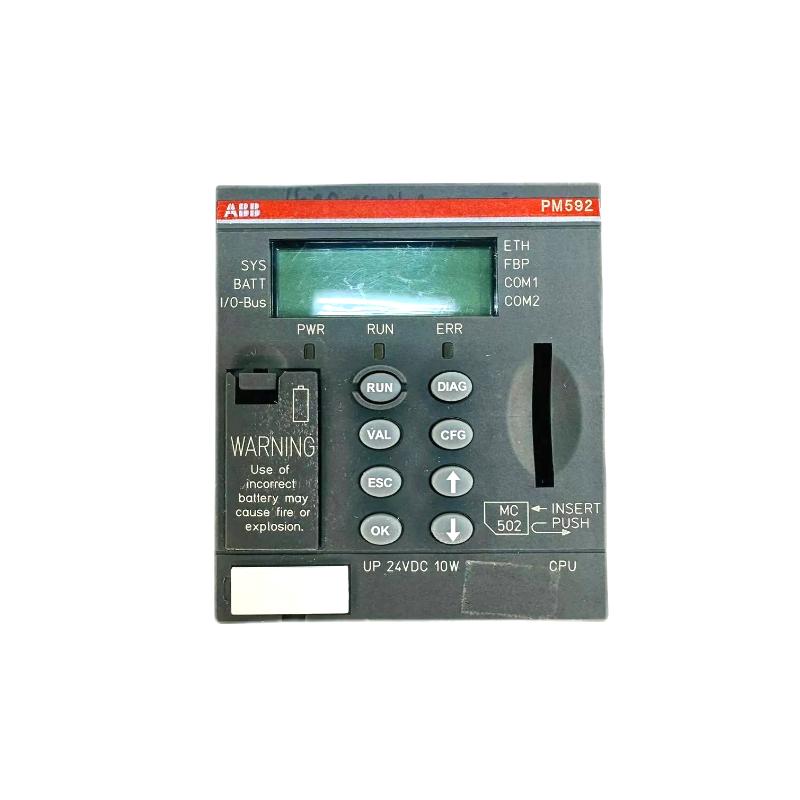

The ABB PM592-ETH (Part Number: 1SAP150200R0271) is a high-performance CPU Programmable Logic Controller (PLC) in the ABB AC500 automation platform. It is designed for advanced industrial control applications requiring high processing capacity, dual Ethernet communication, and scalable system expansion.
The controller integrates 4 MB program memory, 5632 kB user data memory, dual Industrial Ethernet interfaces, configurable RS232/RS485 serial communication ports, a FieldBusPlug (FBP) interface, an SD card slot, and an integrated LCD display with function keys, making it suitable for complex automation and distributed control architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM592-ETH |
| Part Number | 1SAP150200R0271 |
| Product Type | CPU Programmable Logic Controller |
| PLC Series | AC500 |
| Program Memory | 4 MB |
| User Data Memory | 5632 kB |
| Total Memory | 9728 kB |
| Communication Interfaces | 2 × Industrial Ethernet (10/100 Mbps) |
| Serial Communication | 2 × RS232 / RS485 (configurable) |
| FieldBusPlug (FBP) Interface | Supported |
| Memory Expansion | SD Card Slot (Flash storage support) |
| Display | Integrated LCD Display with function keys |
| Supply Voltage | 20.4–28.8 V DC |
| Rated Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.153 kg |
Function and Working Principle
The PM592-ETH acts as the central processing unit of an ABB AC500 automation system. It continuously reads input signals from field devices, executes PLC logic, processes control algorithms, and updates outputs in real time.
Its dual Ethernet interfaces allow simultaneous connection to engineering stations, SCADA systems, HMIs, and plant networks. The configurable RS232/RS485 ports enable integration with drives, sensors, meters, and third-party devices. The FieldBusPlug interface supports expansion to additional industrial communication protocols, while the SD card slot provides storage for application programs, system backups, and firmware updates.
Operating Sequence
- Input signals are collected from sensors and field devices.
- The CPU scans and processes all incoming data.
- PLC program logic is executed cycle-by-cycle.
- Output signals are updated to actuators and drives.
- Communication data is exchanged via Ethernet and serial networks.
Key Features
- High-performance AC500 CPU controller
- 4 MB program memory
- 5632 kB user data memory
- Dual Industrial Ethernet communication
- Configurable RS232 / RS485 serial interfaces
- FieldBusPlug (FBP) expansion support
- SD card storage and backup capability
- Integrated LCD display with function keys
- Compact DIN rail mounting design
- Scalable architecture for complex automation systems
System Role
The PM592-ETH serves as a high-end central controller in ABB AC500 systems, responsible for coordination of logic execution, communication handling, and distributed automation control.
Typical System Architecture
Sensors → PM592-ETH PLC CPU → Ethernet Network → SCADA / HMI → Actuators
Industrial Applications
The PM592-ETH is widely used in:
- Factory automation systems
- Process control systems
- High-speed machine control
- Packaging and bottling lines
- Material handling systems
- Water and wastewater treatment
- Energy and utility automation
- Building automation systems
- OEM machinery
- Distributed industrial control networks
Installation Guidelines
- Install on standard DIN rail inside control cabinet
- Connect regulated 24 V DC power supply
- Wire field devices according to system design
- Configure Ethernet and serial communication parameters
- Load PLC program using ABB engineering software
- Perform communication and I/O validation before commissioning
Compatible Components
The PM592-ETH works with:
- ABB AC500 I/O modules
- ABB communication modules
- ABB FieldBusPlug modules
- ABB HMI panels
- SCADA systems
- Industrial Ethernet switches
- RS232 / RS485 devices
- ABB automation programming software
Alternative Models
| Model | Description |
|---|---|
| PM591-2ETH | Higher-performance dual Ethernet CPU |
| PM590-ETH | Standard AC500 controller |
| PM590-ARCNET | ARCNET-based processor unit |
| PM585-ETH | Mid-range CPU PLC |
| PM5670 / PM5675 series | High-performance AC500 CPUs |
Advantages
- High processing performance for complex automation
- Dual Ethernet for flexible network architecture
- Large program and data memory capacity
- Multi-protocol communication support
- Expandable industrial networking via FBP
- Reliable SD card-based storage and backup
- Integrated diagnostics display
- Compact industrial-grade design
- Suitable for high-demand control environments
Frequently Asked Questions
What is the PM592-ETH used for?
It is used as a high-performance PLC CPU for industrial automation, machine control, and distributed process control systems.
How much memory does it provide?
It provides 4 MB program memory and 5632 kB user data memory.
How many Ethernet ports does it have?
It has 2 Industrial Ethernet interfaces, allowing flexible network separation or redundancy.
Can it store programs externally?
Yes, it supports SD card storage for program backup, firmware updates, and data handling.
Is it suitable for complex automation systems?
Yes, it is designed for high-performance and large-scale industrial automation applications.
Conclusion
The ABB PM592-ETH (1SAP150200R0271) is a powerful CPU controller in the ABB AC500 series, offering 4 MB program memory, dual Ethernet communication, advanced serial connectivity, and expandable architecture. It is built for demanding industrial automation environments where performance, scalability, and reliable communication are essential.
