Product Overview

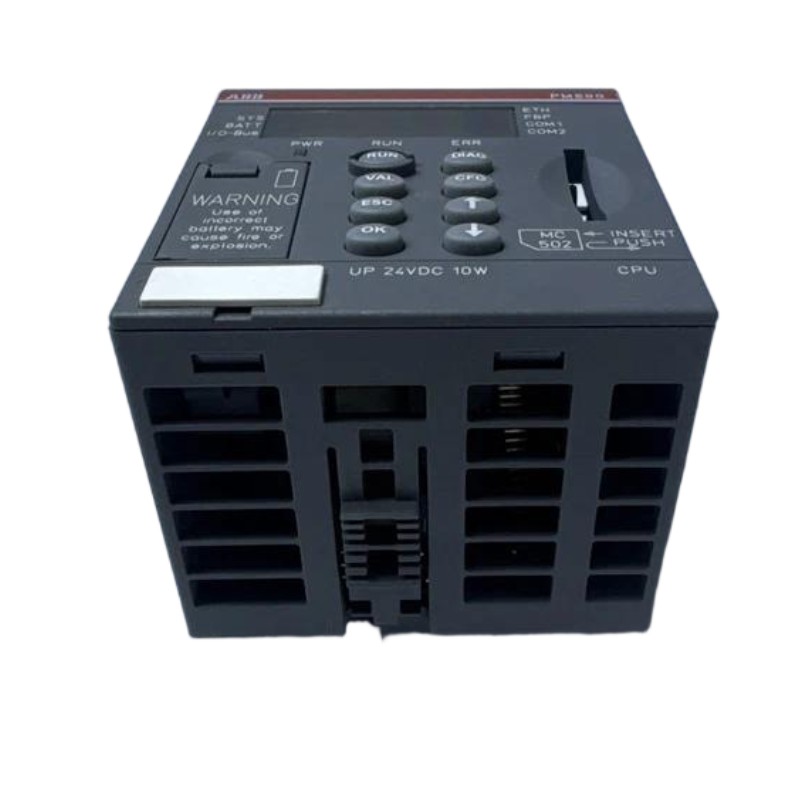

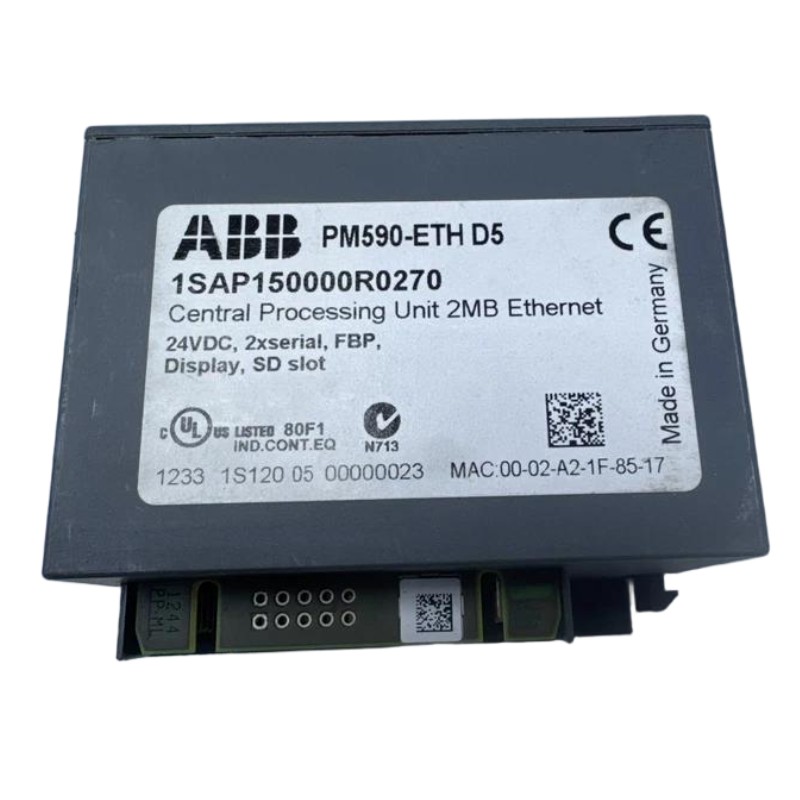

The ABB PM590-ETH (Part Number: 1SAP150000R0270) is a high-performance Controller in the ABB AC500 PLC family. Designed for advanced industrial automation applications, it provides powerful processing performance, Industrial Ethernet communication, and flexible expansion capabilities for machine control and process automation.
The controller features 2 MB program memory, 3072 kB user data memory, an integrated Industrial Ethernet interface, dual RS232/RS485 serial communication ports, a FieldBusPlug (FBP) interface, an SD card slot for application storage and backup, and an integrated LCD display with function keys. Its compact DIN rail design makes it suitable for distributed control systems and industrial networking.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM590-ETH |
| Part Number | 1SAP150000R0270 |
| Product Type | Controller |
| PLC Series | AC500 |
| Program Memory | 2 MB |
| User Data Memory | 3072 kB RAM |
| Total Memory | 5120 kB |
| Communication Interface | 1 × Industrial Ethernet (10/100 Mbps) |
| Serial Communication | 2 × RS232 / RS485 |
| FieldBusPlug (FBP) Interface | Supported |
| Memory Expansion | SD Card Slot |
| Display | Integrated LCD Display |
| Function Keys | 8 |
| Supply Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.137 kg |
Function and Working Principle
The PM590-ETH serves as the central controller of an ABB AC500 automation system. It continuously acquires signals from field devices, executes the user-defined PLC program, processes control algorithms, and updates output signals in real time.
Its integrated Industrial Ethernet interface enables communication with HMIs, SCADA systems, engineering workstations, and remote controllers. The dual RS232/RS485 serial interfaces support communication with drives, sensors, meters, and other serial devices. The FieldBusPlug (FBP) interface allows additional communication modules to be installed, while the SD card slot provides storage for applications, firmware updates, and backup files.
Operating Sequence
- Field devices transmit input signals to the controller.
- The CPU scans and processes the received data.
- Control logic is executed according to the application program.
- Output commands are transmitted to connected equipment.
- System data is exchanged through Ethernet and serial communication networks.
Key Features
- High-performance AC500 controller
- 2 MB program memory
- 3072 kB user data memory
- 5120 kB total memory capacity
- Integrated Industrial Ethernet communication
- Dual RS232 / RS485 serial interfaces
- FieldBusPlug (FBP) communication expansion
- SD card slot for application storage and backup

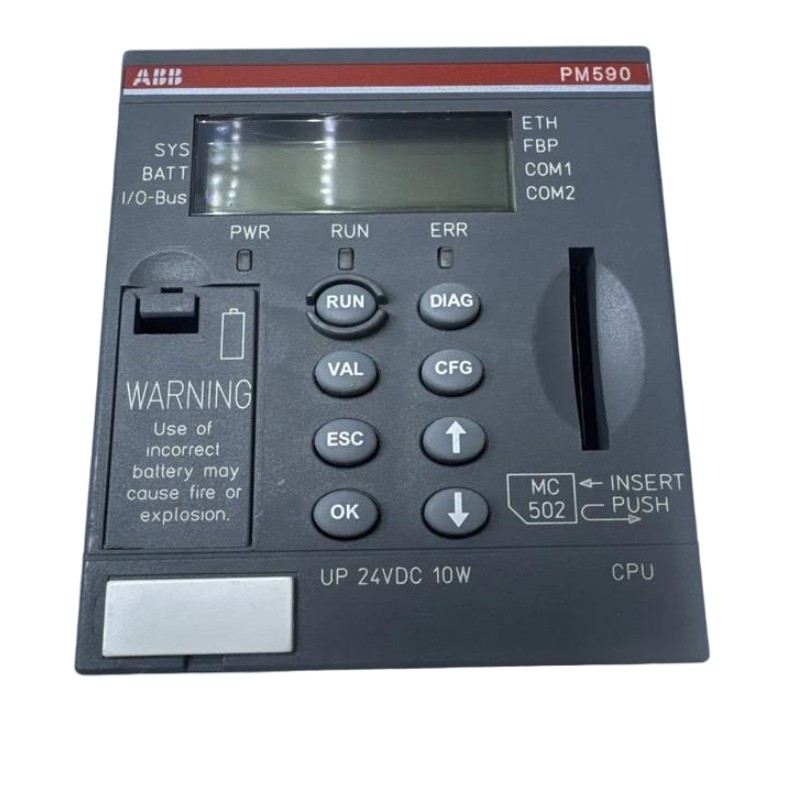

- Integrated LCD display with function keys
- Compact DIN rail installation
System Role
The PM590-ETH functions as the central controller within an ABB AC500 automation system, coordinating PLC execution, communication management, process monitoring, and distributed I/O control.
Typical System Architecture
Sensors → PM590-ETH Controller → Ethernet / Serial Network → HMI / SCADA → Actuators
Industrial Applications
The PM590-ETH is suitable for:
- Factory automation
- Machine control
- Process automation
- Packaging machinery
- Material handling systems
- Water and wastewater treatment
- Energy management systems
- Building automation
- Production lines
- OEM equipment
Installation Guidelines
- Mount the controller securely on a DIN rail.
- Connect a regulated 24 V DC power supply.
- Wire field devices according to the application requirements.
- Configure Ethernet and serial communication parameters.
- Download the control application before commissioning.
- Verify communication, diagnostics, and I/O operation during startup.
Compatible Components
The PM590-ETH is compatible with:
- ABB AC500 I/O Modules
- ABB Communication Modules
- ABB Human Machine Interface (HMI) Panels
- SCADA Systems
- Industrial Ethernet Switches
- FieldBusPlug (FBP) Communication Modules
- RS232 / RS485 Serial Devices
- ABB Automation Builder Software
Alternative Models
| Model | Description |
|---|---|
| PM590-ETH (1SAP150000R0170) | Controller |
| PM590-ETH (1SAP150000R0271) | CPU Programmable Logic Controller |
| PM590-ARCNET | CPU Processor Unit |
| PM585-ETH | CPU Programmable Logic Controller |
| PM583-ETH | CPU Programmable Logic Controller |
Advantages
- High-speed PLC processing performance
- Large 2 MB program memory
- Reliable Industrial Ethernet communication
- Flexible RS232/RS485 connectivity
- Expandable through FBP communication modules
- SD card support for storage and backup
- Integrated LCD diagnostics
- Compact and durable industrial design
- Suitable for demanding automation applications
Frequently Asked Questions
What is the PM590-ETH used for?
It is used as an industrial Controller for machine automation, process control, and distributed automation systems.
How much memory does the controller provide?
The controller provides 2 MB program memory, 3072 kB user data memory, and 5120 kB total memory.
Which communication interfaces are available?
It supports one Industrial Ethernet interface, two RS232/RS485 serial communication ports, and FieldBusPlug (FBP) communication expansion.
Does it support memory expansion?
Yes. The integrated SD card slot supports application storage, firmware updates, data backup, and logging.
How is the controller installed?
The PM590-ETH is designed for DIN rail mounting and operates from a 24 V DC power supply.
Conclusion
The ABB PM590-ETH (1SAP150000R0270) Controller is a powerful automation controller in the ABB AC500 PLC platform. Featuring 2 MB program memory, 3072 kB user data memory, 5120 kB total memory, Industrial Ethernet, dual RS232/RS485 communication interfaces, FieldBusPlug expansion, an SD card slot, and an integrated LCD display, it delivers reliable processing performance, flexible communication, and scalable control for a wide range of industrial automation and process control applications.
