Product Overview

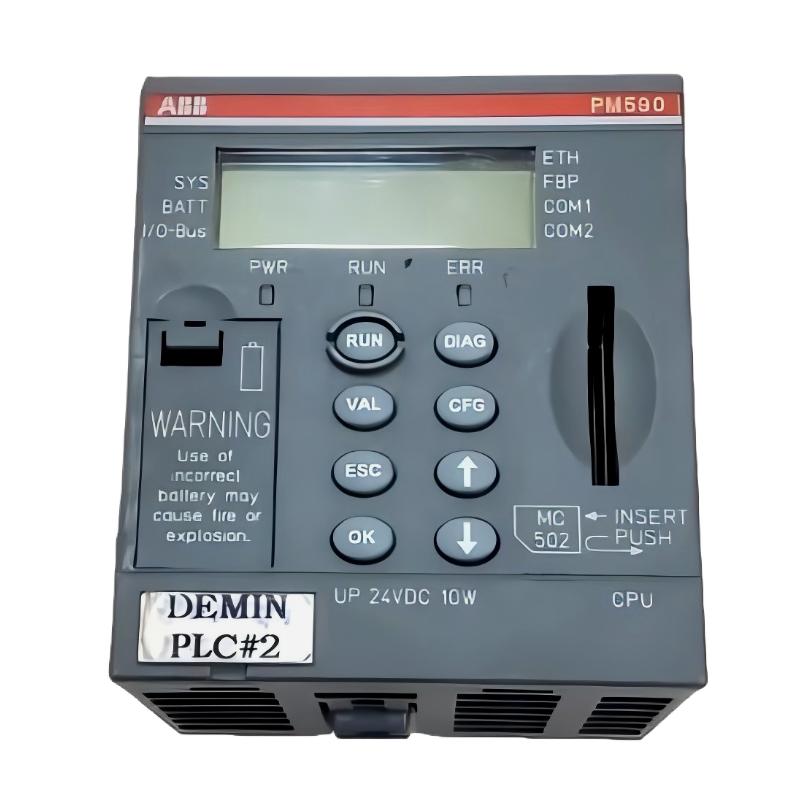

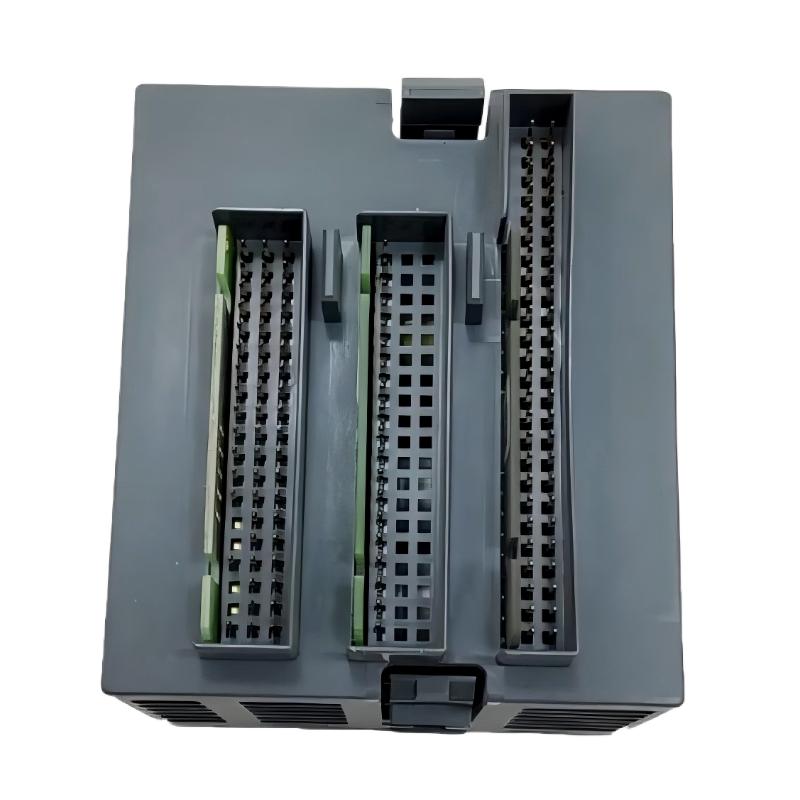

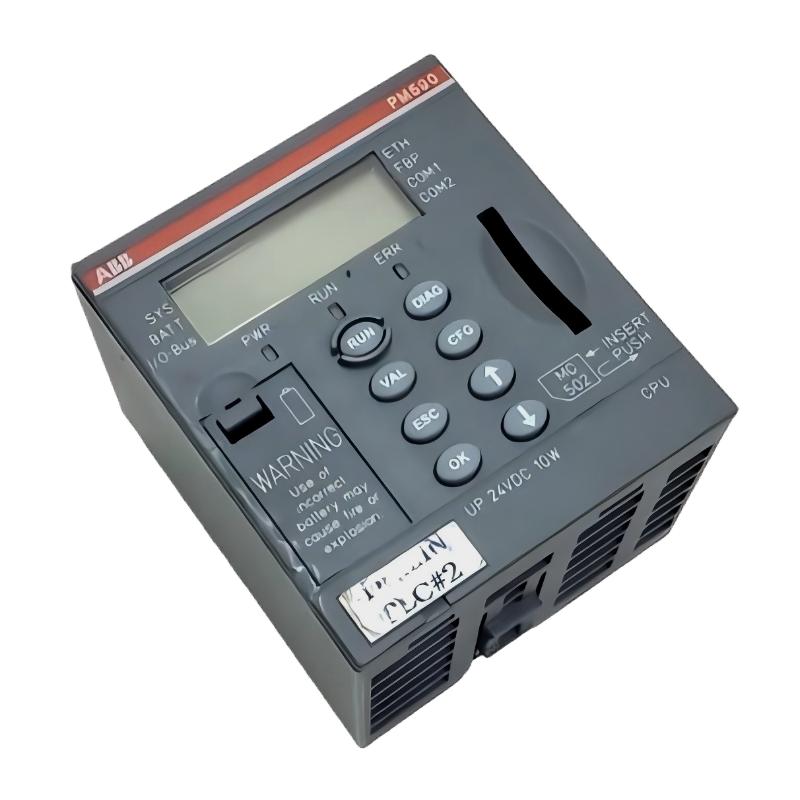

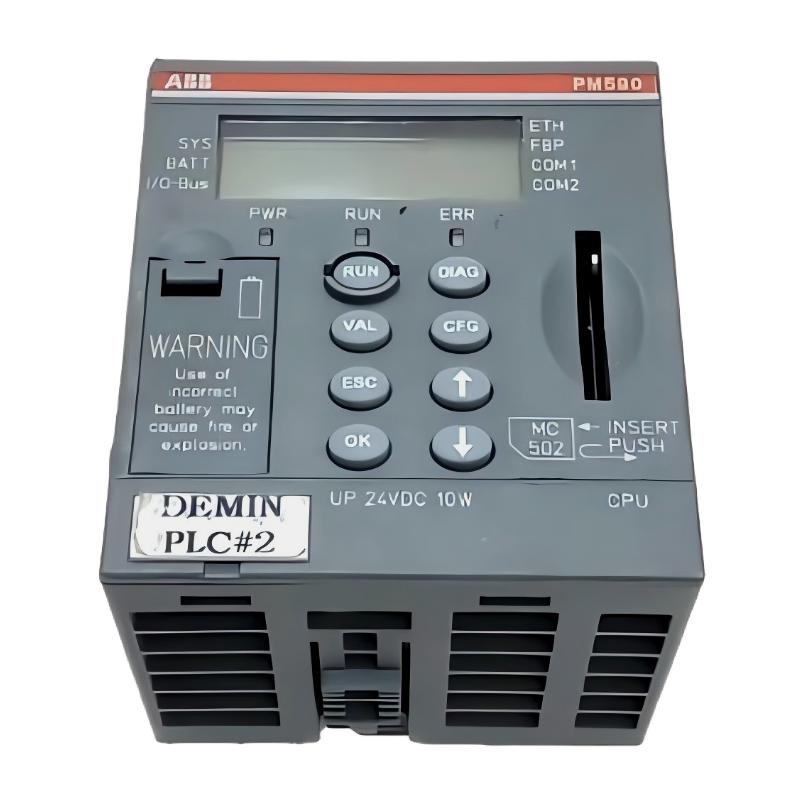

The ABB PM590-ETH (Part Number: 1SAP150000R0170) is a high-performance Controller from the ABB AC500 PLC family. Designed for demanding industrial automation systems, it combines powerful processing capability with Industrial Ethernet communication, flexible serial connectivity, and expandable networking options.
The controller integrates 2 MB program memory, 3072 kB user data memory, an Industrial Ethernet interface, dual RS232/RS485 serial ports, a FieldBusPlug (FBP) interface, an SD card slot, and an integrated LCD display, making it suitable for machine automation, process control, and distributed industrial control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM590-ETH |
| Part Number | 1SAP150000R0170 |
| Product Type | Controller |
| PLC Series | AC500 |
| User Program Memory | 2 MB |
| User Data Memory | 3072 kB RAM |
| Total Memory | 5120 kB |
| Communication Interface | 1 × Industrial Ethernet (10/100 Mbps) |
| Serial Communication | 2 × RS232 / RS485 |
| FieldBusPlug (FBP) Interface | Supported |
| Memory Expansion | SD Card Slot |
| Display | Integrated LCD Display |
| Supply Voltage | 20.4–28.8 V DC |
| Rated Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.15 kg |
Function and Working Principle
The PM590-ETH operates as the central controller of an ABB AC500 automation system. It continuously receives input signals from field devices, executes the user application program, processes control logic, and sends output commands to connected equipment with high-speed response.
Its integrated Industrial Ethernet interface provides communication with HMIs, SCADA systems, engineering workstations, and other PLCs. The dual RS232/RS485 ports support communication with serial devices such as drives, sensors, barcode readers, and intelligent instruments. The FieldBusPlug (FBP) interface enables expansion with additional industrial communication protocols, while the SD card slot allows application storage, firmware updates, and data backup.
Operating Sequence
- Sensors and field devices transmit input signals to the controller.
- The CPU scans and processes the received data.
- PLC logic is executed according to the application program.
- Output commands are transmitted to field devices.
- System data is exchanged through Ethernet and serial communication networks.
Key Features
- High-performance AC500 controller
- 2 MB user program memory
- 3072 kB user data memory
- 5120 kB total memory
- Integrated Industrial Ethernet communication
- Dual RS232 / RS485 serial interfaces
- FieldBusPlug (FBP) communication expansion
- SD card slot for application storage and backup
- Integrated LCD display
- Compact DIN rail installation
System Role
The PM590-ETH functions as the central controller within an ABB AC500 automation system, coordinating program execution, industrial communication, process monitoring, and distributed I/O management.
Typical System Architecture
Sensors → PM590-ETH Controller → Ethernet / Serial Network → HMI / SCADA → Actuators
Industrial Applications
The PM590-ETH is widely used in:
- Factory automation
- Process automation
- Packaging machinery
- Material handling systems
- Water and wastewater treatment
- Energy management systems
- Building automation
- Production lines
- OEM equipment
- Distributed industrial control systems
Installation Guidelines
- Mount the controller securely on a standard DIN rail.
- Connect a regulated 24 V DC power supply.
- Wire field devices according to the application requirements.
- Configure Ethernet and serial communication settings.
- Download the control application before commissioning.
- Verify communication, diagnostics, and I/O operation during startup.
Compatible Components
The PM590-ETH is compatible with:
- ABB AC500 I/O Modules
- ABB Communication Modules
- ABB Human Machine Interface (HMI) Panels
- SCADA Systems
- Industrial Ethernet Switches
- FieldBusPlug (FBP) Communication Modules
- RS232 / RS485 Serial Devices
- ABB Automation Builder Software
Alternative Models
| Model | Description |
|---|---|
| PM590-ETH (1SAP150000R0271) | Controller |
| PM590-ARCNET | CPU Processor Unit |
| PM585-ETH | CPU Programmable Logic Controller |
| PM583-ETH | CPU Programmable Logic Controller |
| PM581-ETH | CPU Programmable Logic Controller |
Advantages
- Powerful real-time PLC processing
- Large 2 MB program memory
- High-speed Industrial Ethernet communication
- Flexible RS232/RS485 connectivity
- Expandable through FBP communication modules
- SD card support for storage and backup
- Integrated LCD diagnostics
- Compact and durable industrial design
- Suitable for complex automation applications
Frequently Asked Questions
What is the PM590-ETH used for?
It is used as a Controller for industrial automation, machine control, process automation, and distributed control applications.
How much memory does the controller provide?
The controller provides 2 MB user program memory, 3072 kB user data memory, and 5120 kB total memory.
Which communication interfaces are available?
It supports one Industrial Ethernet interface, two RS232/RS485 serial communication ports, and FieldBusPlug (FBP) expansion.
Does it support memory expansion?
Yes. The integrated SD card slot supports application storage, firmware updates, backups, and data logging.
How is the controller installed?
The PM590-ETH is designed for DIN rail mounting and operates on a 24 V DC power supply.
Conclusion
The ABB PM590-ETH (1SAP150000R0170) Controller is a high-performance automation controller for the ABB AC500 PLC platform. Featuring 2 MB user program memory, 3072 kB user data memory, 5120 kB total memory, Industrial Ethernet, dual RS232/RS485 communication interfaces, FieldBusPlug expansion, an SD card slot, and an integrated LCD display, it delivers reliable control, flexible communication, and scalable performance for a wide range of industrial automation and process control applications.
