Product Overview

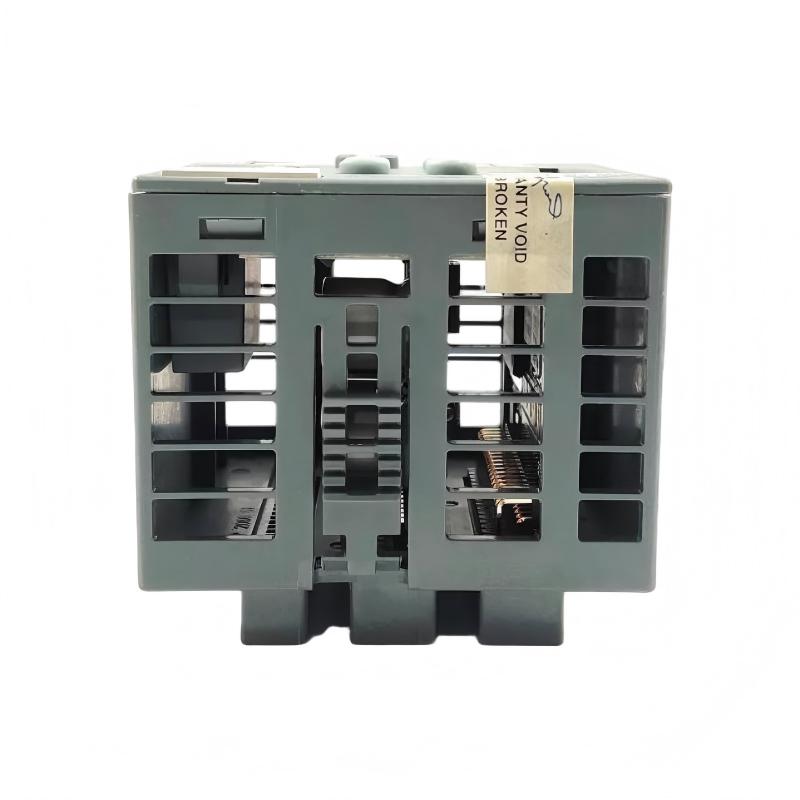

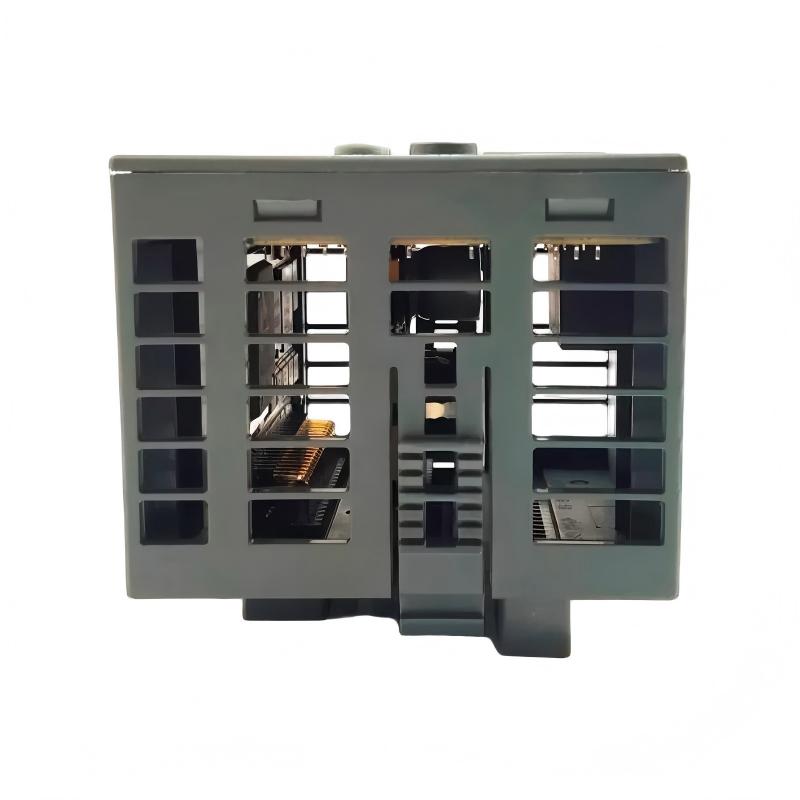

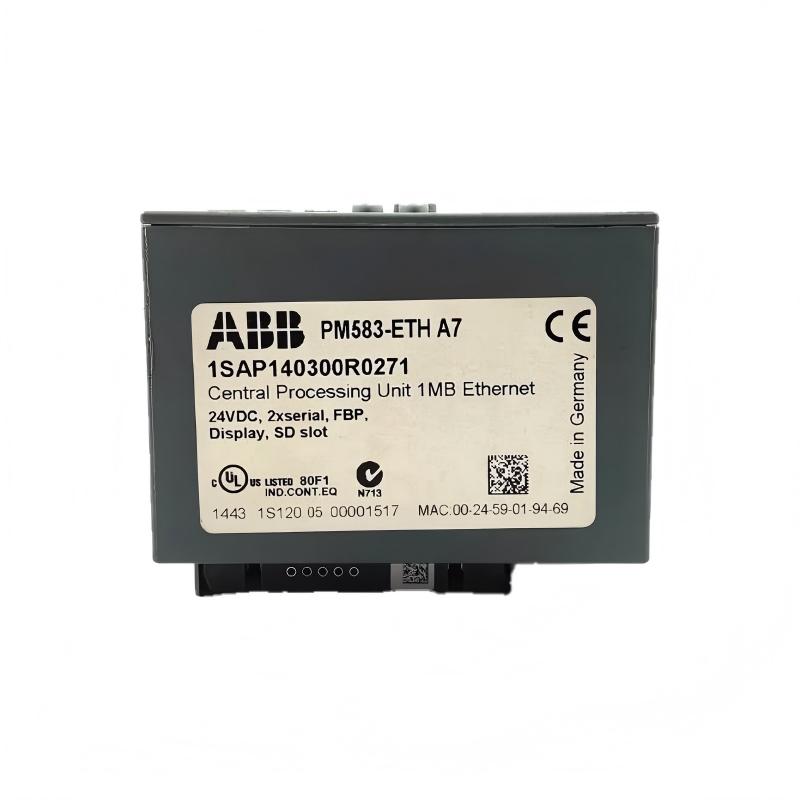

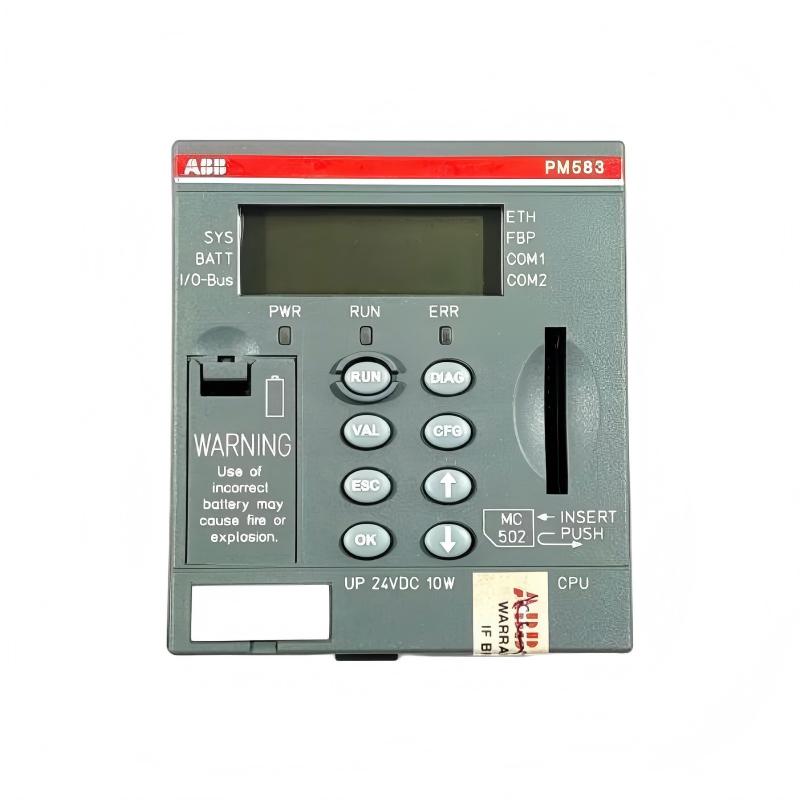

The ABB PM583-ETH (Part Number: 1SAP140300R0271) is a high-performance CPU Programmable Logic Controller (PLC) in the ABB AC500 series. Designed for medium to large industrial automation systems, it offers powerful processing capabilities, flexible communication interfaces, and scalable I/O expansion for demanding control applications.
The controller features 1 MB user program memory, an integrated Industrial Ethernet interface, dual RS232/RS485 serial communication ports, a FieldBusPlug (FBP) interface, an SD card slot for data storage and backup, and an integrated LCD display. Its compact DIN rail design makes it ideal for machine automation, process control, and distributed industrial systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM583-ETH |
| Part Number | 1SAP140300R0271 |
| Product Type | CPU Programmable Logic Controller |
| PLC Series | AC500 |
| User Program Memory | 1 MB (1024 kB) |
| User Data Memory | 1 MB |
| Communication Interfaces | 1 × Industrial Ethernet |
| Serial Communication | 2 × RS232 / RS485 |
| FieldBusPlug (FBP) Interface | Supported |
| Memory Expansion | SD Card Slot |
| Display | Integrated LCD Display |
| Supply Voltage | 20.4–28.8 V DC |
| Rated Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.134 kg |
Function and Working Principle
The PM583-ETH serves as the central processing unit of an ABB AC500 automation system. It continuously scans input signals from field devices, executes PLC programs in real time, processes control logic, and updates outputs for connected equipment.
Its integrated Ethernet interface enables communication with HMIs, SCADA systems, engineering workstations, and networked PLCs. The dual RS232/RS485 interfaces provide connectivity for serial devices, while the FBP interface allows expansion with additional industrial communication protocols. The SD card slot supports application storage, firmware updates, and data backup.
Operating Sequence
- Field devices send input signals to the controller.
- The CPU scans and processes the input data.
- PLC logic is executed according to the application program.
- Output commands are transmitted to connected devices.
- System data is exchanged through Ethernet and serial communication interfaces.
Key Features
- High-performance AC500 PLC CPU
- 1 MB user program memory
- 1 MB user data memory
- Industrial Ethernet communication
- Dual RS232 / RS485 serial interfaces
- FieldBusPlug (FBP) expansion support
- SD card slot for storage and backup
- Integrated LCD display
- Compact DIN rail installation
- Reliable industrial-grade performance
System Role
The PM583-ETH functions as the central controller within an ABB AC500 automation system, coordinating PLC program execution, industrial communication, and distributed I/O management.
Typical System Architecture
Sensors → PM583-ETH CPU PLC → Ethernet / Serial Network → HMI / SCADA → Actuators
Industrial Applications
The PM583-ETH is widely used in:
- Factory automation
- Machine control
- Packaging machinery
- Conveyor systems
- Material handling equipment
- Water and wastewater treatment
- Building automation
- Energy management systems
- OEM equipment
- General industrial process control
Installation Guidelines
- Install the controller on a standard DIN rail.
- Connect a stable 24 V DC power supply.
- Wire field devices according to the system design.
- Configure Ethernet and serial communication parameters.
- Download the PLC application using ABB engineering software.
- Verify communication, diagnostics, and I/O operation before commissioning.
Compatible Components
The PM583-ETH is compatible with:
- ABB AC500 I/O Modules
- ABB Communication Modules
- ABB Human Machine Interface (HMI) Panels
- SCADA Systems
- Industrial Ethernet Switches
- FieldBusPlug (FBP) Communication Modules
- RS232 / RS485 Serial Devices
- ABB Automation Builder Software
Alternative Models
| Model | Description |
|---|---|
| PM571-ETH | Entry-level CPU Programmable Logic Controller |
| PM573-ETH | Mid-range CPU Programmable Logic Controller |
| PM581-ETH | High-performance CPU Programmable Logic Controller |
| PM5630-2ETH | Processor Module |
| PM5650-2ETH | Advanced Processor Module |
Advantages
- High-speed PLC processing performance
- 1 MB program and data memory
- Industrial Ethernet networking
- Flexible serial communication
- Expandable via FBP communication modules
- SD card support for backup and storage
- Integrated LCD diagnostics
- Compact and robust DIN rail design
- Suitable for demanding industrial automation applications
Frequently Asked Questions
What is the PM583-ETH used for?
It is used as a CPU Programmable Logic Controller for industrial automation, machine control, and process control systems.
How much memory does it provide?
The controller includes 1 MB user program memory and 1 MB user data memory.
Which communication interfaces are available?
It supports one Industrial Ethernet interface, two RS232/RS485 serial ports, and FieldBusPlug (FBP) communication modules.
Does it support memory expansion?
Yes. The integrated SD card slot supports application storage, firmware updates, and system backup.
How is the controller installed?
The PM583-ETH is designed for DIN rail mounting and operates on a 24 V DC power supply.
Conclusion
The ABB PM583-ETH (1SAP140300R0271) CPU Programmable Logic Controller is a powerful and versatile controller in the ABB AC500 platform. Featuring 1 MB user program memory, 1 MB user data memory, Industrial Ethernet, dual RS232/RS485 communication, FieldBusPlug expansion, an SD card slot, and an integrated LCD display, it provides reliable performance, flexible connectivity, and scalable control for a wide range of industrial automation and machine control applications.
