Product Overview

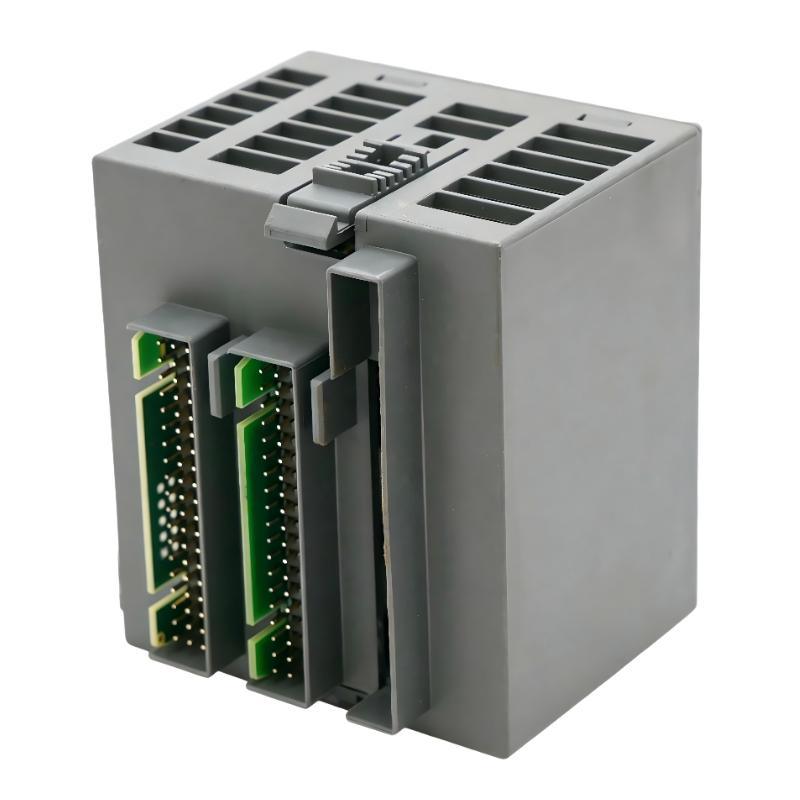

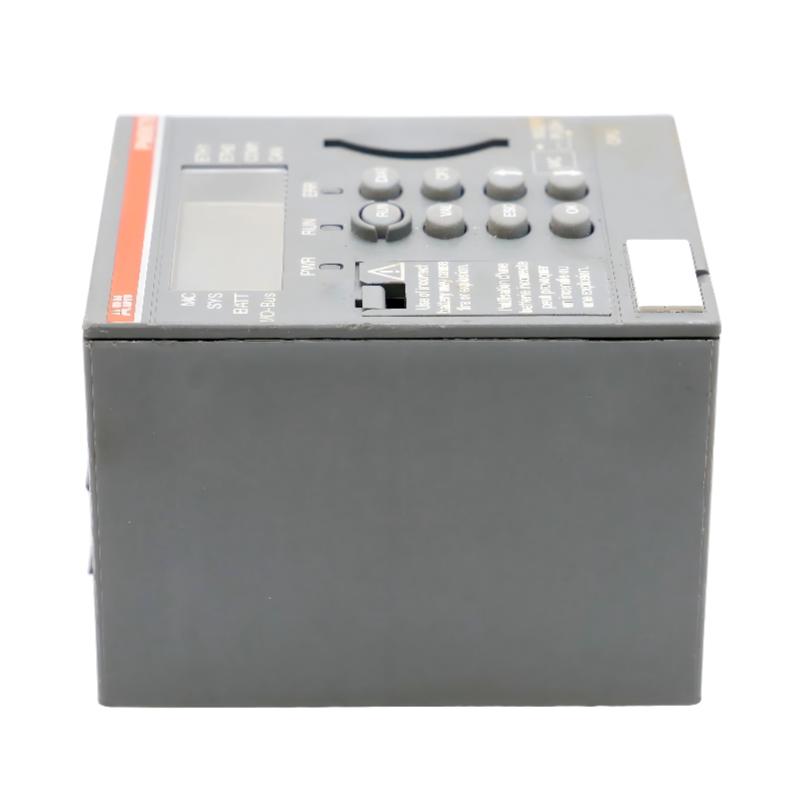

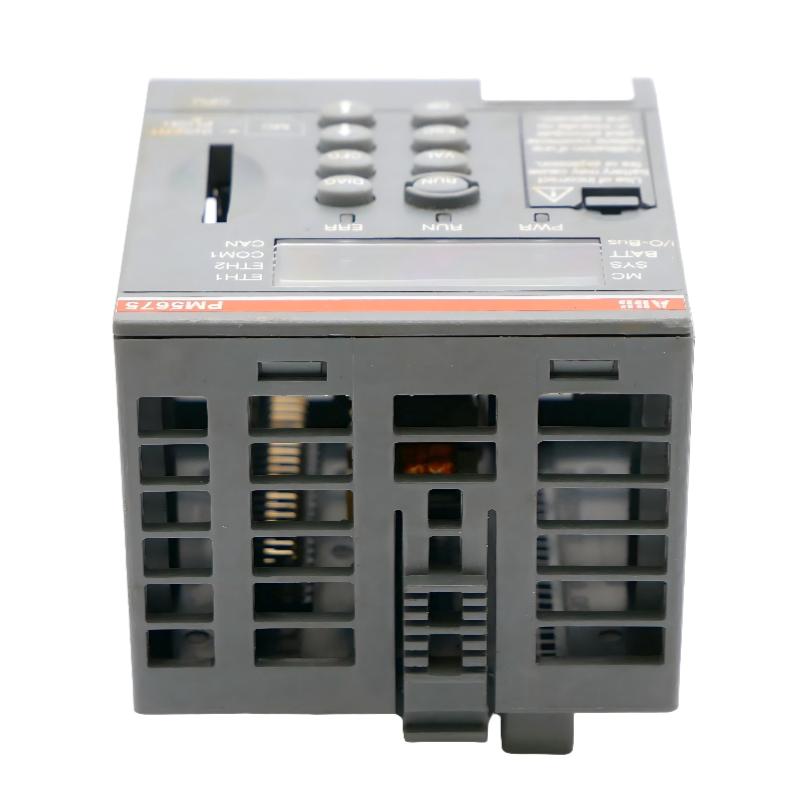

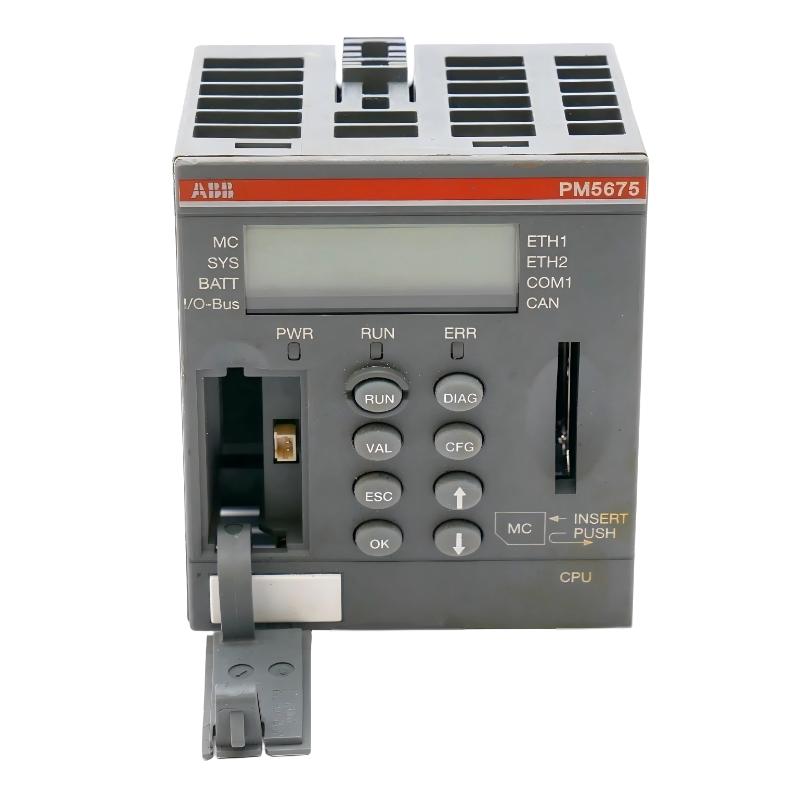

The ABB PM5675-2ETH (Part Number: 3ABD00038897) is a premium Processor Module in the ABB AC500 PLC series. It is designed for advanced industrial automation applications that require exceptional processing speed, extensive memory capacity, and comprehensive communication capabilities.
The module integrates a high-performance CPU with 160 MB program memory, an 8 GB Flashdisk, dual Industrial Ethernet interfaces, RS232/RS485 serial communication, CAN fieldbus support, and an integrated LCD display. It is well suited for complex machine automation, process control, and large-scale distributed control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM5675-2ETH |
| Part Number | 3ABD00038897 |
| Product Type | Processor Module |
| PLC Series | AC500 |
| Program Memory | 160 MB |
| Integrated Storage | 8 GB Flashdisk |
| User Memory (RAM) | Approximately 820,500 kB |
| Communication Interfaces | 2 × Industrial Ethernet |
| Serial Communication | RS232 / RS485 |
| Fieldbus | CAN |
| Display | Integrated LCD Display |
| Supply Voltage | 20.4–28.8 V DC |
| Rated Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 76 × 62 × 67.5 mm |
| Weight | 0.134 kg |
Function and Working Principle
The PM5675-2ETH functions as the central processing unit of an ABB AC500 PLC system. It continuously acquires input data from field devices, executes PLC programs in real time, and transmits output commands to connected equipment.
Its integrated 8 GB Flashdisk provides additional storage for application programs, recipes, historical data, alarms, and system logs. Dual Ethernet ports enable simultaneous communication with engineering workstations, HMI panels, SCADA systems, and industrial networks, while the RS232/RS485 and CAN interfaces provide connectivity to serial and fieldbus devices.
Operating Sequence
- Field devices send input signals to the processor.
- The CPU scans and processes incoming data.
- Control logic is executed according to the PLC application.
- Output commands are transmitted to connected devices.
- Process data is exchanged through Ethernet, serial, and CAN communication interfaces.
Key Features
- High-performance industrial processor
- 160 MB program memory
- Integrated 8 GB Flashdisk
- Approximately 820,500 kB user RAM
- Dual Industrial Ethernet interfaces
- RS232 / RS485 communication
- CAN fieldbus support
- Integrated LCD display
- Compact DIN rail installation
- Designed for demanding industrial automation applications
System Role
The PM5675-2ETH serves as the central controller within an ABB AC500 automation system, managing PLC execution, industrial communication, data storage, and process coordination.
Typical System Architecture
Sensors → PM5675-2ETH Processor Module → Ethernet / CAN Network → HMI / SCADA → Actuators
Industrial Applications
The PM5675-2ETH is suitable for:
- Factory automation
- Robotics
- Packaging machinery
- Material handling systems
- High-speed production lines
- Water and wastewater treatment
- Energy management systems
- Semiconductor manufacturing
- Process automation
- OEM machinery
Installation Guidelines
- Mount the processor securely on a DIN rail.
- Connect a regulated 24 V DC power supply.
- Connect field devices according to the system design.
- Configure Ethernet, RS232/RS485, and CAN communication parameters.
- Download the PLC application before commissioning.
- Verify communication, diagnostics, and system performance prior to operation.
Compatible Components
The PM5675-2ETH is compatible with:
- ABB AC500 I/O Modules
- ABB Communication Modules
- ABB Human Machine Interfaces (HMI)
- SCADA Systems
- Industrial Ethernet Switches
- CAN Field Devices
- RS232 / RS485 Serial Devices
- ABB Automation Builder Software
Alternative Models
| Model | Description |
|---|---|
| PM5670-2ETH | Processor Module |
| PM5650-2ETH | Processor Module |
| PM5670-MC-KIT | Controller Kit |
| PM5650-MC-KIT | Controller Kit |
| PM5630-2ETH | Processor Module |
Advantages
- High-speed PLC execution
- Large 160 MB program memory
- Integrated 8 GB Flashdisk for application storage
- Dual Ethernet communication
- Flexible serial and CAN connectivity
- Integrated LCD display for diagnostics
- Compact DIN rail design
- Reliable operation in demanding industrial environments
Frequently Asked Questions
What is the PM5675-2ETH used for?
It is used as the central Processor Module in ABB AC500 PLC systems for advanced industrial automation, machine control, and process automation.
How much memory does the processor provide?
The module provides 160 MB program memory, approximately 820,500 kB user RAM, and an integrated 8 GB Flashdisk.
Which communication interfaces are available?
It supports dual Industrial Ethernet, RS232/RS485, and CAN communication.
Does the processor include onboard storage?
Yes. The integrated 8 GB Flashdisk provides storage for application files, recipes, and data logging.
How is the processor installed?
The PM5675-2ETH is designed for DIN rail mounting and operates from a 24 V DC power supply.
Conclusion
The ABB PM5675-2ETH (3ABD00038897) Processor Module is a high-performance controller in the ABB AC500 PLC platform. Featuring 160 MB program memory, an integrated 8 GB Flashdisk, approximately 820,500 kB user RAM, dual Industrial Ethernet interfaces, RS232/RS485, CAN communication, and an integrated LCD display, it provides outstanding processing performance, flexible networking, and reliable control for advanced industrial automation and machine control applications.
