Product Overview

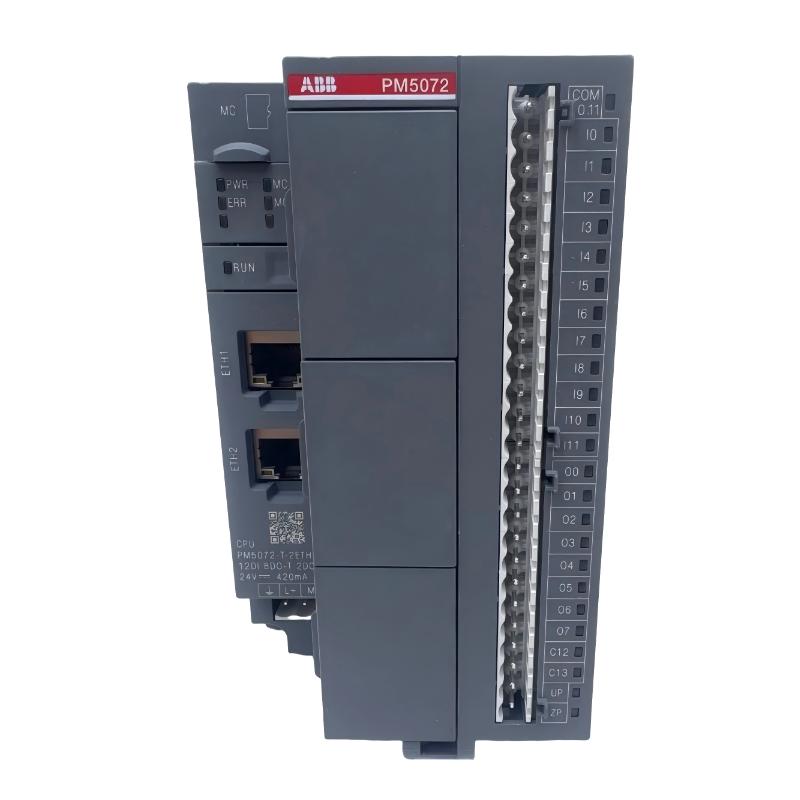

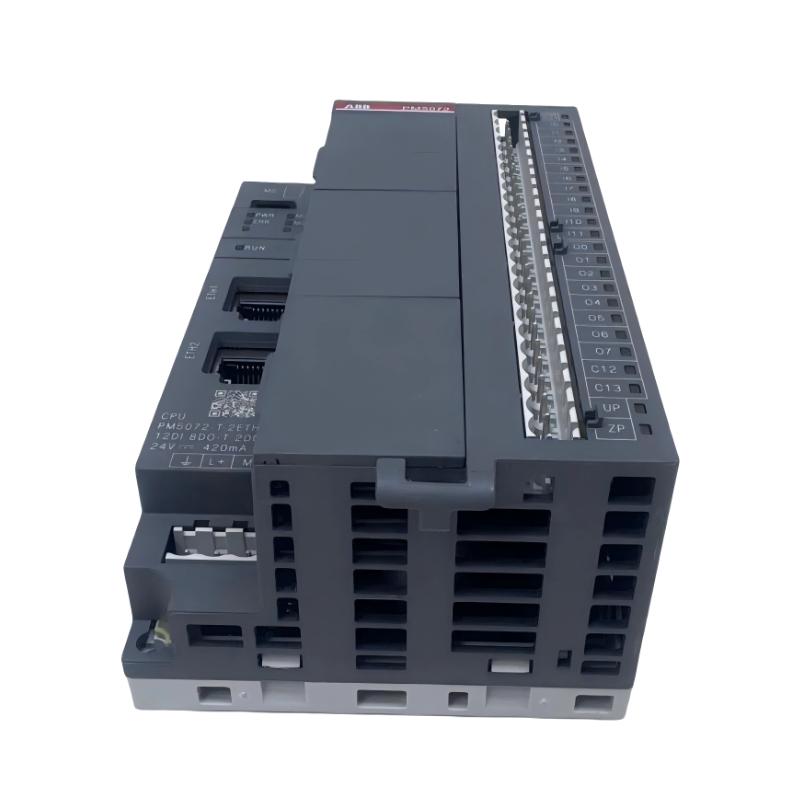

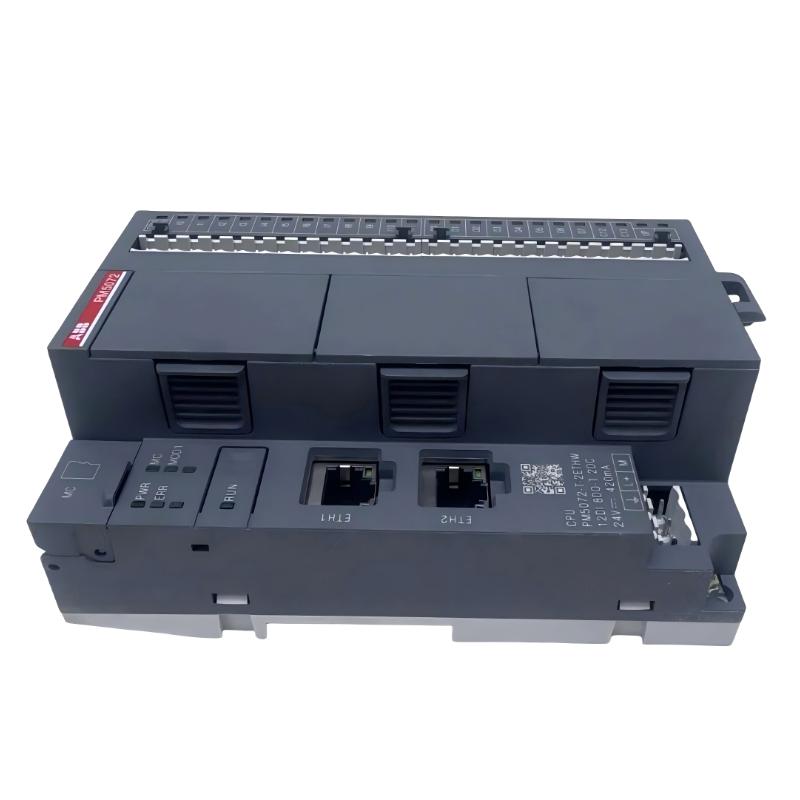

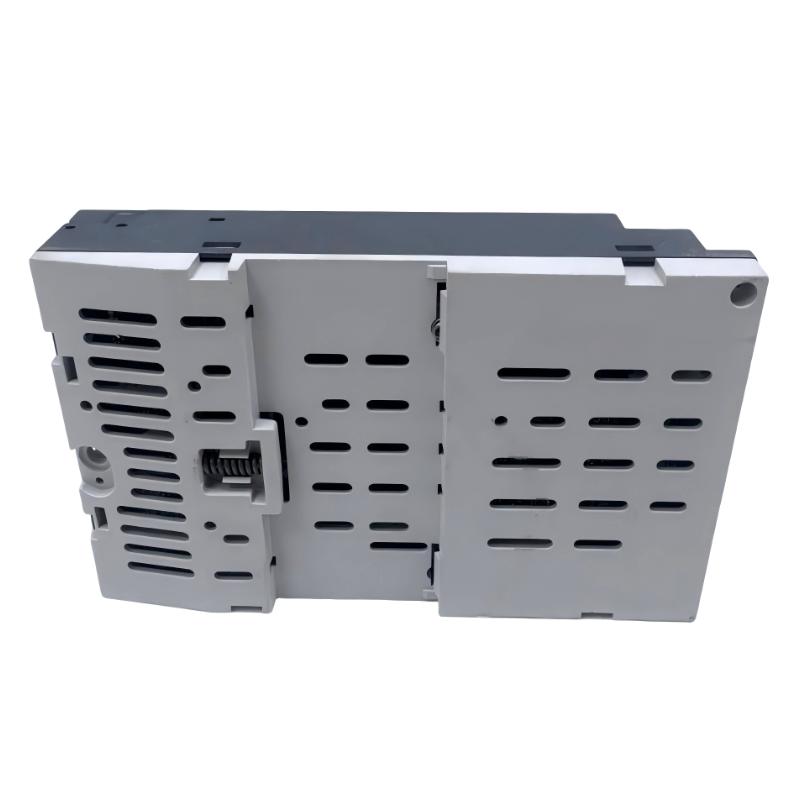

The ABB PM5072-T-2ETHW (Part Number: 1SAP124400R0173) is a high-performance Processor Module from the ABB AC500-eCo PLC series. It is designed for advanced industrial automation applications, combining a powerful embedded CPU, integrated digital I/O, dual Industrial Ethernet interfaces, and flexible expansion capabilities in a compact controller.
Engineered for demanding automation environments, the PM5072-T-2ETHW delivers fast real-time processing, reliable network communication, and scalable system integration for machine control and process automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM5072-T-2ETHW |
| Part Number | 1SAP124400R0173 |
| Product Type | Processor Module |
| PLC Series | AC500-eCo |
| Program Memory | 8 MB |
| RAM | 9100 kB |
| Digital Inputs | 12 × 24 V DC |
| Digital Outputs | 8 × Transistor Outputs, 24 V DC, 0.5 A |
| Configurable I/O | 2 × Configurable Digital I/O, 24 V DC |
| Communication Interfaces | 2 × Industrial Ethernet |
| Expansion Slots | 3 Option Slots |
| Supply Voltage | 20.4–28.8 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 135 × 74 × 82 mm |
| Weight | 0.265 kg |
Function and Working Principle
The PM5072-T-2ETHW functions as the central processing unit of an ABB AC500-eCo PLC system. It continuously scans input signals, executes PLC application programs, and updates transistor outputs based on user-defined control logic.
Its dual Ethernet interfaces enable simultaneous communication with HMIs, SCADA systems, engineering workstations, and industrial networks, while the expansion slots provide flexibility for additional communication or application modules.
Operating Sequence
- Field devices transmit signals to the processor.
- The CPU scans and processes input data.
- PLC programs execute in real time.
- Output signals are generated according to the control logic.
- System data is exchanged through the dual Ethernet interfaces for monitoring and control.
Key Features
- High-performance embedded processor
- 8 MB program memory
- 9100 kB RAM
- 12 integrated digital inputs
- 8 high-speed transistor outputs
- 2 configurable digital I/O channels
- Dual Industrial Ethernet interfaces
- Three expansion option slots
- Compact DIN rail installation
- Designed for wide-temperature industrial environments
System Role
The PM5072-T-2ETHW serves as the central controller within an ABB AC500-eCo automation system, integrating program execution, communication, and local I/O into one compact module.
Typical System Architecture
Sensors → PM5072-T-2ETHW Processor Module → Dual Ethernet Network → HMI / SCADA → Actuators
Industrial Applications
The PM5072-T-2ETHW is widely used in:
- Factory automation
- Machine control
- Packaging machinery
- Material handling systems
- Conveyor automation
- Water and wastewater treatment
- Food and beverage production
- Building automation
- General industrial manufacturing
Installation Guidelines
- Install the processor on a standard DIN rail.
- Supply the module with a regulated 24 V DC power source.
- Connect field devices according to the wiring diagram.
- Configure both Ethernet ports for network communication.
- Install optional expansion modules when additional functionality is required.
- Verify communication and control parameters before commissioning.
Compatible Components
The PM5072-T-2ETHW is compatible with:
- ABB AC500-eCo Expansion I/O Modules
- ABB Communication Modules
- ABB Human Machine Interfaces (HMI)
- SCADA Systems
- Industrial Ethernet Switches
- ABB Automation Builder Software
- Remote I/O Modules
Alternative Models
| Model | Description |
|---|---|
| PM5052-T-ETH | Processor Module |
| PM5052-R-ETH | Processor Module with Relay Outputs |
| PM5072-T-2ETH | Processor Module with Dual Ethernet |
| PM5072-MC-KIT | Motion Controller Kit |
| PM564-T-ETH | Advanced PLC Processor Module |
Advantages
- High-speed real-time PLC processing
- Large 8 MB program memory
- Dual Industrial Ethernet interfaces for flexible networking
- Integrated digital inputs and transistor outputs
- Three expansion slots for scalable system configuration
- Compact DIN rail design
- Reliable performance in demanding industrial environments
- Easy programming, maintenance, and system integration
Frequently Asked Questions
What is the PM5072-T-2ETHW used for?
It is used as the central Processor Module in ABB AC500-eCo PLC systems for machine automation, process control, and industrial communication.
How much memory does the module provide?
The processor includes 8 MB of program memory and 9100 kB of RAM.
What onboard I/O is available?
It provides 12 digital inputs, 8 transistor digital outputs, and 2 configurable digital I/O channels.
Does it support dual Ethernet communication?
Yes. The module includes two Industrial Ethernet interfaces, allowing flexible communication with automation networks and supervisory systems.
Can the processor be expanded?
Yes. It includes three option slots for communication, networking, or application-specific expansion modules.
Conclusion
The ABB PM5072-T-2ETHW (1SAP124400R0173) Processor Module is an advanced controller for the AC500-eCo PLC platform. Featuring 8 MB program memory, 9100 kB RAM, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels, dual Industrial Ethernet interfaces, and three expansion slots, it delivers high-performance real-time control, reliable networking, and scalable integration for sophisticated industrial automation applications.
