Product Overview

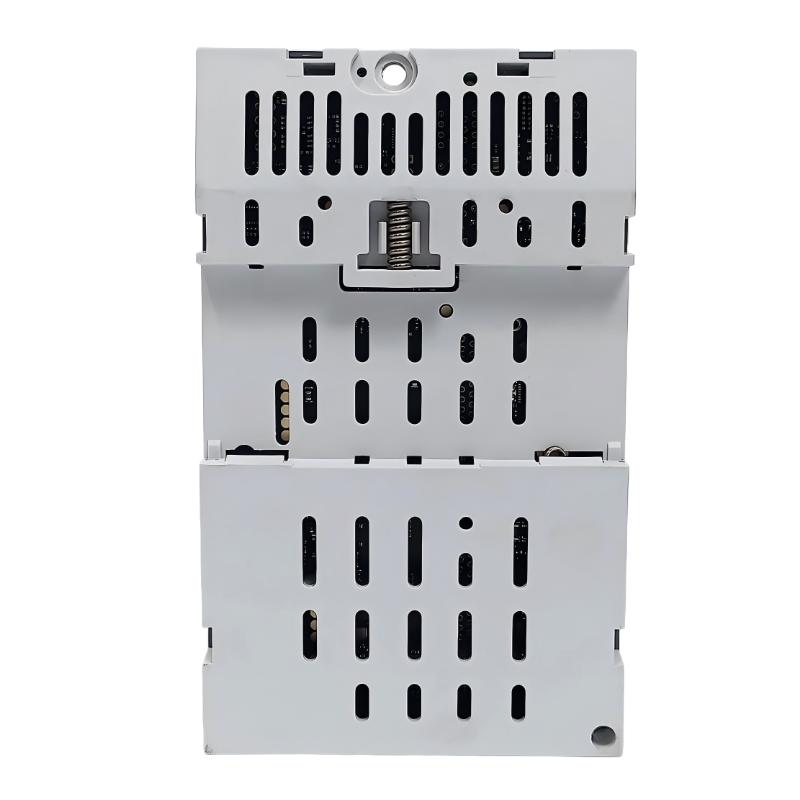

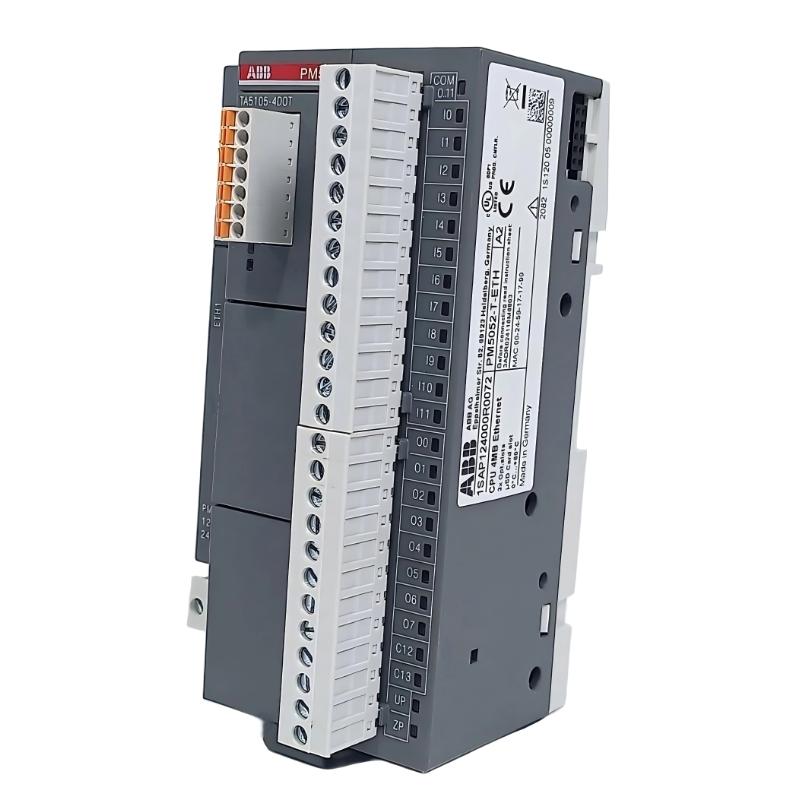

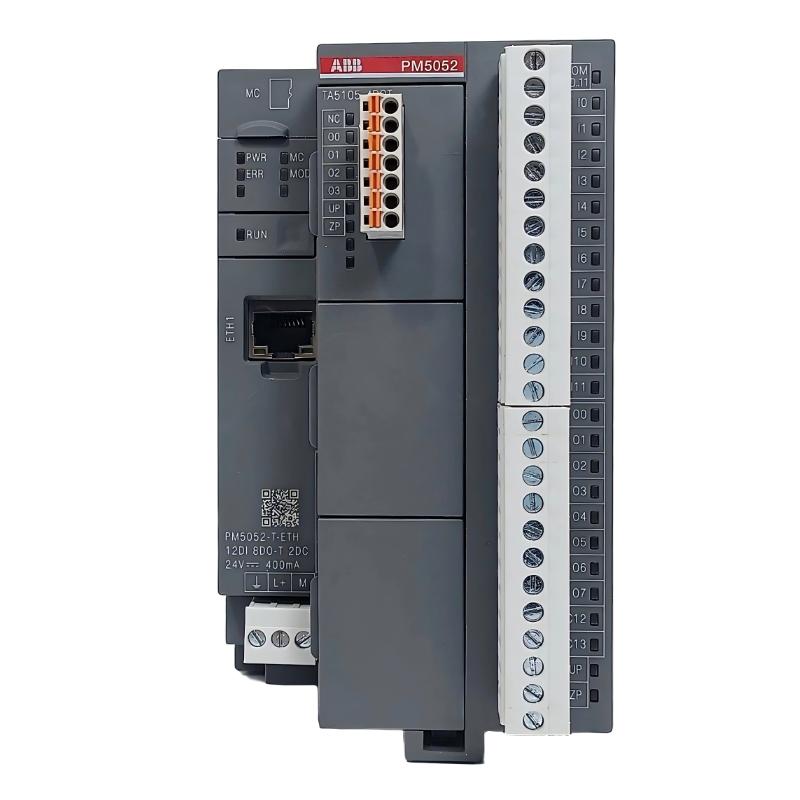

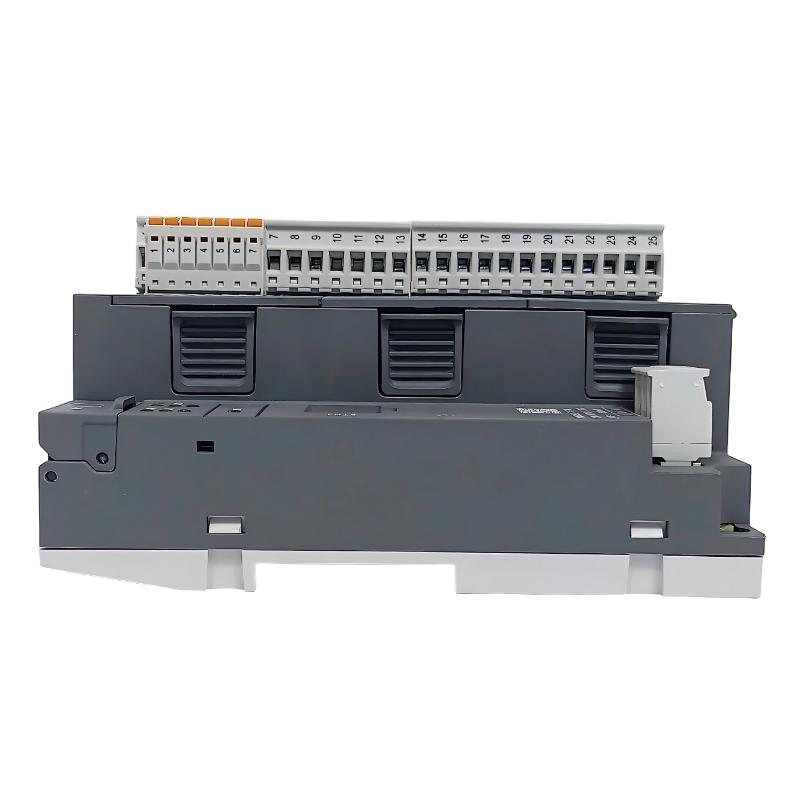

The ABB PM5052-T-ETH (Part Number: 1SAP124000R0072) is a high-performance Processor Module from the ABB AC500-eCo PLC series. It combines a powerful embedded CPU, integrated digital I/O, and Industrial Ethernet communication into a compact controller designed for advanced industrial automation and machine control.
The module executes PLC applications in real time, manages local and expansion I/O, and communicates with HMIs, SCADA systems, and industrial Ethernet networks, providing reliable and efficient control for demanding automation tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM5052-T-ETH |
| Part Number | 1SAP124000R0072 |
| Product Type | Processor Module |
| PLC Series | AC500-eCo |
| Program Memory | 4 MB |
| RAM | 7032 kB |
| Digital Inputs | 12 × 24 V DC |
| Digital Outputs | 8 × Transistor Outputs, 24 V DC, 0.5 A |
| Configurable I/O | 2 × Configurable Digital I/O, 24 V DC |
| Communication Interface | 1 × Industrial Ethernet |
| Expansion Slots | 3 Option Slots |
| Supply Voltage | 20.4–28.8 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 135 × 74 × 82 mm |
| Weight | 0.257 kg |
Function and Working Principle
The PM5052-T-ETH acts as the central processing unit of the ABB AC500-eCo PLC system. It continuously scans input signals, executes user-defined PLC programs, and updates transistor outputs based on programmed control logic.
The integrated Ethernet interface enables high-speed communication with engineering software, HMI panels, SCADA systems, and industrial networks. Its three expansion slots allow additional communication or application modules to be installed for increased flexibility.
Operating Sequence
- Digital input devices transmit signals to the processor.
- The CPU scans and processes input data.
- PLC logic is executed in real time.
- Transistor outputs are updated according to the control program.
- Process data is exchanged with supervisory systems via the Ethernet interface.
Key Features
- High-performance embedded processor
- 4 MB program memory
- 7032 kB RAM
- 12 integrated digital inputs
- 8 high-speed transistor outputs
- 2 configurable digital I/O channels
- Built-in Industrial Ethernet interface
- Three expansion option slots
- Compact DIN rail installation
- Reliable real-time PLC performance
System Role
The PM5052-T-ETH serves as the central controller within an ABB AC500-eCo automation system, integrating program execution, communication, and local I/O into a single compact module.
Typical System Architecture
Sensors → PM5052-T-ETH Processor Module → Ethernet Network → HMI / SCADA → Actuators
Industrial Applications
The PM5052-T-ETH is widely used in:
- Factory automation
- Machine control
- Packaging machinery
- Conveyor systems
- Material handling equipment
- Water and wastewater treatment
- Building automation
- Food and beverage processing
- General manufacturing automation
Installation Guidelines
- Mount the processor on a standard DIN rail.
- Supply the module with a regulated 24 V DC power source.
- Connect field devices according to the wiring configuration.
- Connect the Ethernet interface for programming and industrial communication.
- Install optional expansion modules when additional functionality is required.
- Verify communication and control parameters before commissioning.
Compatible Components
The PM5052-T-ETH is compatible with:
- ABB AC500-eCo Expansion I/O Modules
- ABB Communication Modules
- ABB Human Machine Interfaces (HMI)
- SCADA Systems
- Industrial Ethernet Switches
- ABB Automation Builder Software
- Remote I/O Modules
Alternative Models
| Model | Description |
|---|---|
| PM5012-T-ETH | Compact Processor Module |
| PM5012-R-ETH | Processor Module with Relay Outputs |
| PM5032-T-ETH | Processor Module |
| PM5032-R-ETH | Processor Module with Relay Outputs |
| PM5052-R-ETH | Processor Module with Relay Outputs |
Advantages
- High-speed real-time processing
- 4 MB program memory for complex applications
- Integrated Industrial Ethernet communication
- Built-in digital inputs and transistor outputs
- Flexible expansion through three option slots
- Compact DIN rail design
- Reliable industrial-grade performance
- Easy programming, maintenance, and system integration
Frequently Asked Questions
What is the PM5052-T-ETH used for?
It is used as the central Processor Module in ABB AC500-eCo PLC systems, executing automation programs and controlling industrial machinery.
How much memory does the processor provide?
The module provides 4 MB of program memory and 7032 kB of RAM.
What onboard I/O is available?
It includes 12 digital inputs, 8 transistor digital outputs, and 2 configurable digital I/O channels.
Does it support Ethernet communication?
Yes. It features an integrated Industrial Ethernet interface for communication with HMIs, SCADA systems, and engineering software.
Can additional modules be added?
Yes. The processor includes three option slots for communication and application expansion modules.
Conclusion
The ABB PM5052-T-ETH (1SAP124000R0072) Processor Module is a compact, high-performance controller for the AC500-eCo PLC platform. With 4 MB program memory, 7032 kB RAM, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels, integrated Industrial Ethernet, and three expansion slots, it provides reliable real-time control and scalable performance for a wide range of industrial automation and machine control applications.
