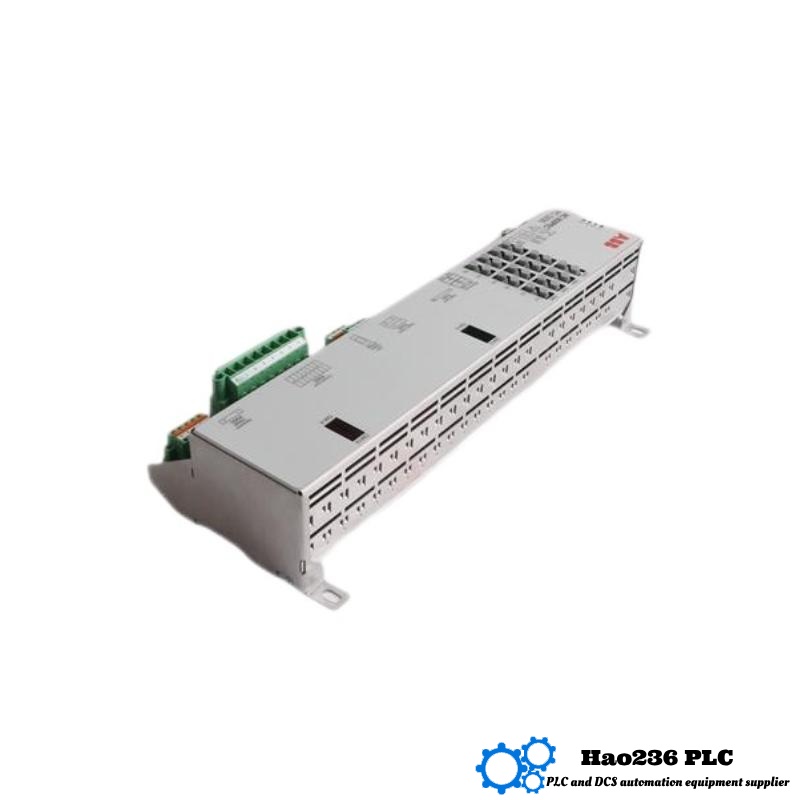

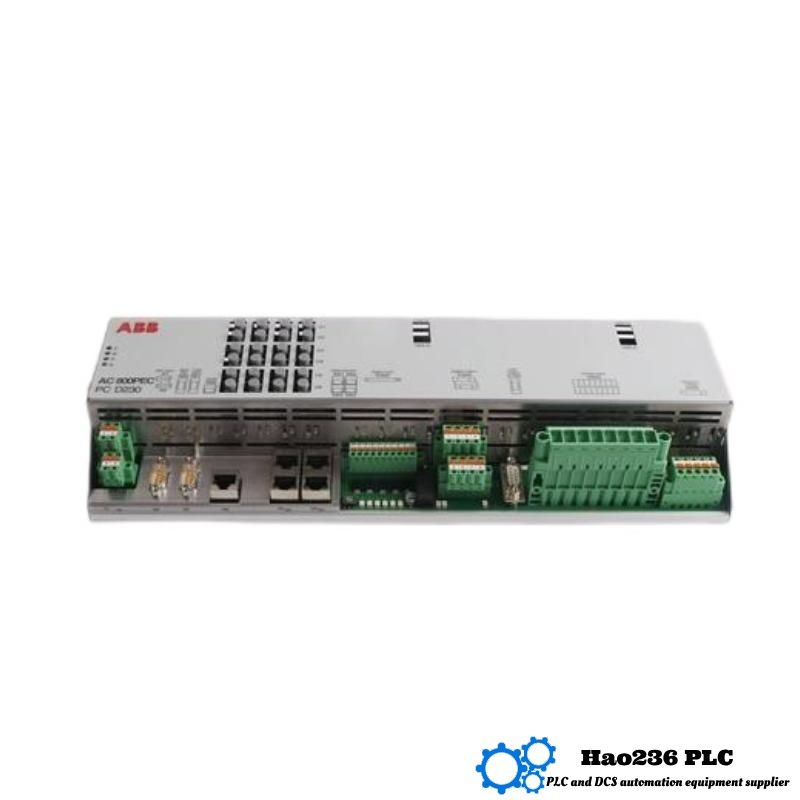

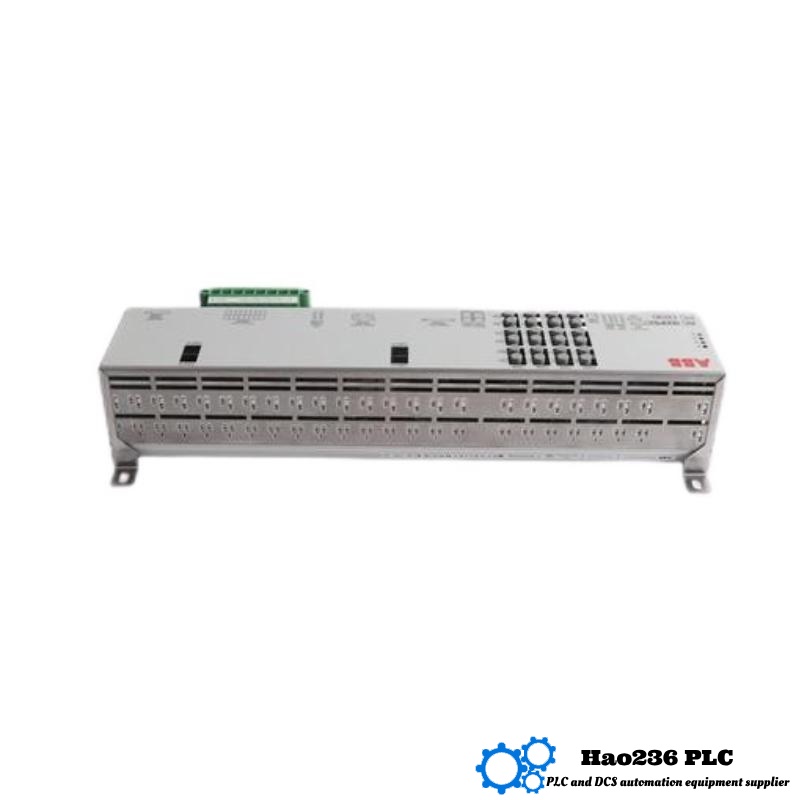

ABB PCD230 (3BHE022291R0101)
Product Introduction
The ABB PCD230—also known by its part number 3BHE022291R0101—is a high-end communication, control, and measurement (CCM) module used in industrial automation and excitation control systems. It serves as a central processing and I/O interface board within systems such as UNITROL 6000 X‑Power and AC800PEC, enabling excitation control, voltage and reactive power management, system protection, and intelligent automation. It integrates seamlessly into ABB’s DCS platforms, including 800xA.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PCD230 (3BHE022291R0101) |
| Function | Communication, Control & Measurement (CCM) Board |
| Series | UNITROL 6000 X‑Power / AC800PEC |
| Processor | Embedded microprocessor for real-time control |
| Communication Interfaces | Ethernet, RS‑485 |
| I/O Ports | Analog and digital I/O |
| Power Supply | Dual‑input 24 V DC (typical), with reverse polarity & isolation protection |
| Power Consumption | ≤ 5 W |
| Protection Level | IP20 |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | Up to 95% (non-condensing) |
| Mechanical Installation | DIN-rail or plug-in rack mount |
| Alarms/Outputs | Relay outputs for fiber link and power failure (DC48V/1A) |
| Dimensions | 132 × 105 × 52 mm |
| Weight | ~2.4 kg |
| Brand | ABB |
Applications
-
Precise excitation control of synchronous generators for stable voltage and reactive power
-
Power system protection, with integrated over/under-voltage and current fault detection
-
Platform for intelligent automation, enabling self-diagnosis, remote maintenance, and control logic
-
Gateway and signal exchange between generators, DCS (like 800xA), and field devices
-
Use across multiple industries: power generation, oil & gas, chemical, metals, and water treatment
Key Advantages
-
Multi-functional Capability combining control, measurement, and communications
-
Enhanced Protection through built-in overload, reverse polarity, and relay-based fault signaling
-
Efficient and Compact: Low power consumption in a streamlined form factor
-
Robust Design: High industrial tolerance to humidity, temperature, and vibration
-
Easy Integration: Compatible with existing ABB systems and DCS architectures
-
Redundant Power Options for improved system reliability
Related Models (Same Series or Function)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| PCD230 | CCM board (this model) | 132 × 105 × 52 | 2.4 |
| PCD530A102 | Enhanced CCM interface module | Similar | Similar |
| UNS 2880B‑P | Control logic board (UNITROL 5000) | ~240 × 200 × 35 | 0.3 |
| UNS 0882A‑P | Signal interface for analog I/O | ~230 × 180 × 30 | 0.25 |
| UFC760BE102 | Communication interface PIBus/CCM | ~205 × 140 × 38 | 0.18 |
Popular ABB Models (Same Brand)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| PCD230 | CCM control board (this module) | 132 × 105 × 52 | 2.4 |
| UFC762AE101 | PROFIBUS DP interface module | 210 × 150 × 35 | 0.2 |
| UNS 0119A‑P | Multi-signal I/O interface board | ~240 × 200 × 35 | 0.34 |
| UNS 2882A‑P | Excitation gate controller | 255 × 240 × 35 | 0.36 |
| PCD530A102 | Advanced CCM interface variant | Similar | Similar |
