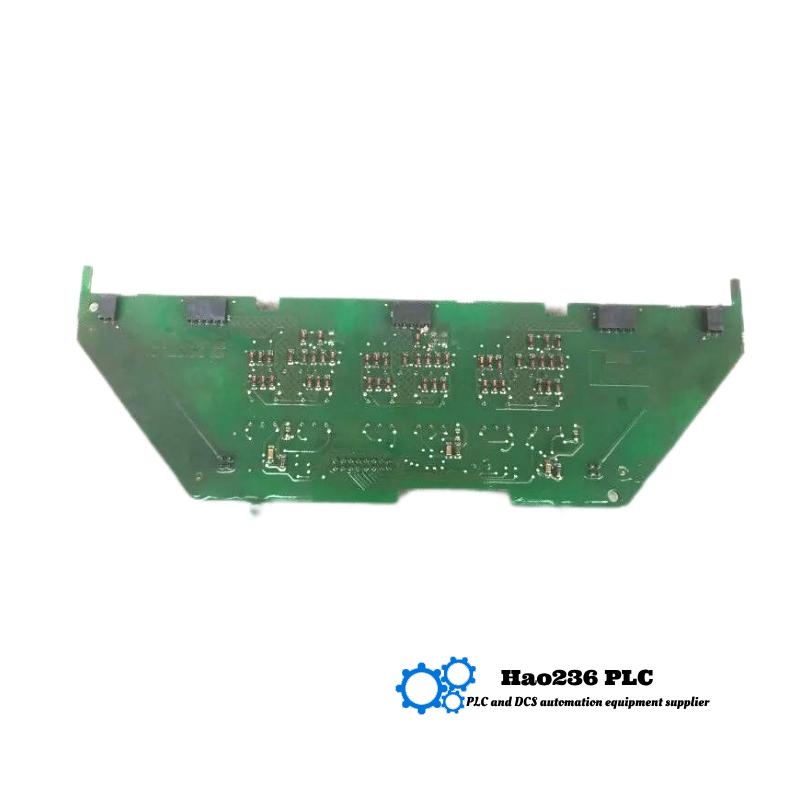

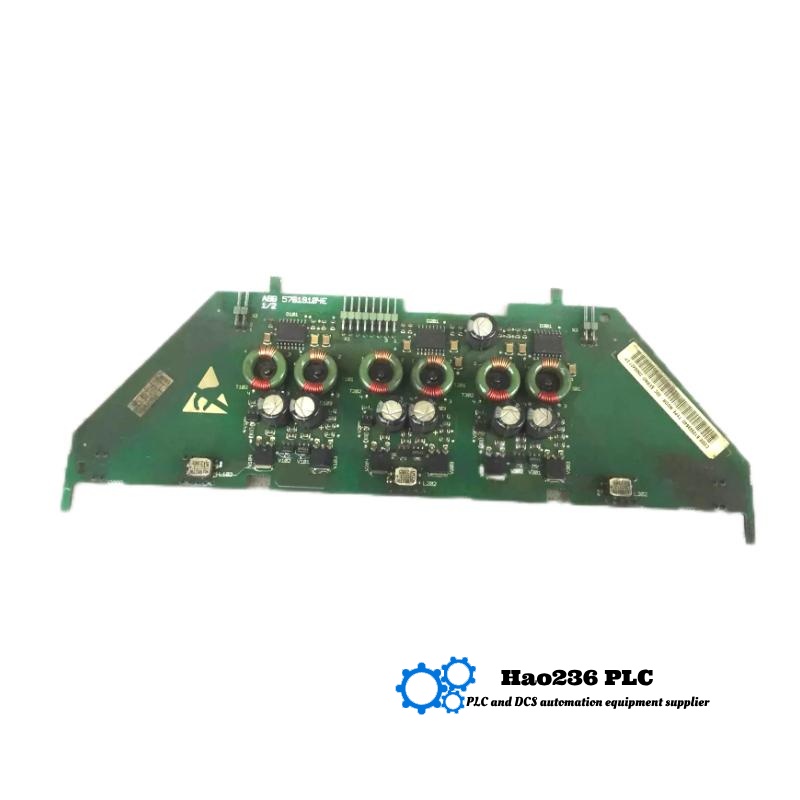

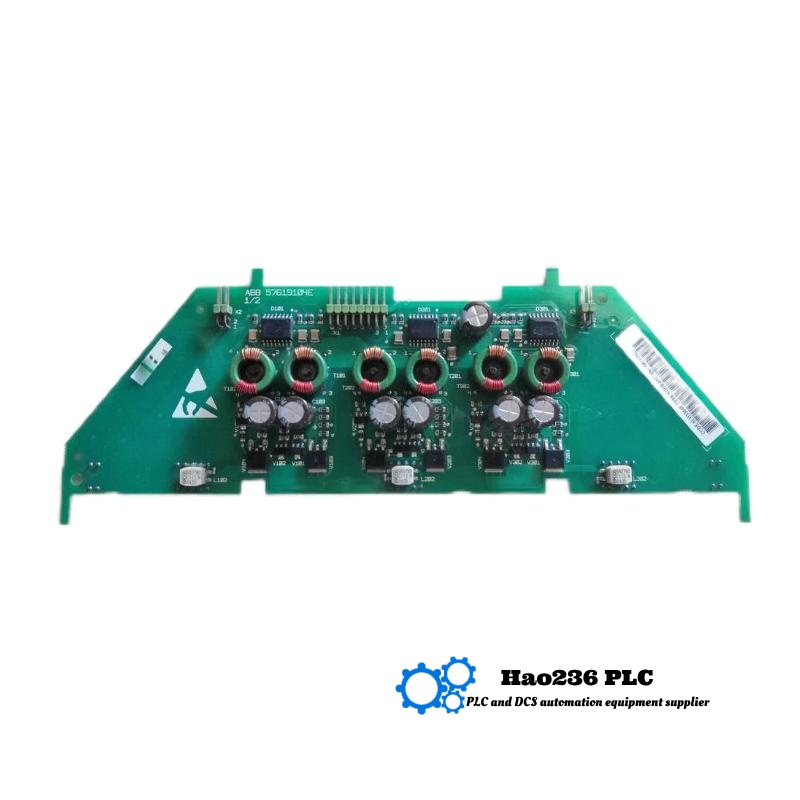

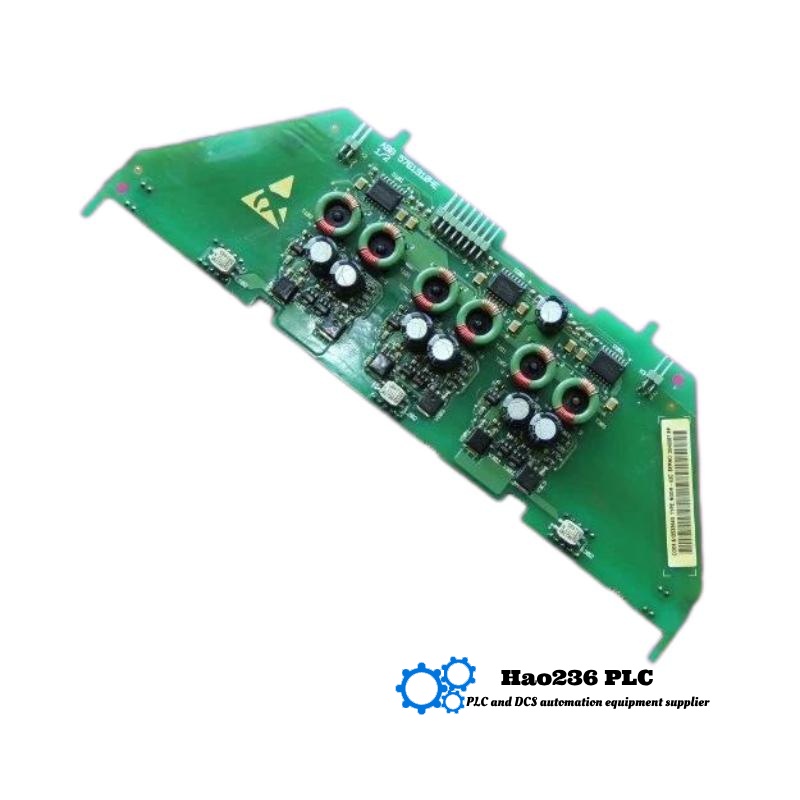

ABB NGDR-03C 58976539 Drive Board
Product Overview
The ABB NGDR-03C 58976539 is a sophisticated and highly efficient drive board engineered for controlling motors in industrial automation systems. This product belongs to the renowned ABB family, known for its cutting-edge solutions in automation, electrification, and power technology. The NGDR-03C board utilizes advanced IGBT (Insulated Gate Bipolar Transistor) technology to deliver precise motor control with minimal energy consumption. Designed for use with ABB’s frequency converters and drive systems, this board is an essential component for improving the reliability and performance of various industrial machines.
The NGDR-03C 58976539 ensures optimal efficiency and smooth operations, significantly reducing downtime and maintenance costs. Due to its compact design and robust features, it is highly sought after in numerous industrial sectors, from manufacturing to energy production.
Applications
-
Industrial Automation: The NGDR-03C is used in industrial automation systems to regulate motor speeds and control torque. It is essential in applications like conveyor belts, assembly lines, and robotic systems.
-
HVAC Systems: For HVAC applications, the drive board optimizes the performance of fans, pumps, and air handling units, improving energy efficiency.
-
Water and Wastewater Management: It is crucial in controlling pumps and motors in water treatment plants, enhancing the efficiency of water circulation and filtration.
-
Material Handling Systems: In material handling applications, this driver board is ideal for controlling hoists, cranes, and automated guided vehicles (AGVs).
-
Energy Systems: The NGDR-03C plays a significant role in renewable energy systems such as wind turbines and solar inverters, where it controls motors involved in energy generation.
Product Advantages
-
Energy Efficiency: The NGDR-03C is powered by IGBT technology, which offers low energy loss and enhances the overall efficiency of motor control applications.
-
Compact Design: Measuring only 159 x 65 x 20 mm and weighing 0.045 kg, it is a highly compact and lightweight product, ideal for installations where space is limited.
-
Reliable Performance: Built with industrial-grade materials, this driver board offers exceptional durability and reliability even in harsh operating environments.
-
Easy Integration: The NGDR-03C integrates easily with ABB’s drive systems and can be quickly installed, reducing setup time for industrial systems.
-
Global Availability: Available worldwide, the NGDR-03C is supported by ABB’s extensive network of distributors and service centers.
Brand
ABB is a global leader in electrification and automation technologies. With more than 130 years of experience, ABB provides high-quality products and services that improve productivity, efficiency, and sustainability in various industries such as utilities, transportation, and manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NGDR-03C 58976539 |
| Type | Inverter Driver Board |
| Technology | IGBT |
| Dimensions (L x W x H) | 159 x 65 x 20 mm |
| Weight | 0.045 kg |
| Material | FR4 PCB |
| Mounting | DIN Rail Compatible |
| Operating Voltage | 24 V DC |
| Power Rating | Up to 15 kW |
| Certification | CE, UL |
Recommended Related Models
| Model | Input Type | Output Type | Power Rating | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| NGDR-03A 58976529 | Digital | IGBT | Up to 15 kW | 159 x 65 x 20 mm | 0.045 kg |
| NGDR-04C 58976530 | Analog | IGBT | Up to 22 kW | 159 x 65 x 20 mm | 0.050 kg |
| NGDR-05C 58976531 | Digital | IGBT | Up to 30 kW | 159 x 65 x 20 mm | 0.055 kg |
| NGDR-06C 58976532 | Analog | IGBT | Up to 37 kW | 159 x 65 x 20 mm | 0.060 kg |
| NGDR-07C 58976533 | Digital | IGBT | Up to 45 kW | 159 x 65 x 20 mm | 0.065 kg |
Popular ABB Models
| Model | Input Type | Output Type | Power Rating | Dimensions (L x W x H) |
|---|---|---|---|---|
| ACS600-01 | Analog | IGBT | Up to 75 kW | 160 x 80 x 30 mm |
| ACS580 | Digital | IGBT | Up to 132 kW | 180 x 90 x 40 mm |
| ACS880 | Digital | IGBT | Up to 250 kW | 190 x 95 x 45 mm |
| ACS550 | Analog | IGBT | Up to 75 kW | 160 x 80 x 30 mm |
| ACQ810 | Digital | IGBT | Up to 120 kW | 150 x 70 x 35 mm |
FAQs
Q1: What is the primary function of the NGDR-03C 58976539 drive board?
A1: The NGDR-03C 58976539 is used to control the speed and torque of motors in industrial applications, ensuring efficient operation through IGBT technology.
Q2: Is the NGDR-03C compatible with other ABB products?
A2: Yes, the NGDR-03C is compatible with ABB’s drive systems, specifically the ACS600 series.
Q3: What technology is used in the NGDR-03C to ensure energy efficiency?
A3: The NGDR-03C uses IGBT technology, which minimizes energy loss during motor control, improving efficiency.
Q4: What is the weight of the NGDR-03C drive board?
A4: The NGDR-03C weighs just 0.045 kg, making it lightweight and easy to handle during installation.
Q5: How is the NGDR-03C mounted?
A5: The NGDR-03C is compatible with DIN rail mounting, making it simple to install in industrial control panels.
Q6: What are the voltage requirements for the NGDR-03C?
A6: The NGDR-03C operates with 24 V DC.
Q7: Can the NGDR-03C be used in high-power applications?
A7: Yes, the NGDR-03C can support power ratings up to 15 kW, making it suitable for many industrial applications.
Q8: Is the NGDR-03C certified for international standards?
A8: Yes, it is certified with CE and UL, meeting international safety and quality standards.
Q9: What are the typical applications for the NGDR-03C drive board?
A9: The NGDR-03C is used in a wide range of applications, including industrial automation, HVAC systems, material handling, and renewable energy systems.
Q10: How reliable is the NGDR-03C in industrial environments?
A10: The NGDR-03C is designed for robust performance and long-term reliability even in harsh industrial environments.
