Product Overview

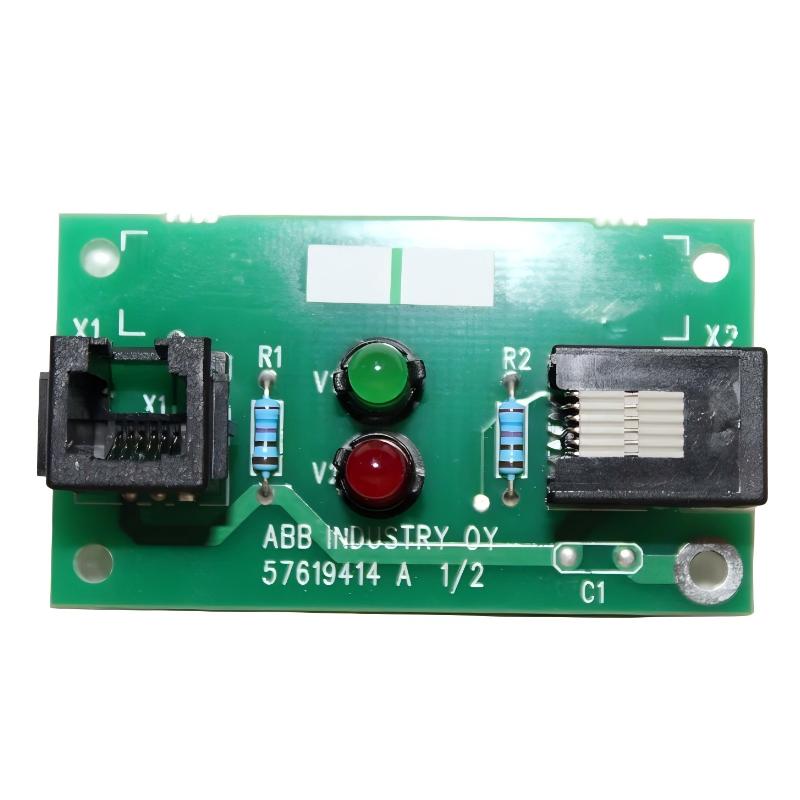

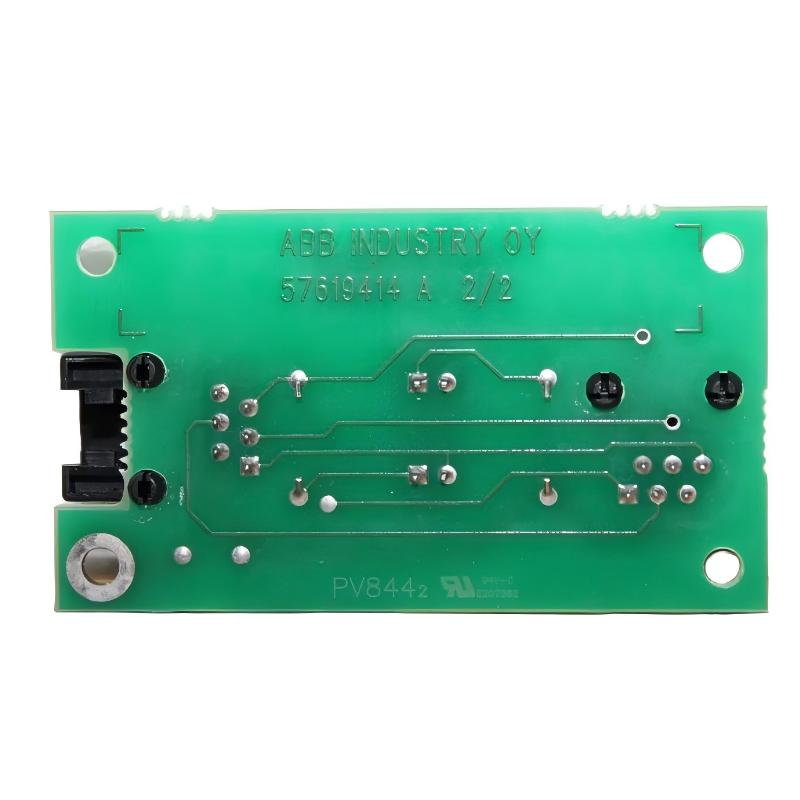

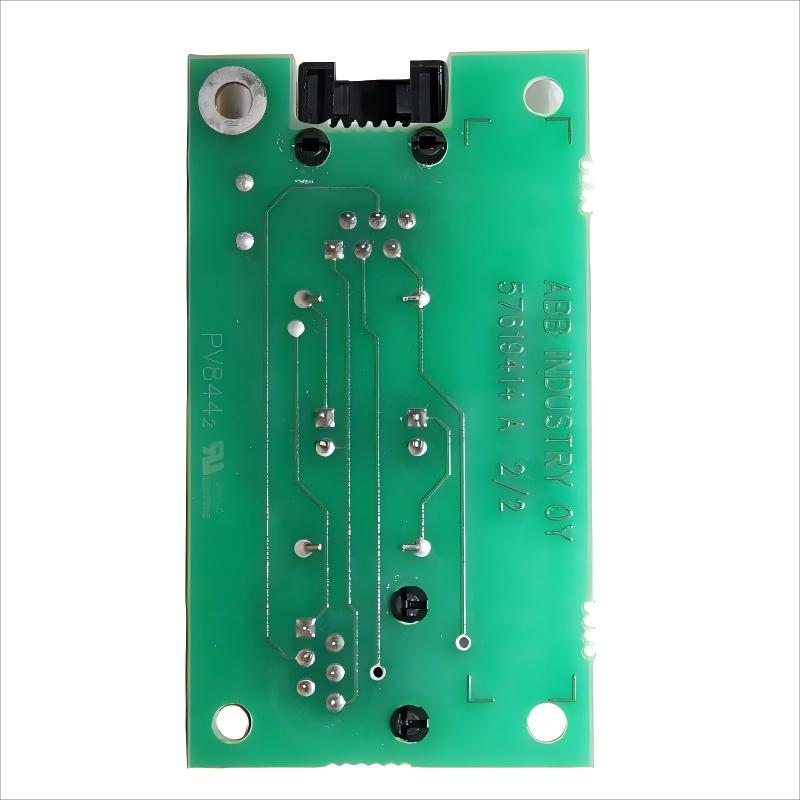

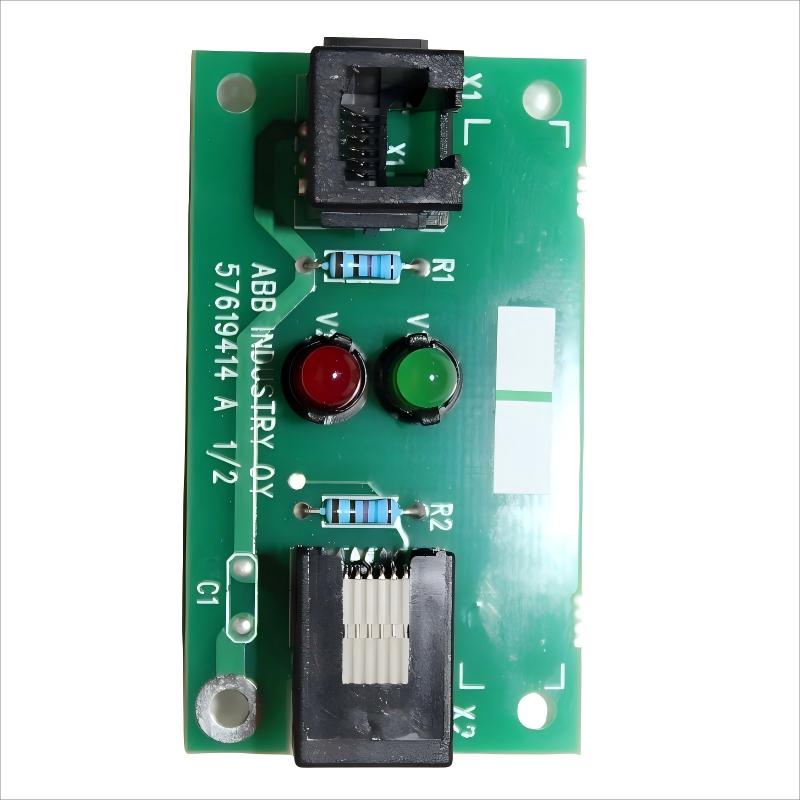

The ABB NDPI-02 (3BHL000764P0001) is an industrial Connecting Plate used in ABB drive and automation systems. It functions as a mechanical and electrical interface component, enabling secure connection between modules, circuit boards, or system units within industrial control cabinets.
This component is commonly found in ABB drive systems and control assemblies, where stable physical alignment and reliable internal connectivity are required for system operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | NDPI-02 |
| Part Number | 3BHL000764P0001 |
| Product Type | Connecting Plate |
| Function | Mechanical/electrical interconnection support |
| Application | Industrial drive and automation systems |
| Dimensions | 115 × 60 × 23 mm |
| Weight | 0.45 kg |
| Mounting Type | Panel or internal module mounting |
Function and Working Principle
The NDPI-02 operates as a connection interface component within ABB systems.
Its primary functions include:
- Providing mechanical support and alignment between modules
- Ensuring stable electrical contact between connected assemblies (where applicable)
- Assisting in secure installation of drive or control components
- Reducing vibration and maintaining structural integrity inside control cabinets
- Supporting reliable system assembly and modular integration
It does not perform active signal processing but plays a key role in ensuring stable system connectivity and mechanical reliability.
Key Features
- Robust industrial-grade connecting structure
- Ensures stable module alignment and fixation
- Compact and lightweight design
- Designed for ABB drive and control assemblies
- High durability for continuous industrial operation
- Supports modular system architecture
Industrial Applications
- ABB industrial drive systems
- Motor control centers (MCCs)
- Automation control cabinets
- Power electronics assemblies
- Industrial module interconnection systems
Role in Industrial Systems
The NDPI-02 serves as a supporting interconnection component, responsible for:
- Maintaining structural alignment between system modules
- Supporting reliable installation of control and power boards
- Enhancing mechanical stability under vibration and load conditions
- Assisting in modular assembly of ABB automation systems
It is an essential passive structural element in industrial drive architectures.
Installation Notes
- Installed inside control cabinets or drive assemblies
- Must be securely fastened to ensure proper alignment
- Avoid mechanical stress or misalignment during installation
- ESD precautions recommended when handling nearby electronic boards
- Installation should be performed by qualified technicians
Compatible Equipment
- ABB drive systems
- ABB inverter assemblies
- Industrial control cabinet modules
- Automation and power electronic systems
- Motor control center components
Advantages
- Ensures stable mechanical connection between modules
- Improves structural reliability of control systems
- Compact and easy to integrate
- Durable for industrial environments
- Supports modular equipment design
Limitations
- Does not perform electrical control or signal processing
- Designed specifically for ABB system architectures
- Requires correct system matching for installation
- Purely supporting (passive) component
Conclusion
The ABB NDPI-02 (3BHL000764P0001) Connecting Plate is a passive but important mechanical interface component used in ABB industrial systems.
It ensures stable alignment, secure mounting, and structural integrity, supporting reliable operation of drive and automation equipment.
