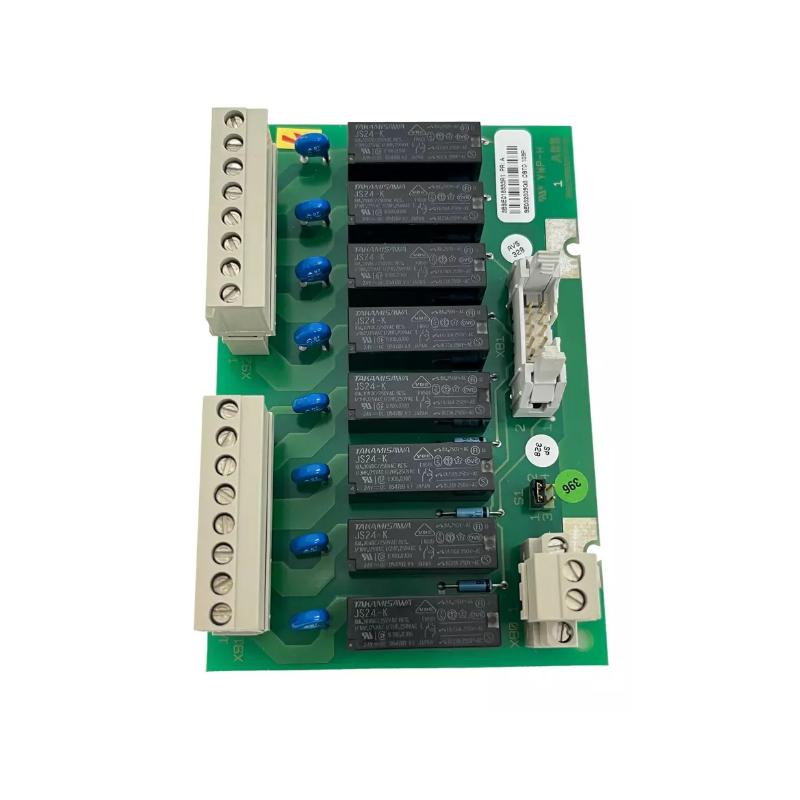

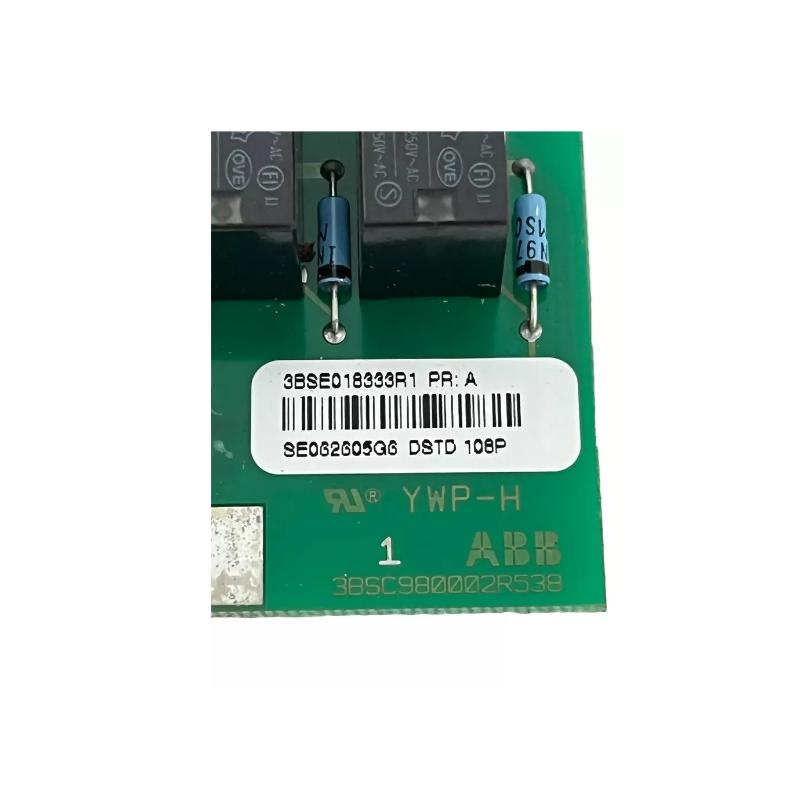

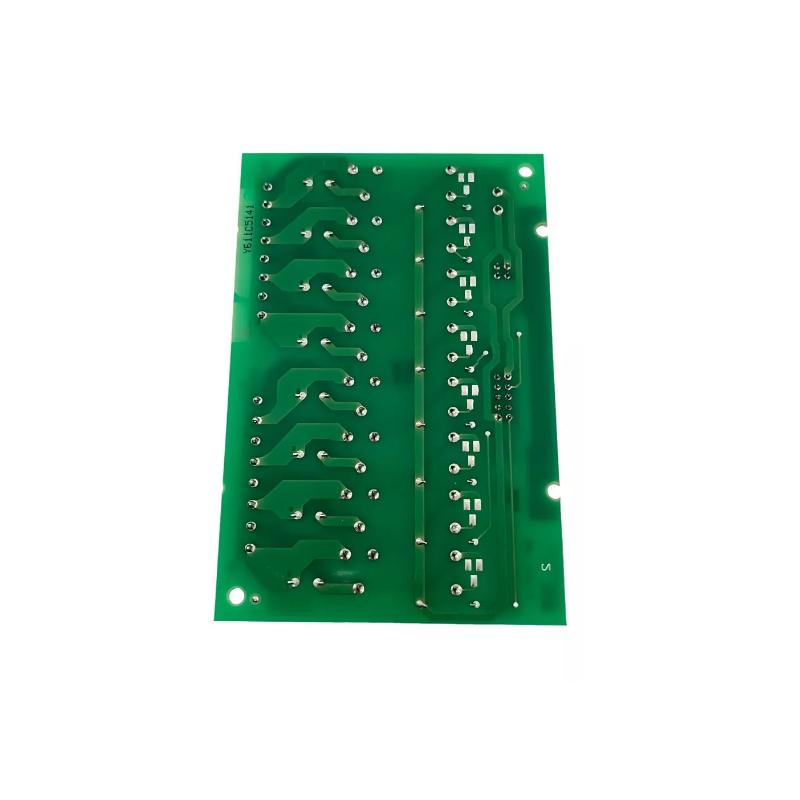

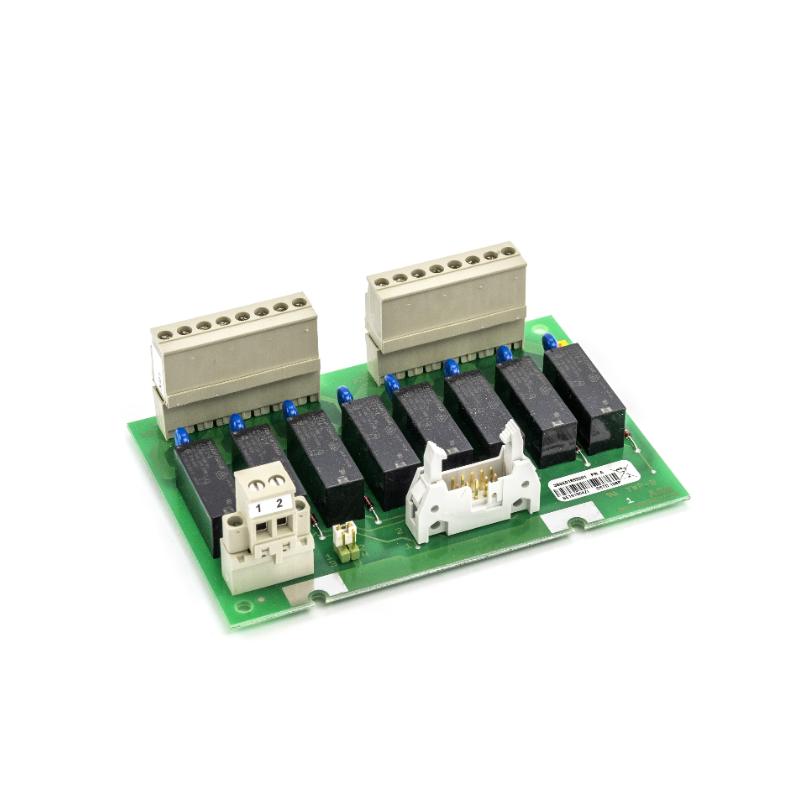

ABB DSTD 108P / DSTD108P (3BSE018333R1) – Product Overview
Product Introduction
The ABB DSTD 108P is a digital temperature and current monitoring relay designed for advanced motor protection. It is specifically engineered for precise monitoring of both current and temperature in industrial environments, providing early warning and protection against overload and thermal stress. Its robust design ensures reliability and durability in harsh operating conditions, while its compact form factor allows for easy integration into motor control centers or automation panels.
Product Applications
-
Protection of industrial AC and DC motors
-
Monitoring temperature and current in pumps, compressors, and fans
-
Integration into motor control centers (MCCs) and automation panels
-
Industrial machinery requiring high-precision thermal monitoring
-
Energy management and predictive maintenance systems
Product Advantages
-
Dual Protection: Monitors both current and temperature for accurate motor protection
-
Fast Response: Detects abnormal conditions quickly to prevent equipment damage
-
Robust Construction: Resistant to vibration, dust, and high humidity
-
Compact and Flexible Mounting: Suitable for DIN rail or panel installation
-
Energy Efficient: Minimal power consumption while continuously monitoring
-
User-Friendly: Easy configuration with adjustable tripping thresholds for various applications
Brand and Series
-
Brand: ABB
-
Series: DSTD Series – digital temperature and current monitoring relays for industrial motors
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | DSTD 108P / DSTD108P |
| Part Number | 3BSE018333R1 |
| Rated Voltage | 380–480 V AC |
| Rated Current | 0.5–108 A |
| Control Type | Digital Temperature & Current Relay |
| Communication | Optional interface for remote monitoring |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Response Time | < 100 ms |
| Mounting | DIN Rail / Panel Mount |
| Dimensions (L × W × H) | 145 × 90 × 65 mm |
| Weight | 1.25 kg |
Recommended Related Models (Same Series)
| Model | Key Parameters |
|---|---|
| DSTD 100P | Rated Current 0.5–100 A, Dimensions 140×85×65 mm, Weight 1.15 kg |
| DSTD 105P | Rated Current 0.5–105 A, Dimensions 142×88×65 mm, Weight 1.18 kg |
| DSTD 110P | Rated Current 0.5–110 A, Dimensions 145×90×65 mm, Weight 1.2 kg |
| DSTD 115P | Rated Current 0.5–115 A, Dimensions 147×92×65 mm, Weight 1.22 kg |
| DSTD 120P | Rated Current 0.5–120 A, Dimensions 150×95×70 mm, Weight 1.3 kg |
Recommended Popular ABB Models (Same Brand)
| Model | Key Parameters |
|---|---|
| ACS580 | VFD, Input 3-phase 380–480 V, Output 0–480 V, Weight 8–15 kg |
| ACH580 | High-performance drive, Input 3-phase 380–500 V, Weight 10–18 kg |
| AF100 | Soft starter, Input 200–600 V, Output 0–600 V, Weight 5–12 kg |
| IRB 6700 | Industrial robot controller, Max payload 235 kg, Weight 540 kg |
| CP600 | Operator panel, Touchscreen interface, Dimensions 320×240×50 mm, Weight 2.5 kg |
FAQ (DSTD 108P)
Q1: What is the rated voltage of DSTD 108P?
A1: The device operates at 380–480 V AC, suitable for motor circuits.
Q2: What is the rated current range?
A2: It supports currents from 0.5 A up to 108 A.
Q3: What is the operating temperature range?
A3: DSTD 108P operates safely from -20°C to +60°C.
Q4: Can it be mounted on DIN rails?
A4: Yes, the relay supports both DIN rail and panel mounting.
Q5: What are the dimensions and weight?
A5: Dimensions are 145 × 90 × 65 mm, and weight is 1.25 kg.
Q6: Is DSTD 108P suitable for harsh industrial environments?
A6: Yes, it is resistant to vibration, dust, and high humidity.
Q7: What types of protection does DSTD 108P provide?
A7: It provides both thermal and current overload protection for motors.
Q8: Can DSTD 108P integrate with remote monitoring systems?
A8: Yes, optional communication modules allow integration with automation and monitoring systems.
Q9: What is the response time?
A9: The response time is less than 100 milliseconds.
Q10: Does it require software or calibration?
A10: Minimal manual configuration is required; tripping thresholds are adjustable, with optional software for monitoring.
