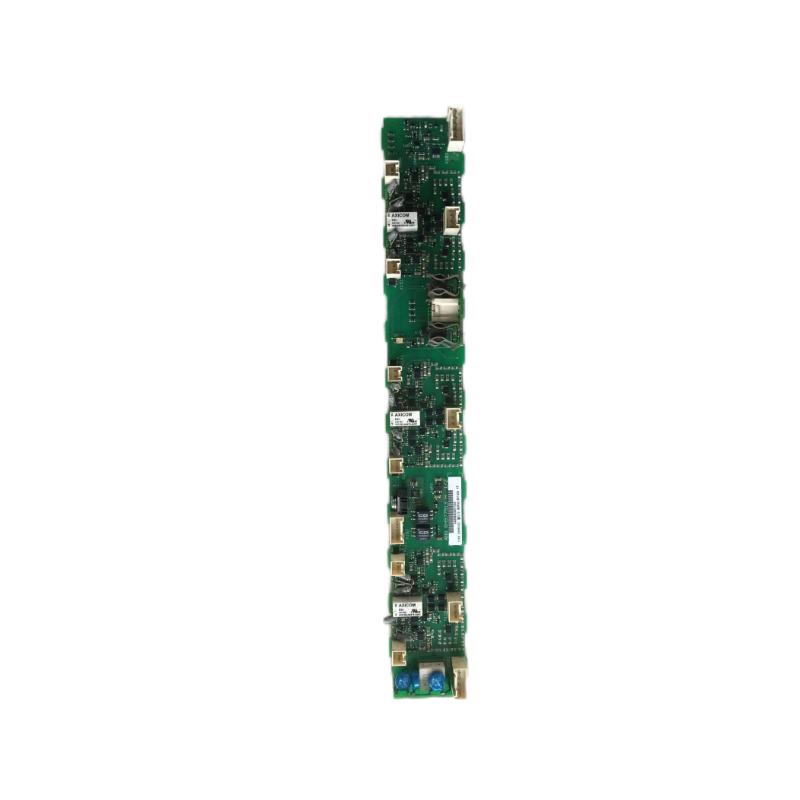

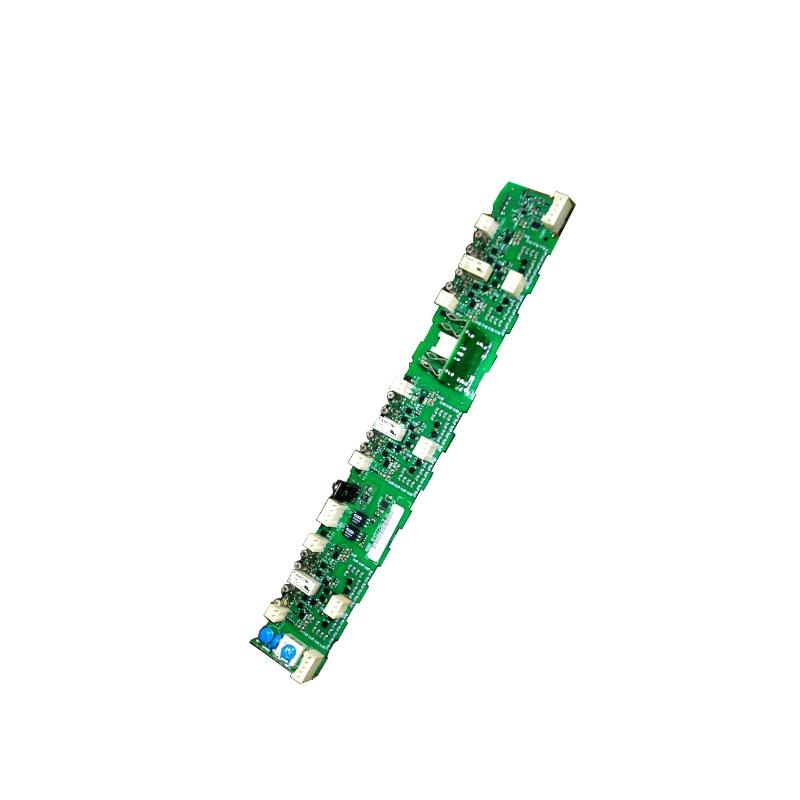

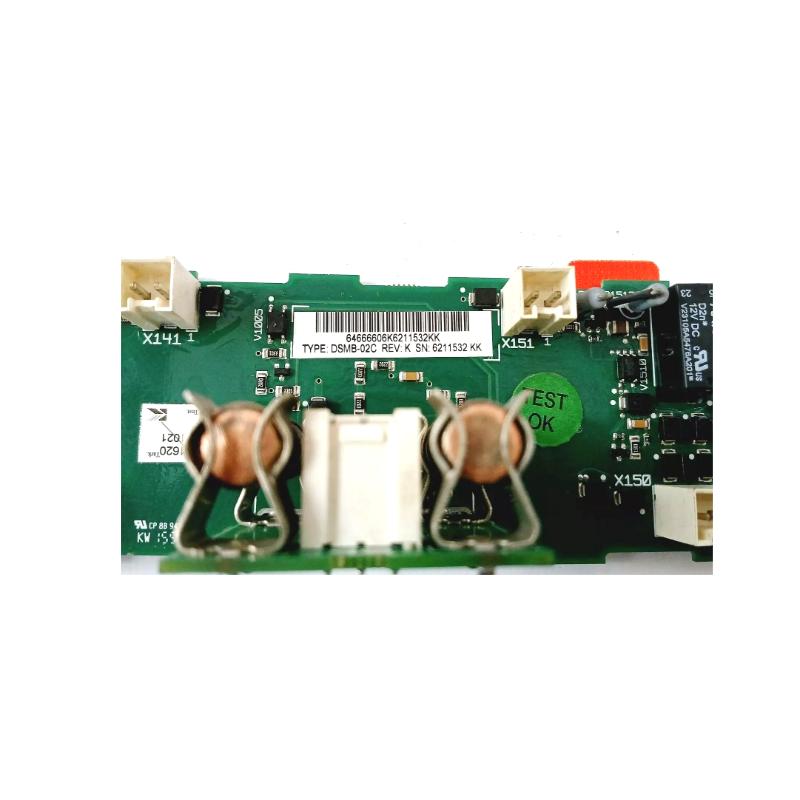

Product Dossier: ABB DSMB-02C (64666606)
Product Overview
The ABB DSMB-02C is a high-performance industrial control module designed for precise monitoring, control, and protection of motors and electrical systems. It is intended for small to medium industrial applications and offers enhanced reliability in demanding environments. The device is compact and modular, making it suitable for DIN rail or panel installation. Its wide voltage range, adjustable current settings, and optional communication protocols make it ideal for integration into automation networks, ensuring operational efficiency and equipment safety.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | DSMB-02C |
| Product Code | 64666606 |
| Dimensions (mm) | 125 × 80 × 60 |
| Weight (kg) | 1.2 |
| Voltage Rating | 24 V DC / 110–230 V AC |
| Current Rating | 6 A |
| Frequency | 50/60 Hz |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP54 |
| Communication Interface | Modbus RTU / Profibus (optional) |
| Material | Reinforced ABS / Metal components |
| Mounting Type | DIN Rail / Panel Mount |
Product Applications
-
Industrial automation and process control
-
Motor control, protection, and monitoring in small to medium plants
-
Electrical distribution and energy management
-
Remote monitoring and diagnostics of industrial equipment
-
Automation of assembly lines and production systems
-
Integration into industrial control networks to optimize efficiency and reliability
Product Advantages
-
Reliable performance in industrial environments
-
Compact, modular design for flexible installation
-
Supports wide voltage and current ranges for versatility
-
IP54 protection provides resistance against dust and light splashes
-
Durable construction with reinforced ABS and metal components
-
Long service life and minimal maintenance requirements
-
Compatible with other DSMB series modules for integrated system solutions
Brand and Series
-
Brand: ABB
-
Series: DSMB Series (Industrial Automation and Control Devices)
Related Models in the DSMB Series
| Model | Dimensions (mm) | Weight (kg) | Voltage | Current | Communication | Protection |
|---|---|---|---|---|---|---|
| DSMB-01C | 120 × 75 × 55 | 1.0 | 24 V DC / 110–230 V AC | 5 A | Modbus RTU / Profibus | IP54 |
| DSMB-02A | 123 × 78 × 57 | 1.1 | 24 V DC / 110–230 V AC | 5.5 A | Modbus RTU / Profibus | IP54 |
| DSMB-02B | 125 × 80 × 60 | 1.2 | 24 V DC / 110–230 V AC | 6 A | Modbus RTU / Profibus | IP54 |
| DSMB-02D | 128 × 82 × 62 | 1.3 | 24 V DC / 110–230 V AC | 6.5 A | Modbus RTU / Profibus | IP54 |
| DSMB-02E | 130 × 85 × 65 | 1.4 | 24 V DC / 110–230 V AC | 7 A | Modbus RTU / Profibus | IP54 |
Other Popular ABB Models
| Model | Dimensions (mm) | Weight (kg) | Voltage | Current | Communication | Protection |
|---|---|---|---|---|---|---|
| ACS580 | 220 × 120 × 130 | 7.5 | 380–480 V AC | 10 A | Modbus RTU | IP21 |
| DSQC 670 | 210 × 100 × 90 | 2.0 | 24 V DC | 8 A | Profibus | IP65 |
| CP 600 | 160 × 100 × 70 | 1.5 | 24 V DC | 5 A | Modbus RTU | IP54 |
| REX 520 | 150 × 80 × 60 | 1.3 | 24 V DC | 4 A | Modbus RTU | IP65 |
| SACE Emax 2 | 300 × 150 × 120 | 15 | 400 V AC | 63 A | Ethernet/IP | IP40 |
Frequently Asked Questions (FAQ)
Q1: What voltage levels does DSMB-02C support?
A1: It operates at 24 V DC and 110–230 V AC.
Q2: Can DSMB-02C be used in dusty or wet environments?
A2: Yes, it has IP54 protection against dust and light water splashes.
Q3: What is the weight of DSMB-02C?
A3: The device weighs 1.2 kg.
Q4: Which communication interfaces are available?
A4: Modbus RTU is standard; Profibus is optional.
Q5: What is the maximum current rating?
A5: Maximum current is 6 A.
Q6: What is the operating temperature range?
A6: The device operates between -20°C and 60°C.
Q7: How can DSMB-02C be mounted?
A7: It can be mounted on a DIN rail or a panel.
Q8: What materials are used in DSMB-02C?
A8: It is made from reinforced ABS and metal components for durability.
Q9: Is DSMB-02C compatible with other DSMB series modules?
A9: Yes, it is compatible with other DSMB series devices.
Q10: How often should DSMB-02C be inspected for maintenance?
A10: Routine inspection every 6–12 months is recommended depending on operating conditions.
