ProductPRODUCT
Featured products
Contact Us
- ABB

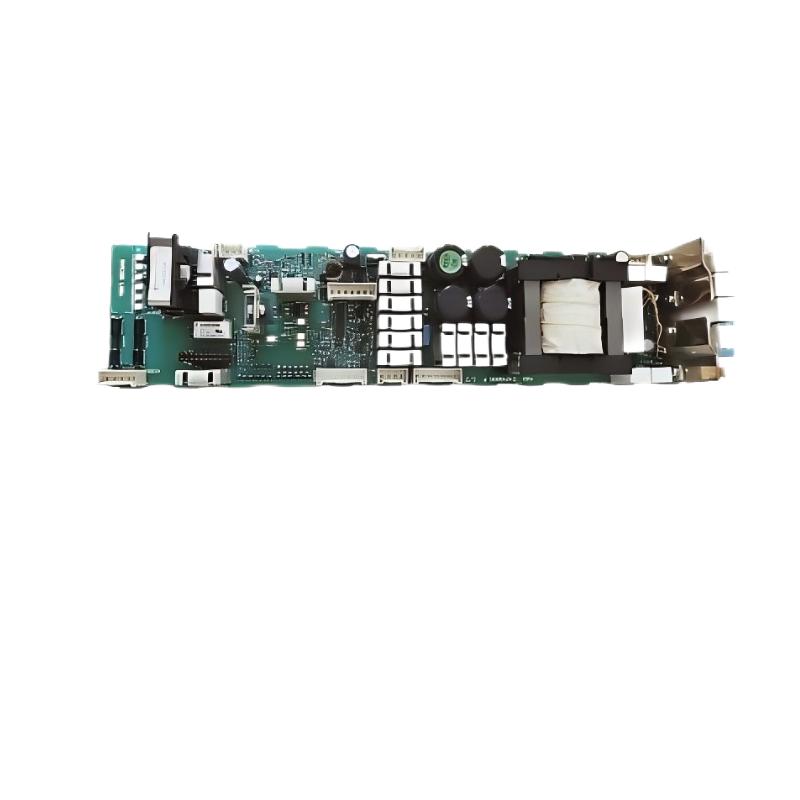

- DSMB-01C/DSMB01C
- Power Supply Board
- Sweden
- 120 × 75 × 55 mm
- 1kg
- 64691929
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 30
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Dossier: ABB DSMB-01C / DSMB01C
Product Overview
The ABB DSMB-01C is a precision industrial control module designed for reliable performance in automation and electrical systems. It is engineered to provide accurate monitoring, control, and protection of motors and industrial equipment in small to medium-scale applications. With a compact and modular design, this device allows easy DIN rail or panel mounting, supports multiple voltage levels, and offers versatile communication options for integration into industrial control networks. Its robust design ensures durability and long-term operation even under demanding industrial conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | DSMB-01C / DSMB01C |
| Product Code | DSMB-01C / DSMB01C |
| Dimensions (mm) | 120 × 75 × 55 |
| Weight (kg) | 1.0 |
| Voltage Rating | 24 V DC / 110–230 V AC |
| Current Rating | 5 A |
| Frequency | 50/60 Hz |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP54 |
| Communication Interface | Modbus RTU / Profibus (optional) |
| Material | Reinforced ABS / Metal components |
| Mounting Type | DIN Rail / Panel Mount |
Product Applications
-
Industrial automation and process control
-
Motor control and protection in small to medium industrial plants
-
Electrical distribution and energy monitoring
-
Remote diagnostics and industrial equipment monitoring
-
Automation of production and assembly lines
-
Integration into industrial control networks for efficiency and reliability
Product Advantages
-
Reliable performance in small to medium industrial environments
-
Compact and modular design for flexible installation
-
Wide voltage and current support enables versatile industrial applications
-
IP54 protection ensures resistance against dust and splashes
-
Durable construction with reinforced ABS and metal components
-
Long operational life with minimal maintenance requirements
-
Compatible with other DSMB series devices for networked industrial control
Brand and Series
-
Brand: ABB
-
Series: DSMB Series (Industrial Automation and Control Devices)
Related Models in the DSMB Series
| Model | Dimensions (mm) | Weight (kg) | Voltage | Current | Communication | Protection |
|---|---|---|---|---|---|---|
| DSMB-01A | 115 × 70 × 50 | 0.9 | 24 V DC / 110–230 V AC | 4 A | Modbus RTU / Profibus | IP54 |
| DSMB-01B | 118 × 72 × 52 | 0.95 | 24 V DC / 110–230 V AC | 4.5 A | Modbus RTU / Profibus | IP54 |
| DSMB-01D | 122 × 75 × 55 | 1.0 | 24 V DC / 110–230 V AC | 5 A | Modbus RTU / Profibus | IP54 |
| DSMB-01E | 125 × 78 × 57 | 1.1 | 24 V DC / 110–230 V AC | 5.5 A | Modbus RTU / Profibus | IP54 |
| DSMB-01F | 128 × 80 × 60 | 1.1 | 24 V DC / 110–230 V AC | 6 A | Modbus RTU / Profibus | IP54 |
Other Popular ABB Models
| Model | Dimensions (mm) | Weight (kg) | Voltage | Current | Communication | Protection |
|---|---|---|---|---|---|---|
| ACS580 | 220 × 120 × 130 | 7.5 | 380–480 V AC | 10 A | Modbus RTU | IP21 |
| DSQC 670 | 210 × 100 × 90 | 2.0 | 24 V DC | 8 A | Profibus | IP65 |
| CP 600 | 160 × 100 × 70 | 1.5 | 24 V DC | 5 A | Modbus RTU | IP54 |
| REX 520 | 150 × 80 × 60 | 1.3 | 24 V DC | 4 A | Modbus RTU | IP65 |
| SACE Emax 2 | 300 × 150 × 120 | 15 | 400 V AC | 63 A | Ethernet/IP | IP40 |
Frequently Asked Questions (FAQ)
Q1: What voltage levels does DSMB-01C support?
A1: It operates at 24 V DC and 110–230 V AC.
Q2: Can DSMB-01C be used in dusty or wet environments?
A2: Yes, it has IP54 protection against dust and light water splashes.
Q3: What is the weight of DSMB-01C?
A3: The device weighs 1.0 kg.
Q4: Which communication interfaces are available?
A4: Modbus RTU is standard, with Profibus as an optional interface.
Q5: What is the maximum current rating?
A5: Maximum current is 5 A.
Q6: What is the operating temperature range?
A6: The device operates between -20°C and 60°C.
Q7: How can DSMB-01C be mounted?
A7: It can be mounted on a DIN rail or a panel.
Q8: What materials are used in DSMB-01C?
A8: It is constructed from reinforced ABS and metal components for durability.
Q9: Is DSMB-01C compatible with other DSMB series modules?
A9: Yes, it is fully compatible with other DSMB series control devices.
Q10: How often should DSMB-01C be inspected for maintenance?
A10: Routine inspection every 6–12 months is recommended depending on operating conditions.
