ABB DSDO 115 (57160001-NF) – Product Overview
Product Introduction

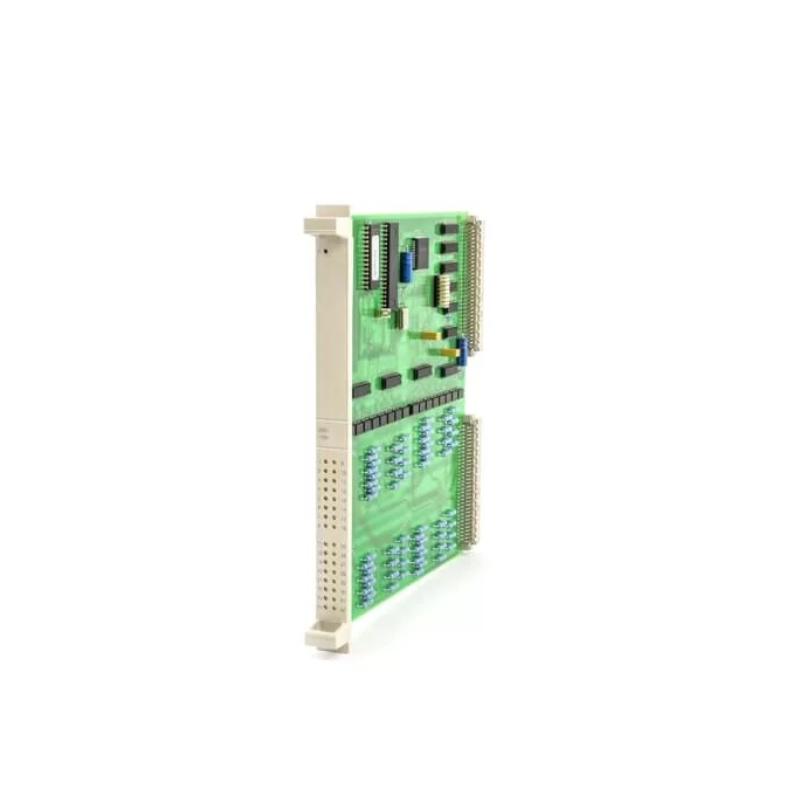

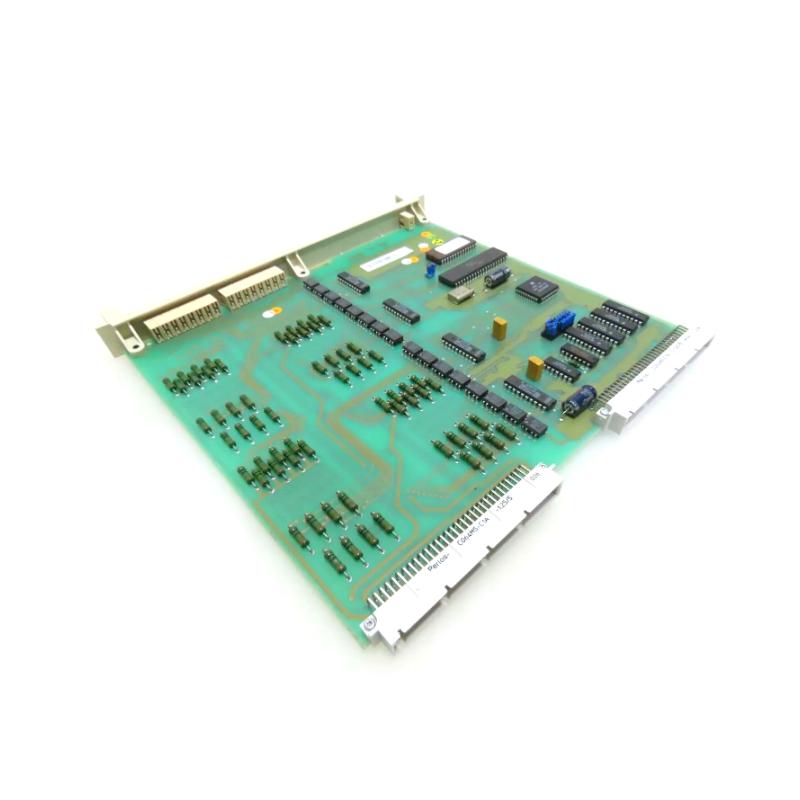

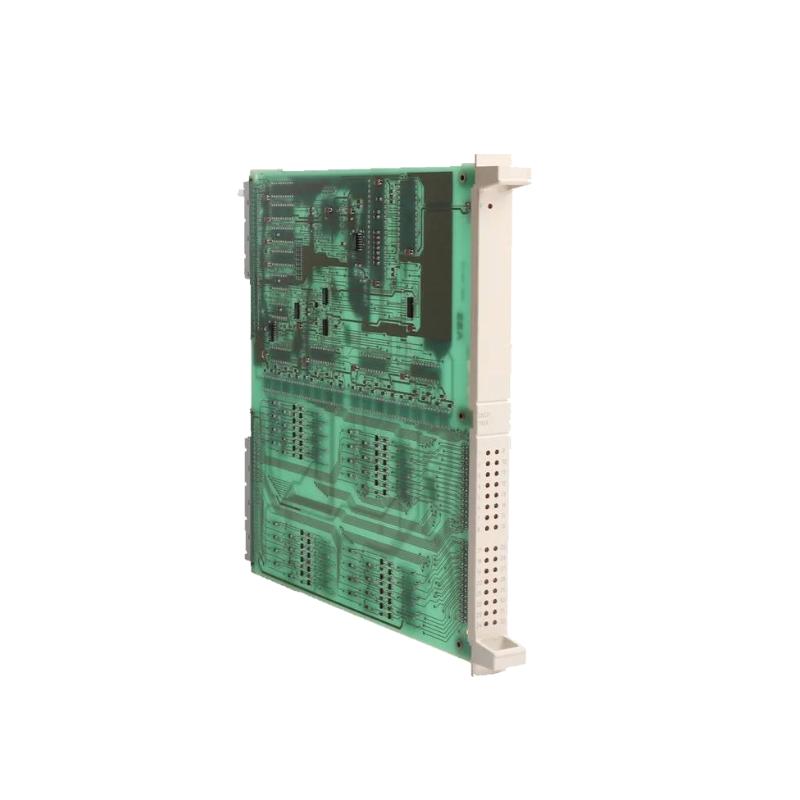

The ABB DSDO 115, also referred to as DSDO-115 or DSDO115, is a robust digital system output module designed for industrial automation and control applications. With product code 57160001-NF, this model belongs to ABB’s DSDO series, which focuses on providing reliable output solutions for complex industrial processes.
DSDO 115 delivers precise digital output control with high-speed response, multi-channel support, and flexible configuration options. Its design allows seamless integration into control panels or standalone systems and ensures continuous, reliable operation in harsh industrial environments. The module supports multiple analog and relay outputs, making it suitable for controlling motors, actuators, and other industrial devices.
Product Applications
The DSDO 115 is used across a wide variety of industrial applications:
-
Industrial automation and process control systems
-
Motor and actuator control
-
Electrical distribution systems requiring precise output control
-
Renewable energy applications such as solar or wind systems
-
Switchgear and substation automation
-
Industrial machinery requiring high-reliability digital outputs
It is particularly suitable for applications requiring accurate, real-time digital output management and robust performance.
Product Advantages
-
High Reliability: Engineered for continuous industrial operation.
-
Precision Control: Ensures accurate, fast output for industrial processes.
-
Flexible Installation: Can be mounted in control panels or used standalone.
-
Safety Compliance: Meets industrial safety standards for personnel and equipment protection.
-
User-Friendly Setup: Simplifies configuration, monitoring, and maintenance.
-
Multi-Channel Capability: Supports multiple digital and analog outputs.
-
Durable Design: Resistant to harsh environmental conditions.
Brand and Series
-
Brand: ABB
-
Series: DSDO Series (Digital System Digital Output)
-
Product Code: 57160001-NF
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSDO 115 / DSDO-115 / DSDO115 |
| Product Code | 57160001-NF |
| Dimensions (L × W × H) | 190 mm × 135 mm × 85 mm |
| Weight | 2.0 kg |
| Power Supply | 24–240 V AC/DC |
| Operating Temperature | -20°C to +60°C |
| Output Channels | 12 relay / 8 analog |
| Control Type | Digital / Programmable |
| Communication Interface | Modbus, Profibus, Ethernet IP |
| Mounting | DIN Rail / Panel Mount |
| Protection Rating | IP20 standard; optional IP40 enclosure available |
| Operating Frequency | 50–60 Hz |
Recommended Related Models (Same Series)
| Model | Dimensions (mm) | Weight (kg) | Power Supply | Output Channels | Communication Interface |
|---|---|---|---|---|---|
| DSDO 110 | 180 × 120 × 75 | 1.7 | 24–240 V AC/DC | 8 relay / 6 analog | Modbus / Profibus |
| DSDO 120 | 190 × 135 × 85 | 1.9 | 24–240 V AC/DC | 10 relay / 6 analog | Modbus / Profibus |
| DSDO 125 | 195 × 140 × 85 | 2.0 | 24–240 V AC/DC | 12 relay / 6 analog | Modbus / Profibus |
| DSDO 130 | 200 × 140 × 90 | 2.2 | 24–240 V AC/DC | 12 relay / 8 analog | Modbus / Ethernet IP |
| DSDO 135 | 210 × 145 × 95 | 2.3 | 24–240 V AC/DC | 14 relay / 8 analog | Modbus / Ethernet IP |
Recommended Popular Models (Same Brand)
| Model | Dimensions (mm) | Weight (kg) | Power Supply | Input/Output Channels | Communication Interface |
|---|---|---|---|---|---|
| ACS580 | 250 × 200 × 150 | 4.5 | 380–480 V AC | Variable | Modbus / Ethernet IP |
| Emax 2 | 220 × 180 × 140 | 3.8 | 230–415 V AC | 6/6 | Profibus / Modbus |
| RGC100 | 200 × 150 × 120 | 2.5 | 24–240 V AC/DC | 8/4 | Ethernet IP |
| ABB Ability System 800xA | 300 × 250 × 180 | 6.0 | 24–240 V AC/DC | 12/10 | Modbus / Profibus |
| CP-E Power Supply | 120 × 90 × 65 | 1.2 | 24 V DC | N/A | N/A |
FAQ – ABB DSDO 115
Q1: What is the operating temperature range of DSDO 115?
A1: The device operates safely between -20°C and +60°C.
Q2: Can DSDO 115 be mounted on a DIN rail?
A2: Yes, it supports both DIN rail and panel mounting.
Q3: How many output channels does DSDO 115 have?
A3: 12 relay and 8 analog output channels.
Q4: Which communication interfaces are supported?
A4: Modbus, Profibus, and Ethernet IP.
Q5: What is the weight of the device?
A5: Approximately 2.0 kg.
Q6: Is DSDO 115 suitable for motor control applications?
A6: Yes, it is capable of controlling motors and actuators efficiently.
Q7: Can it be used in renewable energy systems?
A7: Yes, it is compatible with solar, wind, and hybrid energy setups.
Q8: What is the power supply range?
A8: 24–240 V AC/DC.
Q9: What is the protection rating?
A9: Standard IP20; optional IP40 enclosures are available.
Q10: Does DSDO 115 require specialized software for configuration?
A10: ABB automation software allows easy configuration, monitoring, and maintenance.
