Product Overview

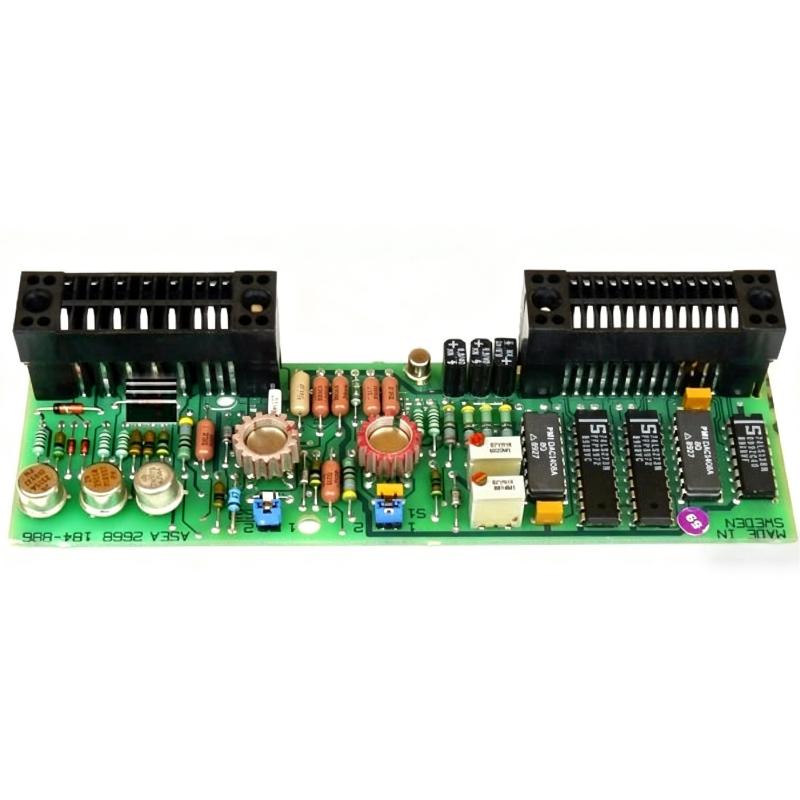

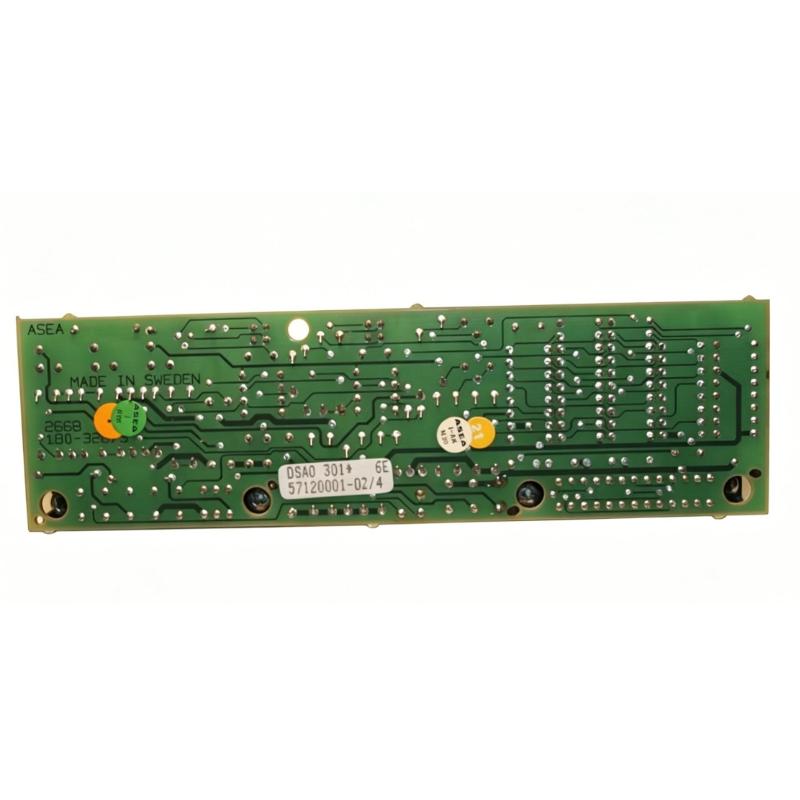

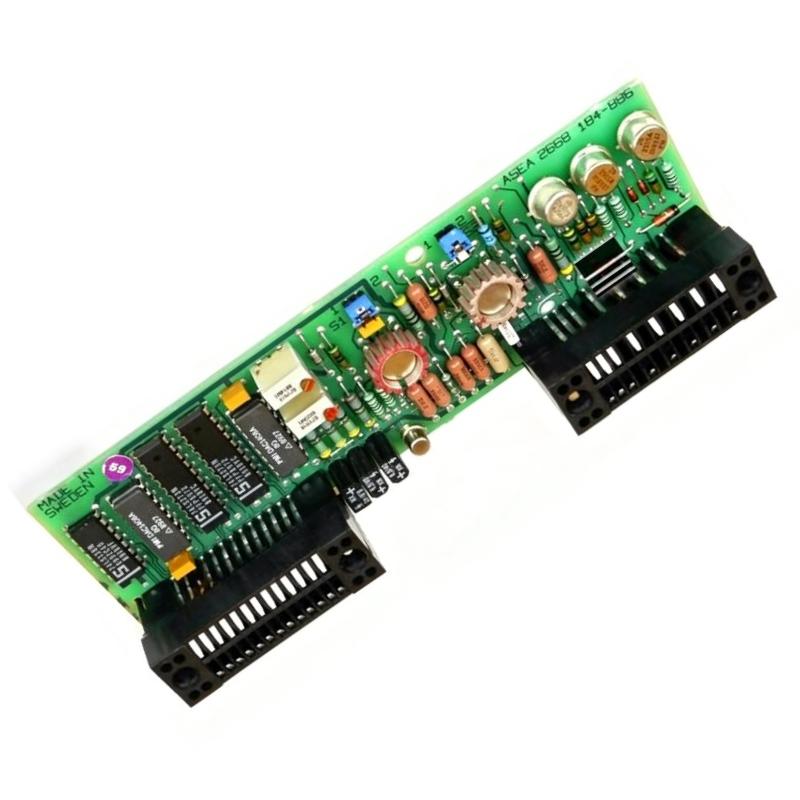

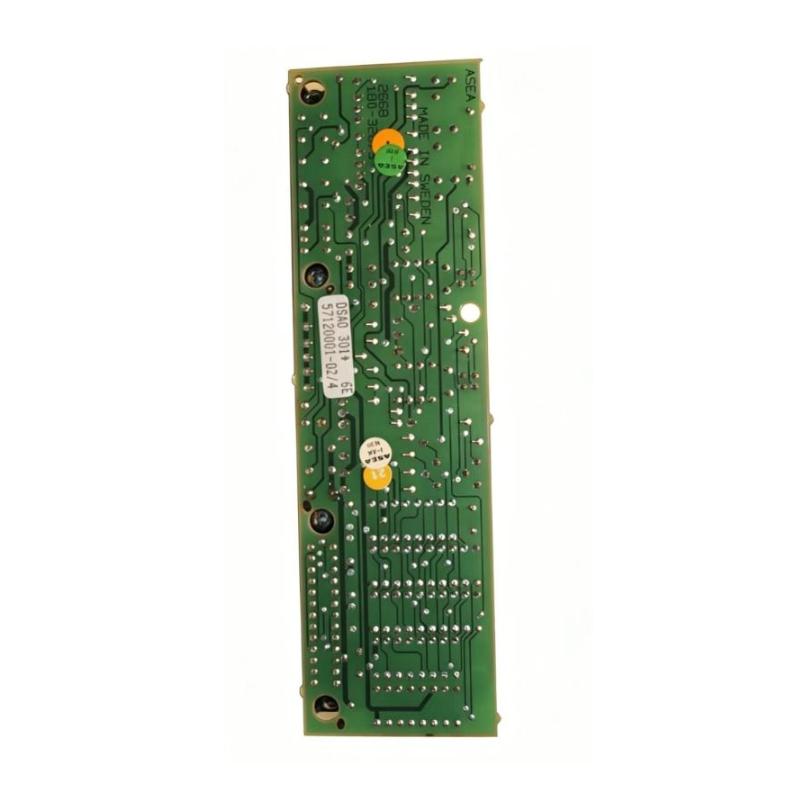

The ABB DSAO 301 (57120001-02/4) is an analog output board designed to convert digital control signals into analog output signals for industrial automation systems. The board is optimized for use in high-performance control applications, providing reliable and accurate signal conversion to ensure precise control of processes that require continuous analog output.
Compact and lightweight, the DSAO 301 integrates seamlessly into ABB’s automation systems and is ideal for applications in which precise analog signal output is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | DSAO 301 |
| Part Number | 57120001-02/4 |
| Product Type | DS Analog Output Board |
| Function | Analog signal output |
| Dimensions | 234 × 27 × 117 mm |
| Weight | 0.1 kg |
| Output Type | Analog (continuous) |
| Signal Range | Typically 0–10 V or 4–20 mA (system-dependent) |
| System Compatibility | ABB automation systems |
| Mounting Type | Panel or rack mounting |
| Operating Environment | Industrial-grade environments |
Function and Working Principle
The DSAO 301 board operates by converting digital control signals (typically from a PLC or control system) into continuous analog output signals that are used to control various industrial equipment such as actuators, motors, or valves.
Key working principles include:
- Signal Conversion: The board converts digital data into analog signals (such as 4–20 mA or 0–10 V) suitable for controlling analog devices.
- Real-Time Processing: The board processes data from the controller in real-time and generates precise analog outputs to ensure continuous control.
- Output Precision: Offers high-precision output suitable for systems requiring consistent and linear control signals.
- Signal Scaling: The analog output can be scaled based on system requirements for specific equipment control.
This process ensures accurate and reliable analog output for precise control in a variety of industrial processes.
Role in Industrial Control Systems
Within ABB automation systems, the DSAO 301 plays a vital role by:
- Converting digital signals from the controller to analog signals.
- Providing analog output to control continuous processes such as motor speeds, valve positions, or actuator movements.
- Enhancing system performance by ensuring precise control over analog output devices.
- Ensuring seamless communication between digital control systems and analog devices.
It is essential for applications that require precise analog control signals from digital control systems.
Industrial Applications
The ABB DSAO 301 Analog Output Board is used in:
- Industrial automation systems
- Process control applications
- Motor control systems
- Valve control systems
- Actuator control
- Environmental control systems
- SCADA systems for continuous monitoring and control
This makes it suitable for industries such as oil and gas, pharmaceuticals, chemical processing, and manufacturing.
Installation and System Integration
For optimal performance, the DSAO 301 should be installed and integrated as follows:
- Mounting: The module should be mounted in a control panel or rack, depending on the system design.
- Signal Connection: Connect the analog output terminals to the devices being controlled (e.g., motors, valves, actuators).
- System Integration: Ensure the board is properly integrated with the PLC or central controller for efficient signal conversion.
- Configuration: Configure the output scaling to match the system’s requirements, such as 4–20 mA or 0–10 V.
Proper installation ensures seamless integration with the rest of the control system and optimal analog signal output.
Compatible System Components
The DSAO 301 typically works with:
- ABB PLCs and automation controllers
- Analog input/output modules
- Field devices (e.g., motors, actuators, sensors, valves)
- Communication interface modules
- SCADA and HMI systems for process monitoring and control
These components work together to provide complete automation solutions with both digital and analog control capabilities.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DSAI 301 | Analog Input Board | Analog signal acquisition | Process control systems |
| DSAO 302 | Analog Output Board | Higher output range | Industrial automation |
| AI 880 | Analog Input Module | Analog signal processing | Control systems |
| AO series modules | Analog Output | Modular analog signal output | Flexible integration |
| ABB I/O modules | I/O Module | Versatile integration | Automation systems |
Key Advantages
- Reliable analog output with precise control.
- Compact design, ideal for space-constrained installations.
- Easy integration with ABB automation systems and PLCs.
- High accuracy in output signal for industrial applications.
- Flexible output ranges, such as 0–10 V or 4–20 mA, depending on system needs.
- Low weight and easy handling, with efficient mounting options.
Technical FAQs
What does the DSAO 301 do?
It converts digital control signals into analog output signals for controlling analog devices like motors, actuators, and valves.
What types of output signals does it provide?
It provides continuous analog output signals such as 0–10 V or 4–20 mA, depending on the configuration.
Where is the DSAO 301 used?
It is used in industrial automation, process control, and continuous control applications requiring precise analog signal output.
Conclusion
The ABB DSAO 301 (57120001-02/4) DS Analog Output Board is an essential component for converting digital control signals into analog output for high-precision control in industrial automation systems. Its compact design, ease of integration, and reliability make it a crucial part of systems requiring accurate analog signal control.
