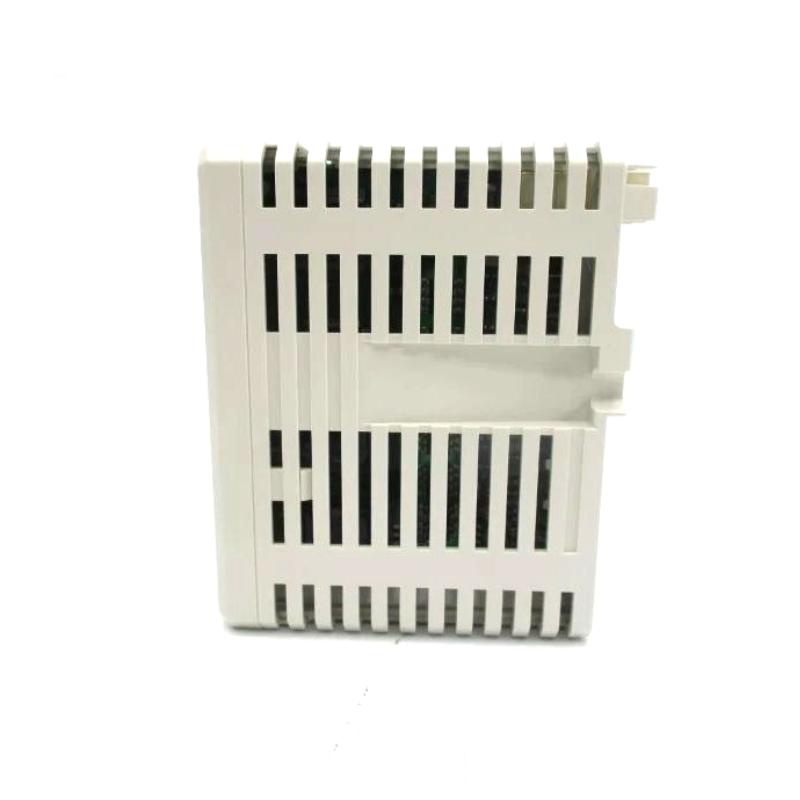

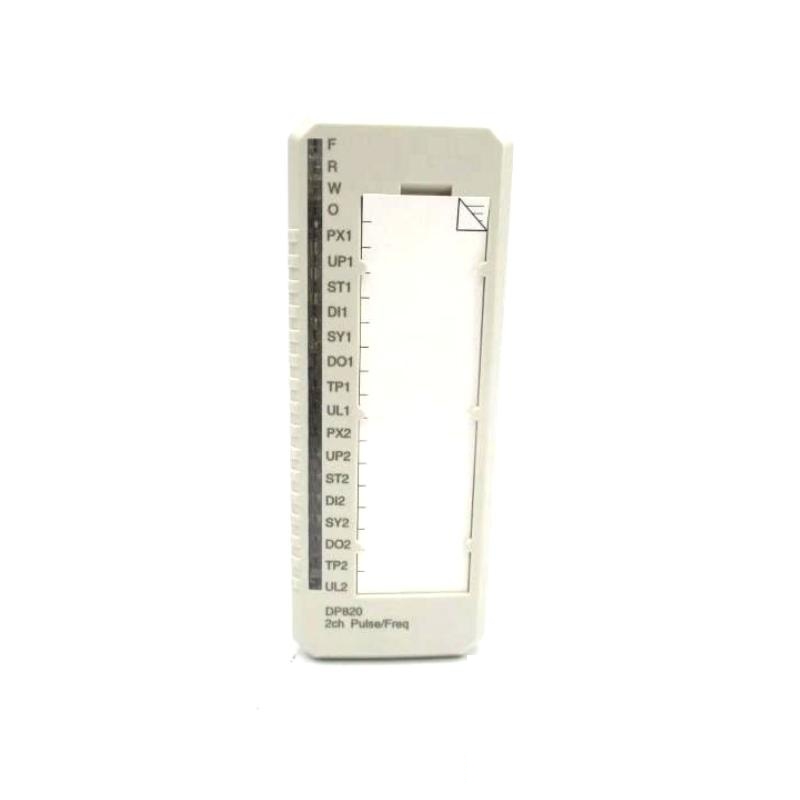

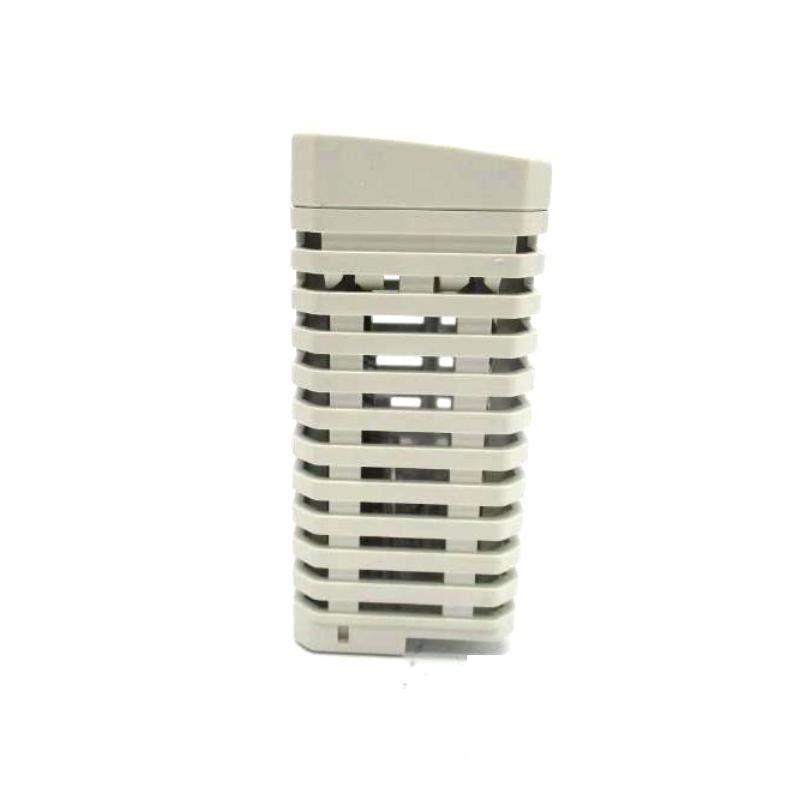

ABB DP820 3BSE013228R1 Pulse Input Module
Product Introduction
The ABB DP820 3BSE013228R1 is a high-performance pulse input module designed for use in industrial automation systems. It is specifically developed to handle pulse signals from encoders, flow meters, and other pulse-generating devices. This module is part of ABB’s extensive range of input/output solutions and is engineered to provide reliable and accurate data processing in real-time. The DP820 pulse input module enables precise counting, timing, and measurement functions essential for controlling and monitoring processes in manufacturing, automation, and other industries.
The module’s robust design and fast processing capability make it ideal for systems requiring quick and reliable pulse measurement, ensuring efficient operations and minimal downtime.
Product Specifications
| Parameter | Value |
|---|---|
| Dimensions | 45 x 102 x 119 mm |
| Weight | 0.15 kg |
| Input Type | Pulse Input |
| Input Frequency | 50 Hz to 1 kHz |
| Voltage Range | 24 V DC |
| Signal Type | Digital Pulse Signals |
| Output Type | Digital Signals |
| Power Consumption | 2 W |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | DIN Rail |
Product Applications
The ABB DP820 pulse input module is used in various industrial and automation applications where pulse counting and measurement are critical. Typical applications include:
-
Encoder Monitoring: Capturing pulse signals from encoders for speed and position feedback.
-
Flow Measurement: Receiving pulse signals from flow meters to measure flow rates in pipes and tanks.
-
Process Control: Used in process systems for counting and controlling batch processes based on pulse data.
-
Energy Management: Pulse inputs are used to monitor energy consumption from meters and other energy measurement devices.
-
Industrial Automation: Incorporates into PLC systems for precise monitoring and control of mechanical systems such as conveyors, pumps, and robotic arms.
Product Advantages
-
High-Speed Performance: The DP820 module processes pulse input signals at frequencies ranging from 50 Hz to 1 kHz, ensuring fast and accurate data capture.
-
Reliable and Accurate: Provides high-accuracy data processing, making it suitable for mission-critical applications where precision is paramount.
-
Compact Design: With a size of only 45 x 102 x 119 mm and a weight of just 0.15 kg, it offers a compact and lightweight solution for systems with limited space.
-
Wide Temperature Range: Operates in a temperature range of -20°C to 60°C, ensuring reliable performance in a variety of industrial environments.
-
Low Power Consumption: Consumes only 2 W of power, making it energy-efficient and cost-effective in long-term operations.
-
Easy Integration: Mounts easily on a DIN rail and integrates seamlessly into existing ABB automation systems or third-party systems.
Brand and Series
-
Brand: ABB
-
Series: DP Series (Distributed I/O Modules)
Recommended Models in the Same Series
| Model | Description | Dimensions | Weight | Input Frequency | Power Consumption | Operating Temperature |
|---|---|---|---|---|---|---|
| DP840 | Pulse output module for frequency-based systems | 45 x 102 x 119 mm | 0.18 kg | 1 Hz to 5 kHz | 2.5 W | -20°C to 60°C |
| DP820A | Advanced pulse input module with enhanced features | 45 x 102 x 119 mm | 0.15 kg | 50 Hz to 1 kHz | 2 W | -20°C to 60°C |
| DP810 | Basic pulse input module for low-frequency applications | 45 x 102 x 119 mm | 0.14 kg | 1 Hz to 500 Hz | 1.8 W | -20°C to 60°C |
| DP830 | Pulse input module with extended temperature range | 45 x 102 x 119 mm | 0.16 kg | 50 Hz to 1 kHz | 2.3 W | -40°C to 70°C |
| DP850 | Dual-channel pulse input module | 45 x 102 x 119 mm | 0.2 kg | 50 Hz to 2 kHz | 2.6 W | -20°C to 60°C |
Popular ABB Models
| Model | Description | Dimensions | Weight | Input Frequency | Power Consumption | Operating Temperature |
|---|---|---|---|---|---|---|
| DI650 | Digital input module for industrial automation | 45 x 102 x 119 mm | 0.2 kg | 50 Hz to 1 kHz | 2 W | -20°C to 60°C |
| AI810 | Analog input module for various sensors | 45 x 102 x 119 mm | 0.25 kg | – | 3 W | -20°C to 60°C |
| DO850 | Digital output module for controlling devices | 45 x 102 x 119 mm | 0.3 kg | – | 2.5 W | -20°C to 60°C |
| DO630 | Digital output module with higher current rating | 45 x 102 x 119 mm | 0.28 kg | – | 3 W | -20°C to 60°C |
| AI820 | Analog input module with extended range | 45 x 102 x 119 mm | 0.26 kg | – | 2.8 W | -20°C to 60°C |
Frequently Asked Questions (FAQ)
-
Q: What is the input frequency range of the ABB DP820 module?
A: The DP820 module supports input frequencies ranging from 50 Hz to 1 kHz. -
Q: What is the power consumption of the ABB DP820 module?
A: The power consumption of the DP820 module is 2 W. -
Q: What is the operating temperature range of the DP820?
A: The module operates in temperatures ranging from -20°C to 60°C. -
Q: How many pulse input channels does the DP820 module support?
A: The DP820 supports a single pulse input channel. -
Q: Can the DP820 module be mounted on a DIN rail?
A: Yes, the DP820 module is designed to be mounted on a DIN rail for easy installation. -
Q: What is the signal type that the DP820 module processes?
A: The DP820 module processes digital pulse signals. -
Q: What are the dimensions of the ABB DP820 module?
A: The dimensions of the DP820 module are 45 x 102 x 119 mm. -
Q: Is the DP820 suitable for use with encoders?
A: Yes, the DP820 module is suitable for use with encoders, as it processes pulse signals generated by encoders. -
Q: How does the DP820 module communicate with other devices?
A: The DP820 module communicates with other devices through its digital pulse inputs, which can be integrated into larger automation systems. -
Q: What is the weight of the ABB DP820 module?
A: The weight of the DP820 module is 0.15 kg.
