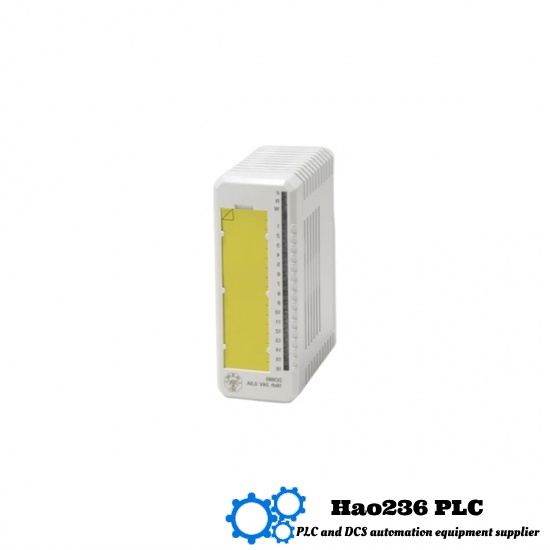

Product Overview: ABB DO880-2 (3BSE028603R1)
Product Introduction
The ABB DO880-2 (3BSE028603R1) is a high-performance digital output module designed for industrial automation systems. It provides 16 channels of 24 V DC current sourcing outputs, offering robust control for various industrial devices. The module is engineered to meet stringent safety and reliability standards, making it suitable for a wide range of applications in process automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3BSE028603R1 (DO880-2) |
| Type | Digital Output Module |
| Number of Channels | 16 |
| Signal Specification | 24 V DC (19.2 – 32 V DC), 0.5 A per channel |
| Signal Type | Current sourcing, current limiting |
| Redundancy | Yes |
| High Integrity | Yes |
| Intrinsic Safety | No |
| Dimensions (mm) | 45 (W) x 119 (H) x 102 (D) |
| Weight (kg) | 0.20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Compliance | CE, UL 508, IEC 61131-2 |
Product Applications
-
Industrial Automation: Integration into PLC and DCS systems for controlling actuators, solenoids, and other devices.
-
Process Control: Managing outputs in chemical, pharmaceutical, and food processing industries.
-
Manufacturing Systems: Controlling machinery and equipment in automated production lines.
-
Energy Management: Interface with energy distribution systems for monitoring and control.
-
Building Automation: Integration into building management systems for controlling HVAC and lighting systems.
Product Advantages
-
High Safety Standards: Certified for SIL3 according to IEC 61508 and Category 4 according to EN 954-1, ensuring high safety and reliability standards.
-
Redundant Configuration: Supports both single and redundant configurations for flexible application.
-
Advanced Diagnostics: Provides loop monitoring, supervision of short and open load with configurable limits, and diagnostic of output switches without pulsing on outputs.
-
Fault Tolerance: Fault tolerance of 1 (as defined in IEC 61508) for output drivers, allowing outputs to be controlled even with errors.
-
Current Limiting and Over-Temperature Protection: Ensures safe operation under fault conditions.
-
Compact Design: Space-saving 45 mm width, suitable for installations with limited space.
Brand Information
| Brand Name | ABB |
|---|---|
| Overview | Leading global technology company specializing in electrification, automation, and digitalization. |
| Industry | Industrial automation, robotics, power grids, and electrification. |
| Global Presence | Operations in over 100 countries, with a strong focus on innovation and sustainability. |
Product Series
| Series Name | DO880 Series |
|---|---|
| Overview | A series of digital output modules designed for the S800 I/O system, offering high-performance and safety features. |
| Key Features | 16 channels, 24 V DC operation, current sourcing outputs, redundancy support, and advanced diagnostics. |
| Applications | Suitable for various industrial automation applications requiring reliable and safe digital outputs. |
Recommended Models from the Same Series or Related
| Model | Number of Channels | Signal Specification | Redundancy | High Integrity | Intrinsic Safety |
|---|---|---|---|---|---|
| DO880-1 (3BSE028588R1) | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO880-3 (3BSE028604R1) | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO880-4 (3BSE028605R1) | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO880-5 (3BSE028606R1) | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO880-6 (3BSE028607R1) | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
Recommended Popular Models from the Same Brand
| Model | Type | Number of Channels | Signal Specification | Redundancy | High Integrity | Intrinsic Safety |
|---|---|---|---|---|---|---|
| DO820 (3BSE020838R1) | Digital Output Module | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO821 (3BSE020839R1) | Digital Output Module | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO840 (3BSE028602R1) | Digital Output Module | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO841 (3BSE028603R1) | Digital Output Module | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
| DO842 (3BSE028604R1) | Digital Output Module | 16 | 24 V DC (19.2 – 32 V DC), 0.5 A per channel | Yes | Yes | No |
FAQ (Frequently Asked Questions)
Q1: What is the operating voltage range for the DO880-2 module?
A1: The DO880-2 module operates within a voltage range of 19.2
Q2: How many output channels does the DO880-2 have?
A2: The module provides 16 digital output channels.
Q3: What is the maximum current per output channel?
A3: Each output channel can handle up to 0.5 A.
Q4: Does the module support redundant configurations?
A4: Yes, it supports both single and redundant configurations to enhance reliability.
Q5: What kind of diagnostics does the DO880-2 offer?
A5: It offers loop monitoring, supervision of short/open loads, and diagnostics for output switch status without pulsing.
Q6: What is the typical operating temperature range?
A6: It operates from 0°C to +55°C.
Q7: What safety standards does this product comply with?
A7: It complies with SIL3 according to IEC 61508 and Category 4 according to EN 954-1.
Q8: Can the DO880-2 be used in hazardous environments requiring intrinsic safety?
A8: No, this module is not certified for intrinsic safety applications.
Q9: How is the DO880-2 mounted in the control system?
A9: It is designed for mounting on a DIN rail or panel within control cabinets.
Q10: What are the module’s physical dimensions and weight?
A10: Dimensions are 45 mm (W) x 119 mm (H) x 102 mm (D), and the weight is approximately 0.20 kg.
