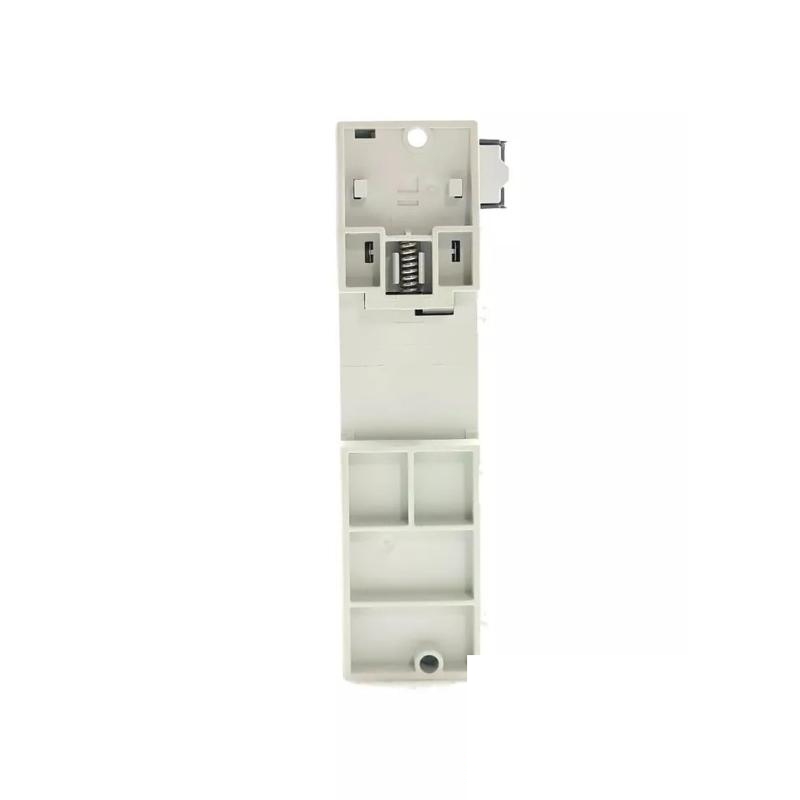

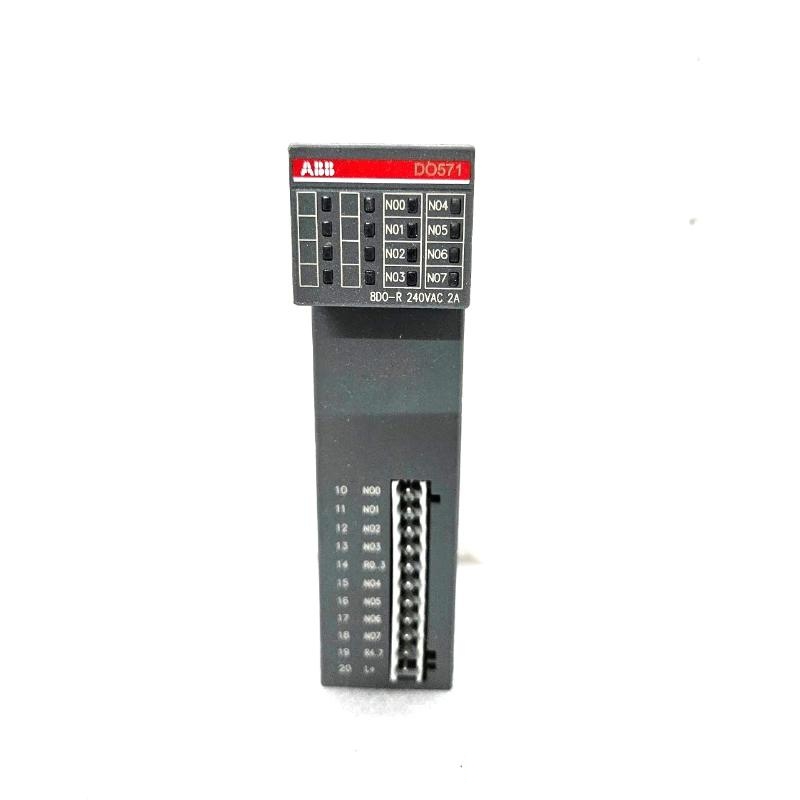

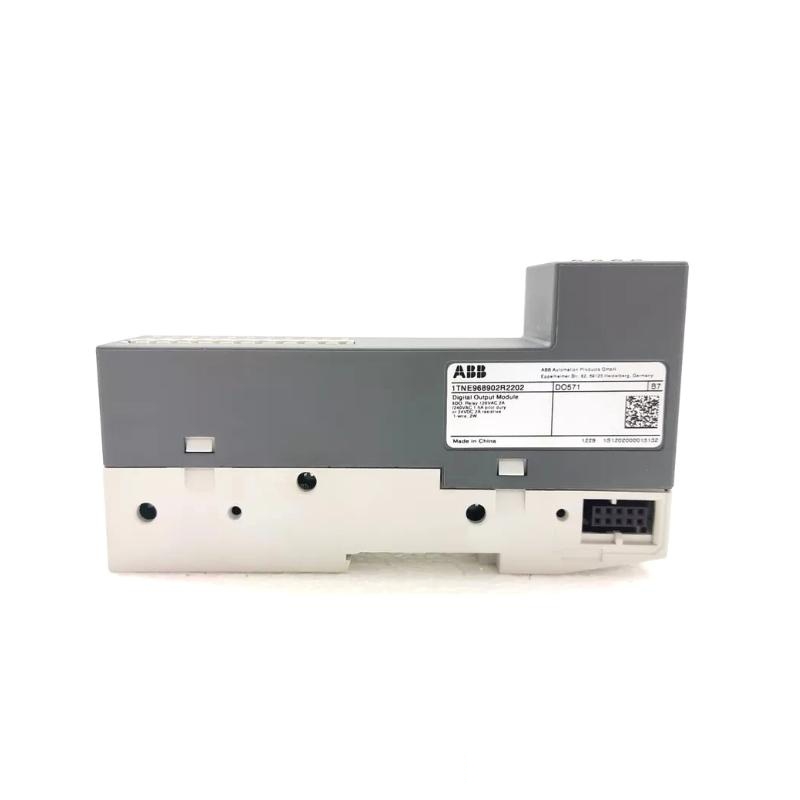

ABB DO571 1TNE968902R2202 S500-eCo Digital Output Module
Product Overview
The ABB DO571 1TNE968902R2202 is a highly efficient and reliable digital output module from ABB’s S500-eCo series, designed for use in industrial automation systems. This module plays a crucial role in controlling digital output devices like relays, actuators, and solenoids. It is engineered for high performance, providing robust and precise control in demanding industrial applications.
The S500-eCo series modules are built to offer superior energy efficiency while maintaining high reliability. The DO571 module provides multiple output channels, each capable of controlling various digital devices with high current ratings. It is designed for use in systems requiring flexible and cost-effective solutions, ensuring that operators can rely on this module for stable performance in challenging environments.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | Digital Output Module |
| Model Number | DO571 1TNE968902R2202 |
| Dimensions (L x W x H) | 75 x 135 x 34 mm |
| Weight | 0.138 kg |
| Output Channels | 8 (24V DC) |
| Output Type | Transistor Output |
| Output Current | 0.5 A per channel |
| Power Supply | 24V DC |
| Mounting Type | Rail Mountable |
| Operating Temperature | -20°C to +60°C |
| Compliance | CE Certified |
Product Applications
The ABB DO571 digital output module is ideal for various industrial automation and control applications. Its wide range of applications includes:
-
Industrial Automation Systems: Controls devices such as solenoids, relays, and actuators in automated manufacturing processes.
-
Energy and Power Generation: Used to control critical equipment like breakers and valves in power plants and energy systems.
-
Building Automation: Manages the operation of HVAC systems, lighting, and other infrastructure in commercial and residential buildings.
-
Manufacturing: In production lines, it provides reliable control over machinery and equipment, ensuring smooth operation.
-
Water and Wastewater Management: Controls pumps, flow valves, and other equipment in water treatment plants, ensuring optimal performance.
Product Advantages
-
High-Performance Control: With 8 channels of output, the DO571 module delivers efficient and reliable control for a variety of devices in industrial applications.
-
Compact and Robust Design: The module’s compact size (75 x 135 x 34 mm) and durable construction (0.138 kg) make it suitable for tight spaces and demanding environments.
-
Energy-Efficient Operation: As part of the S500-eCo series, the DO571 is designed for energy efficiency, offering cost-effective performance with low power consumption.
-
Wide Temperature Range: The module operates effectively in a temperature range from -20°C to +60°C, making it suitable for both indoor and outdoor industrial applications.
-
CE Certified: The DO571 complies with CE standards, ensuring that it meets the highest safety and quality requirements for industrial use.
-
Flexible Integration: The module easily integrates with ABB’s control systems, ensuring smooth communication and improved system performance.
-
Reliable Output Current: Each output channel supports up to 0.5 A, providing stable control for a wide variety of digital output devices.
-
Easy Installation: The rail-mountable design simplifies installation, allowing for quick and efficient setup in industrial control panels.
Brand and Series
-
Brand: ABB
-
Series: S500-eCo Series
Similar Models or Related Products
Here are five similar models within the S500-eCo series or related products:
| Model | Description | Output Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| DO570 | 4-channel digital output module | 4 | 75 x 135 x 34 mm | 0.136 kg |
| DO572 | 8-channel digital output module | 8 | 75 x 135 x 34 mm | 0.139 kg |
| DO573 | Digital output module with feedback | 8 | 75 x 135 x 34 mm | 0.140 kg |
| DO574 | Digital output module with higher current rating | 8 | 75 x 135 x 34 mm | 0.141 kg |
| DO575 | Enhanced digital output module with isolated channels | 8 | 75 x 135 x 34 mm | 0.142 kg |
Popular ABB Models
Here are five popular ABB models within the same brand:
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| DI801 | Basic digital input module for control systems | 150 x 120 x 90 mm | 0.7 kg |
| DI802 | Digital input module with additional features | 150 x 120 x 90 mm | 0.72 kg |
| DI803 | Advanced digital input module for high-speed applications | 150 x 120 x 90 mm | 0.75 kg |
| DI804 | Compact digital input module for smaller applications | 150 x 120 x 90 mm | 0.68 kg |
| DI805 | Digital input module with extended diagnostic capabilities | 150 x 120 x 90 mm | 0.77 kg |
FAQs
-
Q: What is the input voltage for the ABB DO571 module?
A: The DO571 module requires a 24V DC power supply. -
Q: How many output channels does the ABB DO571 have?
A: The module provides 8 output channels. -
Q: What is the maximum output current per channel for the DO571?
A: Each output channel supports up to 0.5 A. -
Q: What is the weight of the ABB DO571 module?
A: The weight of the module is 0.138 kg. -
Q: What is the operating temperature range for the ABB DO571 module?
A: The module operates in a temperature range from -20°C to +60°C. -
Q: How is the ABB DO571 mounted?
A: The DO571 is designed for rail mounting. -
Q: What type of outputs does the ABB DO571 provide?
A: The module provides transistor-based digital outputs. -
Q: Is the ABB DO571 CE certified?
A: Yes, the module is CE certified for safety and compliance. -
Q: Can the ABB DO571 be used outdoors?
A: Yes, the module can be used in outdoor environments as long as it is within the specified operating temperature range. -
Q: What are the dimensions of the ABB DO571?
A: The dimensions are 75 x 135 x 34 mm.
