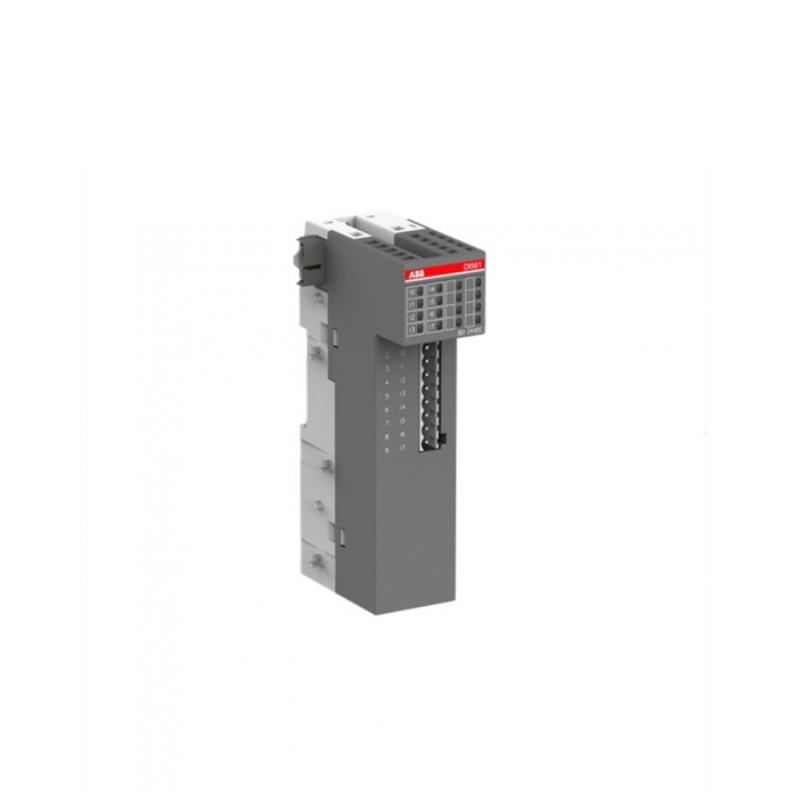

Product Overview: ABB DO561 (1TNE968902R2201)
Product Introduction
The ABB DO561 (model number 1TNE968902R2201) is a digital output module designed for high-performance industrial automation applications. This module is part of ABB’s extensive I/O range and serves as a critical component for controlling digital devices in factory automation, process control systems, and more. The DO561 provides seamless integration for controlling field devices such as actuators, solenoids, and relays that operate with binary signals.
The DO561 module is designed with flexibility in mind, offering support for multiple output types to suit different control requirements. It ensures high reliability and durability, making it suitable for various industrial environments. With its compact design, easy integration, and efficient performance, the DO561 is ideal for use in demanding systems where digital control of field devices is essential.
Product Specifications
Here are the detailed specifications for the ABB DO561 module:
| Parameter | Details |
|---|---|
| Model Number | 1TNE968902R2201 |
| Number of Outputs | 32 Digital Outputs |
| Output Type | Transistor or Relay (configurable) |
| Voltage Range | 24 V DC (nominal) |
| Current Rating | 500 mA per output (max) |
| Output Indication | LED indication for each output state |
| Dimensions | 150 mm x 120 mm x 80 mm (L x W x H) |
| Weight | 1.5 kg |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO561 module is designed to meet the needs of various industries where digital control of field devices is necessary. Its applications include:
-
Factory Automation: It is used to control digital devices such as motors, actuators, solenoids, and relays in manufacturing systems, ensuring precise control over production processes.
-
Process Control: In industries like chemical plants, oil and gas, and pharmaceutical production, the DO561 module helps manage digital outputs that control crucial equipment such as pumps, valves, and flow regulators.
-
Building Automation: The DO561 is used for controlling lighting, HVAC systems, and other building management systems, improving efficiency and energy usage.
-
Energy and Utilities: In power distribution and energy management systems, the DO561 module can control field devices like circuit breakers, relays, and alarms.
-
Transportation Systems: It finds application in controlling digital devices like traffic lights, gates, and railway switches in transportation infrastructure.
Product Advantages
The ABB DO561 module offers several key advantages that make it an ideal choice for demanding industrial applications:
-
High Output Density: With 32 digital outputs, the DO561 provides a high level of control over multiple devices from a single module, reducing the need for multiple I/O modules in the system.
-
Flexible Output Configuration: It supports both transistor and relay outputs, which allows for flexible configurations depending on the specific needs of the system.
-
Compact and Robust Design: The DO561 has a compact form factor of 150 mm x 120 mm x 80 mm and weighs just 1.5 kg, making it easy to install and integrate in confined spaces. Its rugged construction ensures it can withstand industrial environments.
-
High Reliability: The DO561 is engineered for high reliability, ensuring that it can maintain continuous operation under demanding conditions, even in high-temperature or humid environments.
-
Easy Integration: The module is designed for DIN rail mounting, making it straightforward to install in control panels or cabinets alongside other industrial equipment.
-
Compliant with Industry Standards: With CE, UL, and RoHS certifications, the DO561 meets the global standards for safety and environmental compliance.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Below are five other models from the DO Series or related models that provide similar functionality to the ABB DO561:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO562 | 32 | Transistor/Relay Output | 24 V DC | 150 x 120 x 80 | 1.55 |
| DO563 | 16 | Relay Output | 24 V DC | 120 x 120 x 70 | 1.2 |
| DO564 | 32 | Transistor Output | 24 V DC | 160 x 130 x 85 | 1.8 |
| DO565 | 24 | Relay/Transistor Output | 24 V DC | 140 x 120 x 75 | 1.4 |
| DO566 | 16 | Transistor Output | 24 V DC | 120 x 120 x 75 | 1.0 |
Popular ABB Models
Below are five other popular ABB models used in industrial automation:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM800 | 24 V DC | 12 Analog Inputs, 12 Outputs | DIN Rail Mount | 200 x 150 x 80 | 1.5 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO561 used for?
A1: The ABB DO561 is a digital output module used to control digital devices such as relays, actuators, solenoids, and other binary-controlled devices in industrial automation systems.
Q2: How many outputs does the DO561 have?
A2: The DO561 has 32 digital outputs, which allow for precise control of multiple devices simultaneously.
Q3: What is the voltage range for the ABB DO561?
A3: The DO561 operates within a nominal voltage range of 24 V DC.
Q4: What is the weight of the ABB DO561?
A4: The DO561 weighs 1.5 kg, making it easy to install and handle.
Q5: Can the DO561 be mounted easily?
A5: Yes, the DO561 is designed for DIN rail mounting, making installation fast and straightforward in control cabinets or panels.
Q6: What types of outputs are supported by the DO561?
A6: The DO561 supports both transistor and relay outputs, providing flexibility in different industrial control setups.
Q7: What is the operating temperature range for the DO561?
A7: The DO561 operates effectively in environments with temperatures ranging from -10°C to +60°C and humidity levels from 5% to 95% RH.
Q8: Does the DO561 have any certifications?
A8: Yes, the DO561 is certified with CE, UL, and RoHS, meeting global safety and environmental standards.
Q9: What is the current rating per output?
A9: Each output of the DO561 can handle a maximum current of 500 mA.
Q10: Can the DO561 be integrated with other ABB products?
A10: Yes, the DO561 is designed to integrate seamlessly with other ABB automation solutions, providing a flexible and scalable control system.
