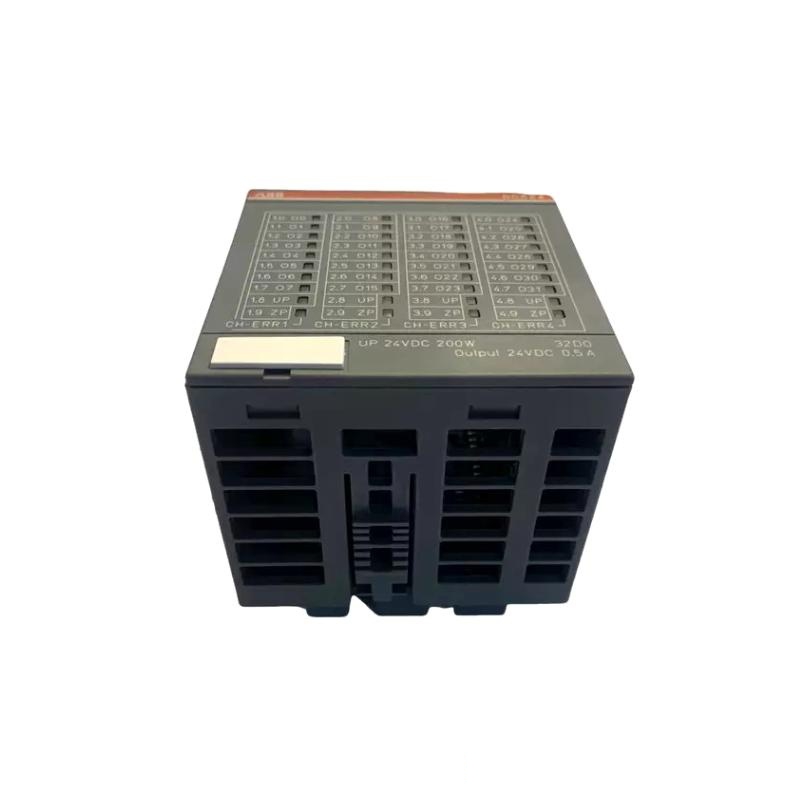

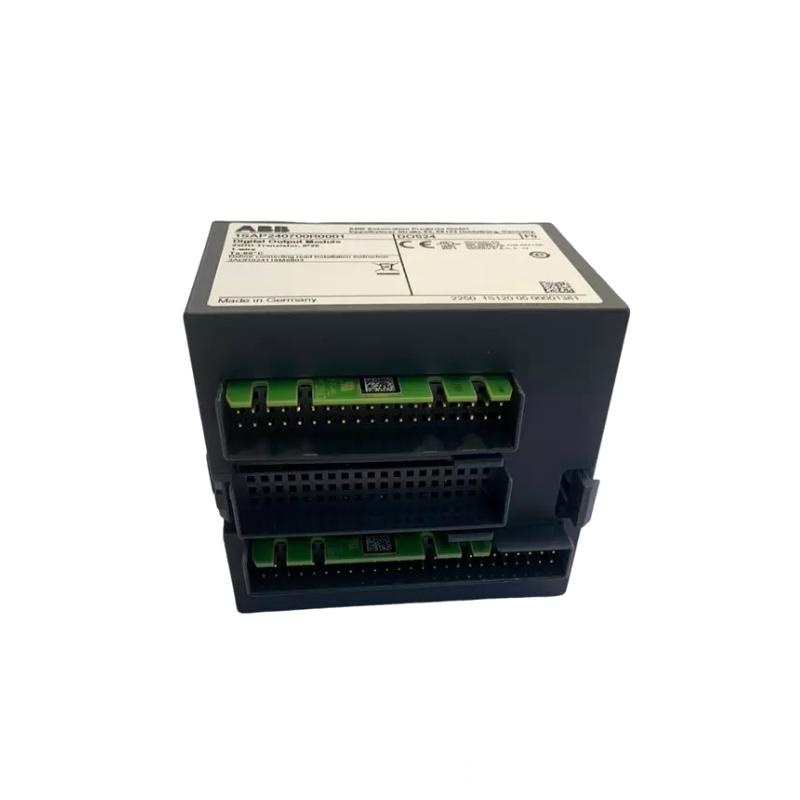

ABB DO524 1SAP240700R0001 Digital Output Module
Product Overview
The ABB DO524 1SAP240700R0001 is a high-performance digital output module designed to control and interface with digital devices and systems in industrial automation applications. It enables precise control over digital output signals, ensuring reliable operation of various industrial processes. The module is built for use with ABB’s AC500 control systems, offering seamless integration and advanced functionality for both simple and complex automation tasks.
This digital output module is engineered for flexibility, offering multiple output channels that can control a wide range of digital devices, such as relays, solenoids, and valves. With a compact and rugged design, the DO524 module is ideal for use in demanding industrial environments where reliability and performance are crucial.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | Digital Output Module |
| Model Number | DO524 1SAP240700R0001 |
| Dimensions (L x W x H) | 62 x 76 x 67.5 mm |
| Weight | 0.106 kg |
| Output Channels | 8 (each 24V DC) |
| Output Type | Digital (Transistor Output) |
| Output Voltage | 24V DC |
| Max Output Current | 0.5 A per channel |
| Power Supply | 24V DC |
| Mounting Type | Rail Mountable |
| Operating Temperature | -20°C to +60°C |
| Compliance | CE Certified |
Product Applications
The ABB DO524 digital output module is commonly used in industrial automation systems that require reliable control of digital devices. Its applications include:
-
Industrial Automation: The module is used to control various digital output devices such as solenoids, relays, actuators, and other industrial machinery, enabling seamless integration into automation systems.
-
Manufacturing: In production lines, the DO524 can be used to control machines, conveyors, and other automated devices, improving operational efficiency.
-
Energy and Power Generation: It controls valves, circuit breakers, and other critical equipment, ensuring safe and efficient operation of power plants and energy systems.
-
Building Automation: The module can manage HVAC systems, lighting, and other building automation systems, providing efficient control and monitoring.
-
Water and Wastewater Management: The DO524 is used to control pumps, flow valves, and sensors in water treatment plants, optimizing performance and preventing system failures.
Product Advantages
-
Reliable Output Control: The DO524 provides stable and reliable control over digital output devices, ensuring accurate system responses and reducing downtime.
-
High Output Current: Each output channel supports up to 0.5 A of current, providing ample power for a variety of digital output devices.
-
Compact and Robust Design: With its compact size (62 x 76 x 67.5 mm) and lightweight design (0.106 kg), the DO524 is easy to install in confined spaces while offering durability in harsh industrial environments.
-
Wide Temperature Range: The module operates within a wide temperature range of -20°C to +60°C, making it suitable for both indoor and outdoor applications.
-
Easy Integration: Designed for use with ABB’s AC500 control systems, the DO524 integrates easily with other ABB automation components, reducing installation time and improving system efficiency.
-
CE Certified: The module is CE certified, meeting international safety and environmental standards, ensuring it is safe to use in a wide range of industrial environments.
Brand
-
Brand: ABB
Similar Models or Related Products
Here are five similar models within the DO series or related products:
| Model | Description | Output Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| DO521 | 4-channel digital output module | 4 | 62 x 76 x 67.5 mm | 0.105 kg |
| DO522 | 8-channel digital output module | 8 | 62 x 76 x 67.5 mm | 0.107 kg |
| DO523 | 8-channel digital output module with feedback | 8 | 62 x 76 x 67.5 mm | 0.108 kg |
| DO525 | High current digital output module | 8 | 62 x 76 x 67.5 mm | 0.110 kg |
| DO526 | Digital output module with extended range | 8 | 62 x 76 x 67.5 mm | 0.109 kg |
Popular ABB Models
Here are five popular ABB models within the same brand:
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| DI840 | Digital input module for control applications | 150 x 120 x 90 mm | 0.75 kg |
| DI880 | High-speed digital input module | 150 x 120 x 90 mm | 0.78 kg |
| DI885 | Advanced digital input module with extended features | 150 x 120 x 90 mm | 0.8 kg |
| DI841 | Compact digital input module for smaller tasks | 150 x 120 x 90 mm | 0.74 kg |
| DI886 | Digital input module with enhanced diagnostics | 150 x 120 x 90 mm | 0.82 kg |
FAQs
-
Q: What is the input voltage for the ABB DO524?
A: The input voltage is 24V DC. -
Q: How many output channels does the ABB DO524 have?
A: The module has 8 output channels. -
Q: What is the maximum output current per channel?
A: Each channel supports up to 0.5 A of output current. -
Q: What is the weight of the ABB DO524 module?
A: The weight is 0.106 kg. -
Q: What is the operating temperature range for the ABB DO524?
A: The operating temperature range is from -20°C to +60°C. -
Q: How is the ABB DO524 mounted?
A: It is panel mountable or rail mountable for easy installation. -
Q: What type of outputs does the ABB DO524 provide?
A: The module provides digital outputs using transistor output type. -
Q: Is the ABB DO524 CE certified?
A: Yes, the module is CE certified for safety and compliance. -
Q: Can the ABB DO524 be used in outdoor environments?
A: Yes, it is designed to work in outdoor environments within the specified temperature range. -
Q: What is the power supply requirement for the ABB DO524?
A: The module requires a 24V DC power supply.
