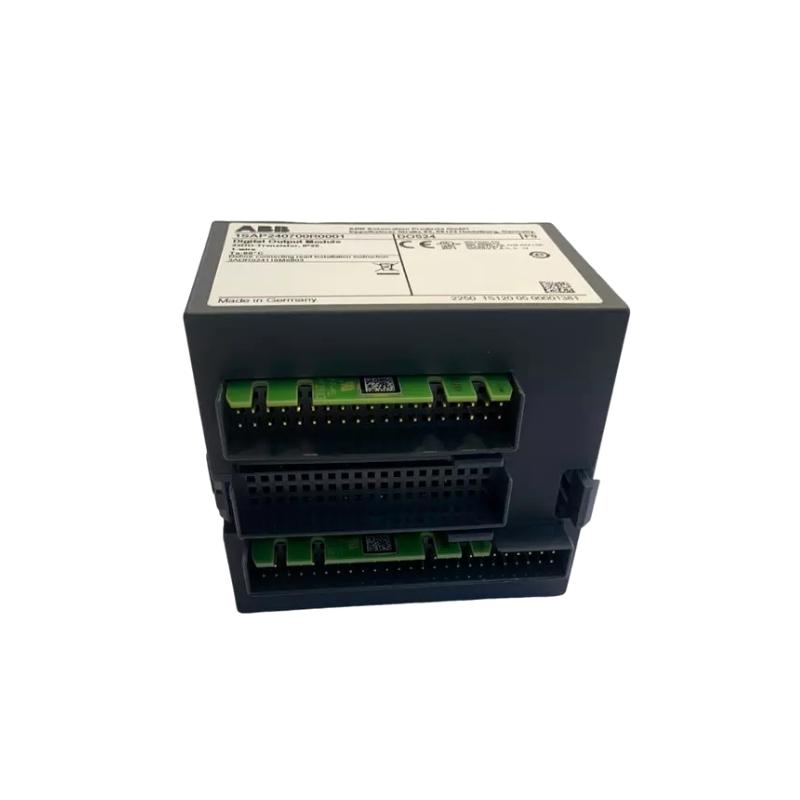

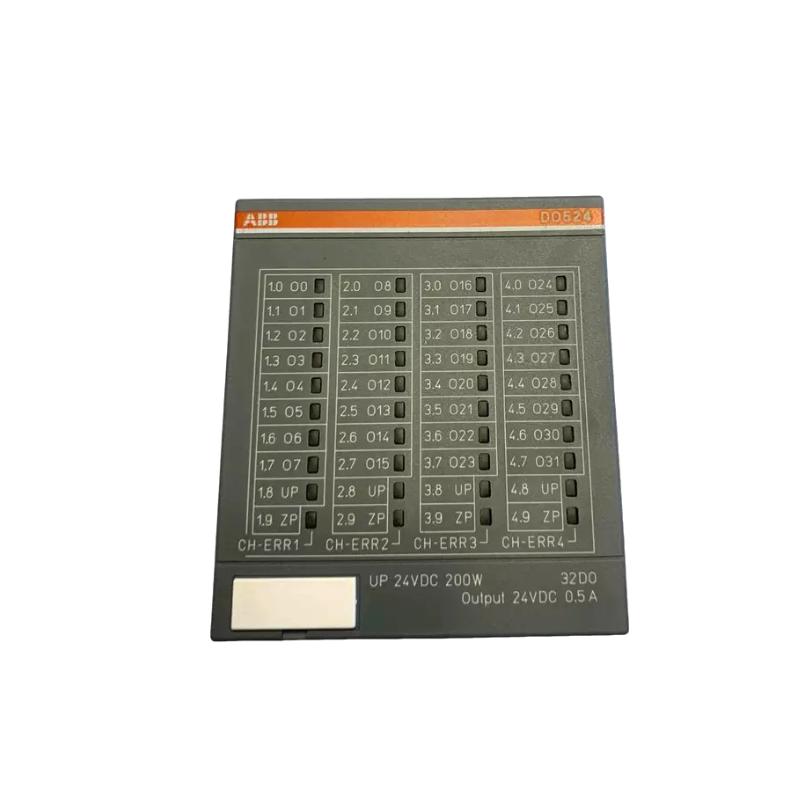

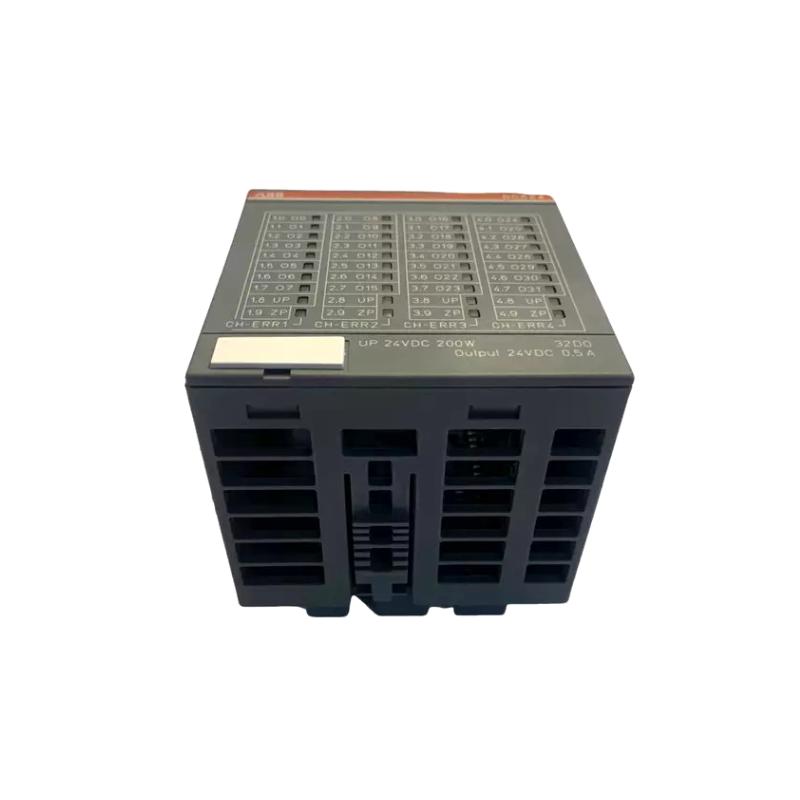

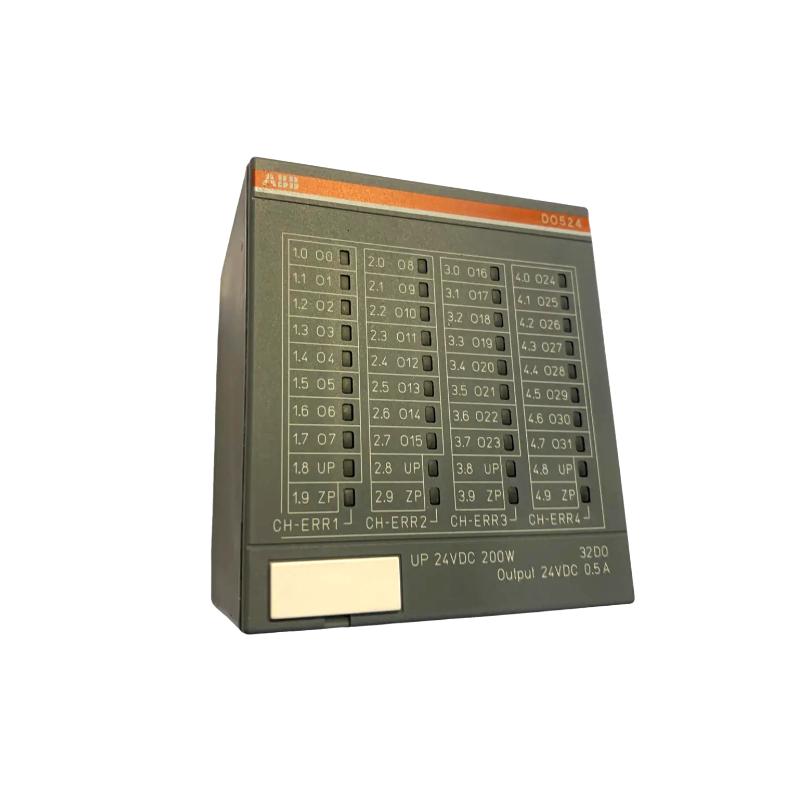

Product Overview: ABB DO524 (1SAP240700R0001)
Product Introduction
The ABB DO524 (model number 1SAP240700R0001) is a digital output module designed for industrial automation systems. This module is used to control field devices such as actuators, relays, or other electrical components that operate using binary signals. The DO524 module is part of ABB’s extensive range of I/O modules that offer high performance, reliability, and integration flexibility. It is a highly reliable and cost-effective solution for demanding industrial applications.
The module can interface with various devices in production lines, factory automation systems, and process control systems. It ensures smooth operation of digital outputs in environments requiring precision and robust control.
Product Specifications
Below are the detailed specifications for the ABB DO524 module:
| Parameter | Details |
|---|---|
| Model Number | 1SAP240700R0001 |
| Number of Outputs | 24 Digital Outputs |
| Output Type | Transistor or Relay (depending on configuration) |
| Voltage Range | 24 V DC (nominal) |
| Current Rating | 500 mA per output (max) |
| Output Indication | LED indication for each output state |
| Dimensions | 140 mm x 120 mm x 75 mm (L x W x H) |
| Weight | 1.0 kg |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Mounting | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB DO524 module is designed for use in a variety of industrial applications where precise control of output signals is critical. It finds its applications in:
-
Manufacturing Automation: It controls motors, relays, solenoids, and other devices used in manufacturing systems to ensure smooth and efficient production processes.
-
Process Control Systems: The DO524 is used in process industries like oil and gas, chemical plants, and food processing where exact output control is necessary.
-
Building Automation: It can control lighting, heating, ventilation, and air conditioning (HVAC) systems in commercial or residential buildings.
-
Power Generation and Distribution: In power plants and substations, the module helps control field devices like breakers, switches, and alarms to maintain system integrity and safety.
-
Transportation Systems: It is employed to control devices like traffic lights, gates, and railway switches in transportation infrastructure.
Product Advantages
The ABB DO524 offers several advantages that make it a top choice for industrial control systems:
-
High Reliability: The module features 24 digital outputs, allowing for precise control of multiple field devices simultaneously, with high accuracy and reliability.
-
Flexibility: It supports both transistor and relay outputs, providing versatility for different industrial setups. It can be configured based on the specific requirements of the system.
-
Compact Design: With dimensions of 140 mm x 120 mm x 75 mm and a weight of just 1.0 kg, it offers a compact form factor, making it easy to integrate into existing automation systems without consuming excess space.
-
Ease of Installation: The module is designed for DIN rail mounting, ensuring easy and quick installation within control cabinets or panels.
-
Wide Operating Range: With an operating temperature range of -10°C to +60°C and humidity tolerance of 5% to 95% RH, the module can function effectively in a variety of environmental conditions.
-
Safety and Compliance: The CE, UL, and RoHS certifications ensure that the DO524 meets global safety and environmental standards, making it a reliable choice for critical applications.
Product Brand and Series
-
Brand: ABB
-
Series: DO Series (Digital Output Modules)
Recommendations for Similar or Related Models
Here are 5 other models from the DO Series or related models that provide similar functionality to the ABB DO524:
| Model | Number of Outputs | Output Type | Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DO525 | 24 | Transistor/Relay Output | 24 V DC | 140 x 120 x 75 | 1.05 |
| DO526 | 16 | Relay Output | 24 V DC | 120 x 120 x 70 | 0.9 |
| DO527 | 32 | Transistor Output | 24 V DC | 150 x 130 x 80 | 1.2 |
| DO528 | 16 | Relay/Transistor Output | 24 V DC | 120 x 120 x 75 | 1.1 |
| DO529 | 24 | Relay Output | 24 V DC | 140 x 120 x 75 | 1.15 |
Popular ABB Models
Below are 5 other popular ABB models used in various industrial automation applications:
| Model | Power Supply | I/O Configuration | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PM800 | 24 V DC | 12 Analog Inputs, 12 Outputs | DIN Rail Mount | 200 x 150 x 80 | 1.5 |
| S800 | 400 V AC | 16 Digital Inputs/Outputs | DIN Rail Mount | 250 x 200 x 100 | 2.5 |
| AC500 | 24 V DC | Flexible I/O Expansion | DIN Rail Mount | 300 x 250 x 150 | 3.0 |
| IRB 6700 | 400 V AC | Industrial Robot (Multiple I/Os) | Floor Mount | 1150 x 450 x 300 | 230 |
| ACS880 | 400 V AC | Variable Frequency Drive | Floor or Panel Mount | 400 x 300 x 200 | 9.5 |
FAQ (Frequently Asked Questions)
Q1: What is the ABB DO524 used for?
A1: The ABB DO524 is a digital output module used in industrial automation systems to control digital devices like relays, actuators, and other field equipment.
Q2: How many outputs does the DO524 have?
A2: The DO524 has 24 digital outputs, which allow it to control a wide range of devices simultaneously.
Q3: What is the voltage range for the ABB DO524?
A3: The DO524 operates within a voltage range of 24 V DC (nominal).
Q4: What is the weight of the ABB DO524?
A4: The DO524 weighs 1.0 kg, which makes it easy to install and handle.
Q5: Can the DO524 be mounted easily?
A5: Yes, the DO524 is designed for DIN rail mounting, making it easy to install in control cabinets or panels.
Q6: What type of outputs does the DO524 support?
A6: The DO524 supports both transistor and relay outputs, providing flexibility in different industrial setups.
Q7: What is the operating temperature range for the DO524?
A7: The DO524 can operate in environments with temperatures ranging from -10°C to +60°C and humidity levels from 5% to 95% RH.
Q8: Does the DO524 have any certifications?
A8: Yes, the DO524 is CE, UL, and RoHS certified, ensuring that it meets global safety and environmental standards.
Q9: What is the current rating per output?
A9: Each output of the DO524 can handle a maximum of 500 mA.
Q10: Can the DO524 be integrated with other ABB products?
A10: Yes, the DO524 is designed to integrate seamlessly with other ABB automation solutions, providing a flexible and scalable control system.
