Product Technical Profile – ABB CP420B (1SBP260182R1001)
1) Brand and Series Overview
Brand: ABB
Series: CP4xx Operator Interface Terminals
The CP4xx series is designed for industrial automation applications, providing compact, reliable, and cost-effective operator interface terminals. The CP420B is part of this series, offering a more advanced monochrome display interface with increased functionality compared to earlier CP4xx models. It is engineered for monitoring, control, and diagnostics in industrial environments.
2) Product Overview

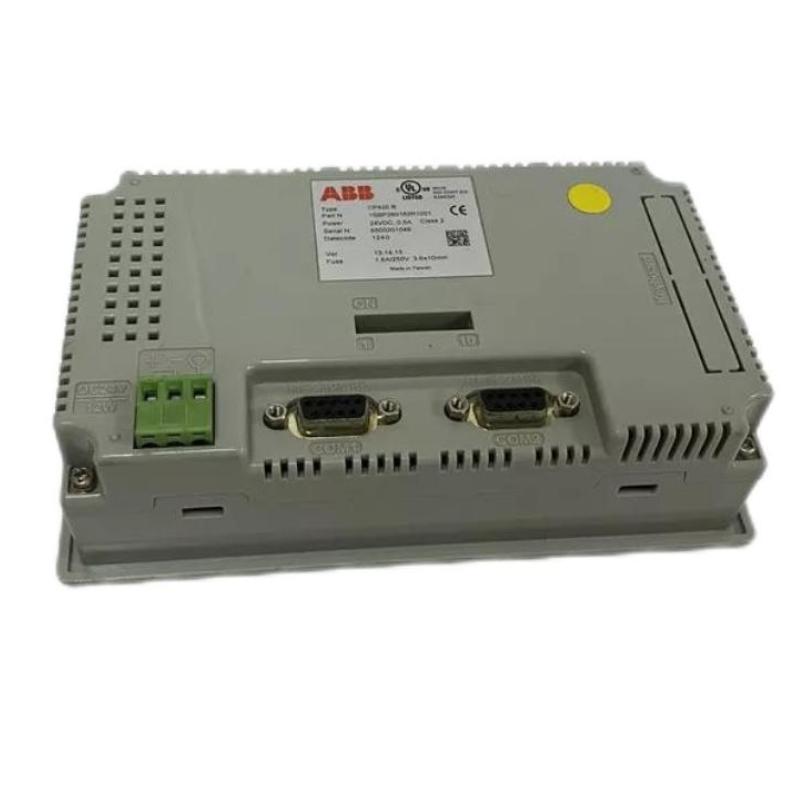

The ABB CP420B (1SBP260182R1001) is a monochrome graphical terminal with enhanced display and keypad capabilities. It allows operators to monitor machine processes, input data, acknowledge alarms, and navigate menus efficiently.
The device combines a robust industrial design with a user-friendly interface, providing reliable operation in industrial conditions such as dust, vibration, and temperature variations. It is ideal for small to medium-sized automation systems, machinery, and production lines.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CP420B (1SBP260182R1001) |
| Product Type | Operator Interface Terminal (Monochrome) |
| Series | CP4xx Control Products |
| Display Type | Monochrome LCD |
| Display Size | Approx. 5.5 in diagonal |
| Resolution | 320 × 160 pixels |
| Keypad | 16-Key Function Keypad + Navigation Keys |
| Backlight | LED Backlight |
| Communication | Serial / Fieldbus Compatible |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 7 W |
| Mounting | Panel Mount |
| Protection Rating | IP65 Front (panel mounted) |
| Operating Temperature | −10 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 10–90 % non‑condensing |
| Dimensions (H × W × D) | 110 × 170 × 42 mm |
| Cut‑out Size | 102 × 162 mm |
| Weight (kg) | 0.38 kg |
| Housing Material | Industrial Grade Plastic |
4) Product Description
The CP420B is a monochrome terminal designed for panel mounting in industrial environments. It provides clear visualization of system status, alarms, and process parameters.
The keypad layout includes dedicated function keys and navigation buttons for menu browsing, data entry, and process control. The LED backlight ensures visibility under different lighting conditions. It supports communication with PLCs and other automation devices, enabling integration into control systems for machine and process management.
5) Key Advantages
-
Larger Display Area – Improved readability over previous models.
-
Extended Keypad Functionality – Navigation and function keys for efficient operation.
-
Robust Construction – Designed for industrial environments with IP65 front protection.
-
LED Backlight – Clear visibility in low-light conditions.
-
Flexible Communication – Compatible with multiple PLC protocols.
-
Energy Efficient – Low power consumption for continuous operation.
-
Compact Size – Fits easily in standard control panels.
-
Cost-Effective Operator Interface – Provides essential monitoring and control without high costs.
6) Typical Applications
-
Operator interface for production machines
-
Alarm acknowledgment and process visualization
-
Parameter entry and setpoint adjustments
-
Machine monitoring for small to medium-sized systems
-
Panel-mounted monitoring stations
-
Simple HMI for automation cells
-
Status display for batch processing
-
Interface for PLC-controlled machinery
7) Five Related Models (CP4xx Series or Related Interfaces)
| Model | Display Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CP410M | Monochrome LCD | 84 × 138 × 35 | 0.25 |
| CP415M | Monochrome LCD | 100 × 160 × 40 | 0.35 |
| CP420M | Monochrome LCD | 100 × 150 × 40 | 0.30 |
| CP430M | Mid-Size Monochrome Terminal | 110 × 160 × 42 | 0.33 |
| CP415C | Compact Color Display | 100 × 160 × 40 | 0.36 |
8) Five Popular ABB Models (Same Brand Industrial Portfolio)
| Model | Product Type | Primary Feature / Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580‑01‑07A6‑4 | Variable Frequency Drive | 7.5 kW | 358 × 152 × 203 | 5.8 |
| ACS880‑01‑022A‑4 | High-Performance Drive | 22 kW | 400 × 220 × 210 | 8.0 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16‑30‑10 | Control Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the purpose of CP420B?
A1: It serves as an operator interface terminal for monitoring, control, and data input in industrial automation systems.
Q2: What type of display does it have?
A2: Monochrome graphical LCD with LED backlight.
Q3: How many keys are available on the keypad?
A3: 16 function keys plus navigation keys.
Q4: What supply voltage is required?
A4: 24 V DC.
Q5: What are the dimensions and weight?
A5: 110 × 170 × 42 mm; 0.38 kg.
Q6: What protection rating does it have?
A6: IP65 front panel protection.
Q7: Can it display alarms and diagnostics?
A7: Yes, it shows system status, alarms, and process messages.
Q8: What is the operating temperature range?
A8: −10 °C to +55 °C.
Q9: Is it compatible with PLCs?
A9: Yes, it supports serial and fieldbus communication with PLCs.
Q10: What advantages does it offer over CP410M?
A10: Larger screen, additional navigation keys, better readability, and enhanced operator interface functionality.
