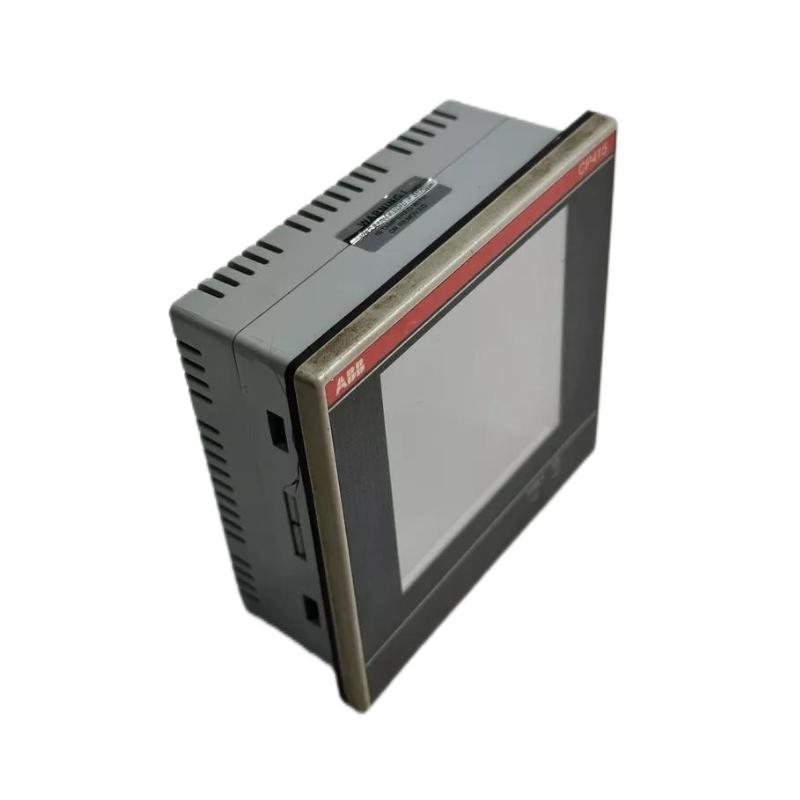

Product Technical Profile – ABB CP415M (1SBP260191R1001)
1) Brand and Series Overview
Brand: ABB
Series: CP4xx Operator Interface Terminals
The CP4xx series consists of compact operator interface terminals designed for machine control, status display, and operator interaction in industrial automation environments. These terminals enable visualization of system status, parameter adjustment, and basic control operations. The CP415M provides an upgraded operator interface with enhanced display and keypad features compared to earlier CP4xx models, maintaining reliability in demanding industrial conditions.
2) Product Overview
The ABB CP415M (1SBP260191R1001) is a monochrome operator panel equipped with a graphical LCD display and a function keypad. It allows operators to monitor processes, acknowledge alarms, enter commands, and navigate system menus.
Its compact and robust design enables mounting in control panels or machine side enclosures. The terminal provides a simple yet effective way to interact with PLC systems, supporting data visualization, diagnostics, and basic control tasks.
The CP415M is suitable for small to medium-sized machines and production lines where a clear operator interface is required without the complexity of full-color HMIs.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CP415M (1SBP260191R1001) |
| Product Type | Operator Interface Terminal (Monochrome) |
| Series | CP4xx Control Products |
| Display Type | Monochrome LCD |
| Display Size | Approx. 5 in diagonal |
| Resolution | 320 × 80 pixels (monochrome) |
| Keypad | 16‑Key Function Keypad |
| Backlight | LED Backlight |
| Communication | Serial/Fieldbus Interface Compatible |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 6 W |
| Mounting | Panel Mount |
| Protection Rating | IP65 Front (panel mounted) |
| Operating Temperature | −10 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 10–90 % non‑condensing |
| Dimensions (H × W × D) | 100 × 160 × 40 mm |
| Cut‑out Size | 92 × 152 mm |
| Weight (kg) | 0.35 kg |
| Housing Material | Industrial Grade Plastic |
4) Product Description
The CP415M is an enhanced monochrome terminal designed for industrial control panels and operator stations. It offers clear display of machine status, alarms, setpoints, and diagnostic messages.
The function keypad allows intuitive menu navigation and data entry, while the LED backlight ensures readability in varying lighting conditions. Its robust construction allows continuous operation in industrial environments with dust, vibration, and temperature variations.
The terminal communicates with PLCs and other control devices via standard serial or fieldbus protocols, enabling integration into existing control systems.
5) Key Advantages
-
Enhanced Display Area – Larger screen than CP410M for better readability.
-
Intuitive Keypad – 16 function keys improve operator navigation and efficiency.
-
Compact and Robust Design – Fits control panels with IP65-rated front protection.
-
LED Backlight – Provides clear visibility in low-light conditions.
-
Low Power Consumption – Efficient energy usage.
-
Flexible Communications – Compatible with multiple PLC protocols.
-
Cost-Effective – Provides essential operator interface functions at reasonable cost.
-
Wide Operating Temperature – Reliable in industrial environments.
6) Typical Applications
-
Operator interface for small to medium machines
-
Status and diagnostic display for production lines
-
Alarm acknowledgment and event notification
-
Parameter entry and setpoint adjustments
-
Batch control interface for industrial processes
-
Simple HMI for automation cells
-
Panel-mounted monitoring stations
-
Compact interface for PLC-controlled machinery
7) Five Related Models (CP4xx Series or Related Interfaces)
| Model | Display Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CP410M | Monochrome Basic Display | 84 × 138 × 35 | 0.25 |
| CP420M | Larger Monochrome LCD | 100 × 150 × 40 | 0.30 |
| CP430M | Mid-Size Monochrome Terminal | 110 × 160 × 42 | 0.33 |
| CP415C | Compact Color Display | 100 × 160 × 40 | 0.36 |
| CP450M | Monochrome with Extended Keys | 120 × 180 × 45 | 0.35 |
8) Five Popular ABB Models (Same Brand Industrial Portfolio)
| Model | Product Type | Primary Feature / Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580‑01‑07A6‑4 | Variable Frequency Drive | 7.5 kW | 358 × 152 × 203 | 5.8 |
| ACS880‑01‑022A‑4 | High-Performance Drive | 22 kW | 400 × 220 × 210 | 8.0 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16‑30‑10 | Control Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the purpose of CP415M?
A1: It serves as a compact operator interface for monitoring, input, and control of PLC-based machines.
Q2: What type of display does it use?
A2: A monochrome graphical LCD with LED backlight.
Q3: How many function keys are available?
A3: 16 keys for operator input and menu navigation.
Q4: What voltage is required?
A4: 24 V DC supply voltage.
Q5: What are its mounting options?
A5: Panel mount using a front panel cut-out.
Q6: What communications are supported?
A6: Serial and fieldbus interfaces compatible with PLCs.
Q7: What is the operating temperature range?
A7: −10 °C to +55 °C.
Q8: What are the dimensions and weight?
A8: 100 × 160 × 40 mm; 0.35 kg.
Q9: Can it display alarms and diagnostics?
A9: Yes, it shows system status, alarms, and diagnostic messages.
Q10: What advantages does it provide over CP410M?
A10: Larger display, more function keys, improved readability, and better ergonomics for operator interaction.
