Product Technical Profile – ABB CP410M (1SBP260181R1001)
1) Brand and Series Overview
Brand: ABB
Series: Control Products – CP4xx Operator Interface Terminals
The CP4xx series includes industrial operator interface terminals used for machine control, status display, and operator interaction in automation systems. These products are designed to provide simple visualization, input capabilities, and basic configuration for PLC‑based controllers. The CP410M is a compact monochrome display terminal offering essential operator interaction functionality in a cost‑effective package.
2) Product Overview

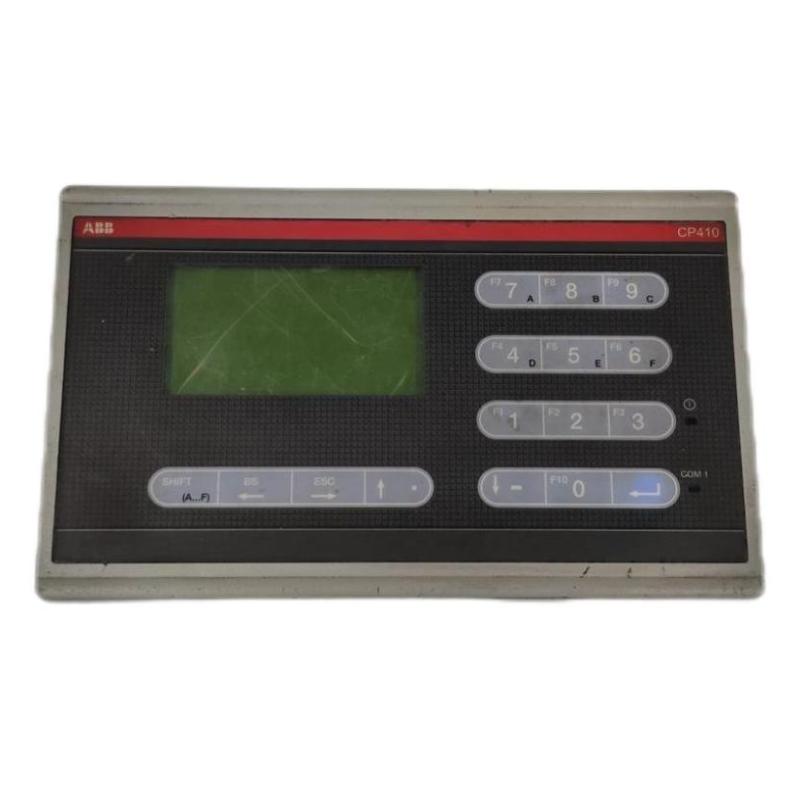

The ABB CP410M (1SBP260181R1001) is an industrial operator panel featuring a monochrome graphical display, keypad input, and seamless integration with PLC control systems. It allows operators to view system status, input commands, acknowledge alarms, and navigate menus for machine operation and monitoring.
The terminal is constructed for industrial usage with a user‑friendly interface that displays textual and simple graphical information, including machine status, setpoints, and diagnostic messages. Its compact size makes it suitable for installation in control cabinets, machine side panels, and operator stations.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CP410M (1SBP260181R1001) |
| Product Type | Operator Interface Terminal (Monochrome) |
| Series | CP4xx Control Products |
| Display Type | Monochrome LCD |
| Display Size | Approx. 4 in diagonal |
| Resolution | 240 × 64 pixels (monochrome) |
| Keypad | 12‑Key Function Keypad |
| Backlight | LED Backlight |
| Communication | Serial/Fieldbus Interface Compatible |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 5 W |
| Mounting | Panel Mount |
| Protection Rating | IP65 Front (panel mounted) |
| Operating Temperature | −10 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Relative Humidity | 10–90 % non‑condensing |
| Dimensions (H × W × D) | 84 × 138 × 35 mm |
| Cut‑out Size | 75 × 129 mm |
| Weight (kg) | 0.25 kg |
| Housing Material | Industrial Grade Plastic |
4) Product Description
The CP410M is a compact operator interface terminal designed to provide essential machine control and status display functions without extensive hardware cost. Typical uses include displaying real‑time status messages, diagnostic information, alarms, and operator prompts.
The monochrome LCD provides clear legibility for text and simple graphics, while the keypad allows operators to navigate menus and make selections. The LED backlight enhances visibility in industrial lighting conditions.
Communications with PLCs or controllers are typically carried out over standard serial or fieldbus connections, enabling the CP410M to display data from a wide range of automation applications.
5) Key Advantages
• Compact Industrial Design – Small form factor suitable for control panel mounting.
• Clear Monochrome Display – Text and simple graphics are easy to read under industrial lighting.
• User‑Friendly Keypad – Intuitive operator input for navigation and control.
• Cost‑Effective Solution – Provides essential interface capabilities at lower cost than full color HMIs.
• LED Backlight – Ensures display visibility in diverse environments.
• Flexible Communications – Integrates with PLCs and controllers using standard protocols.
• Wide Operating Temperature – Designed to cope with typical industrial ambient conditions.
• Low Power Consumption – Efficient operation for control panels.
6) Typical Applications
• Machine operator interface for discrete control systems
• Status display panel for production lines
• Alarm and event notification interface
• SETPOINT and parameter display in process equipment
• Diagnostic status screen for PLC systems
• Compact human‑machine interface for small to medium machines
• Control panel interface in factory automation cells
• Batch control and simple menu navigation display
7) Five Related Models (CP4xx Series or Related Interfaces)
| Model | Display Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CP400M | Monochrome Basic Display | 80 × 120 × 30 | 0.22 |
| CP420M | Larger Monochrome LCD | 100 × 150 × 40 | 0.30 |
| CP450M | Monochrome with Extended Keys | 120 × 180 × 45 | 0.35 |
| CP410C | Compact Color Display | 84 × 138 × 35 | 0.26 |
| CP430C | Mid‑Size Color HMI | 100 × 160 × 45 | 0.34 |
8) Five Popular ABB Models (Same Brand Industrial Portfolio)
| Model | Product Type | Primary Feature / Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580‑01‑07A6‑4 | Variable Frequency Drive | 7.5 kW | 358 × 152 × 203 | 5.8 |
| ACS880‑01‑022A‑4 | High‑Performance Drive | 22 kW | 400 × 220 × 210 | 8.0 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16‑30‑10 | Control Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the CP410M?
A1: It provides a compact operator interface to display information and accept operator input for control systems.
Q2: What type of display does CP410M have?
A2: It has a monochrome LCD with LED backlighting.
Q3: What is the supply voltage?
A3: The module operates on 24 V DC.
Q4: What are common uses for CP410M?
A4: Machine status display, alarm notification, and simple operator control.
Q5: How is the module mounted?
A5: It is panel mounted using a cut‑out and secured from the front.
Q6: What communications does it support?
A6: It supports serial or fieldbus communication compatible with PLCs.
Q7: What is the operating temperature range?
A7: −10 °C to +55 °C.
Q8: What are its dimensions and weight?
A8: 84 × 138 × 35 mm; 0.25 kg.
Q9: Is the display readable in factory environments?
A9: Yes, the LED backlight ensures good visibility under various lighting conditions.
Q10: What advantages does the CP410M offer?
A10: It’s a cost‑effective and compact terminal providing essential interface capabilities for industrial automation.
