Product Overview

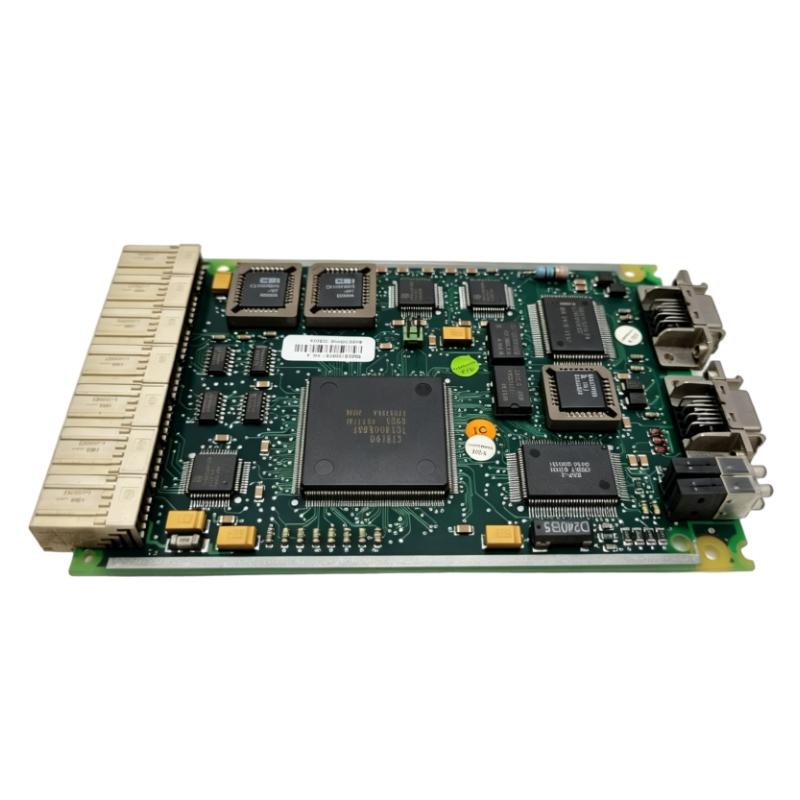

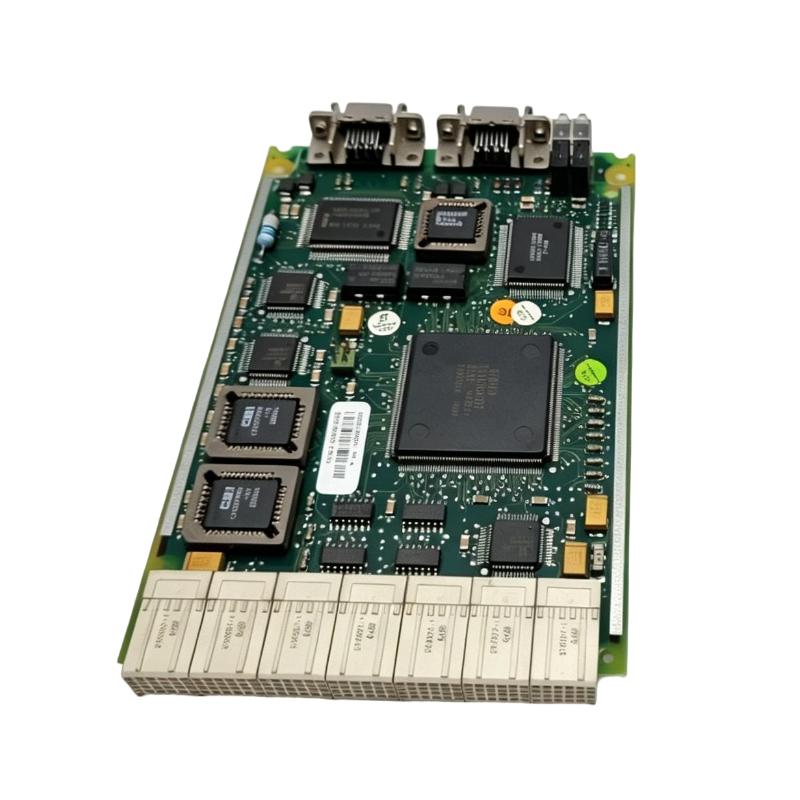

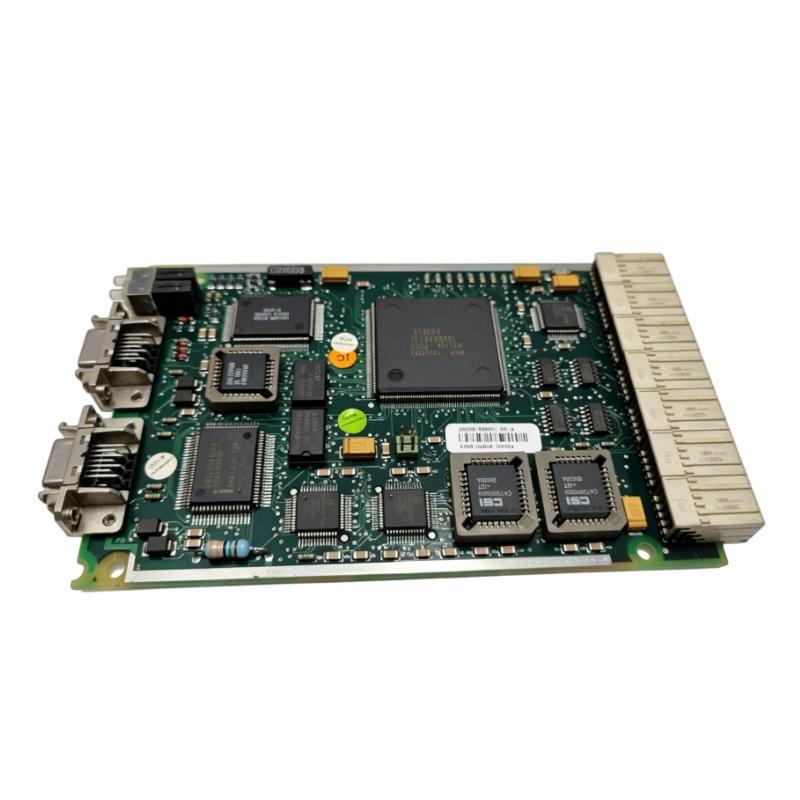

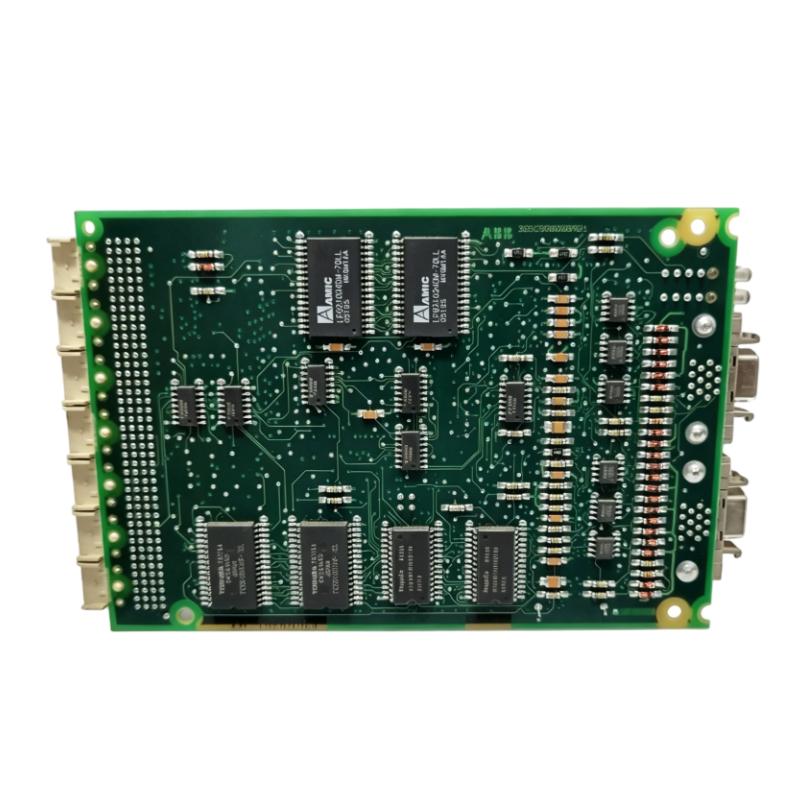

The ABB CI522AK14 3BSE018460R1 Advant Fieldbus 100 Communication Interface Kit is a communication interface assembly used in ABB Advant control-system architectures. It connects the control-system electronics with an Advant Fieldbus 100 communication network, allowing system data to move between the controller level and connected fieldbus equipment.
In a typical installed system, the interface sits between the controller or communication backplane and the fieldbus segment. Process data, status information, diagnostics, and control-related messages can pass through this interface as part of the overall Advant communication architecture.
For maintenance teams working on an existing Advant installation, the CI522AK14 is particularly relevant when communication with a fieldbus-connected section is interrupted. A complete diagnosis should include the interface kit, bus cabling, connectors, network configuration, power supply, and connected communication nodes rather than assuming that a communication failure originates from the interface alone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | ABB CI522AK14 3BSE018460R1 Advant Fieldbus 100 Communication Interface Kit |
| Product Type | Advant Fieldbus 100 Communication Interface Kit |
| Model | CI522AK14 |
| Article Number | 3BSE018460R1 |
| Series | Advant Fieldbus 100 |
| System Role | Fieldbus communication interface |
| Main Function | Interface between control electronics and Advant Fieldbus 100 |
| Application | Industrial control and automation systems |
| Component Type | Communication Interface Kit |
| Dimensions | 148 × 45 × 117 mm |
| Weight | 0.4 kg |
Product Features
- Advant Fieldbus 100 communication interface kit for compatible ABB control-system hardware.
- Connects system electronics with an Advant Fieldbus 100 communication segment.
- Supports data exchange between the controller architecture and connected fieldbus devices.
- Integrates communication functions into the existing Advant system architecture.
- Suitable for maintenance and replacement of communication interface hardware.
- Useful in established ABB control installations where Advant Fieldbus 100 communication remains in service.
Working Principle
The CI522AK14 operates as the communication interface between the control-system electronics and the Advant Fieldbus 100 network. Data received from the fieldbus is passed toward the control-system side, while outgoing system data is transmitted toward the connected fieldbus devices.
In an operating control installation, the interface is only one part of the communication path. The physical bus, connectors, network configuration, connected nodes, and controller-side interface must all function correctly for communication to be maintained.
A practical troubleshooting approach is to determine the scope of the fault first. If several fieldbus devices disappear at the same time, the interface, bus segment, or common connection should be examined. If only one device is affected, the field device and its local connection become more relevant.
Role in an Advant Fieldbus 100 Control Architecture
| System Element | Function |
|---|---|
| Advant Controller | Executes control applications and processes process data |
| CI522AK14 Communication Interface Kit | Provides the interface between the control system and Advant Fieldbus 100 |
| Advant Fieldbus 100 Network | Carries communication data between system components |
| Fieldbus Nodes | Exchange process, status, and diagnostic information with the controller |
| I/O and Interface Modules | Connect control functions with field signals and external equipment |
| Power Supply | Supplies operating power to control and communication hardware |
| Engineering Station | Supports system configuration, monitoring, and diagnostics |
The CI522AK14 occupies the communication boundary between the controller architecture and the Advant Fieldbus 100 network. A fault at this point can affect communication with an entire group of downstream fieldbus devices.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Communication between Advant controllers and distributed fieldbus equipment |
| Industrial Automation | Fieldbus data exchange within installed ABB control systems |
| Distributed I/O Systems | Connecting controller-level hardware with remote fieldbus nodes |
| Production Plants | Maintaining communication with distributed automation equipment |
| Legacy ABB Control Systems | Service replacement for Advant Fieldbus 100 communication hardware |
| Control System Maintenance | Troubleshooting and restoring fieldbus communication |
Installation and Maintenance
- Verify the complete part number and confirm that CI522AK14 3BSE018460R1 matches the existing Advant Fieldbus 100 system configuration.
- Isolate the applicable equipment and follow the established electrical and control-system service procedure before removing the interface kit.
- Document cable and connector positions before disconnecting the existing communication interface.
- Inspect fieldbus connectors for loose connections, contamination, oxidation, or damaged contacts.
- Check the communication cabling for physical damage, poor termination, or other conditions that could interrupt the fieldbus segment.
- Use appropriate ESD precautions when handling the communication interface assembly.
- Verify the interface mounting and seating before restoring system power.
- Check the associated power supply if the communication interface does not initialize after installation.
- Inspect the fieldbus segment when multiple connected nodes become unavailable simultaneously.
- Verify system configuration and confirm that the replacement interface is correctly recognized within the existing Advant control architecture.
- Check communication diagnostics after installation and compare node availability with the expected fieldbus configuration.
- Perform a controlled communication test before returning the system to normal operation, including controller communication, fieldbus node status, and relevant process data exchange.
Compatible System Components
| Component | Function |
|---|---|
| Advant Controller | Provides control processing and manages process applications |
| Advant Fieldbus 100 Network | Provides the communication path between control and fieldbus devices |
| Fieldbus I/O Modules | Exchange process signals with the control system |
| Communication Cables | Carry fieldbus communication signals |
| Fieldbus Connectors | Establish physical connections between communication devices |
| Power Supply Components | Supply operating power to interface and control electronics |
| Engineering Station | Supports configuration, diagnostics, and system maintenance |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB CI522AK14 3BSE018460R1 | Advant Fieldbus 100 Communication Interface Kit | Fieldbus communication within Advant systems |
| ABB Advant Fieldbus 100 Components | Fieldbus Communication Hardware | Distributed control-system communication |
| ABB Advant Controller Modules | Controller Hardware | Process control and application execution |
| ABB Advant I/O Modules | Fieldbus I/O Hardware | Remote process signal acquisition and control |
| ABB Advant Communication Components | Communication Interface Hardware | Controller and network connectivity |
| ABB Advant Fieldbus Accessories | Network Accessories | Physical fieldbus installation and maintenance |
Key Advantages
- Connects compatible ABB control hardware with Advant Fieldbus 100.
- Supports communication with distributed fieldbus devices.
- Fits into the established Advant control-system architecture.
- Helps restore fieldbus communication during service replacement.
- Suitable for maintaining installed Advant automation systems.
Technical FAQs
What is the ABB CI522AK14 3BSE018460R1 used for?
The CI522AK14 is an Advant Fieldbus 100 Communication Interface Kit used to connect compatible ABB control-system hardware with an Advant Fieldbus 100 communication network.
What does it mean if several fieldbus nodes become unavailable at the same time?
When multiple nodes disappear simultaneously, the common communication path should be investigated first. The CI522AK14, fieldbus cabling, connectors, network configuration, and associated power supply are relevant inspection points.
Does replacing the CI522AK14 automatically restore fieldbus communication?
Not necessarily. The replacement interface must be compatible and correctly installed, but communication can also be affected by bus wiring, connectors, configuration, power, or connected fieldbus nodes. These areas should be verified after replacement.
What should be checked before installing a replacement CI522AK14?
Confirm the complete part number and existing system configuration, isolate the relevant equipment, document the communication connections, inspect the fieldbus wiring and connectors, and verify the interface is correctly seated before restoring power and testing communication.
