Product Overview

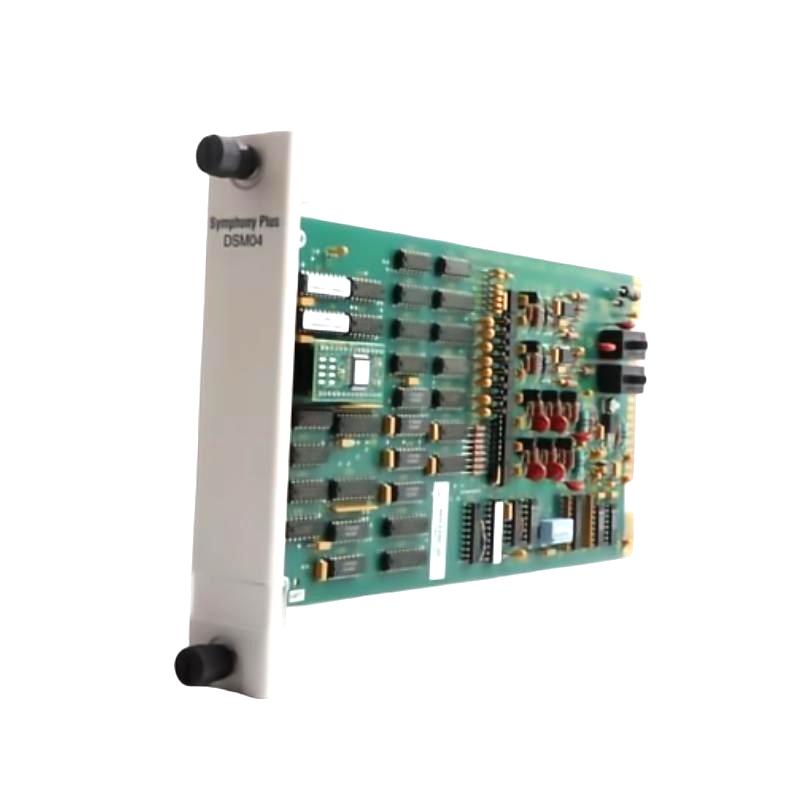

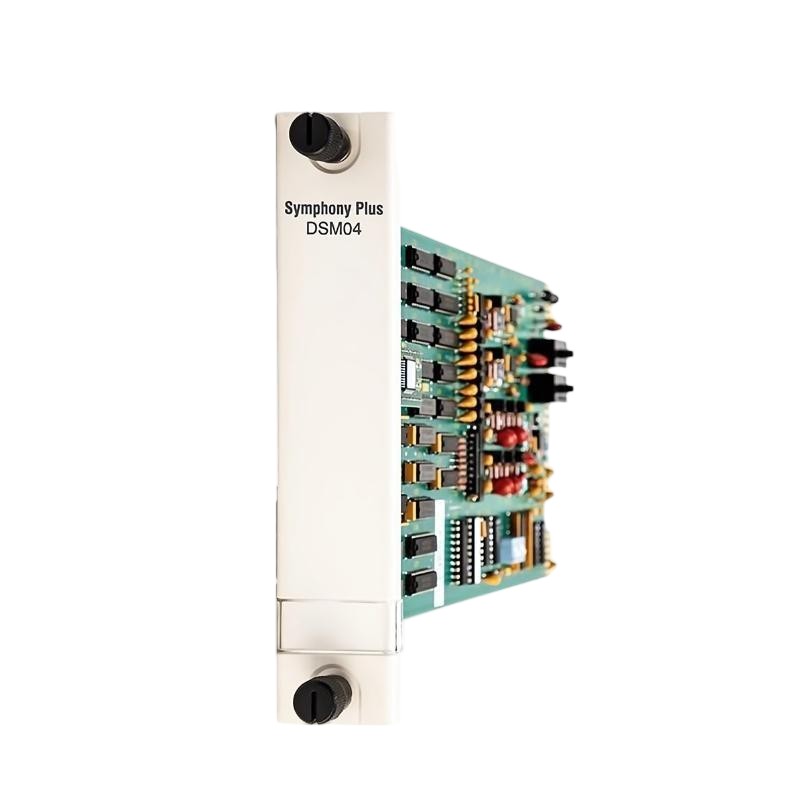

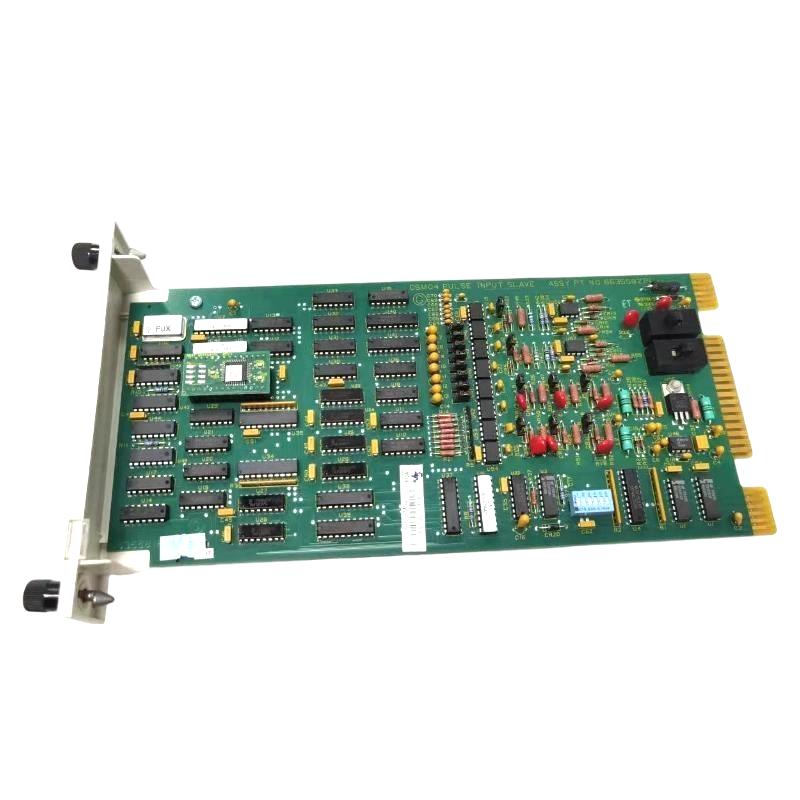

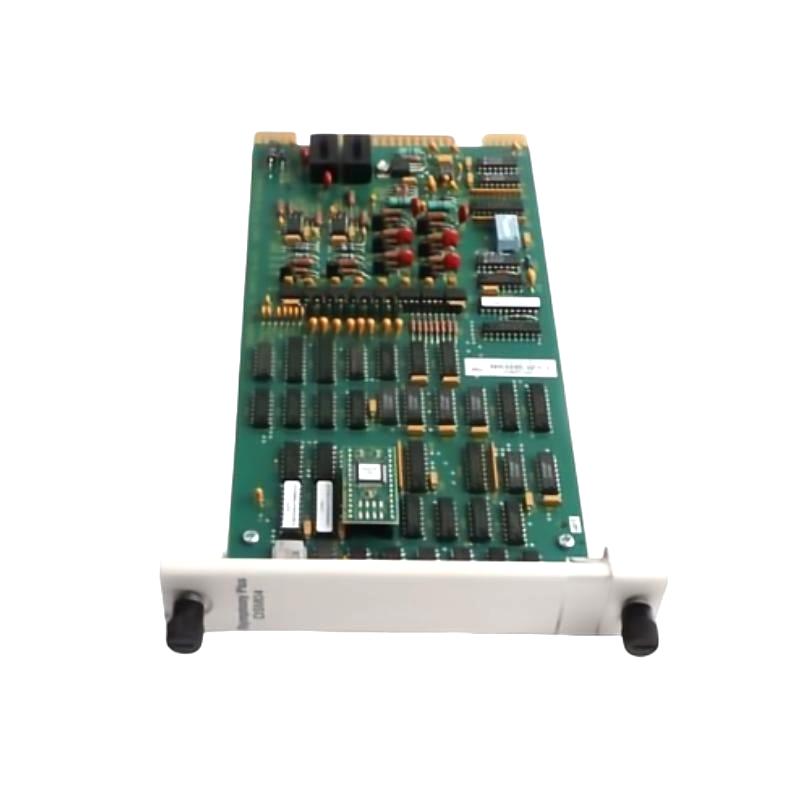

The ABB Bailey SPDSM04 INFI 90 Series 8-Channel Pulse Input Module is a specialized signal acquisition module used within ABB Bailey INFI 90 distributed control system (DCS) architectures. Unlike standard digital input modules that only detect ON/OFF states, the SPDSM04 is designed to process pulse-based signals generated by industrial field devices.
The module provides eight pulse input channels for collecting frequency-related information from field instruments and equipment. It is commonly used for applications where the control system needs to monitor rotating speed, flow measurement pulses, counting signals, or other frequency-based process parameters.
By converting pulse signals from field devices into usable information for the INFI 90 control system, the SPDSM04 enables accurate monitoring of dynamic equipment conditions. It is particularly suitable for industrial environments where pulse measurement is required for process control, equipment monitoring, and operational analysis.
For existing ABB Bailey INFI 90 installations, the SPDSM04 provides an effective solution for maintaining pulse measurement capabilities while preserving the original DCS system architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | SPDSM04 |
| Product Family | INFI 90 Series |
| Product Type | 8-Channel Pulse Input Module |
| Input Type | Pulse Signal Input |
| Number of Channels | 8 Channels |
| Function | Frequency / Pulse Signal Acquisition |
| Application | Distributed Control System / Industrial Automation |
| System Role | Pulse Measurement Interface |
| Dimensions | 71.12 × 358.14 × 271.78 mm |
| Weight | 0.7 kg |
Product Features
The ABB Bailey SPDSM04 provides specialized pulse signal processing capability for INFI 90 control systems.
Key characteristics include:
- ABB Bailey INFI 90 Series pulse input module
- Model SPDSM04
- Provides 8 pulse input channels
- Designed for frequency-based signal acquisition
- Supports rotating equipment speed monitoring
- Suitable for pulse-generating field instruments
- Interfaces field measurement devices with DCS systems
- Supports industrial process monitoring applications
- Suitable for continuous operation in automation environments
- Integrates with ABB Bailey INFI 90 system architecture
- Useful for legacy DCS maintenance and replacement projects
The module is mainly applied where standard digital inputs cannot provide sufficient information and pulse frequency measurement is required.
Working Principle
The ABB Bailey SPDSM04 receives pulse signals generated by connected field devices and converts them into process information that can be used by the INFI 90 control system.
A simplified signal path is:
Pulse Generating Device → SPDSM04 Pulse Input Module → INFI 90 Controller → Control Logic / Operator Interface
During operation, field devices generate electrical pulse signals according to physical changes such as rotation speed, flow rate, or counting events. The SPDSM04 captures these pulse inputs, measures the pulse characteristics, and transfers the processed information to the control system.
Typical pulse measurement applications include:
- Rotating equipment speed detection
- Flow meter pulse acquisition
- Frequency signal monitoring
- Equipment counting applications
- Process parameter calculation
The module enables the DCS to monitor changing process conditions that cannot be represented by simple binary signals.
Role in DCS Control Architecture
The SPDSM04 functions as a pulse signal interface layer within the ABB Bailey INFI 90 control architecture.
A typical structure can be represented as:
Pulse Field Device → SPDSM04 → INFI 90 Controller → Supervisory Control System
Within this architecture:
- Field instruments generate pulse-based signals.
- The SPDSM04 collects and processes pulse information.
- The controller uses the data for monitoring and control calculations.
- Operator systems display equipment status and process values.
Compared with conventional digital input modules, the SPDSM04 provides additional measurement capability by evaluating pulse frequency and signal changes.
Industrial Applications
The ABB Bailey SPDSM04 is suitable for industrial applications requiring pulse signal measurement.
| Application | Typical Use |
|---|---|
| Power Generation | Turbine and auxiliary equipment speed monitoring |
| Oil and Gas | Flow meter pulse acquisition |
| Petrochemical | Rotating equipment monitoring |
| Chemical Industry | Process pulse measurement |
| Manufacturing | Machine counting and speed detection |
| Water Treatment | Flow measurement signal collection |
| Energy Facilities | Equipment frequency monitoring |
| Process Automation | Pulse-based field integration |
The actual application depends on connected field devices and the configured INFI 90 control strategy.
Installation and Maintenance
Proper installation and signal verification are important for reliable pulse measurement performance.
Recommended practices include:
- Confirm the SPDSM04 model before installation.
- Verify module slot position within the INFI 90 system.
- Record pulse input channel assignments.
- Check field pulse source compatibility.
- Inspect signal wiring and terminals.
- Verify pulse frequency range requirements.
- Confirm controller configuration.
- Review system diagnostic information.
- Test each input channel after installation.
- Monitor pulse readings during operation.
When pulse signals are unstable, engineers should check the complete signal chain, including field instrument output, wiring quality, grounding conditions, module configuration, and controller processing parameters.
Related Components
The SPDSM04 operates together with various ABB Bailey INFI 90 system components.
| Component | Function |
|---|---|
| INFI 90 Controller Module | Executes control and calculation logic |
| Pulse Input Module | Collects frequency-based signals |
| Digital Input Module | Monitors ON/OFF field conditions |
| Analog Input Module | Processes continuous process signals |
| Field Pulse Transmitters | Generate pulse signals |
| Communication Modules | Transfer system information |
| Operator Interface | Displays process data |
These components work together to provide complete industrial measurement and control functionality.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB Bailey SPDSM04 | 8-Channel Pulse Input Module | Frequency and pulse measurement |
| ABB Bailey SPDSI22 | Digital Input Module | Discrete field signal acquisition |
| ABB Bailey SPDSI14 | Digital Input Module | Equipment status monitoring |
| ABB Bailey IMDSM05 | Pulse Input Module | Pulse signal processing |
| ABB Bailey IMASI23 | Analog Input Module | Process variable measurement |
| ABB Bailey INFI 90 Series Modules | DCS Hardware | Industrial process control |
Model selection should be based on signal type, measurement requirements, field instrument characteristics, and existing INFI 90 system configuration.
Key Advantages
- ABB Bailey INFI 90 Series pulse input module
- Model SPDSM04
- Provides 8-channel pulse signal acquisition
- Supports frequency-based measurement applications
- Suitable for rotating equipment monitoring
- Enables accurate process signal collection
- Integrates with ABB Bailey DCS architecture
- Supports industrial automation applications
- Suitable for legacy INFI 90 system maintenance
- Provides reliable field measurement interface
Technical FAQs
What type of signals does the ABB Bailey SPDSM04 process?
The SPDSM04 is designed for pulse signals generated by field devices such as speed sensors, flow meters, and frequency-based measurement instruments.
How is the SPDSM04 different from a standard digital input module?
A standard digital input module only detects signal states, while the SPDSM04 can measure pulse-related information such as frequency and event changes.
What applications commonly require an 8-channel pulse input module?
Typical applications include turbine speed monitoring, flow measurement, equipment counting, and rotating machinery condition monitoring.
What should be checked when pulse readings are incorrect?
Engineers should verify field signal sources, wiring connections, pulse frequency settings, channel configuration, grounding conditions, and INFI 90 controller parameters.
