Product Overview

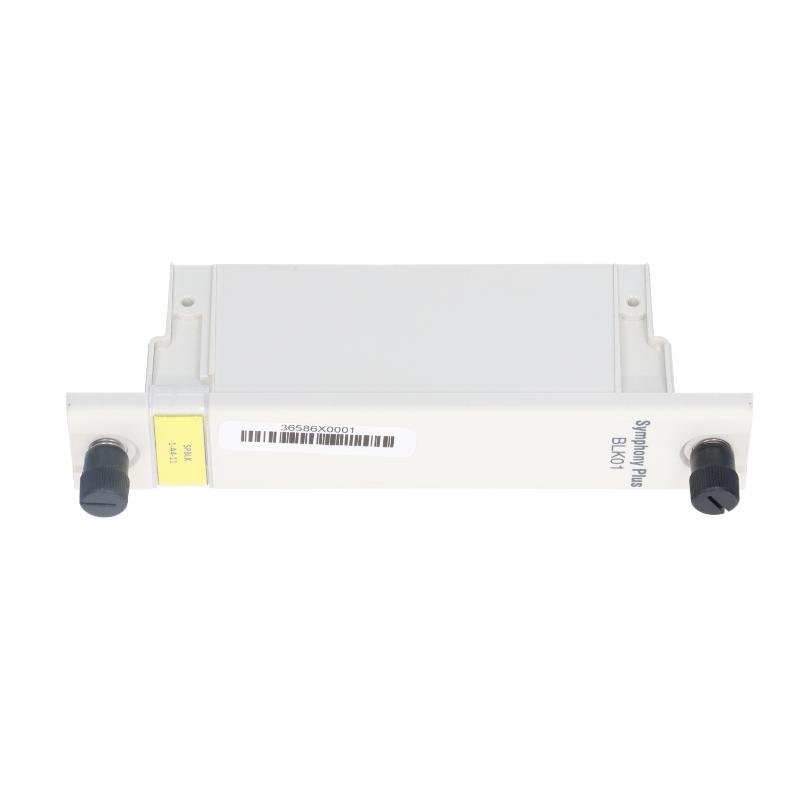

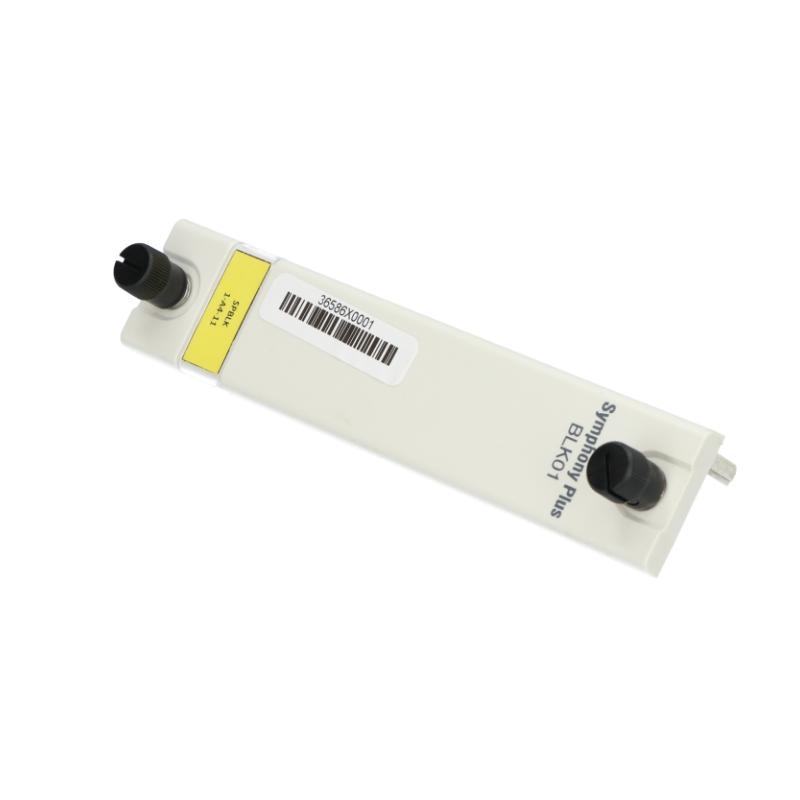

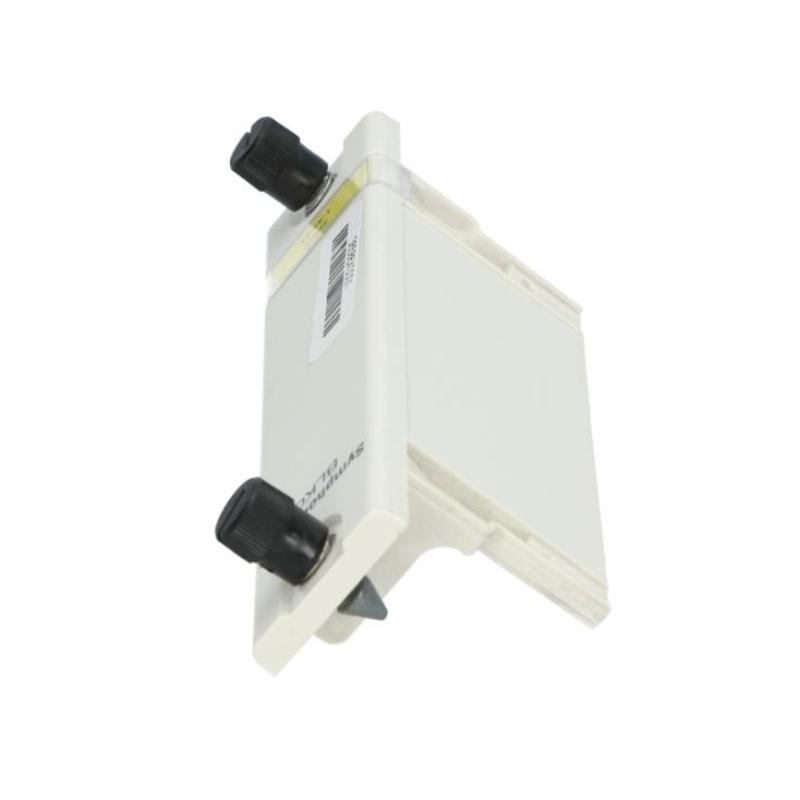

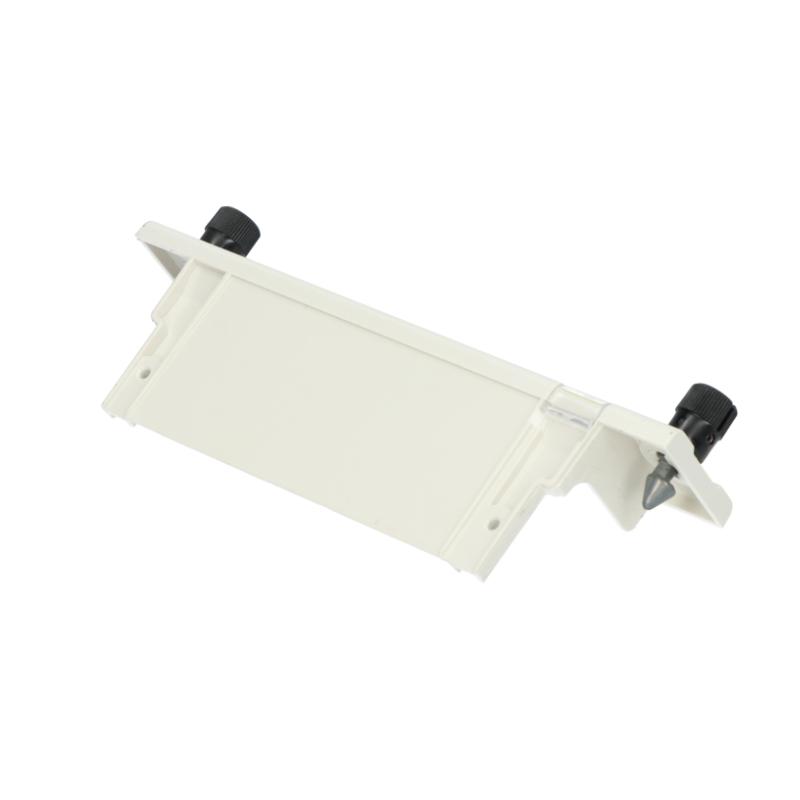

The ABB Bailey SPBLK01 Blank Faceplate is a blanking and panel-cover component used in ABB Bailey industrial control system installations. Unlike an electronic I/O or controller module, the SPBLK01 does not perform signal processing or control functions. Its primary purpose is to close an unused module position or opening within a control-system mounting arrangement.

In a populated control cabinet, unused positions should not simply be left exposed. A blank faceplate helps maintain a consistent panel layout, covers unused openings, and prevents accidental access to an otherwise vacant position.

The SPBLK01 is therefore a mechanical system component rather than an active automation device. It is particularly useful when a Bailey system has unused module positions, spare capacity, or an installation that has been partially expanded or modified.

Technical Specifications

Product Features

The SPBLK01 is focused on mechanical protection and cabinet organization rather than electronic signal processing.

Key features include:

• ABB Bailey blank faceplate
• Designed for unused module positions
• Provides a physical cover for vacant positions
• Helps maintain a consistent control-panel layout
• Suitable for spare or unused system locations
• Useful during phased control-system expansion
• No active signal-processing function
• No PLC programming required for the faceplate itself
• Compact mechanical construction
• Dimensions of 154 × 38 × 25 mm
• Weight of 0.2 kg

A blanking component can be particularly useful in systems where not every available mounting position is populated with an electronic module.

Working Principle

The SPBLK01 does not operate through software, electrical signal conversion, or communication protocols.

Its function is purely mechanical.

Once installed in an unused position, the faceplate covers the opening and maintains the physical integrity of the panel or module arrangement.

A typical installation concept is:

Control Cabinet / Module Assembly → Unused Position → SPBLK01 Blank Faceplate

This makes the SPBLK01 fundamentally different from ABB Bailey I/O modules. There is no analog input, digital output, processor, communication interface, or field signal associated with the faceplate itself.

Its practical value comes from providing a properly finished and protected enclosure when a module position is intentionally left unused.

Role in an ABB Bailey Control System

The SPBLK01 serves as a mechanical space-management component within an ABB Bailey control installation.

It can be used when:

• A system has unused module positions
• Spare capacity is intentionally reserved
• A module has been removed during maintenance
• A control system is being expanded in stages
• A cabinet has positions that are not currently required
• A vacant panel opening needs to be covered

For system integrators, this type of component is useful when maintaining a clean and consistent cabinet arrangement. It also allows spare positions to remain available for future expansion without leaving the mounting area unfinished.

Industrial Applications

The SPBLK01 can be used in industrial control cabinets and Bailey system installations where unused positions need to be covered.

The component is especially useful in long-life automation systems where hardware configuration changes over time.

Installation and Maintenance

Installation is primarily mechanical, but proper fit and panel compatibility should still be verified.

Before installation:

• Confirm the part number SPBLK01.
• Check the intended mounting position.
• Verify the dimensions of the vacant opening.
• Inspect the surrounding mounting hardware.
• Make sure no electrical components are being obstructed.
• Confirm that the faceplate is properly secured.

During maintenance, check that the faceplate remains firmly mounted and has not become damaged or distorted.

If the faceplate is being used after removing an electronic module, the electrical circuits associated with the removed module should already be isolated and properly terminated. The blank faceplate itself should never be considered an electrical isolation device.

Related Components

The SPBLK01 is normally used alongside the mechanical and electronic components that make up an ABB Bailey control installation.

The SPBLK01 should be regarded as a complementary mechanical component rather than a replacement for an electronic module.

Recommended Related Models

For ABB Bailey installations, the most suitable related products depend on whether the requirement concerns analog I/O, digital I/O, system control, or cabinet organization.

For a vacant position, SPBLK01 is appropriate only when no active electronic module is required at that location. If the position is intended for future I/O expansion, the faceplate can maintain the physical arrangement until the appropriate electronic module is installed.

Key Advantages

• Simple mechanical blanking solution
• Suitable for ABB Bailey control-system installations
• Covers unused module positions
• Helps maintain a clean cabinet layout
• Useful for spare system capacity
• Suitable for phased system expansion
• Useful after temporary module removal
• Does not require software configuration
• Lightweight mechanical component
• Dimensions of 154 × 38 × 25 mm
• Weight of 0.2 kg

Technical FAQs

What is the SPBLK01 used for if it has no electronic function?

The SPBLK01 is used to physically cover an unused module or panel position. It maintains the enclosure layout when an electronic module is not installed and allows the position to remain available for future system expansion.

Can the SPBLK01 replace a missing I/O module during system operation?

No. It only covers the physical opening. It does not provide I/O channels, signal conditioning, communication, or control functions. If the control application requires the removed module, the correct electronic replacement must be installed and configured.

Is the SPBLK01 suitable for a position reserved for future expansion?

Yes. This is one of its practical uses. A vacant position can be physically covered while the system remains prepared for a later expansion, provided the underlying mounting and system architecture are suitable for the planned future module.

Does installing the SPBLK01 require PLC or Bailey system configuration?

No. The faceplate itself is a passive mechanical component and does not require PLC programming or I/O configuration. Any configuration associated with an electronic module that has been removed must, however, be handled separately according to the system’s maintenance requirements.
