Product Overview

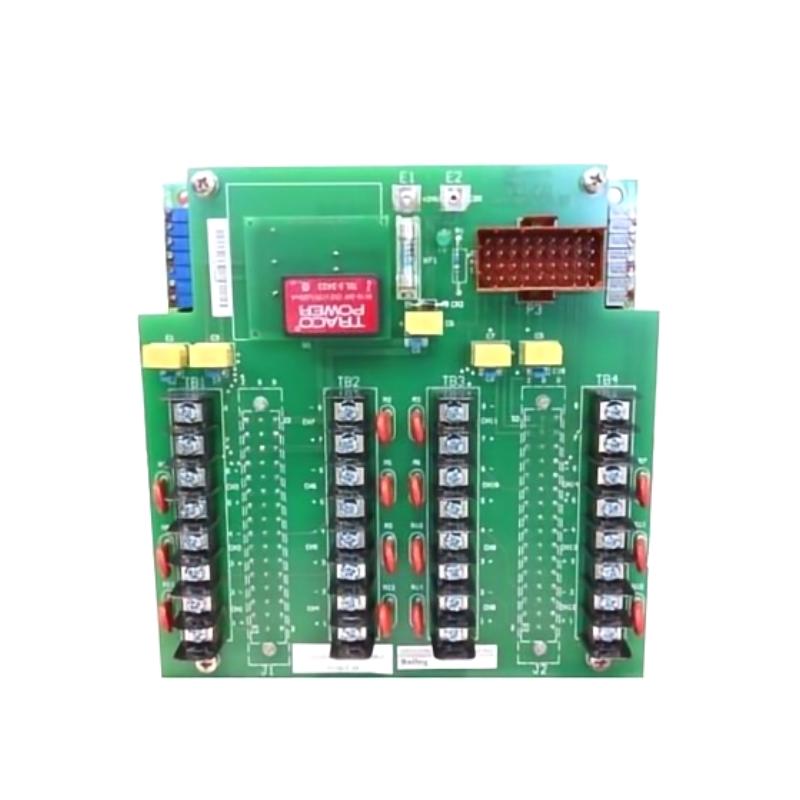

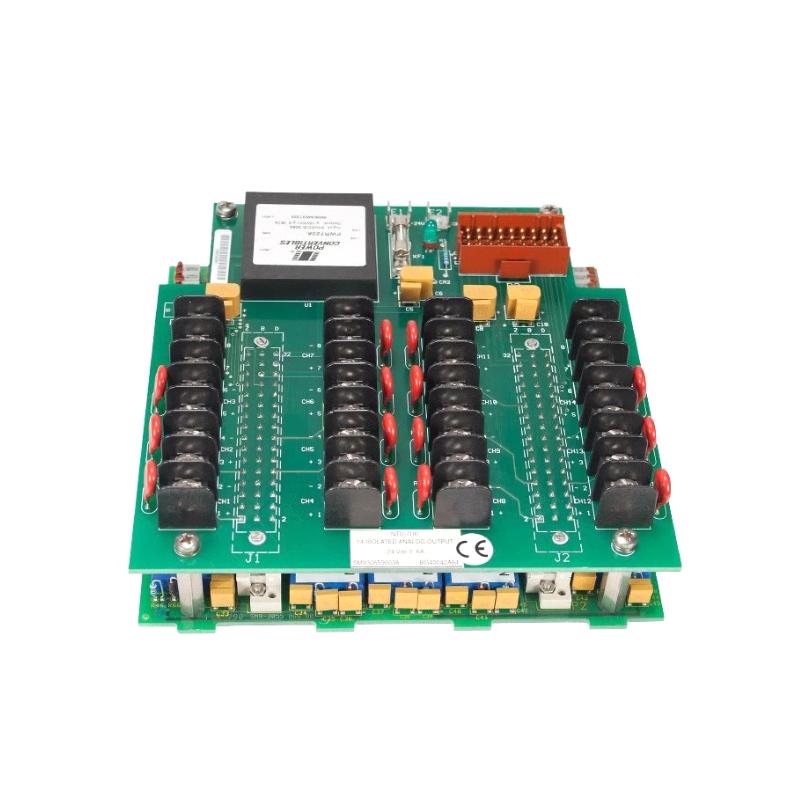

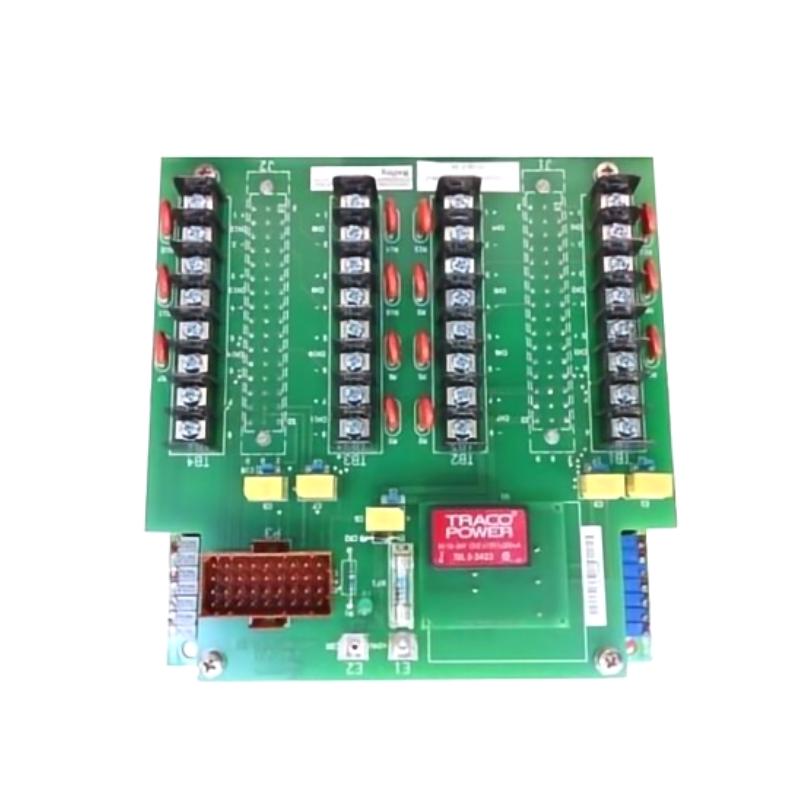

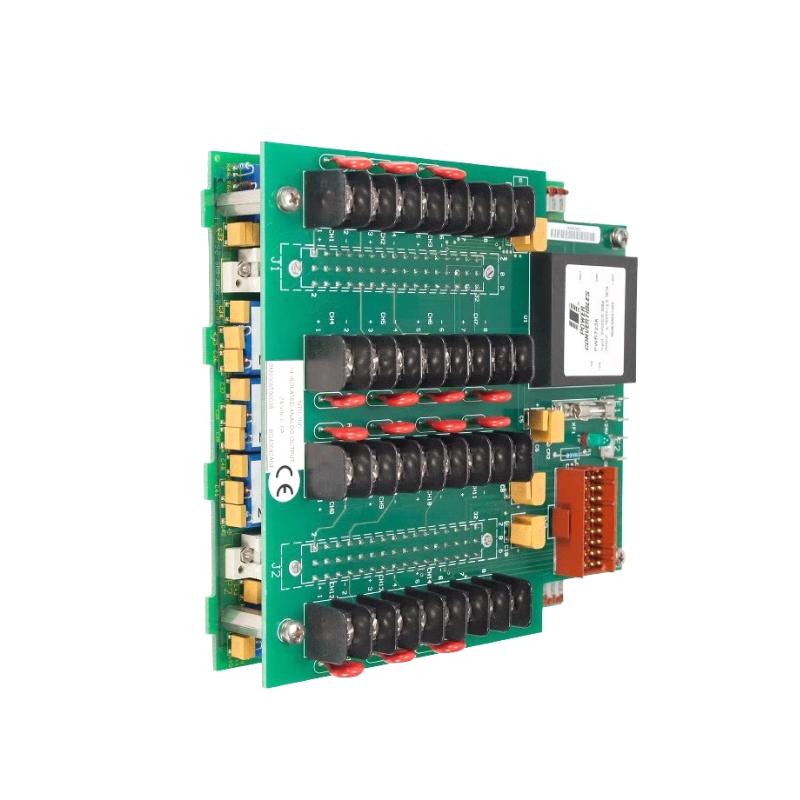

The ABB Bailey NTU-7U0 Digital Input Terminal is a specialized industrial interface component designed to provide field termination and signal interfacing for digital input circuits within compatible ABB Bailey automation and process control systems. It forms part of the field-level connection architecture, providing an organized interface between discrete field devices and the associated digital input electronics.
Digital input signals are fundamental to industrial automation because many process and equipment conditions are represented as discrete states. Motor auxiliary contacts, valve position switches, limit switches, alarm contacts, equipment-ready signals, interlocks, and other ON/OFF devices can all provide information that must be transferred reliably into the control system.
The ABB Bailey NTU-7U0 has listed dimensions of 185 × 40 × 150 mm and a weight of 0.88 kg. Its compact terminal-unit construction allows it to be incorporated into industrial control cabinets while maintaining an organized field wiring arrangement and convenient access for commissioning and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NTU-7U0 |
| Product Type | Digital Input Terminal |
| Product Family | ABB Bailey Industrial Control System |
| Primary Function | Digital field-signal termination and interface |
| Signal Type | Digital Input |
| Interface Role | Field device to digital input system |
| Application | Industrial automation and process control |
| Installation | Compatible ABB Bailey control equipment |
| Dimensions | 185 × 40 × 150 mm |
| Weight | 0.88 kg |
| Typical Applications | Equipment status, alarms, switches, interlocks and process monitoring |
Exact input channel configuration, voltage characteristics, terminal assignments, isolation, and electrical ratings should be verified against the applicable NTU-7U0 hardware revision and host-system documentation.
What Is the ABB Bailey NTU-7U0?
The ABB Bailey NTU-7U0 is a Digital Input Terminal designed to provide a structured connection between discrete field signals and compatible ABB Bailey digital input electronics.
Industrial field devices are often installed far from the main controller. Instead of connecting every field conductor directly to a controller, an organized terminal interface can simplify wiring, maintenance, identification, and troubleshooting.
A simplified signal path is:
Field Device → Field Cable → NTU-7U0 → Digital Input Electronics → Controller → HMI / SCADA
The exact arrangement depends on the ABB Bailey control system in which the NTU-7U0 is installed.
The terminal is therefore an important field-interface component, but it should not be confused with a PLC processor or standalone control module.
Digital Input Signal Architecture
Digital inputs communicate discrete equipment or process states to the control system.
A digital input may represent conditions such as:
- Equipment running
- Equipment stopped
- Valve open
- Valve closed
- Alarm active
- Alarm cleared
- Switch activated
- Switch inactive
- Interlock available
- Equipment fault
- Local/remote selection
The field device generates or changes the electrical state of the circuit. The NTU-7U0 provides the termination interface, while the associated digital input electronics interpret the signal and transfer the resulting state to the control system.
The overall process can be represented as:
Physical Condition → Field Device → NTU-7U0 → Input Electronics → Control Logic
Function and Working Principle
Field Signal Termination
The primary purpose of a digital input terminal is to provide an organized point for field wiring.
Each connected field circuit must be correctly identified and terminated according to the system wiring design.
Signal Interface
Once connected, the field signal passes through the terminal interface toward the associated input electronics.
The input electronics then determine the logical state of the circuit.
Status Acquisition
The controller can use the resulting digital status for monitoring and control purposes.
For example, a motor contactor auxiliary contact may provide feedback indicating whether the commanded motor has actually started.
Alarm Processing
Digital input signals can also be associated with alarms.
When a field contact changes state, the controller may generate an alarm or event depending on the configured control logic.
Interlock Monitoring
Discrete input signals are frequently used for permissive and interlock conditions.
The control system can prevent an operation from occurring unless the required input conditions are satisfied.
Role in ABB Bailey Industrial Control Systems
The NTU-7U0 functions as part of the field-interface layer in an ABB Bailey automation system.
A typical architecture may look like:
Industrial Process
↓
Discrete Field Device
↓
Field Wiring
↓
NTU-7U0 Digital Input Terminal
↓
Digital Input Module
↓
ABB Bailey Controller
↓
Operator Interface / SCADA
This layered arrangement separates field connections from control logic and provides a more structured approach to industrial wiring.
Industrial Applications
Motor and Pump Monitoring
Motors and pumps commonly provide discrete status signals through auxiliary contacts, protection devices, and equipment interlocks.
These signals can be connected through a digital input termination arrangement.
Valve Position Feedback
Valve limit switches can provide open and closed position feedback.
The control system can use this information to verify that a commanded valve movement has been completed.
Equipment Fault Monitoring
Industrial equipment may provide discrete fault outputs indicating overload, trip, emergency-stop, or other abnormal conditions.
The NTU-7U0 can form part of the signal path used to transfer these states into the control system.
Process Alarms
High-level switches, low-level switches, pressure switches, and other discrete process devices can provide alarm information to the controller.
Safety and Interlock Signals
Many industrial systems use discrete signals to confirm permissive conditions before equipment operation.
General Factory Automation
Digital input terminals can also be used for machine status, position switches, operator pushbuttons, equipment feedback, and other discrete automation signals.
Integration with Industrial Automation
The NTU-7U0 normally operates as part of a larger control-system architecture.
| System Component | Typical Function |
|---|---|
| Field Switch | Detects a physical condition |
| Sensor Contact | Provides discrete process status |
| Field Cable | Transfers the signal |
| NTU-7U0 | Terminates the digital input circuit |
| Digital Input Electronics | Interprets input state |
| Controller | Executes programmed logic |
| HMI | Displays equipment status |
| SCADA | Provides supervisory monitoring |
| Historian | Records time-related process information |
The actual equipment connected to the NTU-7U0 depends on the installed ABB Bailey system.
Installation Guidelines
Confirm Product Identification
Before installing or replacing an NTU-7U0, verify:
- Model: NTU-7U0
- Hardware revision
- Existing installation position
- Terminal arrangement
- Field wiring
- Associated input module
- Host-system configuration
A similar-looking terminal unit should not be assumed to have the same electrical interface.
Physical Installation
The listed dimensions are:
185 × 40 × 150 mm
The cabinet should provide sufficient clearance for:
- Terminal access
- Field wiring
- Cable routing
- Inspection
- Maintenance
- Connector access
Field Wiring
Every field conductor should be identified before termination.
Technicians should compare the physical wiring against approved system drawings to avoid incorrect signal assignments.
Grounding and Noise Control
Industrial environments can contain significant electrical interference. Appropriate grounding and cable-routing practices should be followed according to the complete system design.
Digital Input Wiring Considerations
Verify Field Contact Type
Before commissioning, determine how the connected field device changes the digital input state.
Different devices may use different contact arrangements or interface methods.
Check Cable Continuity
If an input does not change state as expected, verify the field cable before assuming that the terminal unit is defective.
Inspect Terminations
Loose or contaminated connections can result in intermittent input behavior.
Separate Signal and Power Wiring
Where practical, digital signal cables should be routed separately from high-current and high-voltage power conductors.
This can reduce the risk of unwanted electrical interference.
Commissioning Procedure
A systematic commissioning process should verify the complete signal path.
Step 1: Verify the NTU-7U0
Confirm that the correct unit is installed and securely mounted.
Step 2: Check Field Wiring
Compare each field connection against the approved wiring documentation.
Step 3: Operate the Field Device
Activate the associated switch, contact, or equipment status under controlled conditions.
Step 4: Observe Input State
Verify that the corresponding digital input changes correctly.
Step 5: Check Controller Status
Confirm that the controller receives the expected state.
Step 6: Verify HMI or SCADA
Where applicable, check that the operator interface displays the correct status.
Step 7: Test Alarms and Interlocks
If the input participates in an alarm or interlock, verify the associated logic during controlled testing.
Troubleshooting the ABB Bailey NTU-7U0
Input Remains OFF
If the digital input remains inactive even though the field device should be active, inspect:
- Field device
- Field cable
- Terminal connections
- Input circuit
- Associated I/O electronics
- Control-system configuration
Start at the field device and trace the signal toward the controller.
Input Remains ON
A permanently active input can be caused by:
- Incorrect wiring
- Unexpected field-device state
- Shorted circuit
- Configuration error
- Input-interface problem
Compare the physical field condition with the controller indication.
Intermittent Input
Intermittent digital signals can result from:
- Loose terminals
- Damaged cable
- Worn field contacts
- Vibration
- Moisture
- Electrical interference
- Input hardware problems
Physical inspection combined with signal monitoring can help locate the source.
Several Inputs Fail at the Same Time
When multiple inputs are affected simultaneously, check common system elements first.
Potential causes include:
- Common power supply
- Input module
- Backplane
- Shared wiring
- System configuration
- Communication architecture
A single terminal-unit fault is not necessarily responsible for multiple simultaneous input failures.
Preventive Maintenance
Regular maintenance can improve long-term signal reliability.
Terminal Inspection
Inspect terminals for:
- Loose connections
- Corrosion
- Contamination
- Mechanical damage
Cable Inspection
Check field cables for:
- Damaged insulation
- Excessive bending
- Moisture ingress
- Mechanical stress
- Loose connections
Field Device Inspection
Digital input faults frequently originate from switches, auxiliary contacts, or other field devices rather than the terminal itself.
The field equipment should therefore be included in preventive maintenance.
Cabinet Maintenance
Keep the cabinet clean and maintain suitable environmental conditions.
Excessive dust, moisture, heat, and vibration can negatively affect electronic and electrical equipment.
Documentation Maintenance
Maintain accurate wiring diagrams and terminal identification records to simplify future troubleshooting.
Replacement and Spare-Part Planning
When replacing an ABB Bailey NTU-7U0, verify the complete model identification and system compatibility.
Important information includes:
- Model: NTU-7U0
- Product Type: Digital Input Terminal
- Hardware revision
- Terminal configuration
- Installation location
- Associated digital input module
- Field wiring
- Host ABB Bailey system
The listed dimensions are:
185 × 40 × 150 mm
The listed weight is:
0.88 kg
These specifications can assist with spare-parts inventory, shipping arrangements, cabinet planning, and maintenance logistics.
Physical similarity alone should not be used to determine electrical compatibility.
Physical Dimensions and Weight
The ABB Bailey NTU-7U0 Digital Input Terminal has listed dimensions of 185 × 40 × 150 mm.
Its listed weight is 0.88 kg.
The compact form factor allows the terminal unit to be incorporated into industrial control cabinets while maintaining space for field wiring and service access.
When planning a replacement, engineers should consider not only the unit dimensions but also the space required for wiring and terminal access.
Compatible System Components
The NTU-7U0 can form part of an industrial automation system containing multiple interconnected components.
| Component | Typical Function |
|---|---|
| Digital Field Switch | Detects equipment or process state |
| Auxiliary Contact | Provides equipment feedback |
| Field Cable | Transfers discrete signal |
| NTU-7U0 | Provides digital input termination |
| Digital Input Module | Processes input state |
| ABB Bailey Controller | Executes control logic |
| HMI | Displays equipment condition |
| SCADA | Provides supervisory monitoring |
| Alarm System | Processes abnormal conditions |
The exact compatible equipment depends on the host ABB Bailey control architecture.
Recommended Related ABB Bailey Components
| Component | General Function | Relationship |
|---|---|---|
| NTU-715 | Digital Input Terminal | Discrete input interface |
| NTRO02 | Digital I/O Terminal Unit | Digital field interface |
| NTRO03 | Digital I/O Terminal Unit | Digital signal termination |
| NTRO04 | Digital I/O Terminal Unit | Digital I/O interface |
| NTST01 | Time Synchronization Termination Unit | System timing interface |
| NTSM01 | Server Module Terminal Unit | System-level interface |
| NTRL03 | Remote Link Terminal | Remote communication interface |
| NKTU Series | Terminal Unit Cable | I/O connectivity |
These components have different purposes and should not be considered direct replacements for the NTU-7U0 without verifying the system configuration.
Engineering Best Practices
Use Correct Terminal Identification
Every field circuit should be clearly identified according to the system drawings.
Verify Signals Before Energization
Field wiring should be checked before the system is placed into normal operation.
Test the Complete Signal Path
A terminal connection alone does not prove that the field device, cable, input electronics, and controller are functioning correctly.
Protect Signal Wiring
Appropriate cable routing and grounding practices can reduce interference in industrial environments.
Maintain Spare-Part Records
Record the model, revision, installation location, associated I/O equipment, and field circuits connected to the terminal unit.
Avoid Unverified Substitution
Another terminal unit with similar dimensions should not be installed without confirming electrical and mechanical compatibility.
Key Advantages
Dedicated Digital Input Interface
The NTU-7U0 provides a structured connection point for discrete field signals.
Organized Field Termination
The terminal-unit arrangement helps simplify field wiring, identification, and maintenance.
Suitable for Process Automation
Digital input signals can be used to monitor equipment status, alarms, interlocks, and process conditions.
Supports Distributed Control Architecture
The NTU-7U0 can form part of the field-interface layer between field devices and ABB Bailey control electronics.
Compact Mechanical Design
With listed dimensions of 185 × 40 × 150 mm, the unit can be integrated into industrial control cabinets with efficient use of available space.
Maintenance-Friendly Identification
The defined NTU-7U0 model provides a clear reference for spare-parts management and replacement activities.
Technical FAQs
What is the ABB Bailey NTU-7U0?
The ABB Bailey NTU-7U0 is a Digital Input Terminal designed to provide field-signal termination and interface functionality within compatible ABB Bailey industrial control systems.
What type of signals does the NTU-7U0 handle?
The unit is associated with digital input signals, which represent discrete equipment or process conditions.
What are typical digital input applications?
Typical applications include motor status, valve position, alarm contacts, limit switches, equipment feedback, permissive signals, and interlocks.
What are the dimensions of the NTU-7U0?
The listed dimensions are 185 × 40 × 150 mm.
What is the weight of the NTU-7U0?
The listed weight is 0.88 kg.
Is the NTU-7U0 a PLC?
No. The NTU-7U0 is a Digital Input Terminal and is intended to provide a field-interface function rather than execute control logic.
Can the NTU-7U0 directly measure analog values?
It is intended for digital input interfacing rather than conventional continuous analog measurement. Analog measurement requires the appropriate analog input hardware.
What causes a digital input to remain OFF?
Possible causes include an open field circuit, incorrect wiring, a failed field contact, loose termination, cable damage, or an issue in the associated input electronics.
What causes a digital input to remain ON?
Potential causes include incorrect wiring, a shorted circuit, an unexpected field-device state, configuration problems, or an input-interface fault.
Can another ABB Bailey terminal replace the NTU-7U0?
A different terminal unit should not be assumed to be interchangeable. The complete model, hardware revision, terminal arrangement, associated I/O module, and host-system requirements should be verified.
How should the NTU-7U0 be maintained?
Maintenance should include inspection of terminal connections, field wiring, associated input electronics, field devices, and cabinet conditions. Accurate wiring documentation should also be maintained.
Conclusion
The ABB Bailey NTU-7U0 Digital Input Terminal is a specialized industrial interface component designed to provide structured termination and connection for discrete field signals within compatible ABB Bailey automation systems. It forms part of the interface between field devices and digital input electronics, allowing equipment status, alarms, interlocks, switch positions, and other discrete process conditions to become available to the control system.
Reliable digital input operation depends on the entire signal path, including the field device, wiring, terminal connections, input electronics, controller configuration, and operator interface. Correct installation, careful commissioning, preventive maintenance, and systematic troubleshooting are therefore essential.
With listed dimensions of 185 × 40 × 150 mm and a weight of 0.88 kg, the NTU-7U0 provides a compact solution for industrial cabinet integration. For replacement work, the complete ABB Bailey NTU-7U0 identification should be verified together with its hardware revision, terminal arrangement, associated I/O equipment, and host-system configuration.
When correctly integrated into its intended ABB Bailey architecture, the NTU-7U0 Digital Input Terminal provides a practical and maintainable interface for reliable discrete signal acquisition in industrial automation and process-control applications.
