Product Overview

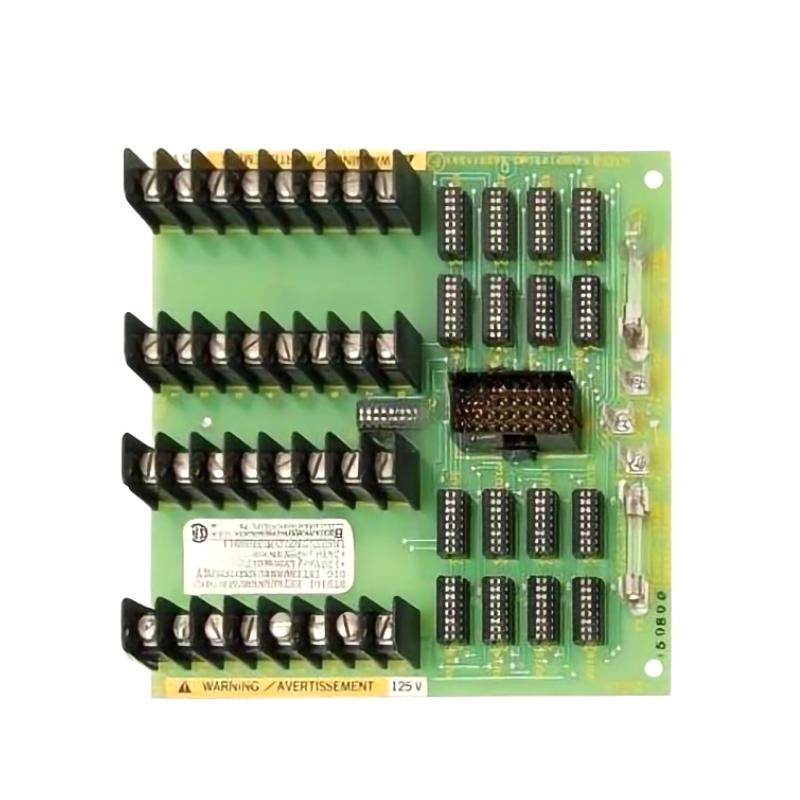

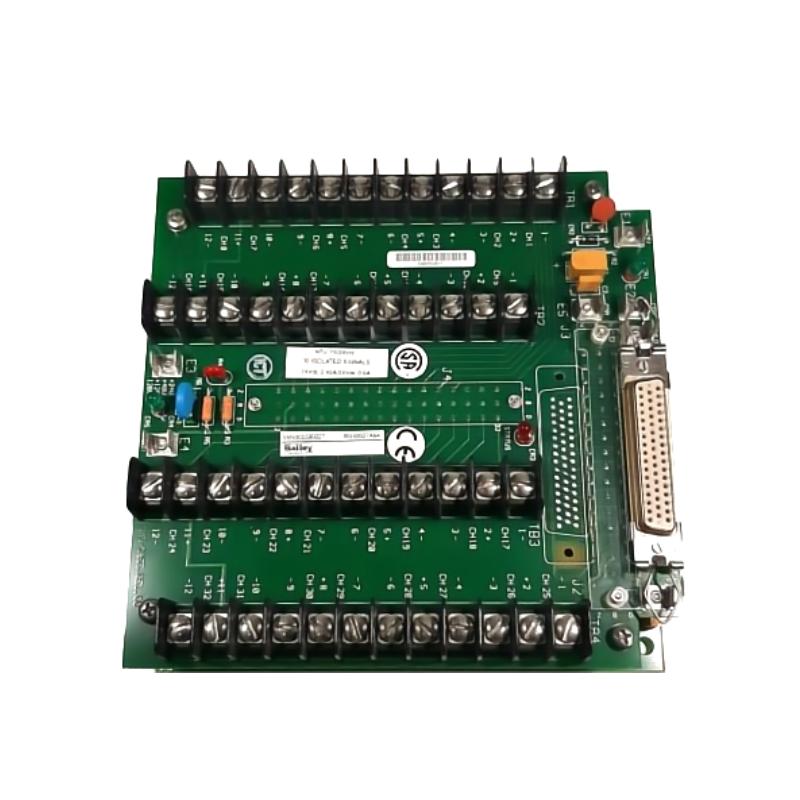

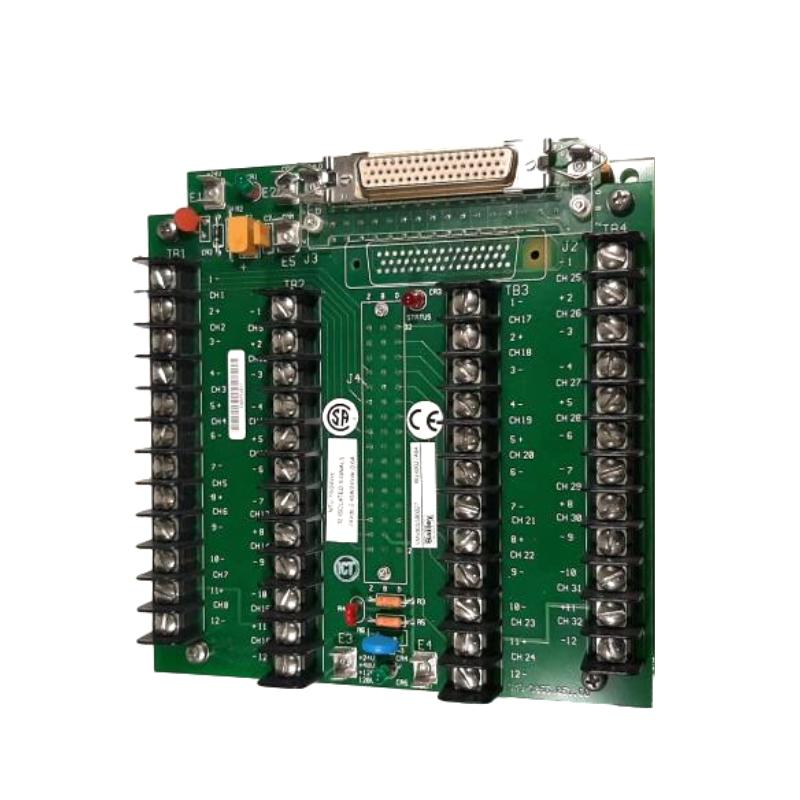

The ABB Bailey NTU-715 SM9-3055.051.00 Digital Input Terminal is a specialized industrial interface component designed to provide digital field-signal termination and connection within compatible ABB Bailey automation and process control systems. As part of a distributed control architecture, the terminal provides an organized connection point between external field devices and the associated digital input circuitry.

Digital input terminals are important in industrial automation because many field devices provide discrete status information rather than continuously variable signals. Equipment such as limit switches, auxiliary contacts, valve position switches, motor status contacts, alarms, interlocks, and other ON/OFF devices can provide information that must be transferred reliably to the control system.

The ABB Bailey NTU-715 SM9-3055.051.00 has listed dimensions of 185 × 40 × 150 mm and a weight of 0.82 kg. Its compact industrial construction allows it to be incorporated into control cabinets and distributed field-interface arrangements while providing an accessible termination point for digital signals.

---

Technical Specifications

Parameter	Specification
Manufacturer	ABB Bailey
Model	NTU-715
Part Number	SM9-3055.051.00
Product Type	Digital Input Terminal
Product Family	ABB Bailey Industrial Control System
Primary Function	Digital field-signal termination and interface
Signal Type	Digital Input
Application	Industrial automation and process control
Interface Role	Field device to control-system signal interface
Installation	Compatible ABB Bailey control equipment
Dimensions	185 × 40 × 150 mm
Weight	0.82 kg
Typical Applications	Process monitoring, equipment status, alarms, interlocks and discrete signal acquisition

Exact channel capacity, input voltage range, terminal assignments, electrical isolation characteristics, and compatibility should be confirmed against the applicable NTU-715 hardware revision and host-system documentation.

---

What Is the ABB Bailey NTU-715?

The ABB Bailey NTU-715 SM9-3055.051.00 is a Digital Input Terminal used to organize and terminate discrete field signals within a compatible industrial control system.

In a typical automation installation, field devices are distributed throughout the plant while controllers and I/O electronics are located inside control cabinets. A terminal interface provides a structured connection between these two areas.

A simplified signal path can be represented as:

Field Device → Field Wiring → NTU-715 → Digital Input Electronics → Controller → HMI / SCADA

The exact architecture depends on the ABB Bailey control platform and the associated I/O equipment.

The NTU-715 should therefore be regarded as an interface and termination component rather than a standalone programmable controller.

---

Digital Input Signal Principle

A digital input represents a discrete state.

Unlike analog signals that can continuously vary across a measurement range, digital signals generally communicate whether a field condition is in one state or another.

Typical examples include:

• Motor running / stopped
• Valve open / closed
• Pump available / unavailable
• Circuit breaker open / closed
• Switch activated / inactive
• Equipment fault / normal
• Alarm active / clear
• Interlock satisfied / not satisfied

The NTU-715 provides a physical termination interface through which these field signals can be organized and connected to compatible digital input circuitry.

---

Function and Working Principle

Field Signal Termination

External field devices are connected to the control system through field wiring. The NTU-715 provides a structured termination point for these connections.

Correct termination is important because an incorrectly connected discrete signal can cause the controller to interpret equipment status incorrectly.

Signal Transfer

After termination, the digital signal is transferred toward the associated input circuitry.

The receiving I/O system determines the state of the signal and makes the corresponding status available to the controller.

Status Monitoring

The control processor can use digital input information to monitor equipment conditions continuously.

For example, a motor auxiliary contact may indicate whether a motor contactor has actually operated. The controller can compare this feedback with its command state and identify abnormal operating conditions.

Alarm and Interlock Processing

Digital inputs are also commonly used for alarms and interlocks.

A field contact can indicate an unsafe or abnormal condition, allowing the control logic to initiate an appropriate response according to the configured application.

---

Role in ABB Bailey Industrial Automation

The NTU-715 forms part of the field-interface layer of an industrial control architecture.

A typical control chain can be represented as:

Process Equipment

↓

Discrete Field Device

↓

Field Wiring

↓

NTU-715 Digital Input Terminal

↓

Compatible I/O System

↓

ABB Bailey Controller

↓

HMI / Operator Station / SCADA

This architecture separates field wiring from control logic while providing a structured interface for discrete signals.

---

Industrial Applications

Motor Status Monitoring

Industrial motors often provide discrete feedback signals indicating running status, overload conditions, contactor state, or equipment availability.

Digital input terminals provide an organized connection point for these signals.

Pump Systems

Pump stations can use discrete inputs for:

• Pump running status
• Local/remote status
• Fault indication
• Low-level interlocks
• Auxiliary contacts
• Equipment availability

Valve Position Monitoring

Limit switches and position contacts can indicate whether a valve has reached an expected position.

The controller can then compare actual valve status with the commanded state.

Conveyor Systems

Conveyor equipment may use digital signals for:

• Motor status
• Emergency-stop feedback
• Belt alignment switches
• Guard switches
• Equipment fault signals

Process Alarms

Discrete field contacts can be used to communicate alarm conditions to the control system.

Examples include high-level switches, equipment trips, cabinet alarms, and auxiliary protection contacts.

Industrial Interlocks

Interlock signals are often used to prevent equipment from operating unless predefined conditions are satisfied.

A digital input interface can provide these discrete conditions to the control logic.

---

Integration with Control Systems

The NTU-715 should normally be integrated with the specific ABB Bailey I/O architecture for which it was designed.

A practical system may contain:

System Layer	Typical Function
Field Device	Generates discrete status signal
Field Cable	Transfers field signal
NTU-715	Terminates digital input wiring
I/O Electronics	Processes digital input state
Controller	Executes control logic
HMI	Displays equipment status
SCADA	Provides supervisory monitoring
Historian	Stores operational information

The exact associated modules should be confirmed from the installed system documentation.

---

Installation Guidelines

Verify the Product Identification

Before installation or replacement, confirm:

• Model: NTU-715
• Part number: SM9-3055.051.00
• Hardware revision
• Existing installation location
• Terminal arrangement
• Associated I/O module
• Field wiring configuration
• Host ABB Bailey system

The full identification should be checked rather than selecting a replacement solely based on physical appearance.

Physical Installation

The listed dimensions of the NTU-715 are:

185 × 40 × 150 mm

Cabinet planning should provide enough space for the unit itself as well as:

• Field wiring
• Terminal access
• Cable routing
• Connector clearance
• Inspection
• Maintenance

Field Wiring

Field wires should be correctly identified before connection.

Each conductor should be checked against the approved wiring documentation to avoid accidental cross-connection between unrelated signals.

Grounding

The grounding arrangement should follow the requirements of the complete ABB Bailey control system.

Improper grounding can contribute to unwanted electrical noise and unreliable digital signal behavior.

---

Digital Input Wiring Considerations

Digital input reliability depends on more than the terminal unit itself.

Important factors include:

Correct Signal Polarity

Where the associated input circuit is polarity-sensitive, the field wiring must be connected correctly.

Cable Identification

Every field conductor should be clearly identified. This is particularly important in systems containing many similar discrete signals.

Contact Quality

Mechanical contacts can develop oxidation, contamination, or wear. A poor field contact may create intermittent digital input behavior.

Cable Condition

Damaged insulation, loose terminals, moisture ingress, and excessive mechanical stress can affect signal reliability.

Electrical Separation

Field signal cables should be routed appropriately relative to high-power conductors and switching equipment.

---

Commissioning Procedure

After installation, the complete digital input path should be verified.

Step 1: Confirm Hardware

Verify that the NTU-715 is correctly installed and that all associated connections are secure.

Step 2: Verify Field Wiring

Compare each field connection with the approved wiring diagram.

Step 3: Test the Field Device

Operate the associated switch, contact, or field device under controlled conditions.

Step 4: Check the Input State

Confirm that the corresponding input changes state correctly in the control system.

Step 5: Verify HMI Indication

Where an HMI or SCADA interface is available, confirm that the displayed equipment status corresponds with the actual field condition.

Step 6: Test Alarms and Interlocks

If the input participates in an alarm or interlock, verify the configured logic under controlled commissioning conditions.

---

Troubleshooting the NTU-715 Digital Input Terminal

Digital input faults should be diagnosed from the field device toward the controller.

Digital Input Always OFF

Possible causes include:

• Open field circuit
• Incorrect wiring
• Failed field contact
• Loose terminal
• Cable damage
• I/O interface problem
• Configuration issue

Begin by checking the field device and wiring before replacing the terminal unit.

Digital Input Always ON

Possible causes may include:

• Shorted field wiring
• Incorrect contact state
• Wiring error
• Incorrect input configuration
• Fault elsewhere in the input circuit

The actual field state should be compared with the status shown by the control system.

Intermittent Digital Signal

Intermittent operation can result from:

• Loose wiring
• Vibration
• Worn contacts
• Cable damage
• Corroded terminals
• Electrical interference
• Intermittent I/O hardware

Monitoring the input while operating the associated field device can help isolate the source.

Multiple Inputs Affected

If several digital inputs fail simultaneously, investigate common system components such as:

• Shared power supply
• Common wiring
• I/O interface
• Backplane
• Communication path
• System configuration

Replacing the NTU-715 immediately may not resolve a problem affecting multiple independent signals.

---

Preventive Maintenance

Regular inspection helps maintain reliable digital signal acquisition.

Inspect Terminals

Check for loose connections, corrosion, contamination, or mechanical damage.

Inspect Field Cables

Look for:

• Damaged insulation
• Loose conductors
• Moisture ingress
• Excessive bending
• Mechanical stress

Check Signal Trends

Although digital signals have discrete states, historical status changes can still provide useful information about equipment behavior.

Unexpected switching frequency or repeated alarms may indicate a field-device problem.

Maintain Cabinet Conditions

Keep the control cabinet clean and protect the equipment from excessive dust, moisture, temperature, and vibration.

Maintain Wiring Documentation

Updated wiring diagrams make troubleshooting and future replacement significantly easier.

---

Replacement and Spare-Part Planning

When sourcing a replacement for the ABB Bailey NTU-715, the complete identification should be verified:

Model: NTU-715
Part Number: SM9-3055.051.00
Product Type: Digital Input Terminal

The listed physical dimensions are:

185 × 40 × 150 mm

The listed weight is:

0.82 kg

These specifications are useful for inventory planning, shipping, cabinet-layout preparation, and maintenance logistics.

However, mechanical similarity does not establish electrical compatibility. The replacement should be checked against the original unit’s revision, terminal arrangement, associated I/O hardware, and host-system configuration.

---

Physical Dimensions and Weight

The ABB Bailey NTU-715 has listed dimensions of 185 × 40 × 150 mm.

Its listed weight is 0.82 kg.

The relatively compact dimensions allow the terminal to be incorporated into industrial control cabinets while leaving sufficient space for associated field wiring and maintenance access.

When planning installation, engineers should consider both the physical dimensions and the additional clearance required for cable bending and terminal access.

---

Compatible System Components

The NTU-715 can operate as part of a larger industrial control architecture containing multiple layers of equipment.

Component	Typical Function
Digital Field Device	Provides ON/OFF status
Field Wiring	Transfers discrete signals
NTU-715	Terminates digital input wiring
Digital Input Module	Processes discrete input states
Controller	Executes control logic
Communication Interface	Transfers control-system information
HMI	Displays equipment status
SCADA System	Provides supervisory monitoring

The actual compatible components depend on the specific ABB Bailey system configuration.

---

Recommended Related ABB Bailey Components

Component	General Function	Relationship to NTU-715
NTRO02	Digital I/O Terminal Unit	Digital field interface
NTRO03	Digital I/O Terminal Unit	Digital signal termination
NTRO04	Digital I/O Terminal Unit	Digital I/O interface
NTRL03	Remote Link Terminal	Remote-system communication
NTSM01	Server Module Terminal Unit	System-level interface
NMMU01	Modular Mount Unit Chassis Rack	Mechanical mounting
NKTU Series	Terminal Unit Cables	I/O connection
NKLS Series	Loop Connector Cables	Loop-level connectivity

These components perform different functions and should not be assumed to be direct substitutes for the NTU-715 SM9-3055.051.00.

---

Engineering Best Practices

Use Approved Wiring Documentation

Digital input systems can contain a large number of similar field signals. Accurate documentation minimizes wiring errors.

Label Every Field Circuit

Clear labels simplify commissioning and troubleshooting.

Separate Signal and Power Wiring

Where practical, keep low-level control and signal wiring appropriately separated from high-power conductors.

Test the Complete Signal Chain

A successful terminal connection does not necessarily mean that the entire input circuit is operating correctly. Test from the field device through the control-system display.

Keep Spare Identification Records

Record the exact model, part number, revision, installation position, and associated I/O hardware for future replacement work.

Avoid Unverified Substitutions

A terminal with similar dimensions or a similar product name may have a different electrical interface. Compatibility should always be confirmed before installation.

---

Key Advantages

Dedicated Digital Input Interface

The NTU-715 provides a structured termination point for discrete field signals.

Organized Field Wiring

A dedicated terminal interface helps simplify field-cable organization and maintenance.

Suitable for Distributed Automation

The unit can form part of an industrial architecture connecting field devices with control-system I/O.

Supports Equipment Status Monitoring

Digital signals can provide real-time information about switches, equipment states, alarms, and interlocks.

Compact Construction

With listed dimensions of 185 × 40 × 150 mm, the NTU-715 is suitable for applications where control cabinet space must be managed efficiently.

Industrial Maintenance Compatibility

Its defined model and part-number identification support structured spare-parts management and replacement procedures.

---

Technical FAQs

What is the ABB Bailey NTU-715?

The ABB Bailey NTU-715 is a Digital Input Terminal designed to provide field-signal termination and interface functionality within compatible ABB Bailey industrial control systems.

What is the part number of the NTU-715?

The listed part number is SM9-3055.051.00.

What type of signal does the NTU-715 handle?

The NTU-715 is associated with digital input signals, which represent discrete equipment or process states.

What are typical digital input applications?

Digital inputs can be used for motor status, valve position, alarms, limit switches, equipment feedback, interlocks, and other ON/OFF field conditions.

What are the dimensions of the NTU-715?

The listed dimensions are 185 × 40 × 150 mm.

How much does the NTU-715 weigh?

The listed weight is 0.82 kg.

Is the NTU-715 a PLC?

No. The NTU-715 is a Digital Input Terminal and is intended to provide a field-interface function rather than execute general-purpose PLC logic.

Can the NTU-715 directly control a motor?

No. A digital input terminal receives or terminates status signals. Motor control requires the appropriate control logic, output hardware, contactors, drives, and protection equipment.

What causes a digital input to remain OFF?

Possible causes include an open field circuit, incorrect wiring, a defective field contact, loose termination, cable damage, or an issue in the associated input electronics.

What causes an input to remain ON?

Possible causes include a short circuit, incorrect wiring, an unexpected field-device state, configuration problems, or a fault elsewhere in the input circuit.

How should the NTU-715 be replaced?

Confirm the NTU-715, SM9-3055.051.00, hardware revision, terminal arrangement, associated I/O hardware, and host ABB Bailey system before installing a replacement.

---

Conclusion

The ABB Bailey NTU-715 SM9-3055.051.00 Digital Input Terminal is a specialized industrial interface component designed to organize and terminate discrete field signals within compatible ABB Bailey control architectures. By providing a structured connection between field devices and digital input electronics, it supports the acquisition of equipment status, alarms, interlocks, switch positions, and other discrete process information.

The NTU-715 can form an important part of the field-interface layer in distributed automation systems. Proper installation, accurate wiring, appropriate cable management, and systematic commissioning are essential for dependable digital signal acquisition.

With listed dimensions of 185 × 40 × 150 mm and a weight of 0.82 kg, the unit provides a compact solution for industrial control-system integration. For replacement and maintenance, engineers should verify the complete NTU-715 SM9-3055.051.00 identification together with the hardware revision, terminal configuration, associated I/O equipment, and host-system requirements.

When correctly integrated into its intended ABB Bailey architecture, the NTU-715 Digital Input Terminal can provide a structured and maintainable interface between industrial field devices and the control system.
