Product Overview

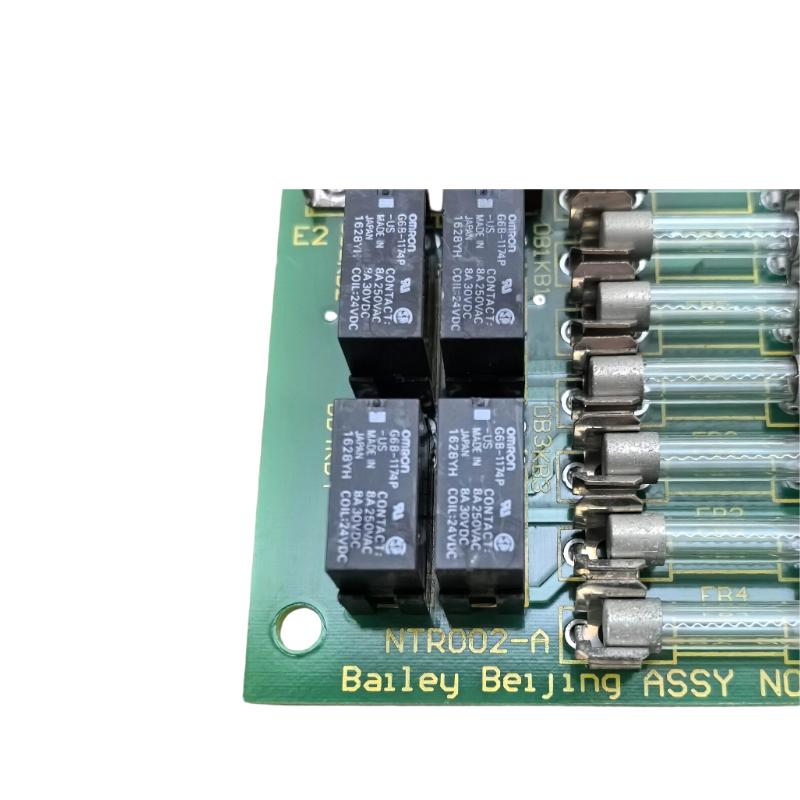

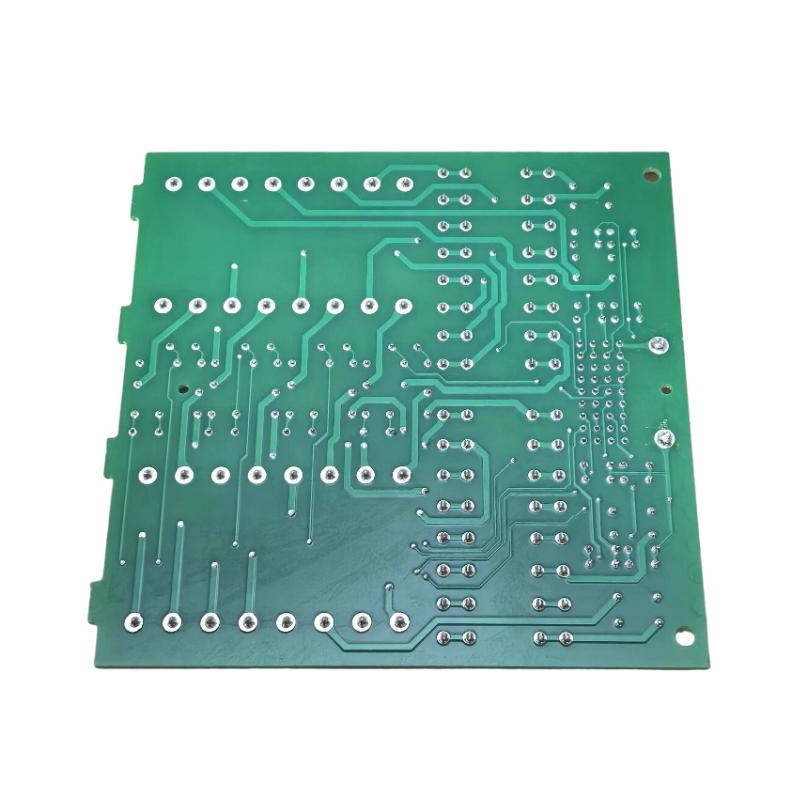

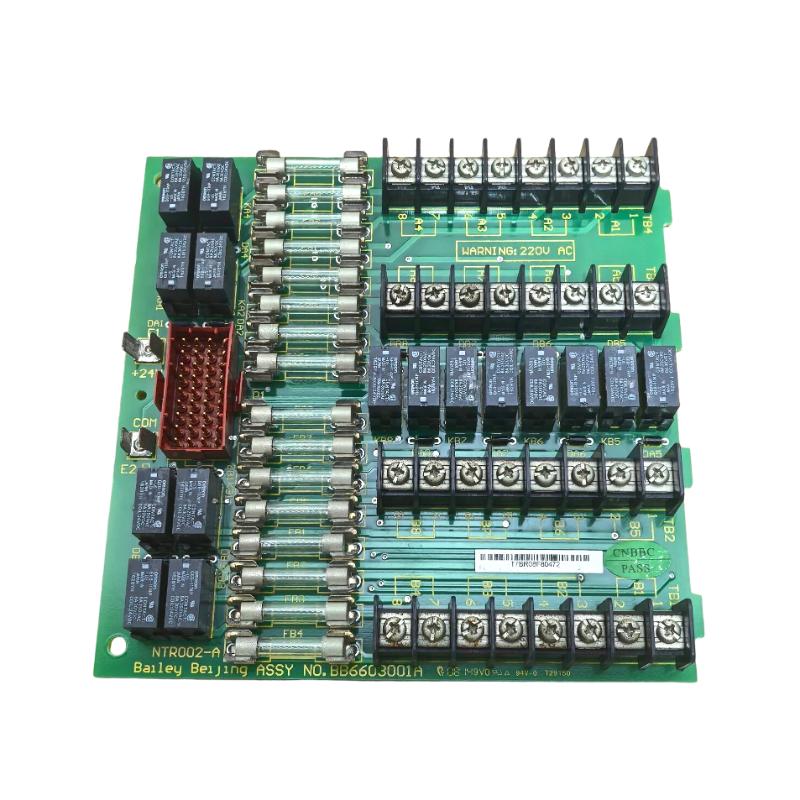

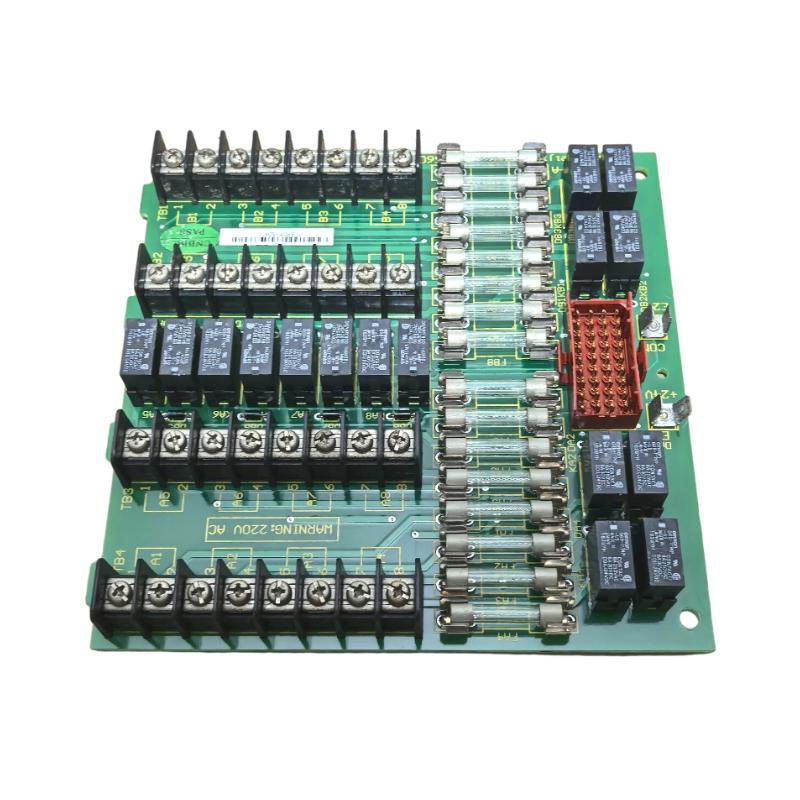

The ABB Bailey NTRO02-A BB6603001A Digital I/O Terminal Unit Module is a specialized industrial interface component designed to support digital signal connections within compatible ABB Bailey control and automation systems. The terminal unit provides an organized connection point between field devices and the associated I/O electronics, helping transfer discrete process signals between the field level and the control architecture.
Digital I/O is fundamental to industrial automation because many process conditions are represented as discrete states. Examples include motor running or stopped status, valve open or closed position, equipment fault signals, emergency conditions, permissive signals, limit-switch feedback, and process interlocks. A dedicated terminal unit helps organize these field connections while simplifying cabinet wiring, commissioning, maintenance, and fault diagnosis.
The NTRO02-A is identified by the ABB Bailey part number BB6603001A. The supplied physical dimensions are 163 × 30 × 140 mm, with a weight of 0.4 kg. Its compact form factor allows it to be incorporated into industrial control cabinets where space efficiency and organized signal termination are important.
Rather than functioning as a general-purpose PLC CPU, the NTRO02-A should be considered part of the I/O interface layer. Its practical role is to provide a structured connection between field wiring and the compatible ABB Bailey I/O system. The exact electrical characteristics and supported signal configuration should be verified against the installed system documentation and the specific hardware revision before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NTRO02-A |
| Part Number | BB6603001A |
| Product Type | Digital I/O Terminal Unit Module |
| Product Family | ABB Bailey Industrial Control |
| Primary Function | Digital I/O field signal termination and interface |
| Signal Type | Digital / Discrete I/O |
| Application | Industrial Automation and Process Control |
| Interface Role | Field wiring to compatible I/O system |
| Dimensions | 163 × 30 × 140 mm |
| Weight | 0.4 kg |
| Installation | Industrial control cabinet / compatible Bailey system |
| Typical Applications | Process control, plant automation, equipment monitoring, discrete signal interfacing |
Exact channel assignments, signal voltage ranges, current ratings, terminal designations, and electrical specifications should be confirmed from the applicable NTRO02-A system documentation and hardware revision.
What Is the ABB Bailey NTRO02-A BB6603001A?
The ABB Bailey NTRO02-A BB6603001A is a digital I/O terminal unit used as part of an industrial control system’s field-interface architecture.
A typical automation system contains several functional layers. Field devices detect or affect the physical process, I/O equipment handles electrical signal interfaces, controllers execute control logic, and operator systems provide monitoring and supervisory functions.
The terminal unit sits between these layers.
A simplified signal architecture can be represented as:
Field Device → Field Wiring → NTRO02-A Terminal Unit → I/O Electronics → Controller → HMI/SCADA
Depending on the application, the direction of the signal can be from the field toward the control system or from the control system toward a field device.
For example, a field switch may provide a discrete status signal. The signal is routed through the field wiring to the appropriate terminal interface, transferred to the associated I/O electronics, and then made available to the control processor. Conversely, a digital output command generated by the controller can travel through the I/O architecture and terminal interface toward an external field device.
The NTRO02-A therefore contributes to the physical organization and reliability of the digital I/O layer.
Digital I/O Terminal Unit Working Principle
Field Signal Termination
The first function of a terminal unit is to provide an organized termination point for field wiring.
Industrial cabinets may contain large numbers of cables originating from motors, valves, switches, sensors, relays, contactors, and other equipment. Directly connecting every field cable to the main control electronics can make a system difficult to install and maintain.
A terminal unit provides a structured interface that helps organize these connections.
Digital Input Signal Path
For a digital input application, the basic signal path can be described as:
Field Contact → Field Cable → Terminal Unit → Digital Input Interface → Controller
The field device may represent a binary process condition such as:
- Equipment running
- Equipment stopped
- Valve open
- Valve closed
- High-level switch activated
- Low-level switch activated
- Motor overload
- Equipment fault
- Safety interlock
- Permissive condition
The associated I/O electronics interpret the electrical state and make the information available to the control system.
Digital Output Signal Path
For a digital output application, the signal direction is reversed:
Controller → Digital Output Electronics → Terminal Unit → Field Device
A controller may generate a digital command to operate:
- A relay
- A contactor
- A solenoid
- A valve actuator
- An indicator
- An alarm device
- Other compatible discrete equipment
The terminal interface provides the physical connection required by the system architecture.
Organized Signal Distribution
A terminal unit also helps separate field wiring from internal control-system wiring. This organization makes the control cabinet easier to understand and can reduce the time required for maintenance and troubleshooting.
The exact electrical implementation depends on the host ABB Bailey system and the configuration in which the NTRO02-A is installed.
Role in ABB Bailey Industrial Control Systems
The NTRO02-A BB6603001A can form part of the field I/O infrastructure in an ABB Bailey automation environment.
Industrial control systems often contain numerous discrete signals distributed throughout a plant. These signals must be connected reliably to the appropriate control logic.
The terminal unit contributes to this architecture by supporting:
- Field signal termination
- Digital I/O organization
- Cabinet wiring management
- Signal routing
- Equipment status monitoring
- Control command distribution
- Maintenance access
- Troubleshooting efficiency
A well-organized terminal interface is particularly important in large process plants where hundreds or thousands of field signals may be distributed across different cabinets and equipment areas.
Digital Input Applications
Digital inputs allow the control system to determine whether a field condition is active or inactive.
Typical applications include monitoring the operating condition of rotating equipment.
For example:
Motor Running → Auxiliary Contact → NTRO02-A Interface → Digital Input → Controller
The controller can then use the status information for sequencing, alarming, interlocking, or operator display.
Other common digital input applications include:
Valve Position Monitoring
Open and closed limit switches can provide confirmation that a valve has reached the commanded position.
Equipment Fault Monitoring
A protective relay or equipment controller may provide a discrete fault indication to the control system.
Interlock Monitoring
Digital signals can represent permissive and interlock conditions required before equipment is allowed to operate.
Switch Monitoring
Pressure switches, level switches, flow switches, and other discrete devices can provide binary process information.
Alarm Status
External alarm contacts can be connected to the digital I/O architecture for centralized monitoring.
Digital Output Applications
Digital outputs allow the control system to issue discrete commands to compatible external devices.
A typical sequence is:
Control Logic → Digital Output → Terminal Interface → Field Device
Possible applications include:
- Motor start commands
- Motor stop commands
- Solenoid activation
- Valve control
- Relay control
- Alarm activation
- Equipment enable signals
- Interlock-related commands
The exact load requirements and electrical ratings must be confirmed for the specific I/O hardware connected to the NTRO02-A. The terminal unit itself should not be assumed to directly drive a load unless the associated system architecture specifically provides that capability.
Integration with Industrial Automation Architecture
The NTRO02-A can be viewed as one element within a larger control architecture.
A typical process automation system may contain:
Field Instruments and Equipment
↓
Field Wiring
↓
Terminal Units
↓
I/O Modules
↓
Control Processors
↓
Control Network
↓
Operator Stations / HMI / SCADA
This layered architecture allows engineers to separate field-level connections from control logic and supervisory functions.
The terminal unit therefore plays an important physical integration role even though it does not perform the same control-processing functions as a CPU or controller.
Industrial Applications
Process Manufacturing
Digital I/O interfaces are widely used in manufacturing facilities for monitoring equipment status and controlling discrete actuators.
The NTRO02-A can form part of an automation cabinet where field devices need to be integrated into a centralized control system.
Chemical Processing
Chemical plants contain numerous pumps, valves, motors, interlocks, and alarms. Digital signals are required to monitor equipment conditions and coordinate process sequences.
Power and Utility Systems
Utility facilities frequently use digital status signals to monitor breakers, motors, pumps, fans, valves, and auxiliary equipment.
Water and Wastewater Treatment
Water-treatment systems contain numerous pumps, valves, blowers, chemical dosing systems, and protection devices. Digital I/O provides the discrete status information required for automated operation.
Oil and Gas Facilities
Process equipment often requires extensive equipment-status monitoring and interlocking. Properly organized field termination helps support reliable plant automation.
General Industrial Automation
The terminal interface can also be used within compatible ABB Bailey control environments for manufacturing, material handling, equipment monitoring, and process automation applications.
Installation Guidelines
Correct installation is essential for maintaining reliable digital signal communication.
Verify the Part Number
Before installing an NTRO02-A replacement, confirm:
- Model number
- Full part number
- Revision designation
- Existing cabinet location
- Connector arrangement
- Terminal assignments
- Associated I/O module
- Host control-system configuration
The complete identification NTRO02-A BB6603001A should be checked rather than relying only on the physical appearance of the module.
De-Energize the Appropriate Equipment
Before performing installation or replacement work, follow the applicable plant lockout/tagout and electrical safety procedures.
The appropriate equipment should be isolated before accessing field wiring or electronic assemblies.
Confirm Field Wiring
Each field wire should be identified before removal.
Useful information includes:
- Wire number
- Terminal number
- Signal designation
- Device tag
- I/O channel
- Cabinet location
- Cable identification
Accurate labeling significantly reduces the possibility of incorrect reconnection.
Secure the Module
The NTRO02-A should be installed according to the mounting arrangement specified for the compatible ABB Bailey system.
Mechanical mounting should be secure enough to prevent movement caused by cabinet vibration or repeated cable handling.
Cabinet Installation and Space Planning
The supplied dimensions of the ABB Bailey NTRO02-A BB6603001A are:
163 × 30 × 140 mm
These dimensions should be considered when planning cabinet layouts and replacement installations.
The module’s relatively narrow 30 mm dimension can be useful when multiple interface components must be arranged within a limited cabinet width.
However, engineers should also consider:
- Wiring clearance
- Connector access
- Terminal accessibility
- Cable bend radius
- Adjacent module spacing
- Ventilation
- Maintenance access
- Cabinet door clearance
The physical envelope of the module should not be considered the only installation requirement.
Wiring and Signal Management
Good wiring practices are important for reliable digital I/O operation.
Field cables should be properly identified and routed according to the system’s electrical design.
Where different signal types are present in the same cabinet, appropriate separation should be maintained between:
- Low-level instrumentation wiring
- Digital I/O wiring
- Communication cables
- AC power wiring
- Motor cables
- High-energy switching circuits
Separating sensitive signal wiring from high-noise conductors can reduce unwanted electrical interference.
EMC and Signal Integrity
Industrial environments can contain substantial electromagnetic interference from:
- Variable frequency drives
- Motors
- Contactors
- Switching power supplies
- Transformers
- Large electrical loads
- High-current cables
Digital signals may be affected by poor wiring practices or inadequate grounding.
Recommended engineering practices include:
- Maintain appropriate cable separation.
- Avoid unnecessary parallel routing with high-power cables.
- Use the grounding method specified by the system design.
- Keep connectors clean and securely seated.
- Avoid damaged or poorly terminated cables.
- Follow the applicable cabinet EMC design requirements.
The objective is to maintain stable signal states and reduce intermittent digital I/O behavior.
Commissioning Procedure
After installation, commissioning should be performed systematically.
Step 1: Mechanical Inspection
Check that the NTRO02-A is properly mounted and that all mechanical connections are secure.
Step 2: Wiring Verification
Compare field wiring against the approved drawings and recorded wire identification.
Step 3: Connector Inspection
Verify that all associated connectors are correctly installed and fully seated.
Step 4: System Power-Up
Restore power according to the approved commissioning procedure.
Step 5: Input Verification
Operate selected field devices and verify that the corresponding digital input states change correctly in the control system.
Step 6: Output Verification
Where permitted by the operating procedure, test digital output commands and verify the corresponding field response.
Step 7: Alarm and Interlock Testing
Confirm that configured alarms, permissives, and interlocks respond correctly to the appropriate digital conditions.
Step 8: Documentation
Record the final configuration and any replacement information for future maintenance.
Troubleshooting the NTRO02-A
Digital I/O problems should be investigated from the field device through the terminal unit and I/O electronics rather than immediately assuming that the terminal unit has failed.
No Digital Input Signal
If an expected input does not appear in the control system, inspect:
- Field device condition
- Field wiring
- Terminal connections
- Connector seating
- Associated I/O module
- I/O channel configuration
- Control-system diagnostics
A failed switch or broken field cable can produce symptoms similar to an I/O hardware problem.
Digital Input Stuck in One State
A digital signal that remains permanently ON or OFF may be associated with:
- Faulty field contact
- Wiring short circuit
- Open circuit
- Incorrect termination
- Incorrect channel assignment
- I/O module problem
- Configuration issue
The field device should be tested independently where appropriate.
Digital Output Does Not Operate
If the controller commands an output but the field device does not respond, check:
- Control logic
- Output status
- Associated I/O module
- Terminal connections
- Field wiring
- External power supply
- Relay or actuator condition
- Field device itself
The terminal unit should be evaluated as part of the complete signal path.
Intermittent Digital Signal
Intermittent operation may be caused by:
- Loose terminals
- Connector movement
- Cable damage
- Vibration
- Electrical interference
- Moisture
- Aging field devices
- Poor grounding
Physical inspection combined with signal monitoring can help isolate the problem.
Preventive Maintenance
Regular maintenance can help reduce unexpected digital I/O failures.
Inspect Terminations
Periodically inspect accessible terminals and connectors for looseness, contamination, or physical damage.
Check Field Wiring
Look for:
- Broken insulation
- Cable abrasion
- Loose conductors
- Corrosion
- Moisture ingress
- Excessive bending
Monitor Signal Trends
Although digital signals have only discrete states, changes in switching frequency or abnormal status patterns can reveal developing equipment problems.
Maintain Cabinet Conditions
The control cabinet should be kept within the environmental conditions specified for the installed system.
Excessive dust, moisture, heat, or vibration can reduce the reliability of electronic and terminal components.
Maintain Documentation
Updated wiring diagrams, I/O lists, terminal schedules, and replacement records make future troubleshooting substantially easier.
Replacement and Spare-Part Planning
When replacing an ABB Bailey NTRO02-A BB6603001A, the complete identification should be verified before procurement and installation.
Important information includes:
- NTRO02-A model designation
- BB6603001A part number
- Revision information
- Existing system configuration
- Connector arrangement
- Terminal assignments
- Associated I/O module
- Cabinet position
Physical dimensions can also be useful during replacement planning.
The supplied dimensions are:
163 × 30 × 140 mm
The supplied weight is:
0.4 kg
These values can assist with cabinet planning, shipping preparation, inventory management, and handling requirements.
A visually similar ABB Bailey module should not automatically be treated as a compatible replacement.
Compatible System Components
The NTRO02-A normally functions as part of a broader industrial control architecture rather than as an independent control device.
Potentially associated components include:
| System Component | Typical Function |
|---|---|
| ABB Bailey Digital I/O Module | Processes digital field signals |
| ABB Bailey Control Processor | Executes control logic |
| Terminal Unit | Provides field wiring interface |
| Field Sensors | Provide process status information |
| Limit Switches | Provide position feedback |
| Relays | Provide switching and isolation functions |
| Solenoid Valves | Receive discrete control commands |
| Motor Starters | Control motor operation |
| Operator Interface | Displays equipment status and alarms |
| Engineering Station | Supports configuration and diagnostics |
| Control Network | Transfers control and process information |
The exact compatible hardware should always be confirmed from the host system configuration.
Recommended Related ABB Bailey Components
| Component Type | General Function |
|---|---|
| ABB Bailey Digital Input Modules | Discrete status acquisition |
| ABB Bailey Digital Output Modules | Discrete control commands |
| ABB Bailey Terminal Units | Field signal termination |
| ABB Bailey I/O Interface Components | Signal connection and routing |
| ABB Bailey Control Processors | Control logic execution |
| ABB Bailey Communication Modules | System-level data communication |
| ABB Bailey System Backplanes | Module interconnection |
| ABB Bailey Power Components | Control-system power distribution |
These components may form different combinations depending on the specific ABB Bailey control architecture.
Engineering Considerations
Several factors should be evaluated when designing or maintaining a digital I/O system using the NTRO02-A.
Signal Identification
Every field signal should have a unique and traceable identification.
I/O Documentation
I/O lists should correspond with the physical terminal assignments and control-system configuration.
Maintenance Accessibility
Terminal interfaces should remain accessible enough for inspection and troubleshooting.
Spare Availability
Critical control systems should maintain appropriate spare components based on plant maintenance requirements.
Revision Control
When replacing older hardware, the revision level and system compatibility should be checked carefully.
Environmental Conditions
Temperature, humidity, dust, vibration, and electrical noise should be considered during cabinet design.
Key Advantages
Organized Digital I/O Interface
The ABB Bailey NTRO02-A BB6603001A provides a structured interface for digital field signals within compatible automation systems.
Compact Form Factor
With supplied dimensions of 163 × 30 × 140 mm, the module can be incorporated into compact industrial control cabinets.
Simplified Field Wiring
A dedicated terminal interface helps organize field connections and improves cabinet wiring clarity.
Easier Maintenance
Clearly structured signal termination can make inspection, testing, and troubleshooting more efficient.
Industrial Automation Integration
The NTRO02-A can participate in a broader ABB Bailey control architecture connecting field equipment with I/O and control-processing systems.
Flexible Process Applications
Digital signals can be used for equipment status, alarms, interlocks, permissives, actuator commands, and other discrete automation functions.
Technical FAQs
What is the ABB Bailey NTRO02-A BB6603001A?
The ABB Bailey NTRO02-A BB6603001A is a Digital I/O Terminal Unit Module designed to provide field signal termination and interface functionality within compatible ABB Bailey industrial control systems.
What is the part number of the NTRO02-A?
The supplied part number is BB6603001A.
What type of signals does the NTRO02-A handle?
The NTRO02-A is associated with digital or discrete I/O signal interfacing. The exact signal configuration should be verified against the applicable system documentation.
What are the dimensions of the NTRO02-A?
The supplied dimensions are 163 × 30 × 140 mm.
How much does the NTRO02-A weigh?
The supplied weight is 0.4 kg.
Is the NTRO02-A a PLC CPU?
No. The NTRO02-A is a Digital I/O Terminal Unit Module. It serves an interface and signal-termination role rather than functioning as a general-purpose PLC processor.
What applications use digital I/O terminal units?
Digital I/O terminal units are commonly used for motor status, valve position, alarms, interlocks, permissives, switches, relay signals, and discrete equipment commands.
Can the NTRO02-A be replaced by another ABB Bailey module?
A different ABB Bailey module should not be assumed to be interchangeable. The complete model number, part number, revision, wiring configuration, and host-system requirements should be verified before replacement.
What should be checked when troubleshooting the NTRO02-A?
Technicians should examine the complete signal path, including the field device, field wiring, terminal connections, connectors, associated I/O module, control configuration, and system diagnostics.
Why is proper terminal organization important?
Well-organized terminal connections reduce wiring complexity, improve maintenance access, simplify troubleshooting, and help technicians trace field signals through the control system.
Conclusion
The ABB Bailey NTRO02-A BB6603001A Digital I/O Terminal Unit Module is an important field-interface component for compatible ABB Bailey industrial automation and process control architectures. By providing an organized connection point for digital signals, it helps bridge the gap between field equipment and the electronic I/O and control layers.
Digital signals are essential for monitoring equipment states, valve positions, alarms, interlocks, permissive conditions, and discrete control commands. A properly installed terminal interface contributes to reliable signal transmission while also making cabinet wiring, commissioning, maintenance, and troubleshooting more manageable.
The NTRO02-A BB6603001A has supplied physical dimensions of 163 × 30 × 140 mm and a weight of 0.4 kg, making these specifications useful for cabinet layout, replacement planning, inventory management, and logistics.
For replacement or maintenance work, technicians should verify the complete NTRO02-A BB6603001A identification together with the hardware revision, terminal configuration, associated I/O equipment, and host ABB Bailey system. Proper wiring verification, signal testing, environmental control, and systematic troubleshooting are essential for maintaining dependable digital I/O performance in industrial automation applications.
