Product Overview

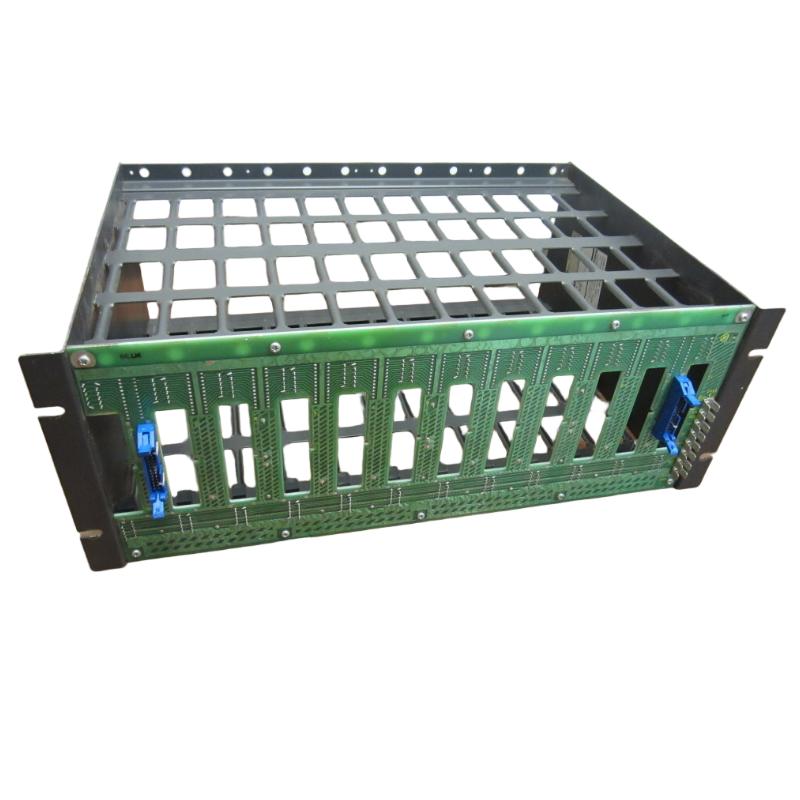

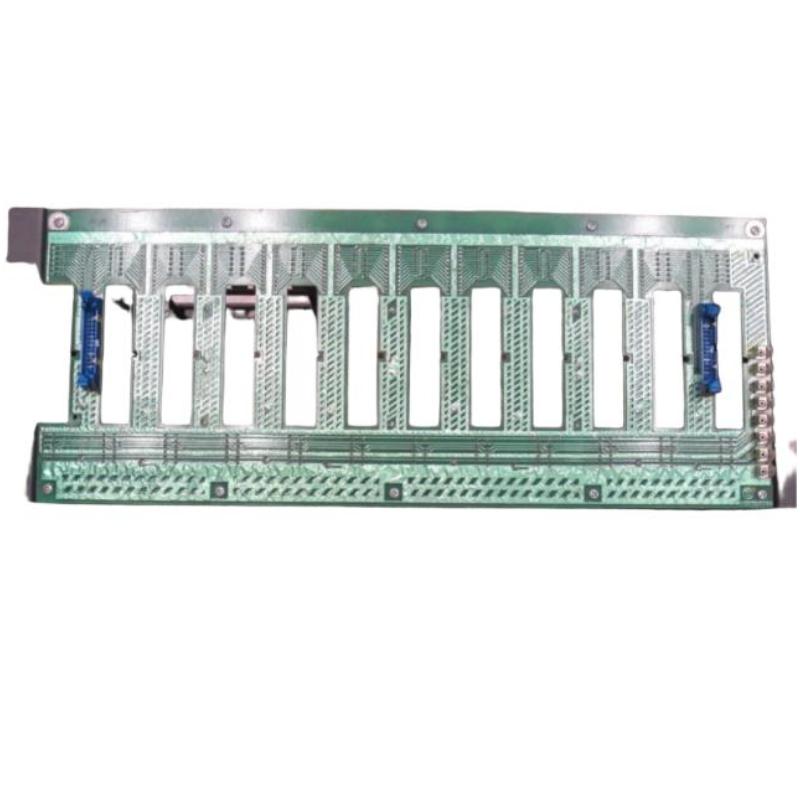

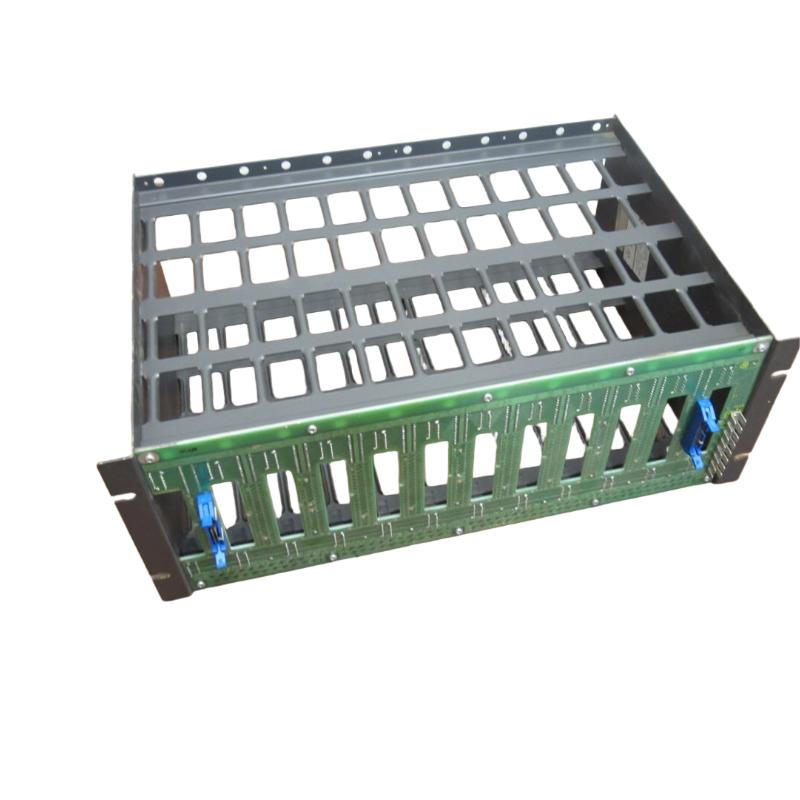

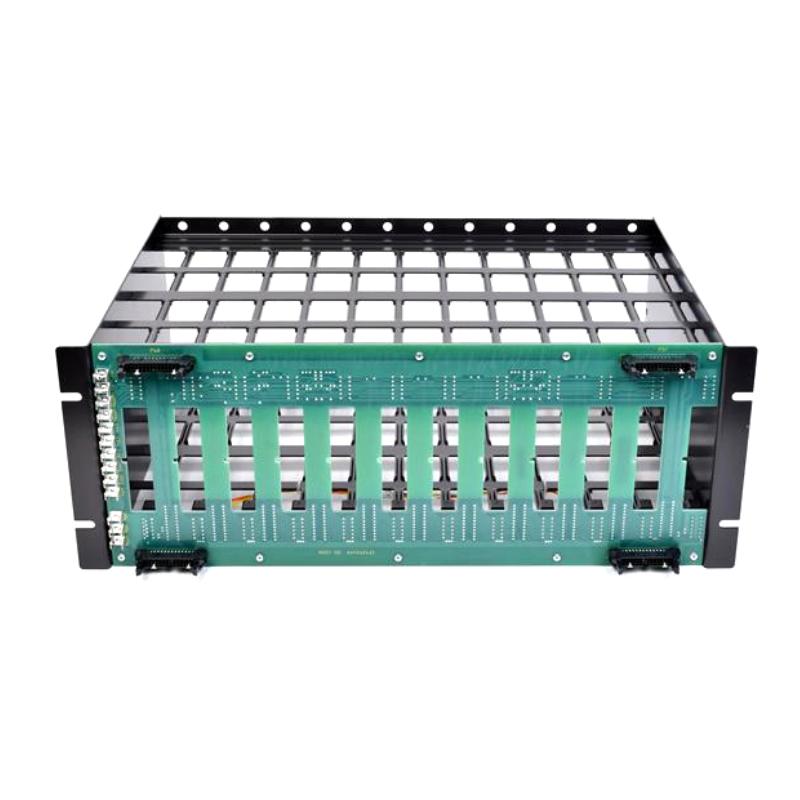

The ABB Bailey NMMU01 Modular Mount Unit Chassis Rack is an industrial mounting and equipment-support assembly designed for use within compatible ABB Bailey automation and process control systems. As a modular mounting unit, the NMMU01 provides a structured physical platform for installing and organizing compatible electronic modules and associated control-system hardware.
Industrial automation systems frequently use modular architectures in which controllers, communication interfaces, I/O modules, power-related assemblies, and other electronic components must be installed in a secure and organized arrangement. A dedicated chassis rack provides the mechanical structure required to support these assemblies while helping maintain consistent module positioning, service access, and system organization.
The ABB Bailey NMMU01 has listed dimensions of 220 × 90 × 100 mm and a weight of 3.86 kg. Its compact but robust construction makes it suitable for control-system installations where modular equipment must be securely mounted while maintaining access for maintenance and replacement activities.
The NMMU01 should be regarded as part of a complete ABB Bailey system architecture. Compatibility depends on the specific modules, mounting arrangement, mechanical interfaces, and host control system. Before installation or replacement, the complete model number and associated equipment configuration should be verified.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NMMU01 |
| Product Type | Modular Mount Unit / Chassis Rack |
| Primary Function | Mechanical mounting and organization of compatible system modules |
| Application | Industrial Automation and Process Control |
| Mounting Role | Modular equipment support |
| System Integration | Compatible ABB Bailey control-system architecture |
| Installation | Industrial control cabinet / equipment enclosure |
| Dimensions | 220 × 90 × 100 mm |
| Weight | 3.86 kg |
| Construction Role | Module support and system organization |
| Typical Use | Mounting compatible electronic and control assemblies |
What Is the ABB Bailey NMMU01?
The ABB Bailey NMMU01 is a Modular Mount Unit Chassis Rack designed to provide a structured installation platform for compatible ABB Bailey control-system equipment.
Unlike an I/O module, processor, or communication card, the NMMU01 is primarily a system-support component. Its main purpose is to provide the physical structure required for mounting and organizing compatible electronic assemblies.
A simplified equipment arrangement can be represented as:
Industrial Control Cabinet → NMMU01 Modular Mount Unit → Compatible Control Modules → System Interfaces → Field Equipment
The exact module arrangement depends on the ABB Bailey system architecture.
A correctly installed chassis rack can help maintain:
- Secure module positioning
- Organized system layout
- Easier maintenance access
- Consistent equipment installation
- Reduced mechanical stress on electronic assemblies
- Improved cabinet organization
Modular Mount Unit Working Principle
The NMMU01 performs a mechanical and organizational function within the control system.
Compatible modules are installed into or onto the appropriate mounting positions provided by the chassis structure. The mounting unit supports the physical arrangement of the system and helps maintain the intended relationship between the installed assemblies.
A general functional structure can be described as:
Cabinet Structure → NMMU01 Chassis Rack → Compatible Modules → System Connections
The chassis itself does not normally perform process control or execute automation logic. Instead, it supports the physical infrastructure required by the control system.
Depending on the complete system design, associated electrical connections may be provided through separate backplanes, cables, connectors, interfaces, or module-specific connection arrangements.
Role in ABB Bailey Control Systems
The NMMU01 can serve as part of the physical infrastructure of a modular ABB Bailey automation system.
Its general role includes:
- Supporting compatible electronic modules
- Providing a structured mounting location
- Organizing system hardware
- Supporting control cabinet installation
- Improving equipment accessibility
- Simplifying module replacement
- Maintaining consistent system layout
- Supporting maintenance procedures
In large industrial control systems, mechanical organization is important because poor equipment layout can increase maintenance time and create unnecessary stress on wiring and connectors.
The NMMU01 helps provide a defined physical structure for the associated system equipment.
Importance of a Modular Chassis Rack
A chassis rack is an important component in modular automation systems because electronic modules require secure and stable installation.
Mechanical Support
The chassis provides a mounting structure for compatible equipment.
System Organization
Modules can be arranged according to the intended system architecture.
Maintenance Access
A structured mounting arrangement makes it easier for technicians to identify and access installed components.
Equipment Protection
Secure mounting helps reduce the risk of mechanical movement and associated connector stress.
Replacement Efficiency
A defined chassis layout can simplify the replacement of compatible modules.
Control Cabinet Integration
The mounting unit helps establish a consistent relationship between modules, cables, connectors, and the surrounding cabinet structure.
Physical Dimensions and Installation Planning
The ABB Bailey NMMU01 has listed dimensions of 220 × 90 × 100 mm.
These dimensions should be considered during control cabinet design and replacement planning.
Before installation, engineers and technicians should evaluate:
- Available cabinet space
- Mounting orientation
- Clearance around installed modules
- Wiring access
- Connector accessibility
- Cooling and ventilation
- Door clearance
- Maintenance space
- Adjacent equipment
- Future system expansion
Although the NMMU01 itself is relatively compact, the total installation space must also account for compatible modules, cable connections, and required service clearance.
Weight and Mechanical Considerations
The listed weight of the ABB Bailey NMMU01 is 3.86 kg.
The mounting surface and supporting cabinet structure should be suitable for the combined weight of the chassis and all installed equipment.
During installation, consider:
- Chassis weight
- Installed module weight
- Cable loading
- Vibration
- Mechanical shock
- Cabinet structural capacity
- Fastener condition
The total system weight can be significantly greater than the weight of the empty mounting unit.
Mounting hardware should be installed securely according to the requirements of the applicable control-system design.
Industrial Applications
Process Control Systems
The NMMU01 can be used as part of a modular hardware arrangement supporting industrial process control equipment.
Power Generation
Power-generation facilities can use modular control equipment for monitoring and controlling turbines, generators, auxiliary systems, and related plant equipment.
Chemical Processing
Chemical plants often use extensive distributed control and instrumentation systems that require organized installation of electronic hardware.
Oil and Gas Facilities
Industrial control cabinets can contain multiple electronic assemblies requiring structured mechanical mounting.
Water and Wastewater Treatment
Automation systems used for pumps, valves, treatment processes, and instrumentation can benefit from organized control hardware installations.
Manufacturing Automation
Manufacturing facilities may use modular control systems requiring secure mounting and structured cabinet organization.
Integration with Industrial Control Architecture
The NMMU01 functions as part of the physical support layer of the automation system.
A generalized architecture can be represented as:
Control Cabinet
↓
NMMU01 Modular Mount Unit
↓
Compatible Control / I/O / Interface Modules
↓
Terminal Units and System Connections
↓
Field Devices and Process Equipment
The mounting unit helps establish the physical structure required for the installation of the electronic system.
The actual modules installed with the NMMU01 depend on the specific ABB Bailey system and application.
Installation Guidelines
Verify the Complete Model
Before installation, confirm:
ABB Bailey NMMU01
The complete model number should be verified against the existing system configuration and replacement requirements.
Inspect the Chassis
Before installation, inspect the unit for:
- Bent mounting surfaces
- Physical damage
- Corrosion
- Damaged mounting points
- Damaged connectors or interfaces, where applicable
- Loose mechanical components
Prepare the Mounting Location
The installation surface should be:
- Structurally stable
- Clean
- Appropriately sized
- Protected from excessive vibration
- Suitable for the equipment environment
Allow Sufficient Clearance
Ensure that compatible modules can be installed and removed without obstruction.
Space should also be available for:
- Cable routing
- Connector access
- Ventilation
- Maintenance activities
Secure the Chassis
Use appropriate mounting hardware and ensure that the unit is securely attached before installing compatible modules.
Module Installation and System Organization
When installing compatible equipment into the NMMU01, the system layout should be documented.
Recommended procedures include:
- Identify each module.
- Verify module compatibility.
- Confirm the intended mounting position.
- Install modules carefully.
- Avoid forcing components into position.
- Verify mechanical engagement.
- Connect associated cables or interfaces.
- Check cable routing.
- Label equipment where required.
- Perform system verification.
Incorrect module placement or incomplete mechanical installation can create problems during commissioning or maintenance.
Wiring and Cable Management
The NMMU01 provides a structured physical location for compatible system hardware, but overall installation quality also depends on proper cable management.
Cables should be routed to avoid:
- Excessive tension
- Sharp bends
- Connector loading
- Obstruction of ventilation
- Interference with module removal
- Contact with sharp edges
- Unnecessary exposure to heat
Signal cables and high-power wiring should be managed according to the applicable installation requirements.
Clear cable identification can significantly reduce troubleshooting time in complex control cabinets.
Cooling and Environmental Considerations
Electronic control modules installed on or within a chassis rack can generate heat during operation.
The installation should therefore consider:
- Cabinet ventilation
- Ambient temperature
- Airflow around installed modules
- Heat generated by adjacent equipment
- Dust accumulation
- Moisture
- Vibration
The NMMU01 itself provides the mounting structure, but the environmental requirements of the complete installation are determined by the modules and associated control equipment.
Avoid blocking ventilation paths with excessive cable bundles or unrelated equipment.
Commissioning the NMMU01 Installation
After the chassis and associated modules are installed, commissioning should verify both mechanical and system-level installation.
Step 1: Verify Model Identification
Confirm that the installed mounting unit is the required NMMU01.
Step 2: Check Mechanical Installation
Inspect all mounting hardware and verify that the chassis is securely installed.
Step 3: Inspect Compatible Modules
Confirm that each module is installed in the intended position.
Step 4: Check Connections
Verify that all cables, terminal connections, and interfaces are properly connected.
Step 5: Inspect Cable Routing
Make sure cables do not place mechanical stress on modules or connectors.
Step 6: Apply Power According to System Procedures
Follow the applicable startup procedure for the complete ABB Bailey control system.
Step 7: Review System Diagnostics
Check the controller and associated modules for abnormal status indications.
Step 8: Perform Functional Testing
Verify that the installed system performs its intended monitoring and control functions.
Troubleshooting the ABB Bailey NMMU01 Installation
Because the NMMU01 is primarily a mounting and support component, troubleshooting should focus on mechanical condition and the installation of associated equipment.
Modules Do Not Fit Correctly
Check:
- Correct module type
- Correct mounting position
- Chassis alignment
- Mechanical damage
- Obstruction
- Connector alignment
Do not force incompatible modules into the mounting structure.
Intermittent System Problems
Although an electronic fault may be suspected, inspect for:
- Loose module mounting
- Loose connectors
- Mechanical vibration
- Cable strain
- Damaged mounting surfaces
- Improperly seated modules
A mechanical installation issue can sometimes cause intermittent electrical connections.
Excessive Vibration
Inspect:
- Mounting fasteners
- Cabinet structure
- Chassis condition
- Equipment supports
- Adjacent mechanical equipment
The installation should prevent excessive movement of the chassis and associated modules.
Overheating of Installed Equipment
The chassis may not be the direct cause of overheating.
Check:
- Cabinet ventilation
- Airflow
- Module spacing
- Ambient temperature
- Dust accumulation
- Nearby heat-generating equipment
Preventive Maintenance
Regular inspection can help maintain the mechanical reliability of the NMMU01 installation.
Inspect Mounting Hardware
Check for loose or damaged mounting hardware.
Inspect the Chassis
Look for corrosion, deformation, or mechanical damage.
Check Module Engagement
Confirm that installed modules remain securely positioned.
Inspect Cables
Check for mechanical stress, damaged insulation, or excessive tension on connectors.
Maintain Cabinet Cleanliness
Remove excessive dust and contamination according to approved maintenance procedures.
Review System Layout
Ensure that equipment modifications have not obstructed ventilation or maintenance access.
Maintain Documentation
Record the chassis location, installed modules, and relevant replacement information.
Compatible System Components
The ABB Bailey NMMU01 can form part of a larger modular automation architecture containing compatible components such as:
| Component | Typical Function |
|---|---|
| Modular Mount Unit / Chassis | Provides mechanical equipment support |
| Control Module | Executes automation or process control functions |
| I/O Module | Processes field input and output signals |
| Communication Module | Supports system data exchange |
| Interface Assembly | Provides connections between system layers |
| Terminal Unit | Organizes field-side wiring |
| System Cables | Connect modules and terminal assemblies |
| Power Supply | Provides operating power |
| Field Devices | Measure or control the industrial process |
The exact compatible components should be verified according to the installed ABB Bailey system configuration.
Recommended Related ABB Bailey Components
| Component Category | General Role |
|---|---|
| Bailey Control Modules | Process and automation control |
| Bailey I/O Modules | Field signal processing |
| Bailey Terminal Units | Field signal termination |
| Bailey Communication Interfaces | System data communication |
| Bailey System Cables | Hardware interconnection |
| Bailey Power Components | Power distribution |
| Bailey Mounting Assemblies | Mechanical system organization |
These component categories may form part of the same automation architecture but should not automatically be considered direct replacements or guaranteed compatible accessories for the NMMU01.
Engineering Best Practices
Verify the Exact Model
Always confirm ABB Bailey NMMU01 before ordering or installing a replacement.
Consider Total System Weight
The listed 3.86 kg weight applies to the mounting unit. Installed modules and cables add to the total cabinet load.
Allow Adequate Service Clearance
Leave enough space to access and replace installed modules.
Maintain Proper Cable Routing
Avoid routing cables in a way that obstructs ventilation or module removal.
Protect Against Vibration
Ensure that the chassis and cabinet structure provide stable mechanical support.
Keep Equipment Identified
Clearly identify chassis locations and installed modules in system documentation.
Inspect Before Commissioning
Verify mechanical installation and all associated connections before returning the system to operation.
Key Advantages
- Dedicated Modular Mount Unit / Chassis Rack design
- Supports organized installation of compatible ABB Bailey equipment
- Compact dimensions of 220 × 90 × 100 mm
- Listed weight of 3.86 kg
- Provides structured mechanical support for modular control hardware
- Helps simplify cabinet organization
- Supports easier module identification and maintenance
- Can reduce mechanical stress on installed equipment
- Suitable for industrial automation and process-control environments
- Supports systematic equipment replacement and system expansion
Technical FAQs
What is the ABB Bailey NMMU01?
The ABB Bailey NMMU01 is a Modular Mount Unit Chassis Rack designed to provide a physical mounting and organizational structure for compatible ABB Bailey automation and control-system components.
What are the dimensions of the NMMU01?
The listed dimensions are 220 × 90 × 100 mm.
How much does the NMMU01 weigh?
The listed weight is 3.86 kg.
Is the NMMU01 an I/O module?
No. The NMMU01 is a mechanical mounting and chassis component, not an I/O module, controller, or processor.
What is the purpose of a chassis rack?
A chassis rack provides a structured physical platform for installing compatible electronic modules and related system hardware.
Can any ABB Bailey module be installed in the NMMU01?
Compatibility should not be assumed. The specific module type, mounting arrangement, electrical interface, and host system should be verified before installation.
What should be checked before installing the NMMU01?
Check the model number, chassis condition, mounting surface, available space, environmental conditions, cable-routing requirements, and compatibility with associated equipment.
Can a mounting problem cause electrical faults?
Yes. Loose modules, connector misalignment, vibration, or excessive cable stress can sometimes create intermittent electrical connections even when the electronic modules themselves are functioning correctly.
How should the NMMU01 be maintained?
Inspect the chassis for physical damage, loose mounting hardware, corrosion, vibration-related problems, cable stress, and secure module installation.
Why are the dimensions important?
The dimensions help engineers plan cabinet space, equipment layout, replacement installation, maintenance access, and overall system organization.
Conclusion
The ABB Bailey NMMU01 Modular Mount Unit Chassis Rack is an important mechanical support and organization component for compatible ABB Bailey industrial automation and process control systems. Rather than performing control logic itself, the NMMU01 provides a structured mounting platform for compatible electronic assemblies and supports an organized system architecture.
With listed dimensions of 220 × 90 × 100 mm and a weight of 3.86 kg, the NMMU01 provides a compact chassis solution for industrial control cabinet installations. Its effectiveness depends on correct mounting, compatible module selection, secure mechanical installation, organized cable routing, and appropriate environmental conditions.
For replacement and maintenance applications, technicians should verify the complete ABB Bailey NMMU01 model designation together with the associated control-system configuration and installed hardware. Proper installation, sufficient service clearance, secure mounting, and regular preventive inspection can help maintain a stable and maintainable ABB Bailey automation system.
