Product Overview
The ABB Bailey NKST11-15 INFI 90 SOE Time Synchronization Cable is a cable assembly used with compatible ABB Bailey INFI 90 hardware for Sequence of Events (SOE) time synchronization.
Its 15-foot cable length suits installations where the connected synchronization and SOE equipment are separated by a greater physical distance within the control cabinet area, equipment room, or associated control-system installation. Correct cable length matters during maintenance because an undersized cable can force an unsuitable routing arrangement, while excessive slack can create unnecessary mechanical and installation issues.
In an INFI 90 installation, SOE information can be used to reconstruct the order of equipment events during a trip or abnormal operating condition. A breaker operation, motor shutdown, protection action, alarm contact, or interlock transition may occur within a very short period. A common timing reference allows these events to be compared on the same timeline.
The NKST11-15 forms part of the physical synchronization path supporting this function.
Time Synchronization Source → NKST11-15 → INFI 90 SOE Hardware → Event Records
The cable itself does not acquire field signals or execute control logic. Its function concerns the connection required for the SOE timing architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NKST11-15 |
| Product Family | INFI 90 |
| Product Type | SOE Time Synchronization Cable |
| Primary Function | SOE Time Synchronization |
| System Role | Timing / Synchronization Connection |
| Application | Industrial Automation / Process Control |
| Cable Length | 15 feet |
| Shipping Weight | 3 kg |
Product Features

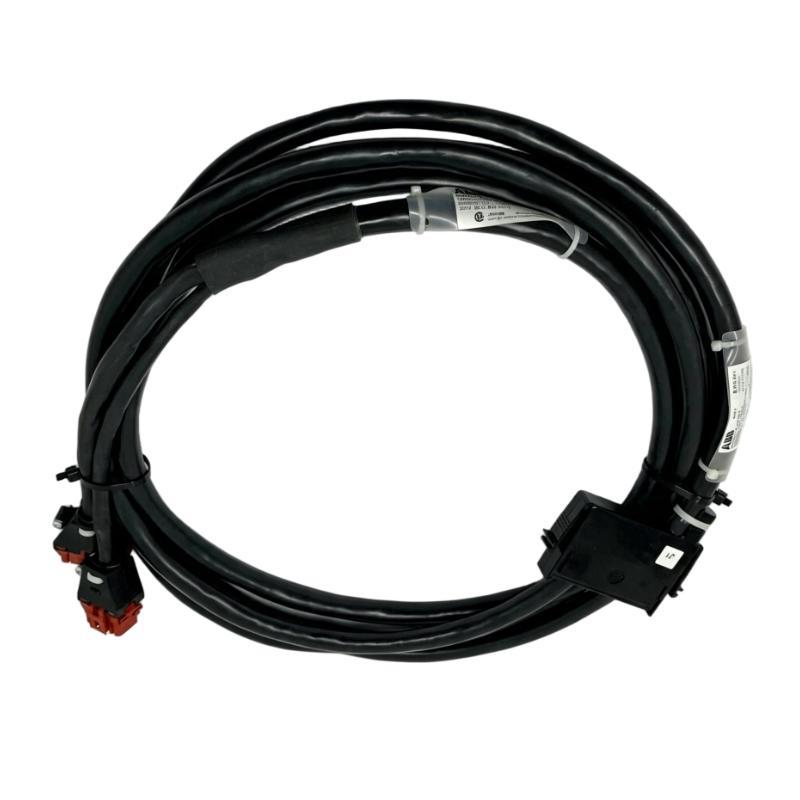

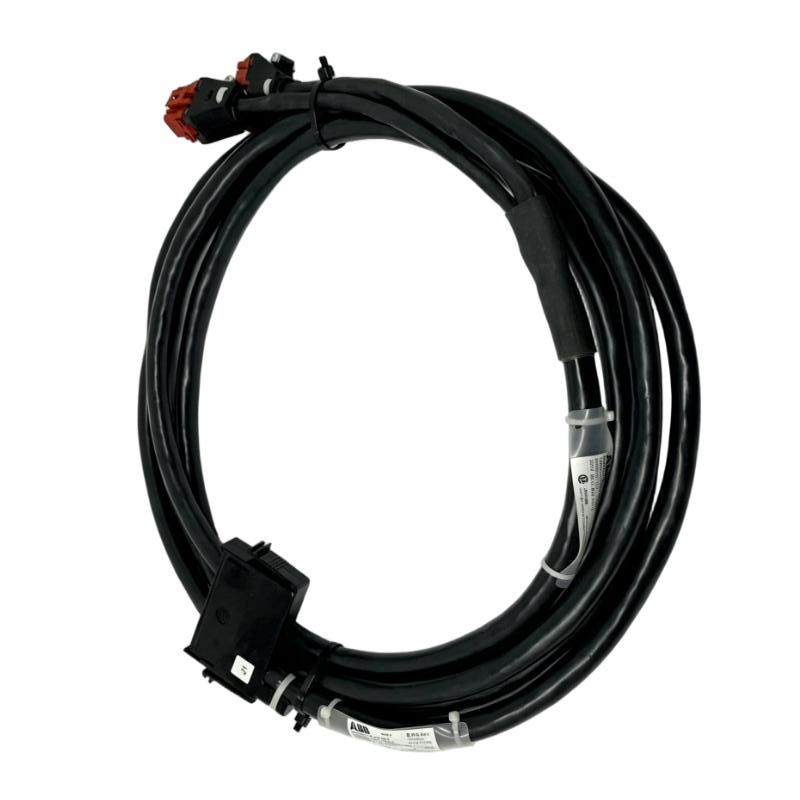

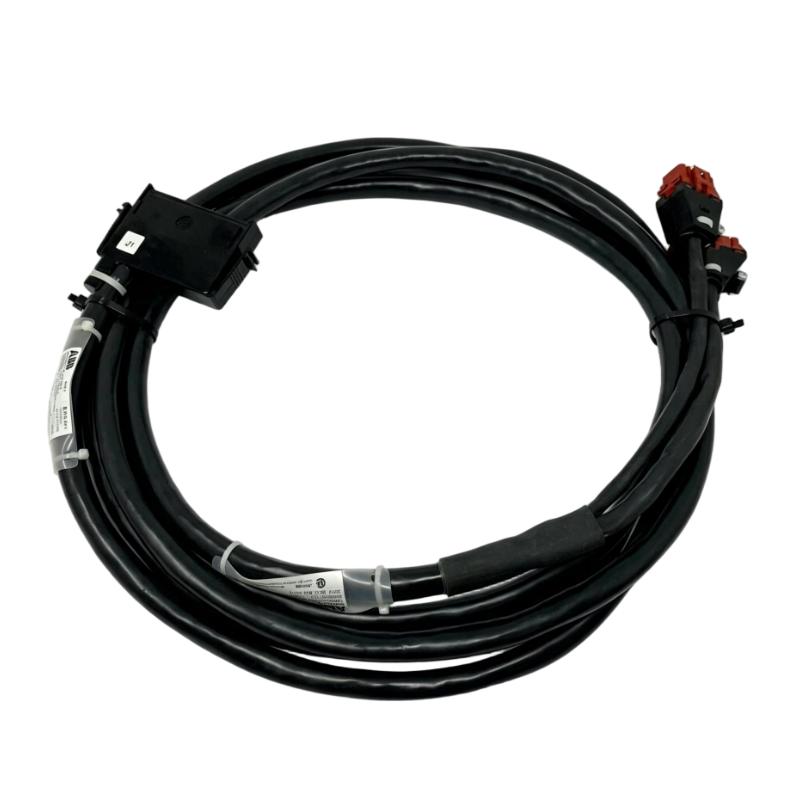

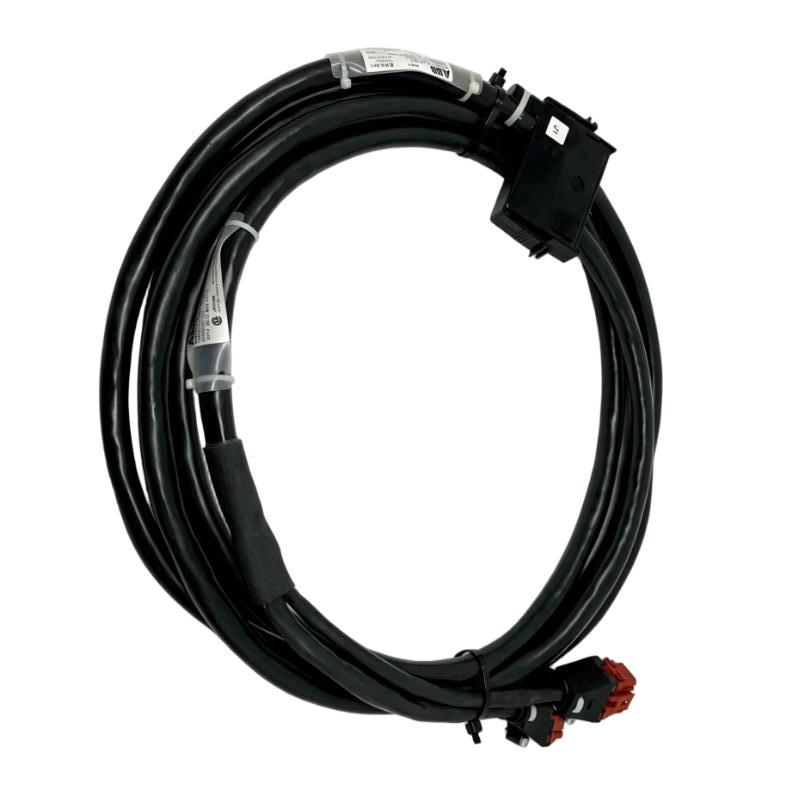

- ABB Bailey INFI 90 SOE Time Synchronization Cable
- Model NKST11-15
- 15-foot cable configuration
- Used for SOE time synchronization connections
- Suitable for compatible INFI 90 control-system hardware
- Supports time-correlated event recording
- Useful for event-sequence investigation
- Applicable to process-control installations
- Suitable for maintenance and replacement work
- Appropriate for installations requiring a longer physical connection than shorter cable configurations
Working Principle
The NKST11-15 establishes a physical connection within the timing path used by compatible INFI 90 SOE equipment.
An SOE system may receive state changes from multiple pieces of equipment. Each change needs to be associated with a consistent time reference so that the recorded events can later be placed in chronological order.
A typical event path can be viewed as:
Equipment Condition → Field Status Change → I/O Detection → SOE Event Record → Synchronized Time
The NKST11-15 sits within the synchronization side of this architecture rather than the field-signal acquisition path.
For example, during a plant disturbance:
Protection Action → Breaker Status Change → Motor Shutdown → Alarm Activation
If these events are recorded against a common time reference, engineers can compare their timestamps when investigating the sequence.
The cable therefore supports the connection needed for time correlation. The actual event detection, recording, and analysis are handled by the surrounding INFI 90 hardware and application.
Role in an INFI 90 SOE Architecture
The NKST11-15 belongs to the timing infrastructure associated with SOE event recording.
Time Reference → Synchronization Connection → SOE System → Event Timeline → Engineering Analysis
| System Element | Function |
|---|---|
| ABB Bailey NKST11-15 | Provides the SOE time synchronization connection |
| INFI 90 Control System | Provides process-control infrastructure |
| SOE Hardware | Records sequence-of-events information |
| Time Synchronization Source | Establishes the common timing reference |
| Digital Input Hardware | Detects equipment-state changes |
| Field Contacts | Generate discrete event signals |
| Protection Equipment | Generates trip and protection events |
| Controller Hardware | Processes control-system information |
| Operator Interface | Displays alarms and equipment conditions |
| Engineering Workstation | Supports event investigation |
The actual cable connection should follow the hardware arrangement of the installed INFI 90 system.
SOE Event Timing
SOE applications are most useful when the order of events matters.
Consider a pump protection event:
Pump Running → Protection Trip → Motor Contactor Drops Out → Pump Status Changes → Alarm Appears
Several signals may change within a short period. Time-correlated event records allow engineers to determine whether the protection trip preceded the equipment-status change or whether another condition occurred first.
The NKST11-15 supports the synchronization connection associated with this type of event chronology.
Typical information recorded in an SOE environment may include:
| Event Category | Example |
|---|---|
| Equipment Status | Running / Stopped |
| Breaker Status | Open / Closed |
| Protection Status | Normal / Trip |
| Valve Status | Open / Closed |
| Alarm Contact | Normal / Active |
| Interlock State | Permissive / Not Permissive |
| Motor Condition | Operating / Fault |
| Process Equipment | Start / Stop |
The usefulness of these records depends on the complete synchronization, I/O, and SOE configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Power Generation | Protection and trip-event analysis |
| Power Distribution | Breaker event chronology |
| Oil and Gas | Equipment shutdown investigation |
| Petrochemical Plants | Alarm and interlock analysis |
| Chemical Processing | Process-event sequencing |
| Water Treatment | Pump and valve event recording |
| Industrial Utilities | Equipment disturbance analysis |
| Process Automation | Time-correlated event monitoring |
Installation and Maintenance
The 15-foot length should be checked against the actual distance between the associated INFI 90 components before installation.
- Confirm the complete NKST11-15 model.
- Verify the application requires an INFI 90 SOE time synchronization cable.
- Confirm the required 15-foot cable length.
- Identify both cable connection points.
- Record the existing routing before removal.
- Inspect the connectors for damage or contamination.
- Check the cable jacket for cuts, crushing, or deformation.
- Avoid excessive bending during installation.
- Prevent unnecessary tension on the cable and connectors.
- Maintain the established routing where practical.
- Confirm both ends are fully seated.
- Check the associated synchronization hardware.
- Verify synchronization status after installation.
- Review newly generated SOE events.
- Check recorded event timestamps.
- Compare event timing with known equipment actions.
- Confirm the SOE sequence is being recorded as expected.
- Document the installed cable configuration.
If the system reports an SOE synchronization problem after cable replacement, inspect the entire timing path rather than focusing only on the cable.
Compatible System Components
| Component | Function |
|---|---|
| ABB Bailey NKST11-15 | INFI 90 SOE Time Synchronization Cable |
| ABB Bailey NKST11-10 | INFI 90 SOE Time Synchronization Cable |
| ABB Bailey NKST11 | INFI 90 SOE Time Synchronization Cable |
| ABB Bailey NKST01-10 | INFI 90 SOE Time Synchronization Cable |
| INFI 90 Control Hardware | Process-control infrastructure |
| SOE Hardware | Sequence-of-events recording |
| Time Synchronization Equipment | Provides common timing reference |
| Digital Input Hardware | Detects equipment-state changes |
| Protection Devices | Generate trip and protection events |
| Field Contacts | Provide discrete event signals |
| Operator Interface | Displays equipment and alarm conditions |
| Engineering Workstation | Supports event analysis |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB Bailey NKST11-15 | INFI 90 SOE Time Synchronization Cable | 15-foot SOE timing connection |
| ABB Bailey NKST11-10 | INFI 90 SOE Time Synchronization Cable | 10-foot SOE timing connection |
| ABB Bailey NKST11 | INFI 90 SOE Time Synchronization Cable | SOE synchronization connection |
| ABB Bailey NKST01-10 | INFI 90 SOE Time Synchronization Cable | 10-foot SOE timing connection |
| ABB Bailey INFI 90 | Distributed Control System | Industrial process control |
| ABB Bailey SOE Hardware | Sequence-of-Events Equipment | Event recording |
| ABB Bailey Digital Input Hardware | Discrete Input Equipment | Field-event acquisition |
Key Advantages
- ABB Bailey INFI 90 SOE Time Synchronization Cable.
- Model NKST11-15.
- 15-foot cable configuration.
- Supports SOE timing connections.
- Suitable for time-correlated event recording.
- Useful for trip and disturbance investigation.
- Applicable to INFI 90 maintenance work.
- Suitable for installations requiring a 15-foot synchronization connection.
Technical FAQs
What is the significance of the 15-foot length of the NKST11-15?
The specified cable length is 15 feet, allowing the cable to accommodate installations where the connected INFI 90 synchronization components are positioned farther apart than a shorter cable configuration would allow.
Can the NKST11-15 be treated as a standard field signal cable?
No. It is identified as an INFI 90 SOE Time Synchronization Cable. Its application is associated with the timing and synchronization architecture rather than ordinary field signal transmission.
What type of plant event investigation can benefit from SOE synchronization?
SOE synchronization is particularly useful when several actions occur close together during a disturbance. Protection trips, breaker operations, motor shutdowns, alarms, and interlocks can be compared by their recorded timing to reconstruct the sequence.
What should be investigated if SOE timing is abnormal after replacing the NKST11-15?
Check the cable connections, associated synchronization hardware, time-reference source, and system configuration. Reviewing newly recorded SOE events can help determine whether the problem is confined to the physical connection or originates elsewhere in the synchronization path.
