Product Overview

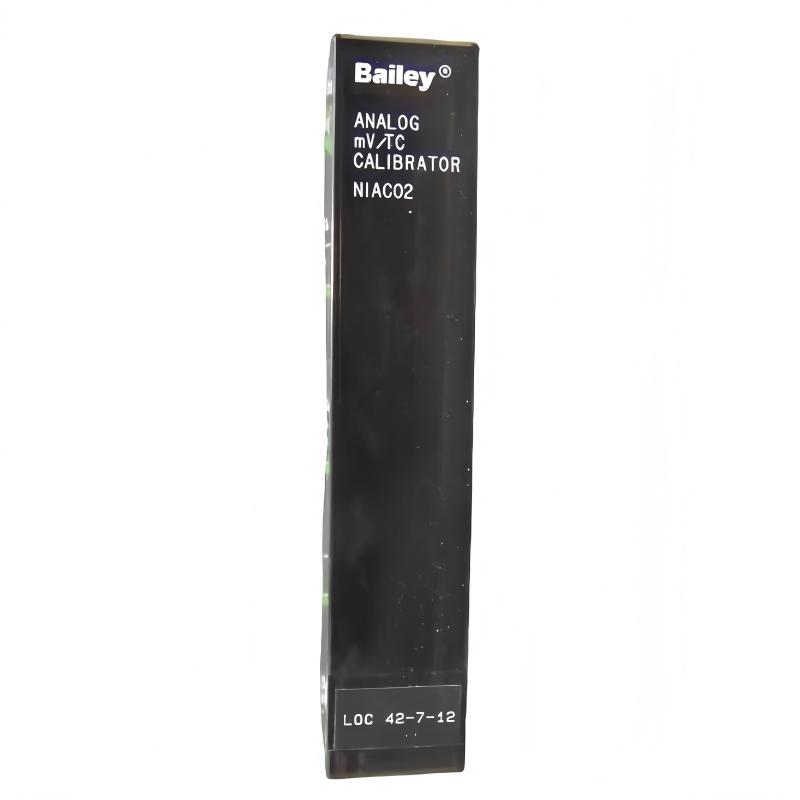

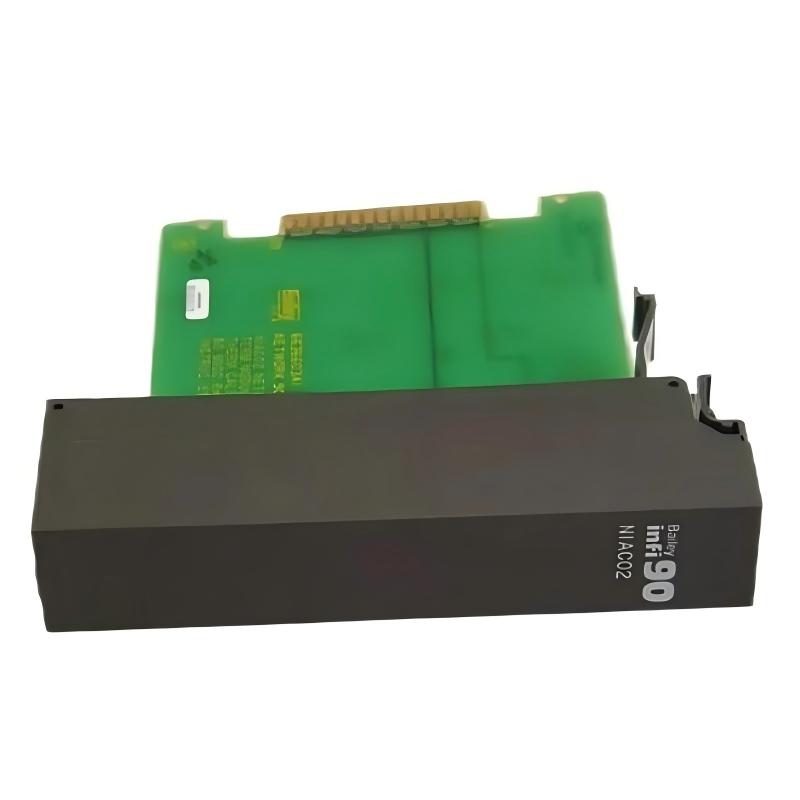

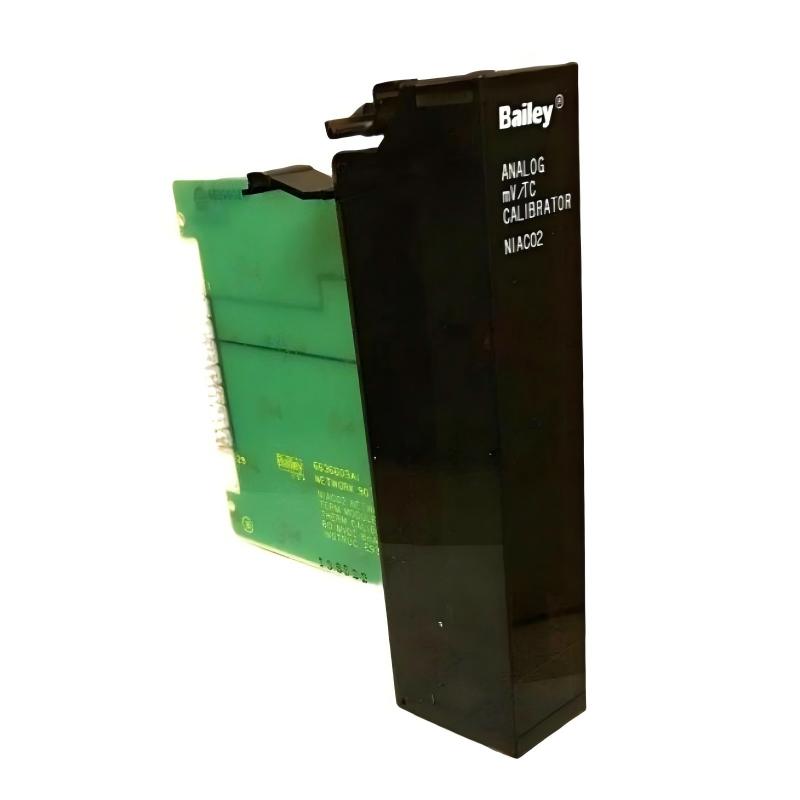

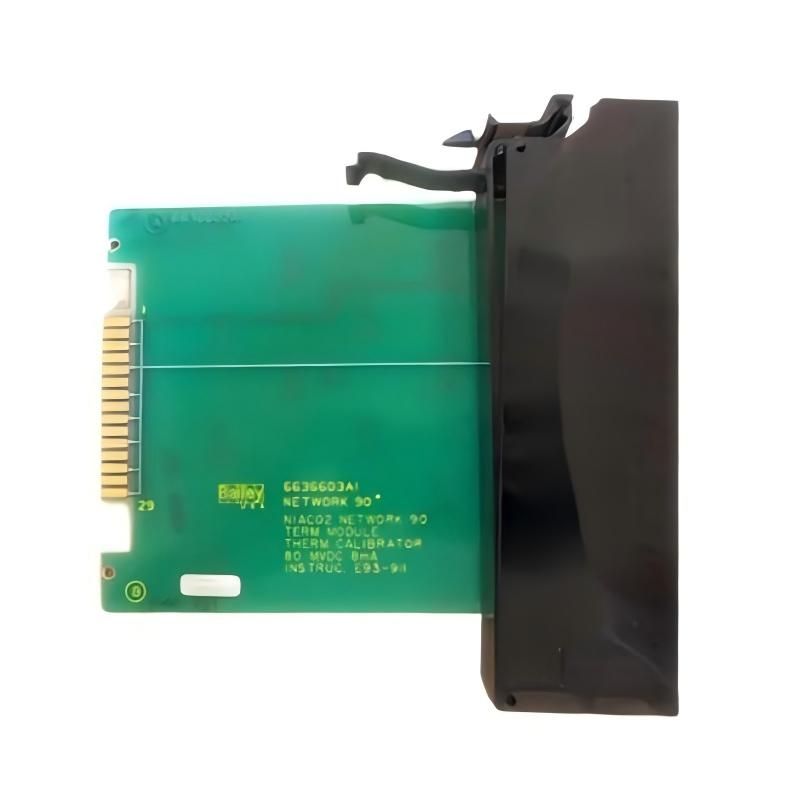

The ABB Bailey NIAC02 (6636603A1) Analog Input Calibration Module is an industrial signal calibration and conditioning module used in ABB Bailey INFI 90 / Net 90 Distributed Control Systems (DCS). It is designed to ensure accurate scaling, calibration, and validation of analog input signals received from field instruments such as transmitters, sensors, and process measurement devices.
This module plays a critical role in maintaining measurement accuracy, signal integrity, and system reliability in large-scale industrial automation environments. It helps compensate for signal drift, sensor variation, and loop inconsistencies, ensuring that process data remains precise and stable for control system decision-making.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB (Bailey) |
| Model | NIAC02 |
| Part Number | 6636603A1 |
| Product Type | Analog Input Calibration Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 DCS |
| Function | Analog signal calibration and conditioning |
| Input Signal Type | 4–20 mA / 1–5 VDC / standard industrial analog signals |
| Calibration Function | Zero/span adjustment and scaling correction |
| Signal Processing | Analog-to-digital conditioning interface |
| Channel Support | System-dependent multi-channel configuration |
| Isolation | Electrical isolation between field and system |
| Accuracy Adjustment | Software and hardware calibration support |
| Communication Interface | DCS backplane integration |
| Power Supply | +5 VDC (rack powered) |
| Power Consumption | Low-power module design |
| Installation Type | Rack-mounted module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions | 120 × 80 × 40 mm |
| Weight | 0.5 kg |
Function and Working Principle
The ABB NIAC02 operates as a precision calibration and signal correction layer within the DCS architecture.
Working principle:
- Analog signals from field instruments enter the system
- The module receives raw input signals through I/O interfaces
- Internal calibration circuits adjust zero and span values
- Signal scaling is applied to match engineering units
- Corrected data is transmitted to the control system
- The DCS uses calibrated values for process control decisions
This ensures high measurement accuracy and reduced signal deviation across long-term operation.
Role in Industrial Control Systems
Within ABB Bailey INFI 90 / Net 90 systems, the NIAC02 performs a critical support role in:
- Calibrating analog input signals from field transmitters
- Correcting sensor drift and signal deviation
- Ensuring accurate process variable measurement
- Supporting loop integrity in analog control systems
- Improving reliability of control and monitoring data
It acts as a signal accuracy assurance layer between field instrumentation and the control system.
Industrial Applications
The ABB NIAC02 is widely used in:
- Power generation plants
- Oil and gas processing systems
- Petrochemical and refinery automation
- Water treatment facilities
- Industrial process manufacturing
- ABB Bailey legacy DCS installations
- Critical measurement and control loops
It is especially important in systems requiring high-precision analog measurement and calibration stability.
Installation and System Integration
Proper installation ensures optimal calibration performance:
- Installed in ABB Bailey INFI 90 / Net 90 rack systems
- Connected to analog input signal termination units
- Requires proper backplane alignment for communication
- Calibration performed during commissioning and maintenance
- Must follow grounding and shielding requirements
- ESD protection required during handling
- Periodic recalibration recommended for accuracy retention
Compatible System Components
The NIAC02 typically works with:
- ABB Bailey analog input modules
- Field transmitters (pressure, temperature, flow sensors)
- Signal termination assemblies
- System controller modules
- Power supply units
- Backplane communication infrastructure
- Calibration and diagnostic tools
Together, these components form a high-accuracy ABB Bailey analog measurement system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| NIAC02 | Analog Input Calibration Module | Standard ABB Bailey calibration unit | INFI 90 / Net 90 systems |
| NIAI02 | Analog Input Interface Module | Signal conditioning support | Field input systems |
| NASI02 | Analog Input Slave Module | Multi-channel signal acquisition | Process control systems |
| AI02 | Advanced Analog Input Module | High-density input processing | Modern DCS platforms |
| AI03 | RTD Input Module | Temperature-specific measurement | Industrial monitoring |
Key Advantages
- Ensures high accuracy analog signal calibration
- Reduces sensor drift and measurement deviation
- Improves long-term system stability
- Compatible with ABB Bailey DCS architecture
- Enhances reliability of process data acquisition
- Supports continuous industrial operation
- Compact rack-mounted industrial design
Technical FAQs
Q1: What is the main function of ABB NIAC02?
It calibrates and corrects analog input signals for accurate measurement in DCS systems.
Q2: Does it process signals or only calibrate them?
It primarily performs calibration and signal conditioning rather than full control processing.
Q3: What systems is it used in?
It is used in ABB Bailey INFI 90 and Net 90 distributed control systems.
Q4: Why is calibration important in DCS systems?
Because it ensures accurate process data, which is essential for safe and reliable industrial control.
Conclusion
The ABB Bailey NIAC02 (6636603A1) Analog Input Calibration Module is a critical precision component in ABB Bailey distributed control systems. It ensures accurate calibration, signal stability, and reliable measurement of analog process variables across industrial automation environments.
With its robust design and essential calibration functionality, it remains a key module for maintaining measurement integrity in power, petrochemical, and process control industries.
