Product Overview

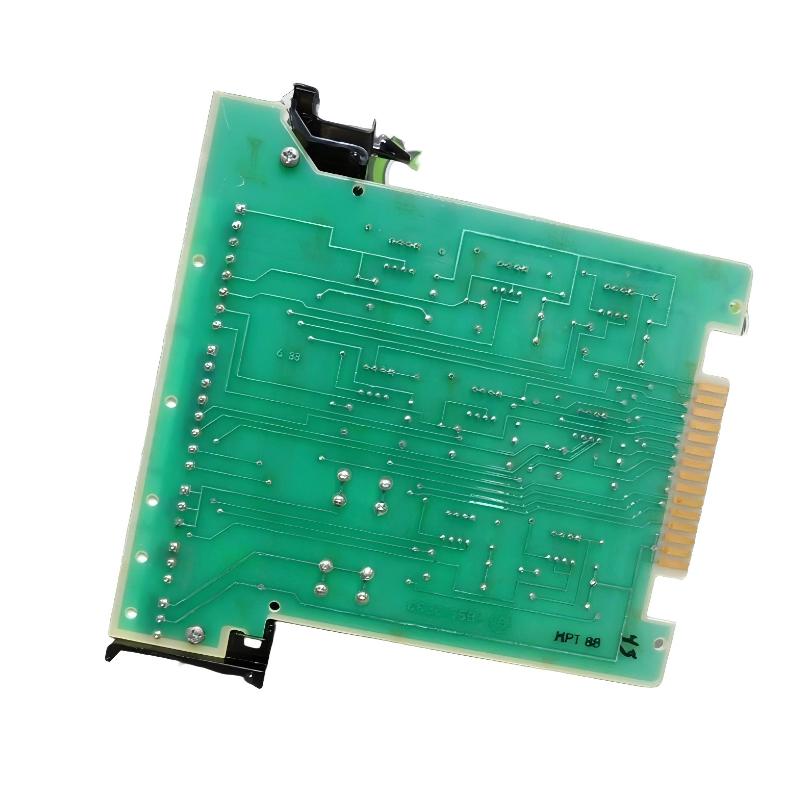

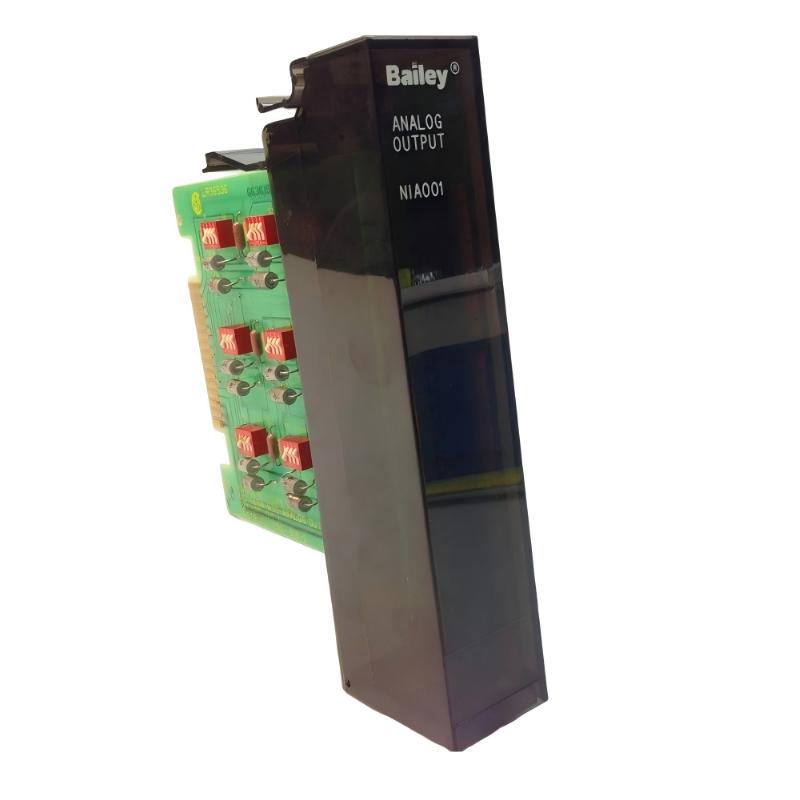

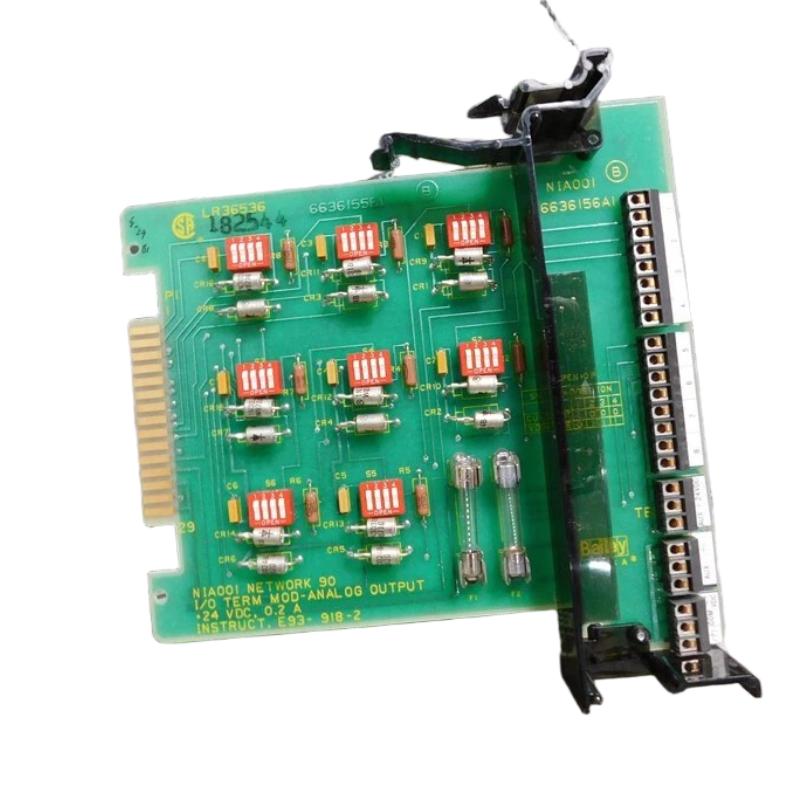

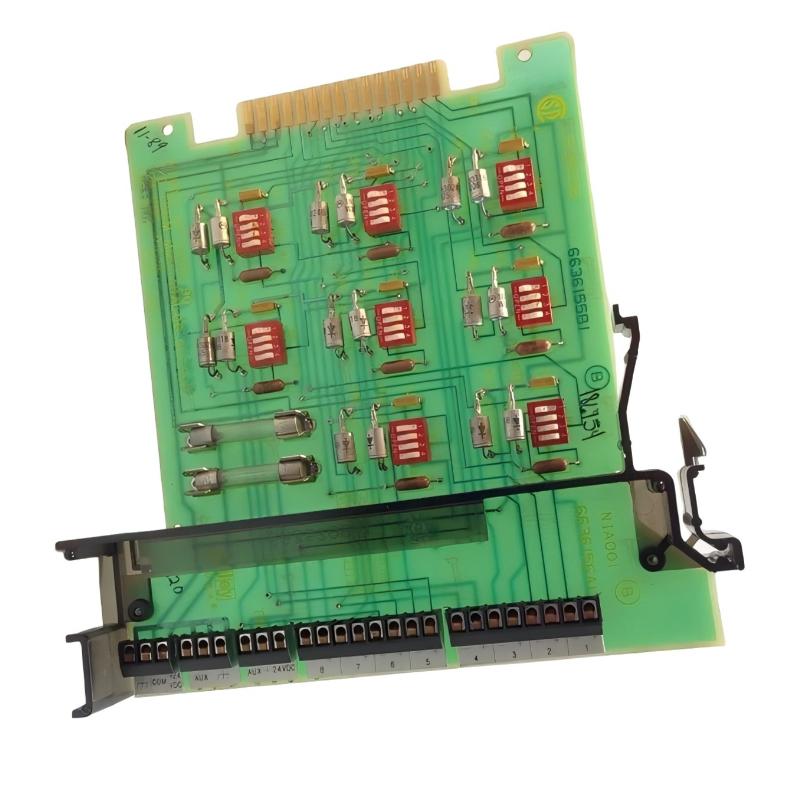

The ABB Bailey NIAO01 Analog Output Terminal Module is an industrial field termination module used in ABB Bailey INFI 90 / Net 90 Distributed Control Systems (DCS). It is designed to provide a structured interface between analog output modules and field devices such as actuators, valves, recorders, and control elements.
This module is a passive termination unit, meaning it does not generate or process signals. Instead, it organizes and routes analog output signals (such as 4–20 mA or 0–10 VDC) from the analog output module to field instruments in a stable and controlled wiring structure.
The NIAO01 is commonly used in systems requiring reliable signal distribution, reduced wiring complexity, and stable output loop integrity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB (Bailey) |
| Model | NIAO01 |
| Product Type | Analog Output Terminal Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 DCS |
| Function | Field analog output signal termination and routing |
| Signal Types | 4–20 mA / 0–10 VDC / 1–5 VDC (system dependent) |
| Channel Capacity | Typically 8–16 channels (depending on output module configuration) |
| Interface Type | Rack-mounted termination assembly |
| Electrical Role | Passive signal interface (no processing) |
| Power Requirement | None (passive module) |
| Signal Processing | None |
| Installation Type | Termination mounting unit (rack system) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions | 78.74 × 215.9 × 233.68 mm |
| Weight | 0.7 kg |
Function and Working Principle
The ABB NIAO01 operates as a signal distribution and termination interface for analog output systems.
Working principle:
- The analog output module generates control signals (current or voltage)
- Signals are transmitted from the output module to the NIAO01 terminal module
- The module organizes outputs into structured field wiring channels
- Signals are routed to field devices such as valves, actuators, and indicators
- Field equipment responds based on analog control signals from the DCS
This ensures stable signal transmission, reduced wiring errors, and improved system maintainability.
Role in Industrial Control Systems
Within ABB Bailey INFI 90 / Net 90 systems, the NIAO01 plays a key role in:
- Terminating analog output wiring from output modules
- Distributing control signals to field devices
- Reducing cabinet wiring complexity
- Improving maintenance and troubleshooting efficiency
- Supporting stable loop signal integrity
It acts as a passive infrastructure layer between analog output modules and field actuators.
Industrial Applications
The ABB NIAO01 is widely used in:
- Power generation control systems
- Oil and gas processing facilities
- Petrochemical and refinery automation
- Water treatment systems
- Industrial process control environments
- ABB Bailey legacy DCS installations
- Large-scale analog control systems
It is especially important in applications requiring precise and stable analog control signal distribution.
Installation and System Integration
Proper installation ensures reliable operation:
- Installed in ABB Bailey INFI 90 / Net 90 rack systems
- Connected directly to analog output modules (IMASO series)
- Field wiring routed to actuators, valves, and control devices
- Requires proper grounding and shielding for noise reduction
- Must follow structured wiring and loop design standards
- Installed by qualified control system engineers
- Used alongside DCS output processing modules
Compatible System Components
The NIAO01 typically works with:
- ABB Bailey analog output modules (IMASO / IMAOM series)
- Field actuators and control valves
- Signal isolators and conditioning units
- System backplane communication infrastructure
- Power supply modules for I/O racks
- DCS controllers and processor modules
- Industrial instrumentation devices
Together, these form a complete ABB Bailey analog output control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| NIAO01 | Analog Output Terminal Module | Standard ABB Bailey output termination unit | INFI 90 / Net 90 systems |
| NIAO02 | Output terminal module variant | Improved wiring organization | Medium-large systems |
| NIAO03 | Enhanced termination module | Higher channel density support | Complex output systems |
| IMASO01 | Analog output slave module | Active signal generation | Control layer |
| IMAOM01 | Advanced output module | High-precision output control | Process automation |
Key Advantages
- Simplifies analog output wiring structure
- Improves system organization and maintainability
- Reduces installation complexity and errors
- Ensures stable signal routing to field devices
- Compatible with ABB Bailey DCS systems
- Supports reliable 4–20 mA control loops
- Industrial-grade passive design for long-term stability
Technical FAQs
Q1: What is the main function of ABB NIAO01?
It provides termination and routing for analog output signals to field devices.
Q2: Does it generate or process signals?
No. It is a passive interface module only.
Q3: What systems use NIAO01?
It is used in ABB Bailey INFI 90 and Net 90 distributed control systems.
Q4: Why is it important in DCS systems?
Because it ensures organized wiring and stable analog output signal delivery.
Conclusion
The ABB Bailey NIAO01 Analog Output Terminal Module is a fundamental infrastructure component in ABB Bailey distributed control systems. It provides reliable field signal termination, structured wiring organization, and stable connectivity between analog output modules and field control devices.
Its passive but essential role ensures long-term signal integrity and maintainability in industrial automation environments such as power plants, petrochemical facilities, and process control systems.
