Product Overview

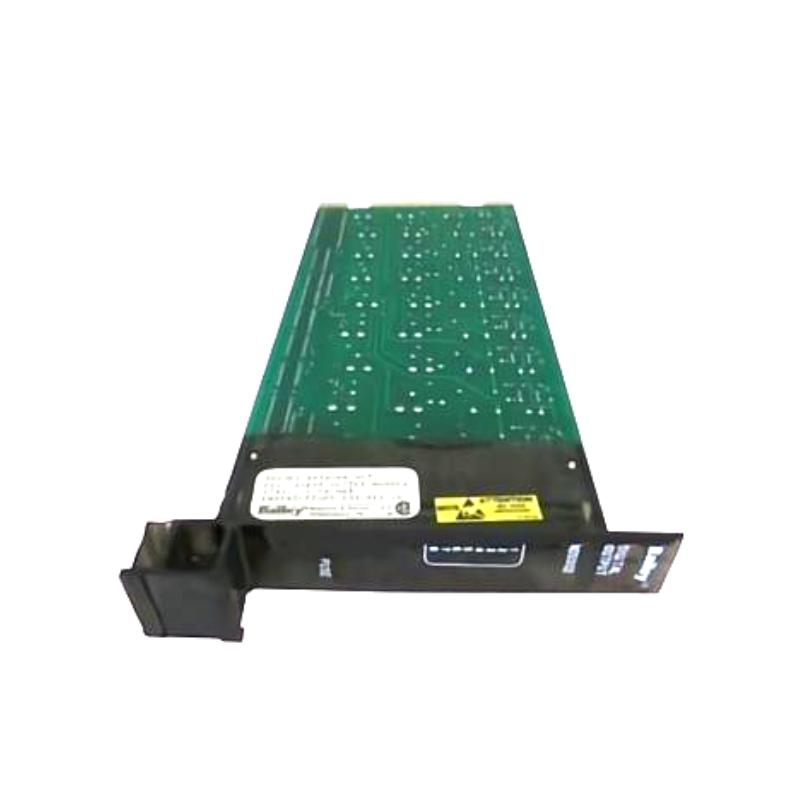

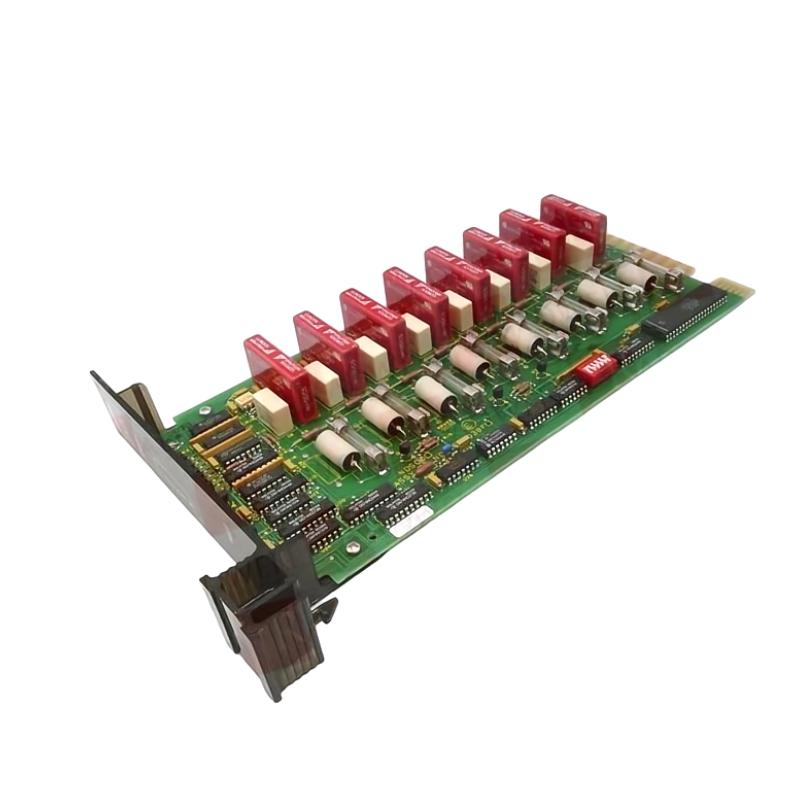

The ABB Bailey NDSO02 Digital Output Module is an industrial-grade digital signal output module designed for ABB Bailey INFI 90 / Network 90 Distributed Control Systems (DCS). It is used to convert control logic commands from the system controller into reliable ON/OFF electrical signals that drive field devices such as relays, solenoids, alarms, and actuators.
This module plays a key role in industrial automation environments where precise and stable output control is required for continuous process operation. It is widely used in power plants, petrochemical facilities, and large-scale process control systems.
By ensuring accurate signal execution, the NDSO02 contributes directly to system reliability, safety interlocking, and process control execution integrity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB (Bailey) |
| Model | NDSO02 |
| Product Type | Digital Output Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 DCS |
| Function | Digital ON/OFF signal output control |
| Output Channels | Multi-channel (system dependent configuration) |
| Output Type | Discrete digital outputs |
| Output Voltage | Typically 24 VDC system logic level |
| Signal Interface | Backplane / rack communication |
| Isolation | Channel-to-system electrical isolation |
| Response Time | Real-time control execution (ms-level) |
| Installation Type | Rack-mounted module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 150 × 150 × 50 mm |
| Weight | 0.6 kg |
| Protection Features | Electrical isolation, surge protection, fault tolerance |
Function and Working Principle
The ABB NDSO02 operates as an output execution interface between the control system and field devices.
Its working process includes:
- The DCS controller sends logic commands to the module
- The module processes and maps digital output signals
- Electrical isolation circuits ensure safe signal transfer
- Output channels activate field devices (ON/OFF control)
- Status feedback is transmitted back to the control system
This structure ensures fast, stable, and deterministic control output behavior even in high-load industrial environments.
Role in Industrial Control Systems
Within ABB Bailey architectures, the NDSO02 serves as a critical execution layer component responsible for:
- Driving actuators and control valves
- Operating alarm and safety signaling systems
- Executing interlock and sequence control logic
- Translating DCS commands into physical actions
- Supporting real-time industrial automation workflows
It acts as the final control interface between digital logic and physical process equipment.
Industrial Applications
The ABB NDSO02 is widely used in:
- Oil and gas production systems
- Petrochemical and refinery automation
- Power generation plants
- Water treatment and utility systems
- Industrial manufacturing automation
- ABB Bailey legacy DCS installations
- Process safety and emergency shutdown systems
Its reliability makes it suitable for continuous-duty and mission-critical environments.
Installation and System Integration
Proper installation is essential for stable operation:
- Installed into ABB Bailey INFI 90 / Net 90 system racks
- Connected to field wiring for actuators and output devices
- Requires proper grounding and shielding for noise reduction
- Must be configured within DCS control logic environment
- Should be verified during commissioning and system testing
- Regular maintenance ensures stable long-term operation
Compatible System Components
The NDSO02 typically works alongside:
- ABB Bailey controller modules
- Digital input modules (for feedback loops)
- I/O termination units
- System power supply modules
- Field actuators and relay interfaces
- Communication and backplane modules
- Safety interlock and logic modules
Together, these components form a complete ABB Bailey distributed control architecture.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| NDSO02 | Digital Output Module | Standard ABB Bailey output control | INFI 90 systems |
| IMDSI02 | Digital Output Slave Module | Enhanced output interface design | Distributed control systems |
| IMDSO02 | Digital Output Module | Improved signal handling | Modernized DCS upgrades |
| NDSM02 | Digital I/O Module | Combined input/output functionality | Compact system configurations |
| NTDO02 | Output termination module | Signal distribution interface | Rack-level output expansion |
Key Advantages
- Reliable real-time digital output control
- Stable operation in harsh industrial environments
- Full compatibility with ABB Bailey DCS systems
- Electrical isolation for improved safety
- Supports complex interlock and sequence logic
- Designed for continuous 24/7 industrial operation
- Long lifecycle with minimal maintenance requirements
Technical FAQs
Q1: What is the main function of ABB NDSO02?
It converts DCS logic commands into physical ON/OFF output signals for field devices.
Q2: Is it an input or output module?
It is a digital output module.
Q3: What systems does it support?
It is used in ABB Bailey INFI 90 and Net 90 distributed control systems.
Q4: What devices can it control?
It can control relays, solenoids, alarms, and industrial actuators.
Conclusion
The ABB Bailey NDSO02 Digital Output Module is a core execution component in ABB Bailey distributed control systems. It ensures accurate and reliable conversion of control commands into physical output signals, enabling stable automation, safety interlocking, and process control in industrial environments.
With its robust design and proven reliability, it remains an essential module in legacy ABB DCS architectures used across power generation, oil & gas, and process industries.
