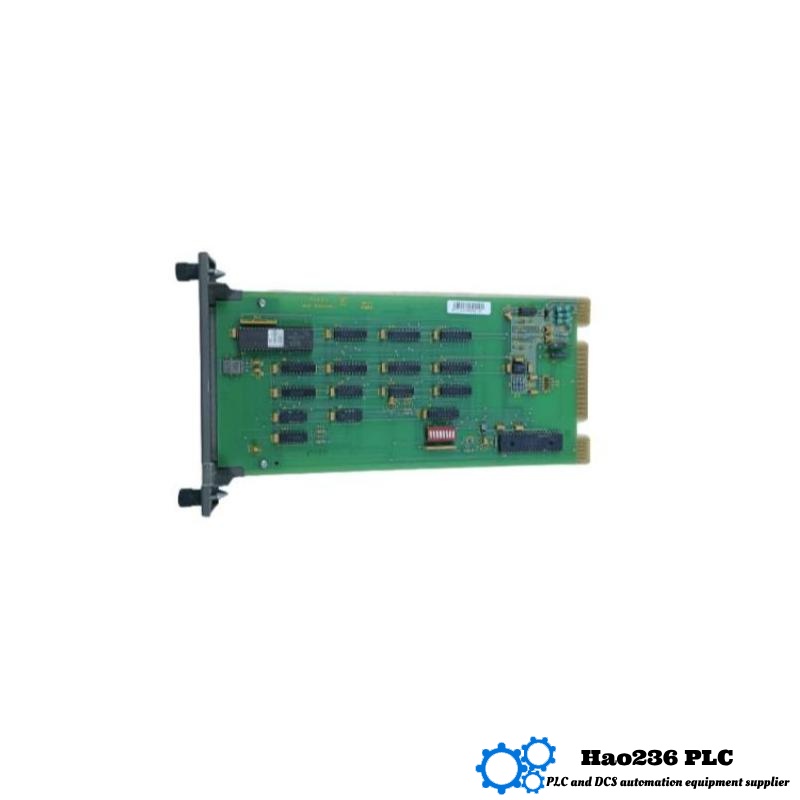

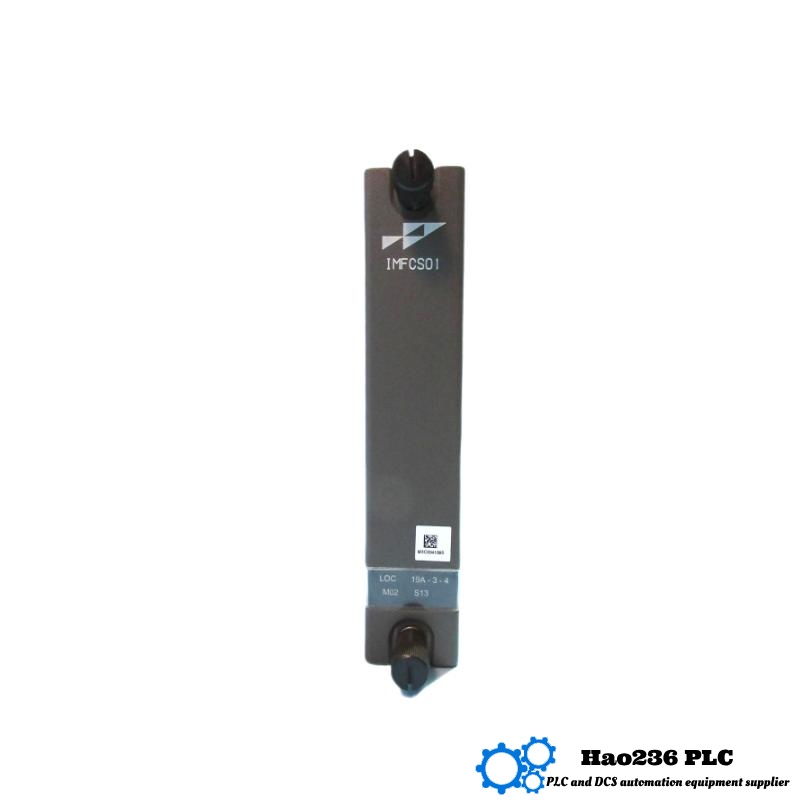

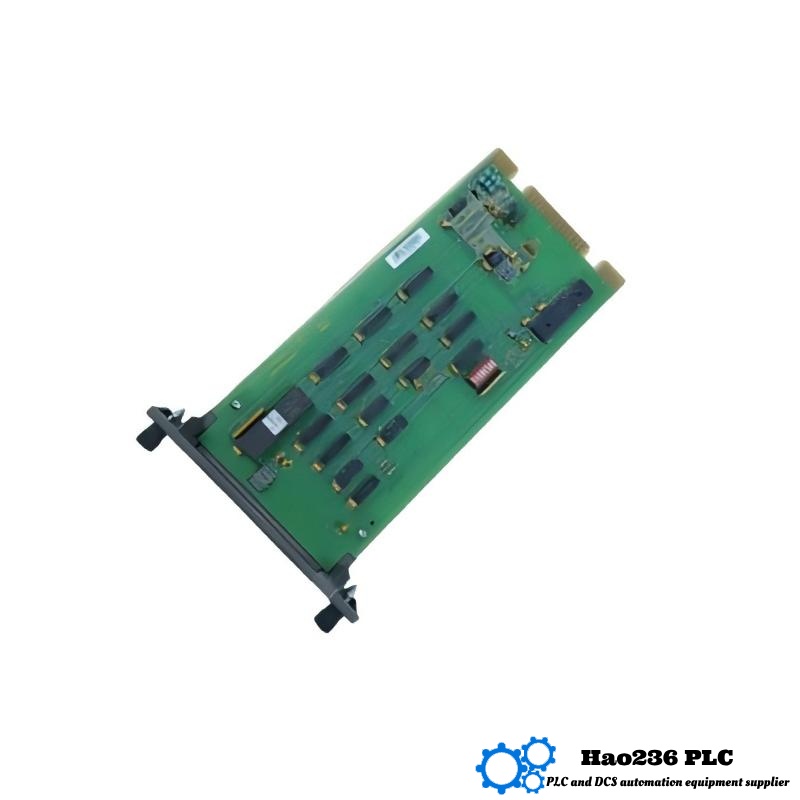

ABB Bailey IMFCS01 Frequency Counter Module
Product Overview
The ABB Bailey IMFCS01 is a highly reliable frequency counter module designed for industrial automation and control applications. It offers precise frequency measurement with a robust design suitable for various industries, including power generation, manufacturing, and process control.
With its compact size and expandable input channels, the IMFCS01 provides accurate real-time frequency data essential for monitoring and controlling equipment such as motors, turbines, and pumps.
Product Parameters
| Parameter | Value |
|---|---|
| Model | IMFCS01 |
| Type | Frequency Counter Module |
| Dimensions | 178 x 127 x 35 mm |
| Weight | 0.186 kg |
| Input Signal Type | Digital Frequency Signals |
| Frequency Range | 1 Hz to 1 MHz |
| Input Channels | 2 (expandable) |
| Output Type | Digital |
| Power Supply | 24 V DC |
| Operating Temperature Range | -40°C to +70°C |
| Communication Interface | Modbus RTU |
| Protection Rating | IP20 |
| Mounting | DIN Rail |
| Accuracy | ±0.01% of full scale |
Product Introduction
The ABB Bailey IMFCS01 module is engineered for precise frequency measurement in demanding industrial environments. Designed to capture frequency inputs from machinery and field devices, it plays a crucial role in automation systems that require reliable and accurate data.
This module supports two digital frequency input channels with an option to expand, ensuring flexibility. The broad frequency range of 1 Hz to 1 MHz and high accuracy allow it to adapt to a wide variety of applications, making it a trusted component in ABB Bailey’s control system portfolio.
Product Advantages
-
High Accuracy: ±0.01% measurement accuracy ensures dependable frequency data.
-
Wide Frequency Range: Supports 1 Hz to 1 MHz, fitting diverse application needs.
-
Reliable Communication: Modbus RTU protocol for seamless integration.
-
Compact and Lightweight: Easy installation with dimensions of 178 x 127 x 35 mm and weight of 0.186 kg.
-
Expandable Input Channels: Adaptable to evolving system requirements.
-
Durable Design: IP20 protection rating and -40°C to +70°C operational range suit harsh industrial conditions.
Applications
-
Power Generation: Frequency monitoring of turbines and generators for optimized energy production.
-
Automated Manufacturing: Monitoring of motors, conveyors, and rotating machinery to enhance efficiency.
-
Process Control: Real-time data acquisition in chemical, pharmaceutical, and other processing plants.
-
Water Treatment: Frequency measurement in pumps and valves to ensure smooth operation.
-
Energy Management: Critical frequency measurement in renewable energy systems like wind turbines.
Brand: ABB Bailey
ABB Bailey is a distinguished brand under the global ABB umbrella, specializing in industrial automation and control solutions. With decades of experience, ABB Bailey is recognized for delivering high-quality, innovative products that enable efficient, safe, and reliable operation across industries such as energy, manufacturing, and infrastructure.
The brand’s commitment to precision engineering, robustness, and technological advancement has made ABB Bailey a trusted partner for industrial automation worldwide. The IMFCS01 is a prime example of their dedication to creating modules that meet stringent industrial standards while ensuring easy integration and scalability.
Related Models
| Model | Input Channels | Frequency Range | Operating Temp. | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IMFCS02 | 4 | 1 Hz to 1 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.19 |
| IMFCS03 | 2 | 1 Hz to 2 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.18 |
| IMFCS04 | 3 | 1 Hz to 500 kHz | -40°C to +70°C | 178 x 127 x 35 | 0.20 |
| IMFCS05 | 2 | 10 Hz to 10 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.19 |
| IMFCS06 | 4 | 1 Hz to 1 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.20 |
Popular ABB Models
| Model | Type | Input Channels | Frequency Range | Operating Temp. | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| IMFCS10 | Frequency Counter | 4 | 1 Hz to 2 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.19 |
| IMFCS20 | Frequency Counter | 2 | 1 Hz to 500 kHz | -40°C to +70°C | 178 x 127 x 35 | 0.18 |
| IMFCS30 | Frequency Counter | 2 | 1 Hz to 1 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.19 |
| IMFCS40 | Frequency Counter | 3 | 1 Hz to 2 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.20 |
| IMFCS50 | Frequency Counter | 2 | 1 Hz to 10 MHz | -40°C to +70°C | 178 x 127 x 35 | 0.20 |
FAQ
-
Q: What frequency range does the ABB Bailey IMFCS01 support?
A: It supports frequencies from 1 Hz to 1 MHz. -
Q: How many input channels are available on the IMFCS01?
A: There are 2 input channels, expandable as needed. -
Q: What is the operating temperature range?
A: The module operates between -40°C and +70°C. -
Q: Which communication protocol does the IMFCS01 use?
A: It uses Modbus RTU. -
Q: What power supply does the IMFCS01 require?
A: It requires a 24 V DC power supply. -
Q: What is the protection rating?
A: The module has an IP20 protection rating. -
Q: Can the IMFCS01 be mounted on a DIN rail?
A: Yes, it supports DIN rail mounting. -
Q: What is the weight and size of the IMFCS01?
A: It weighs 0.186 kg and measures 178 x 127 x 35 mm. -
Q: What types of signals does it measure?
A: It measures digital frequency signals. -
Q: In which industries is the IMFCS01 commonly used?
A: It is widely used in power generation, manufacturing, process control, and water treatment industries.
