Product Overview

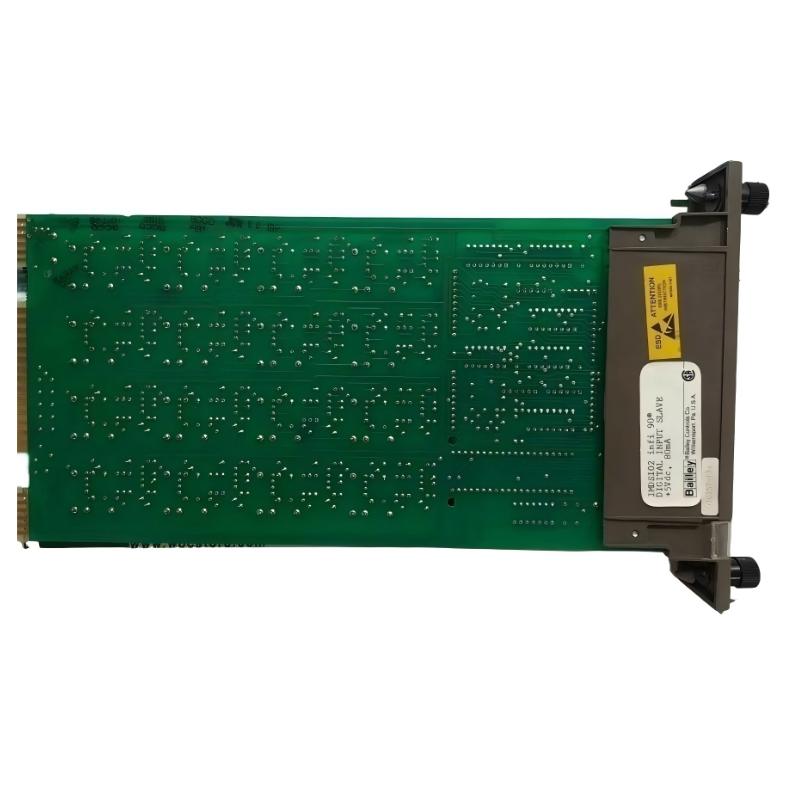

The ABB Bailey IMDSI02 Digital Input Slave Module is part of the ABB INFI 90 / Network 90 distributed control system (DCS). It is designed to acquire discrete (ON/OFF) signals from field devices such as switches, relays, and sensors, and transmit these signals to the main controller through a slave communication architecture.
It is widely used in legacy ABB Bailey automation systems, especially in power generation, oil & gas, petrochemical, and heavy process industries, where reliable digital signal acquisition is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB (Bailey) |
| Model | IMDSI02 |
| Product Type | Digital Input Slave Module |
| System | INFI 90 / Network 90 DCS |
| Function | Acquisition of digital field signals |
| Input Channels | Typically 16 digital inputs |
| Input Type | 24 VDC / dry contact (system dependent) |
| Signal Processing | Debounce filtering, isolation, state conversion |
| Isolation | Electrical isolation between field and system |
| Communication | Slave expander bus to controller module |
| Installation Type | Rack-mounted module |
| Application | Industrial process monitoring and control |
| Dimensions | 120 × 80 × 60 mm |
| Weight | 0.454 kg |
Function and Working Principle
The IMDSI02 operates as a digital signal acquisition slave module within the ABB Bailey DCS architecture.
Its main functions include:
- Receiving ON/OFF signals from field devices
- Converting electrical states into system-readable digital data
- Filtering noise and contact bounce from mechanical switches
- Providing electrical isolation for system protection
- Transmitting signal status to the master controller
It ensures reliable detection of discrete industrial events in real time.
Role in Industrial Control Systems
Within ABB INFI 90 systems, the IMDSI02 belongs to the distributed digital input layer.
Typical roles include:
- Monitoring equipment status (RUN/STOP/FAULT)
- Reading switch and relay signals
- Supporting interlock and safety logic inputs
- Providing feedback to control strategies
- Enabling alarm and event detection
Industrial Applications
The ABB IMDSI02 is commonly used in:
- Power generation plants
- Oil and gas facilities
- Petrochemical and refinery industries
- Chemical processing plants
- Water treatment systems
- Industrial automation systems
- Legacy ABB Bailey INFI 90 / Network 90 installations
Installation and System Integration
For stable operation:
- Install in ABB INFI 90 compatible rack systems
- Ensure correct slot configuration and addressing
- Use shielded cables for signal integrity
- Maintain proper grounding to reduce electrical noise
- Separate signal wiring from high-voltage power lines
- Perform input verification during commissioning
Compatible System Components
The IMDSI02 typically works with:
- ABB Bailey INFI 90 controllers (BRC / MFP series)
- Analog input/output modules (AIN series)
- Other digital I/O modules (MDS / MDO series)
- Power supply modules
- Field devices (switches, relays, sensors)
- System backplanes and racks
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| IMDSI02 | Digital Input Slave Module | Standard 16-channel DI module | ABB INFI 90 systems |
| MDS122 | Digital Input Module | Compact DI module | Field signal monitoring |
| IMCIS02 | Control I/O Module | Mixed analog + digital I/O | Complex control systems |
| ABB DO modules | Digital Output Modules | Output control functions | Actuation systems |
| HIMA F8652E | Safety Digital Input Module | Safety-rated input handling | SIS / ESD systems |
Key Advantages
- Reliable acquisition of digital field signals
- Strong electrical isolation for industrial safety
- Stable performance in noisy environments
- Seamless integration with ABB Bailey systems
- Supports standard ON/OFF signal types
- Robust design for continuous operation
- Suitable for critical monitoring applications
- Proven performance in legacy DCS environments
Technical FAQs
What is the main function of IMDSI02?
It receives digital ON/OFF signals from field devices and sends them to the ABB control system.
What type of signals does it support?
Typically 24 VDC or dry contact discrete signals.
Is it an input or output module?
It is a digital input slave module.
Where is it used?
In ABB Bailey INFI 90 / Network 90 distributed control systems.
Conclusion
The ABB Bailey IMDSI02 Digital Input Slave Module is a key component in ABB’s legacy DCS architecture. Its reliable digital signal acquisition, strong isolation, and stable industrial performance make it essential for monitoring discrete field events in large-scale automation systems.
