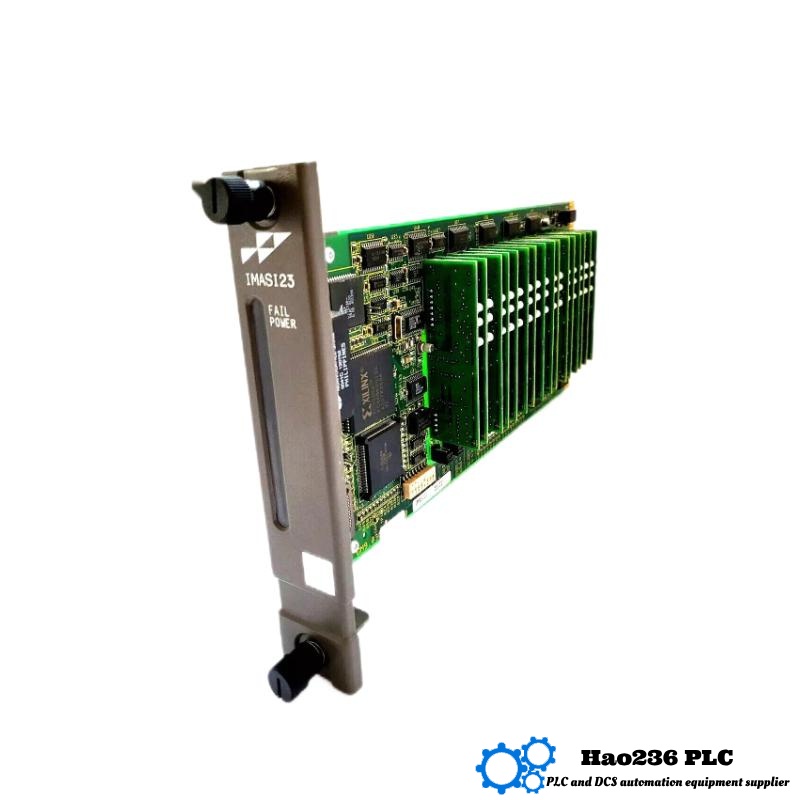

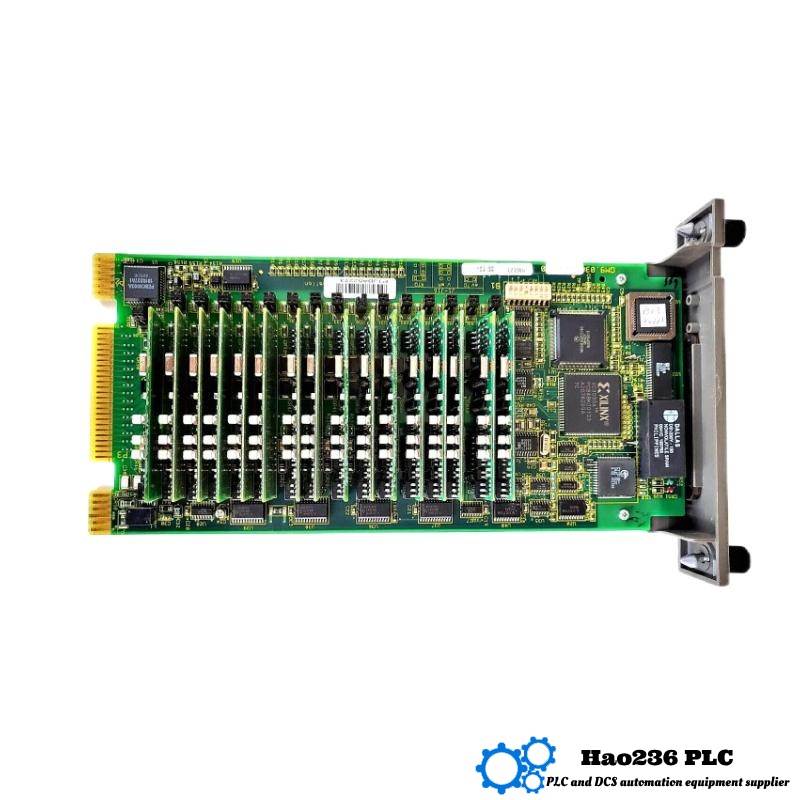

ABB Bailey IMASI23 Analog Input Module
Product Overview
The ABB Bailey IMASI23 is an analog input module designed for use in industrial control and automation systems. It provides high-precision analog signal input and is part of ABB’s advanced control solutions, ensuring high reliability and accuracy in process control systems. The module is engineered for use with ABB’s control systems, making it a vital component in industrial automation.
Product Specifications
| Parameter | Description |
|---|---|
| Module Type | Analog Input Module |
| Brand | ABB |
| Series | Not applicable (ABB Bailey) |
| Dimensions (W x H x D) | 200 x 100 mm |
| Weight | 0.4 kg |
| Input Range | ±10 V, ±20 mA |
| Resolution | 16-bit |
| Power Consumption | 24 V DC ± 10% |
| Temperature Range | –20°C to +60°C |
| Mounting Type | Rack-mountable |
Product Applications
The ABB Bailey IMASI23 analog input module is primarily used in industrial process control systems. It can be applied in:
-
Oil and Gas: For monitoring and controlling pressure, temperature, and flow in pipelines and refineries.
-
Power Generation: In power plants to monitor variables like temperature and pressure of different plant processes.
-
Chemical Processing: To ensure precise control of various chemical reactions and temperatures.
-
Water Treatment: Monitoring levels and pressure in water treatment facilities.
Product Advantages
-
High Precision: The 16-bit resolution ensures accurate readings, which are essential for precision control in sensitive industrial applications.
-
Wide Temperature Range: With an operating temperature range from –20°C to +60°C, this module performs well in various harsh industrial environments.
-
Ease of Integration: Designed to be easily integrated into ABB’s automation systems, making it a flexible choice for users of ABB systems.
-
Compact Design: Its compact dimensions (200 x 100 mm) and lightweight design (0.4 kg) allow for easy installation and space optimization in control racks.
-
Durable: Built for reliability, it ensures continuous operation in demanding environments.
Recommended Products from ABB Bailey Series
Here are five related or similar models from the ABB Bailey range:
| Model | Description | Dimensions (mm) | Weight (kg) | Input Type |
|---|---|---|---|---|
| IMASI24 | Analog input module for industrial use | 200 x 100 | 0.5 | ±20 mA |
| IMASI21 | 16-channel analog input module | 200 x 100 | 0.5 | ±10 V, ±20 mA |
| IMASI22 | Analog input module with isolation | 200 x 100 | 0.5 | ±10 V |
| IMASD23 | Digital output module | 200 x 100 | 0.45 | N/A |
| IMAXI21 | High-speed analog input module | 200 x 100 | 0.45 | ±5 V, ±10 V |
Top 5 Popular ABB Bailey Models
These are some other well-regarded models from ABB Bailey:
| Model | Description | Dimensions (mm) | Weight (kg) | Input Type |
|---|---|---|---|---|
| IMDCI15 | Digital control module with 16 I/O | 200 x 100 | 0.55 | Digital |
| IMAI10 | High-resolution analog input module | 200 x 100 | 0.5 | ±5 V |
| IMLDB12 | High-speed digital output module | 200 x 100 | 0.48 | Digital |
| IMCSP24 | Signal processing module | 200 x 100 | 0.52 | N/A |
| IMTCS31 | Temperature control module | 200 x 100 | 0.55 | ±10 V, RTD |
FAQ for ABB Bailey IMASI23 Analog Input Module
Q1: What is the purpose of the ABB Bailey IMASI23?
A1: The IMASI23 is designed to convert analog signals into digital signals for process control applications, ensuring precise monitoring and control of various industrial processes.
Q2: What is the power requirement for the IMASI23 module?
A2: The IMASI23 requires a 24 V DC power supply with a tolerance of ±10%.
Q3: What is the maximum operating temperature for the IMASI23?
A3: The IMASI23 can operate in temperatures ranging from –20°C to +60°C, making it suitable for use in many industrial environments.
Q4: What is the resolution of the IMASI23?
A4: The IMASI23 offers a 16-bit resolution for highly accurate signal conversion.
Q5: How many inputs does the IMASI23 support?
A5: The IMASI23 module supports multiple analog inputs, typically two or four channels depending on the configuration.
Q6: How is the IMASI23 installed?
A6: The module is designed for rack mounting, making it easy to integrate into ABB control systems and panels.
Q7: Can the IMASI23 be used in hazardous environments?
A7: Yes, the IMASI23 is designed for industrial environments and can be used in areas with challenging conditions such as power plants, oil refineries, and chemical plants.
Q8: Is the IMASI23 compatible with other ABB modules?
A8: Yes, the IMASI23 is fully compatible with other ABB Bailey modules, ensuring seamless integration into ABB automation systems.
Q9: What types of signals can the IMASI23 handle?
A9: The IMASI23 can handle signals such as ±10 V and ±20 mA, making it versatile for various industrial applications.
Q10: How durable is the IMASI23?
A10: The IMASI23 is built to last with a robust design suitable for demanding industrial environments, offering long-term reliability.
