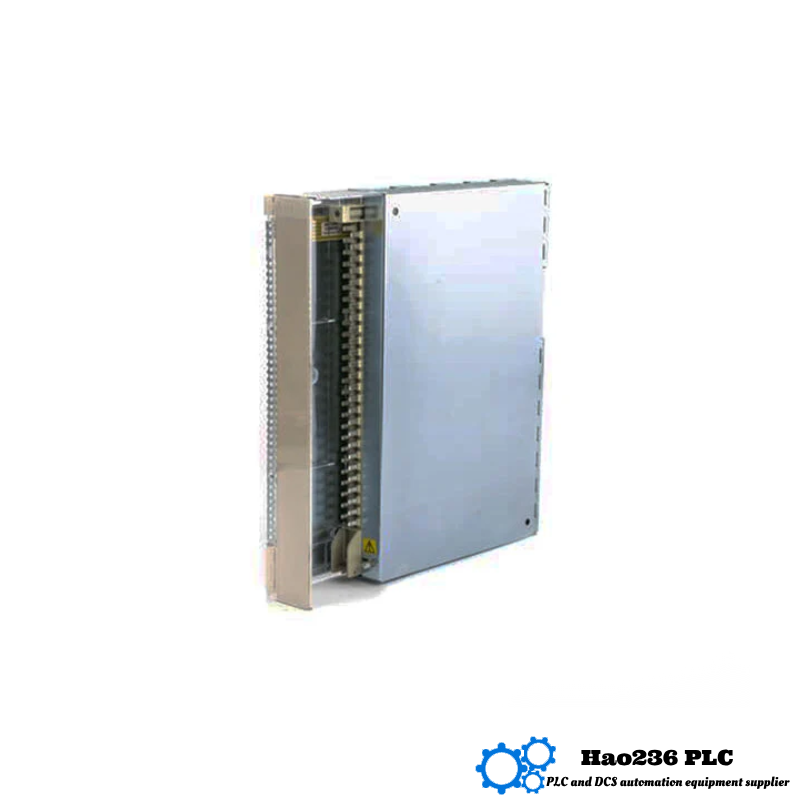

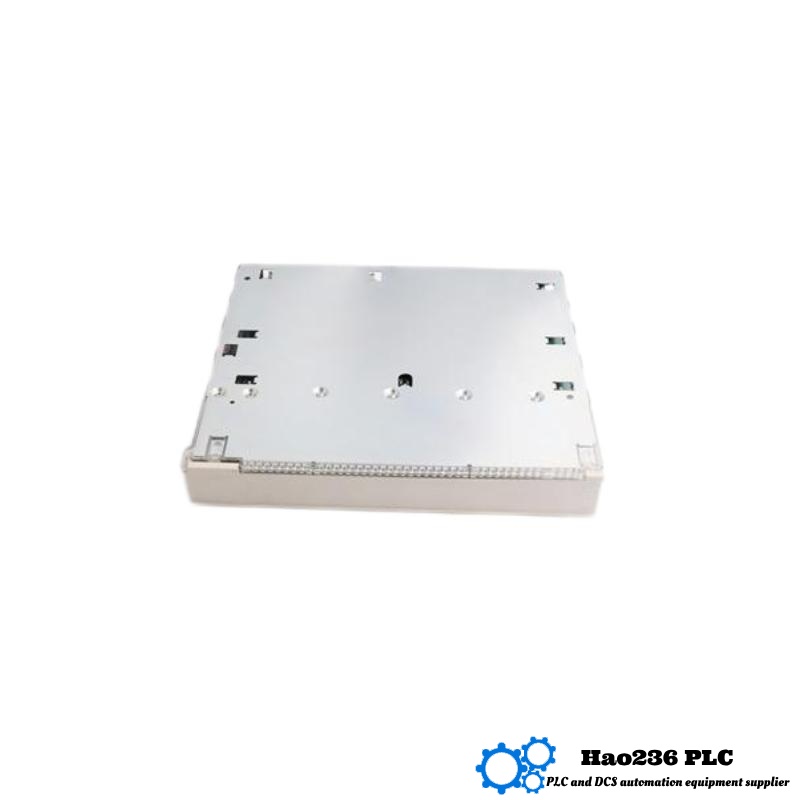

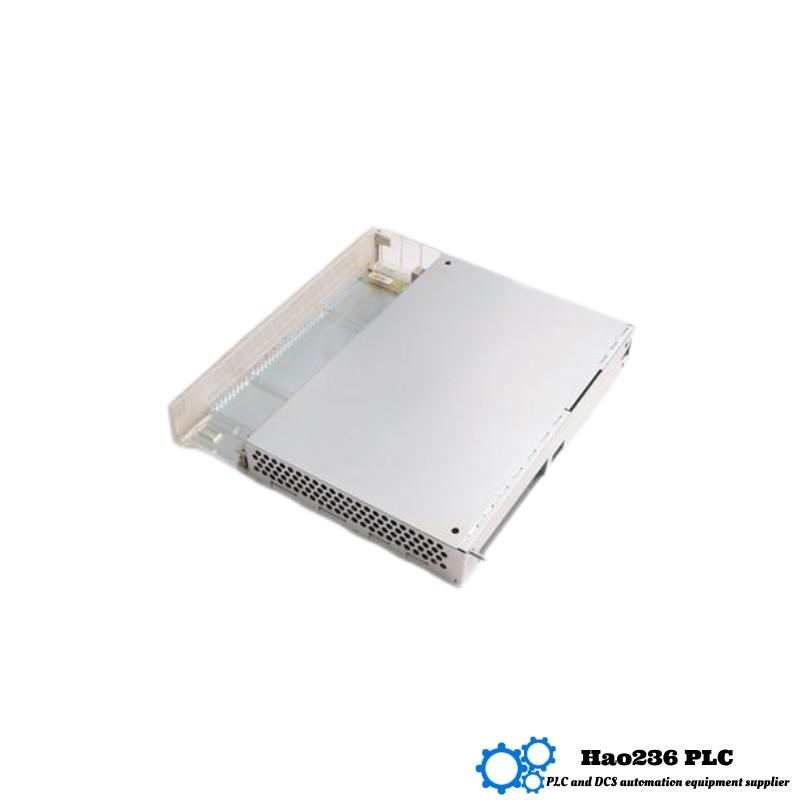

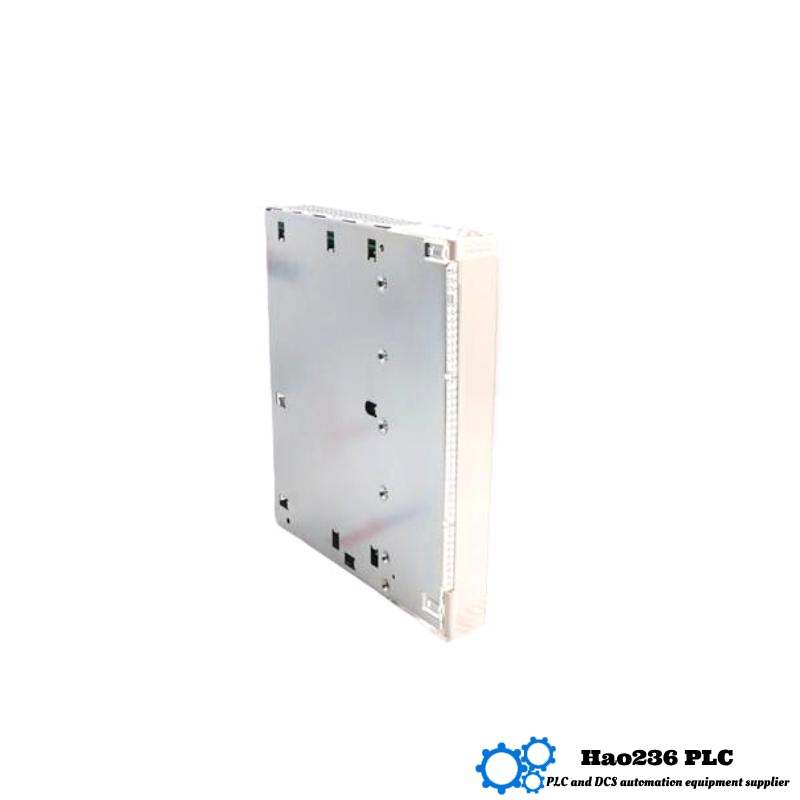

ABB AO610 3BSE018184R1 Analog Output Module
Product Overview
The ABB AO610 3BSE018184R1 is an advanced analog output module designed for use in industrial control systems, specifically as part of the S600 I/O series. This module converts digital signals into analog outputs for controlling various industrial equipment like motors, actuators, and other devices that require analog input. The AO610 is ideal for systems where high accuracy, reliable performance, and modular flexibility are essential.
The AO610 module supports 16 output channels and provides accurate analog signals in the form of 0-20 mA or 4-20 mA. It is designed for integration in ABB’s S600 I/O system, ensuring seamless interoperability and robust functionality across a range of industries, from process control to building automation.
Technical Parameters
| Parameter | Value |
|---|---|
| Model Number | AO610 3BSE018184R1 |
| I/O Type | Analog Output Module |
| Output Range | 0-20 mA / 4-20 mA |
| Number of Outputs | 16 |
| Accuracy | ±0.1% of Full Scale |
| Supply Voltage | 24 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (L x W x H) | 120 x 100 x 50 mm |
| Weight | 0.5 kg |
| Mounting Type | DIN Rail Mountable |
| Power Consumption | 4.5 W |
| Status Indicators | LED indicators for I/O status |
| Compliance | CE, UL certified |
| Protection Class | IP20 (Indoor use) |
Product Applications
The ABB AO610 module is applicable in various industries that rely on precise analog control. Some key applications include:
-
Process Control: Used to control actuators, valves, and motors in industries such as oil & gas, chemical, and water treatment where precise analog signals are needed.
-
Building Automation: Integrated into HVAC systems, lighting controls, and energy management systems to provide analog signals to various devices and systems.
-
Factory Automation: Ideal for controlling robotic systems, CNC machines, and industrial conveyors that require fine-grained analog input.
-
Power Generation and Distribution: In power plants, it is used for controlling electrical loads and ensuring precise operations.
-
Energy Management: Helps in controlling and monitoring energy consumption and distribution within large facilities.
Product Advantages
-
Precision and Accuracy: The AO610 offers high-precision analog outputs with an accuracy of ±0.1% of the full scale, ensuring the reliability of control signals for critical applications.
-
High Channel Density: With 16 outputs, the AO610 allows for efficient space utilization in control systems, enabling complex operations with fewer modules.
-
Robust Design: Designed to operate in industrial environments, the AO610 features a rugged design, with a wide temperature range of -20°C to +60°C and IP20 protection.
-
Seamless Integration: As part of the S600 I/O series, the AO610 module can easily be integrated into ABB’s larger automation systems, simplifying installation and maintenance.
-
Energy Efficient: With a power consumption of only 4.5 W, the module is energy-efficient, minimizing operational costs.
-
Clear Status Indicators: The AO610 features LED indicators that provide a clear indication of the module’s operational status, aiding in quick diagnostics and minimizing downtime.
Brand Overview
ABB is a global leader in providing automation, robotics, electrification, and digitalization solutions. The S600 I/O series is part of ABB’s automation and control systems, designed to offer flexibility, scalability, and modularity. These modules are used widely in industrial, energy, and commercial applications, ensuring reliability, precision, and performance across various sectors.
Related Models in the S600 I/O Series
| Model Number | Description | Number of Outputs | Dimensions (L x W x H) | Weight | Output Range |
|---|---|---|---|---|---|
| AO611 | Analog Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-20 mA / 4-20 mA |
| DO610 | Digital Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| DI610 | Digital Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AI610 | Analog Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
| AO620 | Analog Output Module with Extended Range | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
Popular ABB Models
| Model Number | Description | Number of Outputs | Dimensions (L x W x H) | Weight | Output Range |
|---|---|---|---|---|---|
| AI611 | Analog Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
| DO611 | Digital Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AO602 | Analog Output Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 0-20 mA |
| DO602 | Digital Output Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AI602 | Analog Input Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V |
FAQ (Frequently Asked Questions)
Q1: What is the output range of the ABB AO610?
A1: The AO610 provides 0-20 mA or 4-20 mA analog output signals.
Q2: How many outputs does the AO610 have?
A2: The AO610 has 16 analog outputs.
Q3: What is the power supply required for the AO610?
A3: The module operates on a 24 V DC power supply.
Q4: What is the protection class of the AO610?
A4: The AO610 has an IP20 protection class, suitable for indoor use.
Q5: What is the operating temperature range of the AO610?
A5: The operating temperature range is -20°C to +60°C.
Q6: What are the dimensions of the AO610 module?
A6: The dimensions are 120 x 100 x 50 mm.
Q7: How much does the AO610 weigh?
A7: The weight of the AO610 is 0.5 kg.
Q8: Can the AO610 be mounted on a DIN rail?
A8: Yes, the AO610 can be mounted on a DIN rail for easy installation.
Q9: What are the status indicators for the AO610?
A9: The module has LED indicators to show the status of the I/O channels.
Q10: Is the AO610 compatible with other S600 I/O modules?
A10: Yes, the AO610 is fully compatible with other modules in the S600 I/O series, making it ideal for expanding I/O systems.
