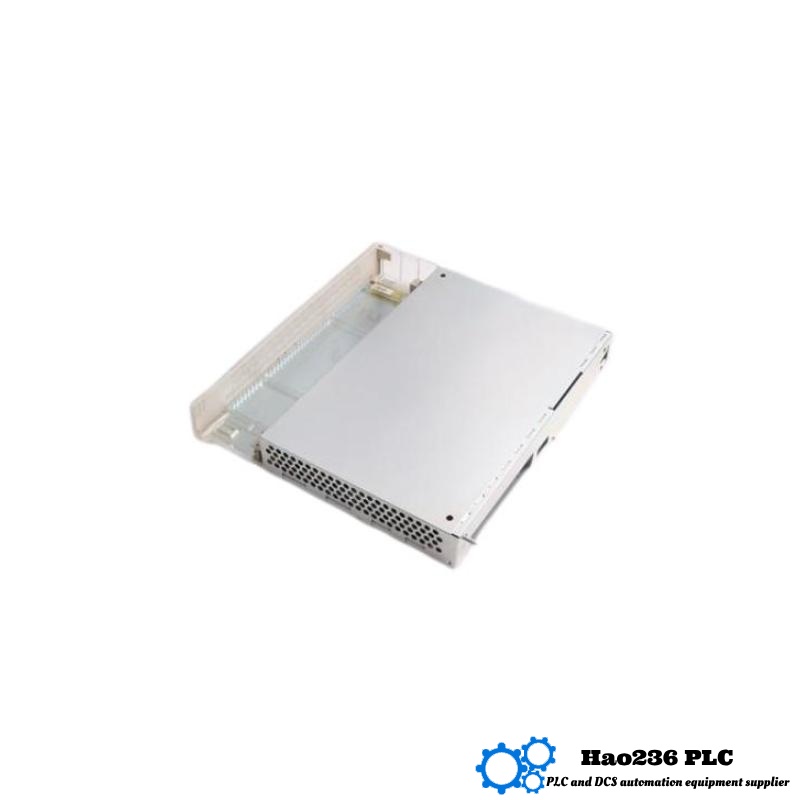

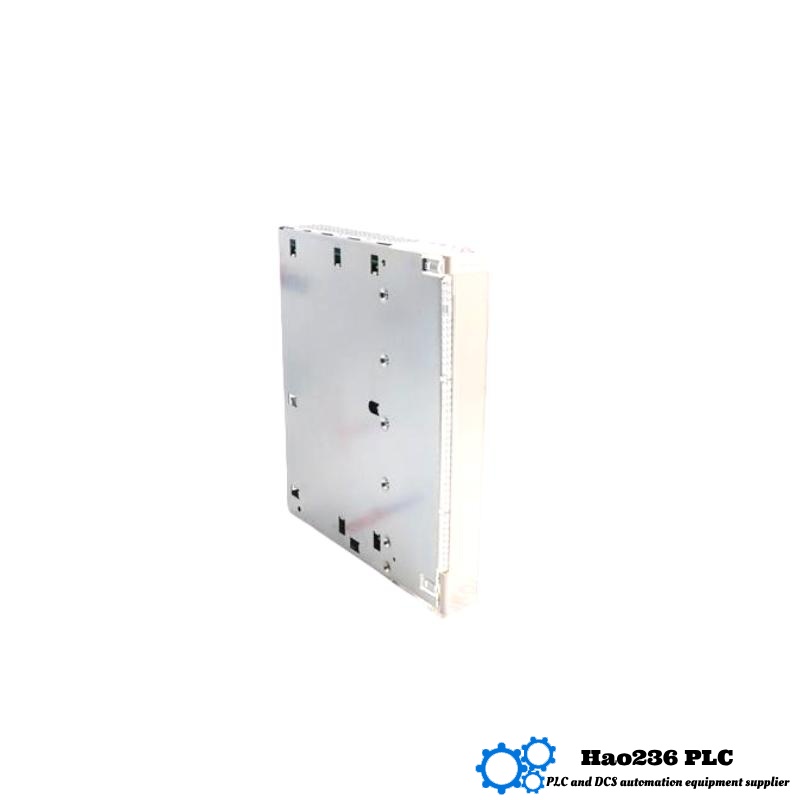

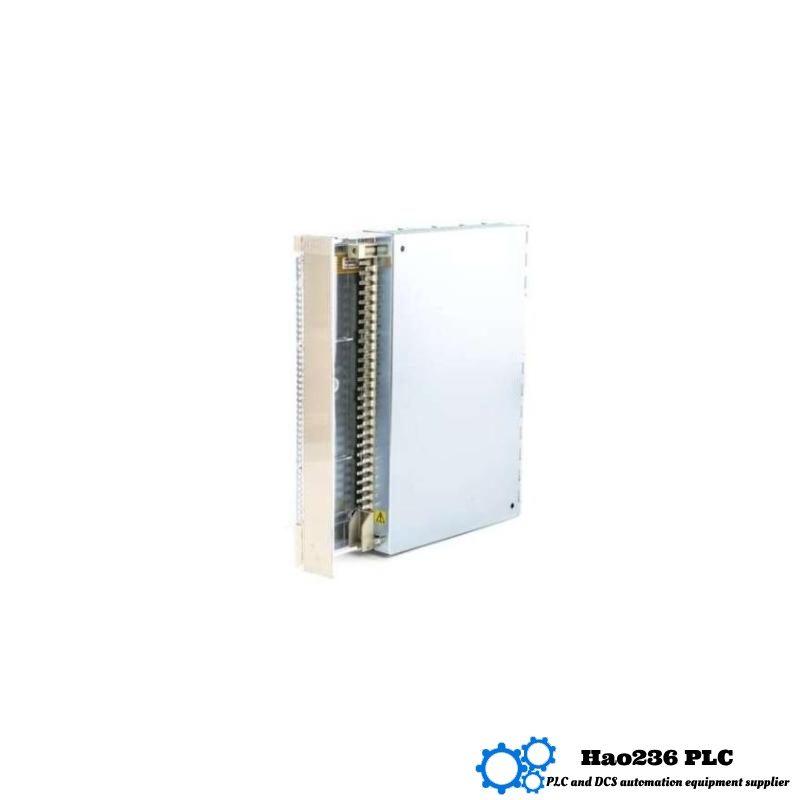

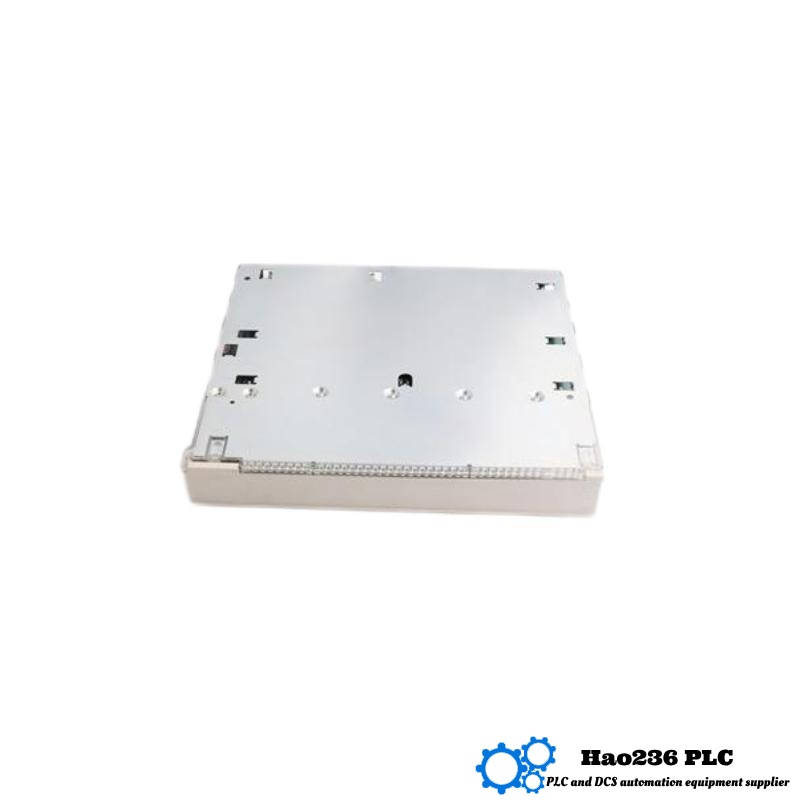

ABB AO610 3BHT300008R1 Analog Output Module
Product Overview
The ABB AO610 3BHT300008R1 is a high-performance analog output module designed to provide continuous and reliable analog output in control systems, particularly in the S600 I/O series. This module plays a crucial role in automation applications by converting digital signals into analog signals for interfacing with actuators or other analog systems. It offers precision and durability, making it ideal for industrial environments where high accuracy is essential.
The AO610 is an essential component in modern automation systems, offering 16 output channels with a wide output range and excellent accuracy. It is designed to work seamlessly with ABB’s S600 I/O system, ensuring compatibility and easy integration into automation setups.
Technical Parameters
| Parameter | Value |
|---|---|
| Model Number | AO610 3BHT300008R1 |
| I/O Type | Analog Output Module |
| Output Range | 0-20 mA / 4-20 mA |
| Number of Outputs | 16 |
| Accuracy | ±0.1% of Full Scale |
| Supply Voltage | 24 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (L x W x H) | 120 x 100 x 50 mm |
| Weight | 0.5 kg |
| Mounting Type | DIN Rail Mountable |
| Power Consumption | 4.5 W |
| Status Indicators | LED indicators for I/O status |
| Compliance | CE, UL certified |
| Protection Class | IP20 (Indoor use) |
Product Applications
The ABB AO610 module is highly versatile and is suitable for a variety of industrial applications, including:
-
Process Control: Used for controlling analog actuators like valves, motors, and dampers in processes such as chemical, oil & gas, and water treatment.
-
Building Automation: Integrates into HVAC and lighting control systems to provide precise analog outputs to control environmental systems.
-
Factory Automation: Interfacing with industrial equipment such as robotic arms, CNC machines, and conveyors where analog signals are needed for precise motion control.
-
Energy Management: Used in power generation and distribution systems to control and monitor electrical loads.
-
Test Equipment: Ideal for laboratory or production test benches where controlled analog outputs are required for various testing purposes.
Product Advantages
-
High Precision Output: The AO610 provides 16 analog outputs with high precision, delivering 0-20 mA or 4-20 mA signals, which are commonly used in industrial control systems.
-
Wide Compatibility: Designed for seamless integration with ABB’s S600 I/O series, ensuring compatibility and easy installation in automated systems.
-
Durable and Reliable: Built to handle industrial environments, with a wide operating temperature range of -20°C to +60°C and IP20 protection, ensuring long-term reliability.
-
Compact Design: Its compact dimensions (120 x 100 x 50 mm) make it easy to install in space-constrained areas without sacrificing performance.
-
LED Status Indicators: Features LED indicators that clearly show the status of each output, improving troubleshooting and maintenance efficiency.
-
Energy Efficient: Consumes only 4.5 W of power, making it energy-efficient for continuous operations in industrial setups.
Brand Overview
ABB is a global leader in electrification, robotics, automation, and motion technologies. The company is known for providing cutting-edge solutions that help industries improve efficiency, reduce downtime, and enhance operational performance. The S600 I/O series is part of ABB’s control system offerings, designed to provide flexible, modular, and scalable solutions for various industrial automation applications. The AO610 is one of the core modules in this series, providing high-performance analog output capabilities for a wide range of applications.
Related Models in the S600 I/O Series
| Model Number | Description | Number of Outputs | Dimensions (L x W x H) | Weight | Output Range |
|---|---|---|---|---|---|
| AO611 | Analog Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-20 mA / 4-20 mA |
| DO610 | Digital Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| DI610 | Digital Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AI610 | Analog Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
| AO620 | Analog Output Module with Extended Range | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
Popular ABB Models
| Model Number | Description | Number of Outputs | Dimensions (L x W x H) | Weight | Output Range |
|---|---|---|---|---|---|
| AI611 | Analog Input Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V / 4-20 mA |
| DO611 | Digital Output Module | 16 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AO602 | Analog Output Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 0-20 mA |
| DO602 | Digital Output Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 24 V DC |
| AI602 | Analog Input Module | 8 | 120 x 100 x 50 mm | 0.5 kg | 0-10 V |
FAQ (Frequently Asked Questions)
Q1: What is the output range of the ABB AO610?
A1: The AO610 provides 0-20 mA or 4-20 mA analog output signals.
Q2: How many outputs does the AO610 have?
A2: The AO610 has 16 analog outputs.
Q3: What is the power supply required for the AO610?
A3: The module operates on 24 V DC power supply.
Q4: What is the protection class of the AO610?
A4: The AO610 has an IP20 protection class, suitable for indoor use.
Q5: What is the operating temperature range of the AO610?
A5: The operating temperature range is -20°C to +60°C.
Q6: What are the dimensions of the AO610 module?
A6: The dimensions are 120 x 100 x 50 mm.
Q7: How much does the AO610 weigh?
A7: The weight of the AO610 is 0.5 kg.
Q8: Can the AO610 be mounted on a DIN rail?
A8: Yes, the AO610 can be mounted on a DIN rail for easy installation.
Q9: What are the status indicators for the AO610?
A9: The module has LED indicators to show the status of the I/O channels.
Q10: Is the AO610 compatible with other S600 I/O modules?
A10: Yes, the AO610 is fully compatible with other modules in the S600 I/O series, making it ideal for expanding I/O systems.
