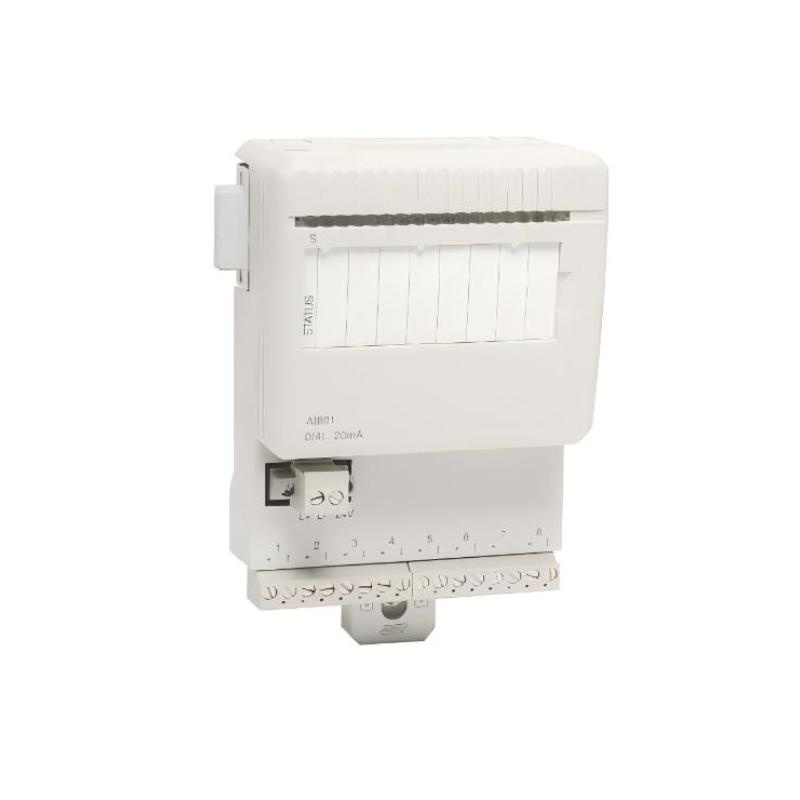

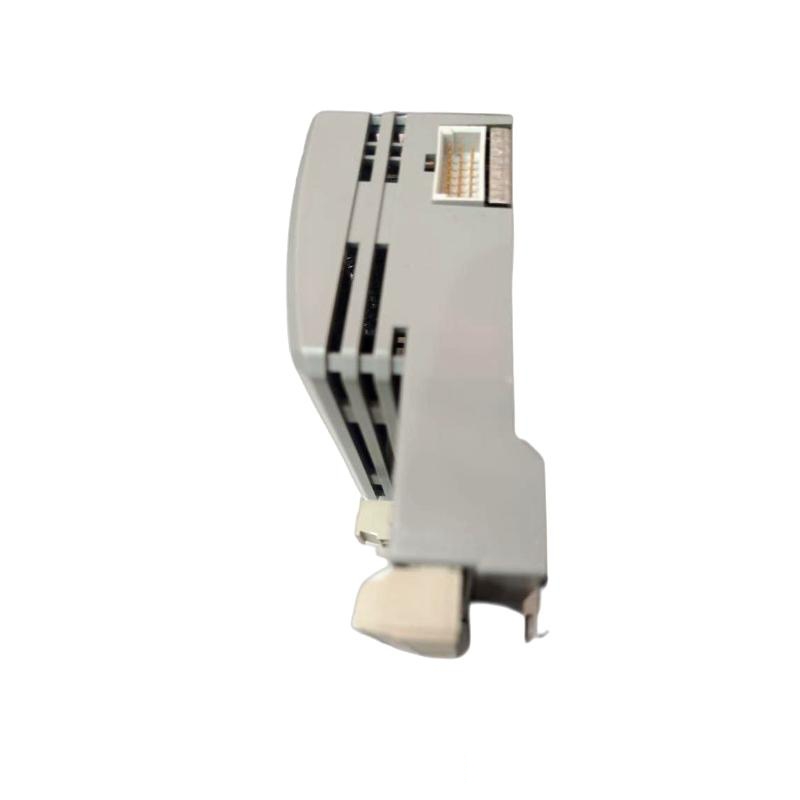

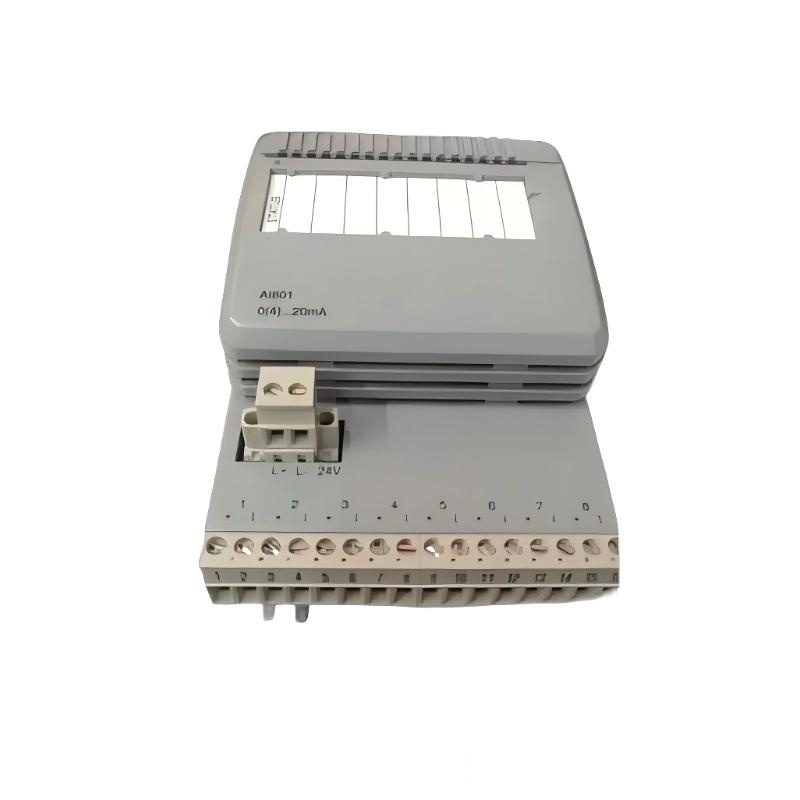

ABB AI801-eA 3BSE020512R2 8-Channel Analog Input Module
Product Overview
The ABB AI801-eA 8-channel analog input module (part number 3BSE020512R2) is a high-performance component designed for use in the ABB AC500 and AC800M automation systems. This module provides reliable and accurate measurements of analog signals, making it ideal for industrial applications that require continuous monitoring of process variables such as temperature, pressure, and flow. Its robust design ensures stable operation even in harsh environments.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | 8-Channel Analog Input Module |
| Model Number | 3BSE020512R2 |
| Dimensions (L x W x H) | 86.1 x 110 x 58.5 mm |
| Weight | 0.275 kg |
| Input Range | 0 to 20 mA, 0 to 10 V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 1 MΩ |
| Power Consumption | 3.3 W |
| Operating Temperature | -25°C to +60°C |
| Mounting Type | DIN Rail |
Product Applications
The ABB AI801-eA module is widely used in industrial automation systems, particularly in industries such as:
-
Process Control: Measuring physical variables like temperature, pressure, or flow to monitor and control processes.
-
Energy Management: Used to monitor energy consumption and ensure efficient operations.
-
Machine Monitoring: Provides real-time data for condition monitoring of machines and equipment.
-
Environmental Monitoring: Ideal for measuring environmental parameters in industries like chemical processing and oil & gas.
Product Advantages
-
High Precision: Offers 16-bit resolution, providing highly accurate measurements.
-
Wide Input Range: Capable of handling both current (0-20 mA) and voltage (0-10 V) signals.
-
Compact and Reliable: The compact design makes it ideal for space-constrained applications while still maintaining a high level of reliability.
-
Broad Operating Range: With an operating temperature range of -25°C to +60°C, it can be used in various industrial environments.
-
Easy Installation: The module is DIN rail mountable, making installation quick and straightforward.
-
Low Power Consumption: Consumes only 3.3W, making it energy-efficient and suitable for long-term use.
Brand and Series
-
Brand: ABB
-
Series: AC500 Series
Similar Models or Related Products
Here are five similar models within the AC500 series or related products:
| Model | Description | Input Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| AI801-eB | 8-channel analog input module, similar to AI801-eA but with extended features | 8 | 86.1 x 110 x 58.5 mm | 0.280 kg |
| AI802 | 16-channel analog input module | 16 | 171.5 x 110 x 58.5 mm | 0.500 kg |
| AI801-eC | 8-channel high-speed analog input module | 8 | 86.1 x 110 x 58.5 mm | 0.290 kg |
| AI803 | 12-channel analog input module | 12 | 130 x 110 x 58.5 mm | 0.400 kg |
| AI800 | 4-channel analog input module | 4 | 86.1 x 110 x 58.5 mm | 0.200 kg |
Popular ABB Models
Here are five popular ABB models within the same brand:
| Model | Description | Input Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| AI810 | High-performance 8-channel analog input module | 8 | 86.1 x 110 x 58.5 mm | 0.275 kg |
| AI800 | Compact 4-channel analog input module | 4 | 86.1 x 110 x 58.5 mm | 0.200 kg |
| AI803 | 12-channel analog input module | 12 | 130 x 110 x 58.5 mm | 0.400 kg |
| DI801 | 8-channel digital input module | 8 | 86.1 x 110 x 58.5 mm | 0.275 kg |
| DO801 | 8-channel digital output module | 8 | 86.1 x 110 x 58.5 mm | 0.275 kg |
FAQs
-
Q: What is the input range of the ABB AI801-eA module?
A: The input range is 0 to 20 mA for current input and 0 to 10 V for voltage input. -
Q: Can this module be used for temperature measurement?
A: Yes, it can measure temperature when used with appropriate temperature sensors (e.g., RTDs or thermocouples). -
Q: How many input channels does the AI801-eA module support?
A: It supports 8 input channels. -
Q: What is the accuracy of the module?
A: The module has an accuracy of ±0.1% of full scale. -
Q: What is the power consumption of this module?
A: The power consumption is 3.3 W. -
Q: What is the operating temperature range for the AI801-eA?
A: The module can operate between -25°C to +60°C. -
Q: How is the module mounted?
A: The module is designed to be mounted on a DIN rail. -
Q: Is the AI801-eA module compatible with the AC500 series?
A: Yes, it is compatible with ABB’s AC500 series. -
Q: What type of signals can this module handle?
A: It can handle both current (0-20 mA) and voltage (0-10 V) signals. -
Q: What is the size and weight of the module?
A: The module measures 86.1 x 110 x 58.5 mm and weighs 0.275 kg.
