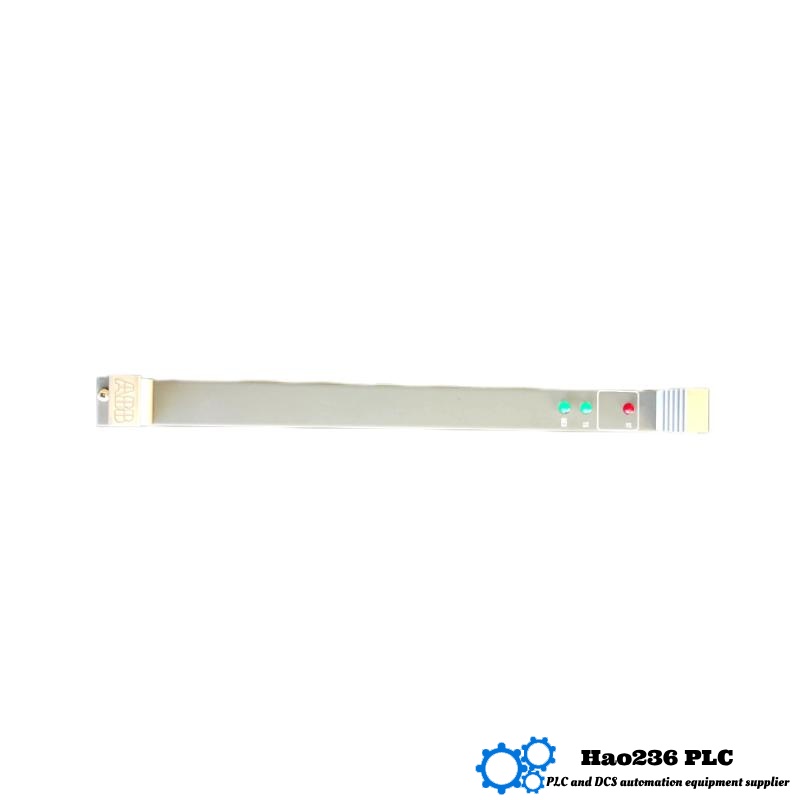

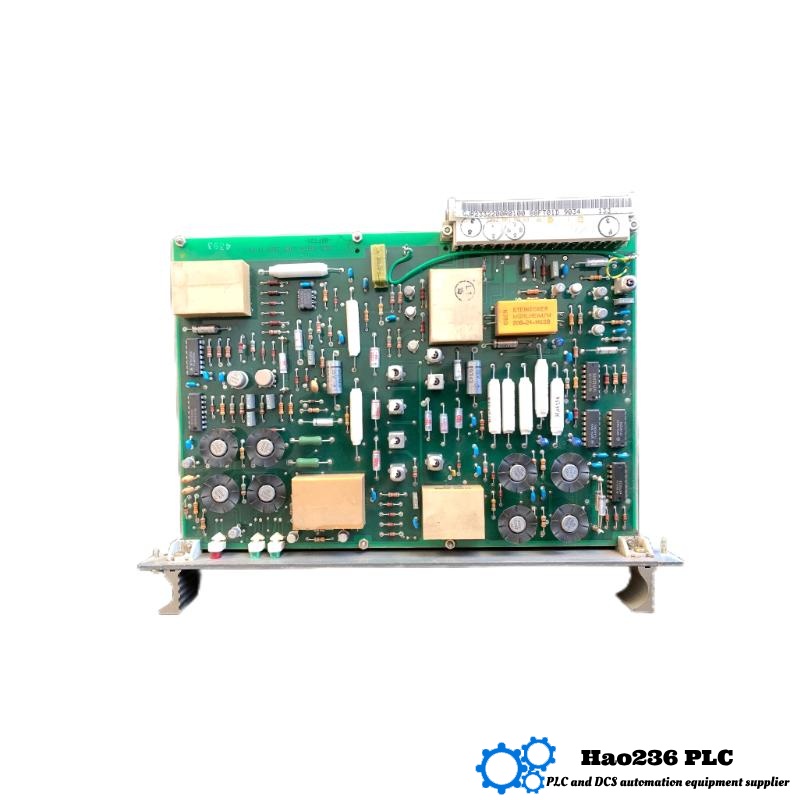

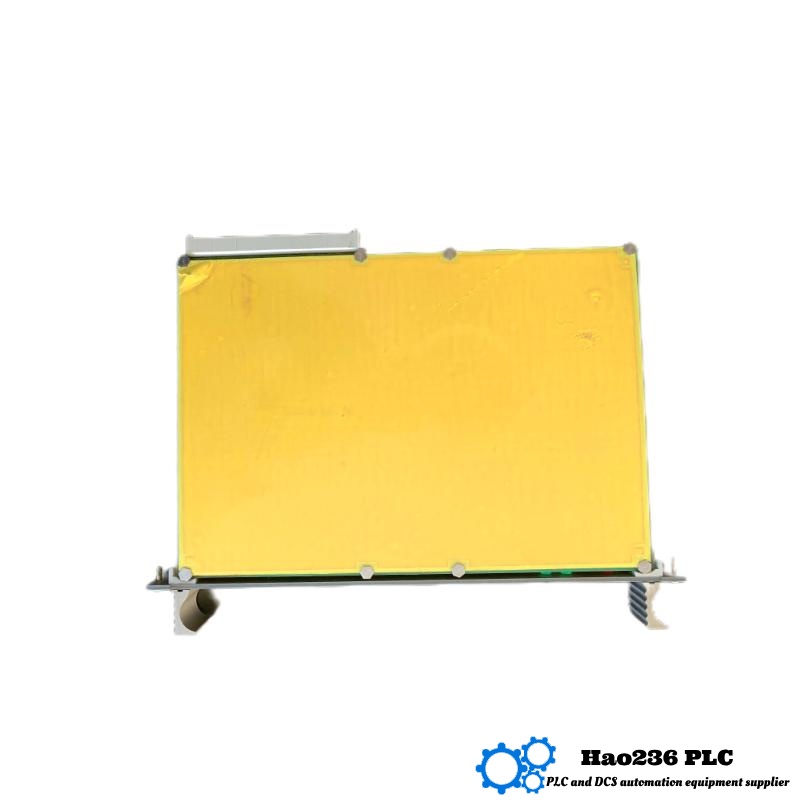

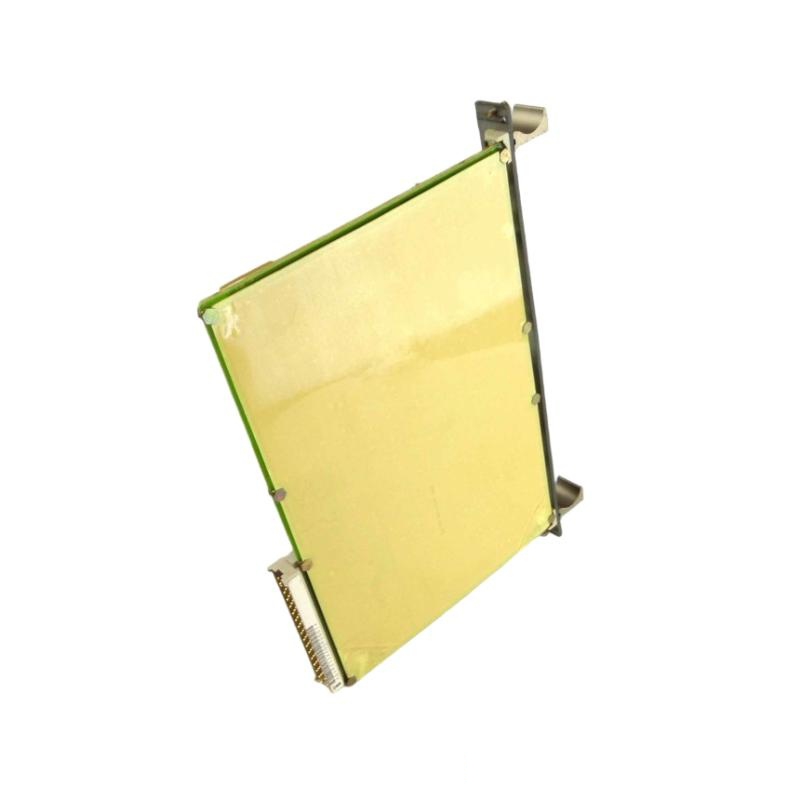

ABB 88FT01 GJR2332200R0100 Circuit Module
Product Introduction
The ABB 88FT01 GJR2332200R0100 is a compact circuit module designed for seamless integration into ABB’s distributed control and automation platforms. Housed in a robust enclosure measuring 120 x 80 x 40 mm and weighing 0.25 kg, this module provides essential electrical isolation, signal conditioning, and surge protection for I/O channels. Purpose-built for harsh industrial environments, it ensures reliable data transfer and long-term operational stability.
Developed under ABB’s stringent quality standards, the 88FT01 supports a variety of digital and analog signal types—allowing plant engineers to connect sensors, transducers, and actuators without additional external conditioning hardware. Its streamlined design reduces installation complexity and footprint, making it ideal for control cabinets with limited space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 88FT01 GJR2332200R0100 |
| Module Type | Circuit Module (Signal Conditioning & Surge Protection) |
| Dimensions (W x H x D) | 120 x 80 x 40 mm |
| Weight | 0.25 kg |
| Input Voltage Range | 12–30 V DC |
| Input Signal Types | 4–20 mA, 0–10 V, Digital (NPN/PNP) |
| Output Signal Types | 4–20 mA, 0–10 V, Digital Relay |
| Isolation Voltage | 2,500 V between channels and ground |
| Surge Protection | Transient voltage suppression up to 1 kV |
| Response Time | < 5 ms |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Certifications | CE, UL, RoHS |
Product Applications
The 88FT01 circuit module is suited for a wide range of industrial automation and control tasks:
-
Process Control Systems: Provides signal conditioning and surge protection for transmitters measuring flow, level, pressure, and temperature in chemical, oil & gas, and petrochemical plants.
-
Power Generation: Conditions analog signals from turbine sensors and generator protection relays, ensuring clean data transfer to the DCS.
-
Water & Wastewater Treatment: Interfaces with pump and valve position sensors, offering reliable signal isolation and robust protection in corrosive environments.
-
Manufacturing Automation: Serves on automated assembly lines to isolate PLC inputs from noise and surges generated by nearby motor drives and robotics.
-
Marine and Offshore: Fits into control panels on vessels and platforms, safeguarding instrumentation signals against electrical transients caused by switching loads.
Product Advantages
-
Compact Footprint: At 120 x 80 x 40 mm, the 88FT01 fits easily into dense control cabinets or local junction boxes without sacrificing functionality.
-
Multi-Function Signal Conditioning: Supports both current and voltage inputs/outputs, digital logic, and relay outputs—eliminating the need for separate modules.
-
High Isolation Rating: 2,500 V isolation protects sensitive control electronics from ground loops and common-mode noise.
-
Built-In Surge Protection: Transient suppression up to 1 kV ensures resilience against electromagnetic interference (EMI) and lightning-induced spikes.
-
Wide Operating Temperature: Reliable performance across –20 °C to +70 °C allows installation in varied industrial settings.
-
Simplified Installation: DIN rail or panel mounting options, combined with screw-terminal connections, expedite wiring and maintenance.
-
ABB Quality and Support: Backed by ABB’s global service network, ensuring component availability and technical assistance.
Brand Information
ABB is a global leader in power and automation technologies. The 88FT01 is part of ABB’s extensive portfolio of I/O and signal-conditioning products, reflecting the brand’s dedication to innovation, reliability, and customer support in industrial automation.
Related Models (Same Series or Functionally Similar)
| Model Number | Description | Signal Types Supported | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| 88FT02 GJR2332200R0200 | Circuit Module, 4–20 mA Input/Relay Output | 4–20 mA, Relay | 120 x 80 x 40 | 0.25 | Similar, optimized for relay switching |
| 88FT03 GJR2332200R0300 | Circuit Module, 0–10 V Input/Current Output | 0–10 V, 4–20 mA | 120 x 80 x 40 | 0.25 | Voltage-to-current conversion built-in |
| 88FT04 GJR2332200R0400 | Digital Input Interface Module | Digital (NPN/PNP) | 120 x 80 x 40 | 0.25 | Provides logic isolation for up to 16 channels |
| 88FT05 GJR2332200R0500 | Analog to Digital Signal Isolator | 4–20 mA, 0–10 V, Thermocouple | 120 x 80 x 40 | 0.30 | Includes thermocouple input option |
| 88FT06 GJR2332200R0600 | Surge-Protected I/O Module | 4–20 mA, Digital, Relay | 120 x 80 x 40 | 0.28 | Enhanced transient suppression (>1 kV) |
Popular ABB Models (Same Brand)
| Model Number | Description | Key Functions | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 88FT10 GJR2332200R1000 | Universal I/O Module | Supports RTTD, TC, mA, V | 120 x 80 x 40 | 0.3 |
| 88FT11 GJR2332200R1100 | High-Density Digital I/O Module | 32 Digital Channels | 120 x 80 x 40 | 0.35 |
| 88FT12 GJR2332200R1200 | Analog Output Module | 4–20 mA, 0–10 V Outputs | 120 x 80 x 40 | 0.3 |
| 88FT20 GJR2332200R2000 | Fieldbus Interface Module | HART, FOUNDATION fieldbus | 120 x 80 x 40 | 0.4 |
| 88FT30 GJR2332200R3000 | Multi-Sensor Signal Conditioner | mA, V, RTD, TC Inputs | 120 x 80 x 60 | 0.45 |
Frequently Asked Questions (FAQ)
Q1: What mounting options are available for the 88FT01?
A1: It supports both DIN rail and panel mounting, offering flexibility in control cabinet layouts.
Q2: Can the module handle both current and voltage signals?
A2: Yes, it conditions 4–20 mA and 0–10 V signals, as well as NPN/PNP digital inputs.
Q3: What level of surge protection does the 88FT01 provide?
A3: It features transient voltage suppression up to 1 kV to protect against EMI and lightning spikes.
Q4: How does the module achieve signal isolation?
A4: It offers 2,500 V optical isolation between I/O channels and ground, preventing ground loops and noise.
Q5: What temperature range can the 88FT01 operate in?
A5: It operates reliably between –20 °C and +70 °C, suitable for most industrial environments.
Q6: Is routine calibration required for the 88FT01?
A6: No routine calibration is needed; the module is factory-calibrated and maintains accuracy over time.
Q7: How are I/O devices connected to the module?
A7: Connections are made via screw terminals for quick wiring of sensors, transducers, and actuators.
Q8: Does the 88FT01 work with ABB’s fieldbus systems?
A8: Yes, it integrates seamlessly with ABB’s DCS and fieldbus platforms, including support for HART and Foundation fieldbus via companion modules.
Q9: What certifications does this module carry?
A9: The module is CE- and UL-listed, and complies with RoHS environmental directives.
Q10: What support does ABB provide for installation and troubleshooting?
A10: ABB offers comprehensive documentation, application notes, and global technical support for installation, configuration, and diagnostics.
